To reset and start an Aston Martin Vantage after charging the battery, follow these steps:

1. Ensure Sufficient Charge – Charge the battery for a few hours or a full day on a low setting.
2. Check Electrical Systems – Turn on the headlights to see if dip and full beam work, and check if the height adjusters function. If not, the battery may be faulty.
3. Use the Key to Reset – Insert the key into the ignition and turn it on. If the battery has enough charge, the system will reset.
4. Battery Reset Switch (Older Models) – On early models, locate the battery reset switch behind the driver's seat and activate it.
5. Jump Start (If Necessary) – If the car does not start, connect a donor battery using proper jump-starting procedures:
- Position the donor vehicle and keep its engine running.
- Access the jump start terminal in the engine bay.
- Use good-quality jump leads to connect the positive and negative terminals correctly.
6. Replace Battery if Needed – If the battery does not hold a charge, replace it before attempting to start the vehicle.

Following these steps should reset the system and allow the car to start.

This answer is automatically generated

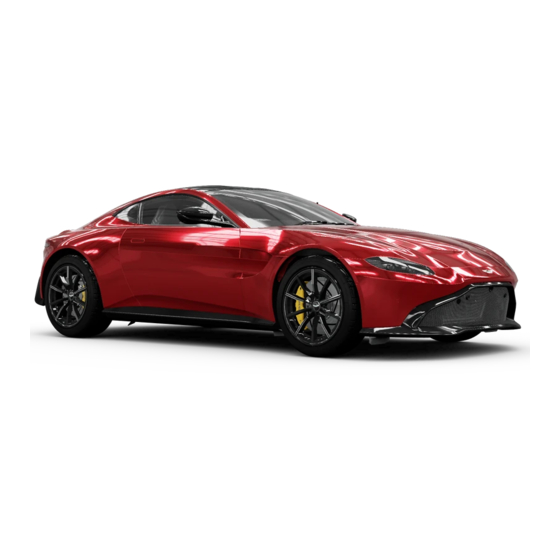

Summary of Contents for Aston Martin Vantage

Page 2 Welcome Airbag Warning Labels Welcome to your new Aston Martin Vantage. This Owner’s Handbook has been designed to explain the Warning: Extreme Hazard: NEVER use a rearward facing vehicle’s operation and to make the control of its systems easy to child restraint on a seat protected by an ACTIVE AIRBAG in understand and operate.
Page 3 Vehicle Identification Component Location The Vehicle Identification Number (VIN) is shown in the left side bottom corner of the windscreen. All directions for locating components are described as viewed from the driver’s seat, i.e. the fuel filler flap shown on this diagram will be described as ‘located at the rear right side of the vehicle’.
Page 4 This information may be stored under regular operation, in a crash or in a near crash event. This information can be read and used by: • Aston Martin • Service and repair facilities • Law enforcement or government agencies •...
Page 5 • Never drive under the influence of alcohol or drugs. immediately inform your Aston Martin Dealer or the Aston • Always obey all speed and traffic laws and regulations. Never Martin Client Services at the address shown.
Page 6 Aston Martin Owners' Club (AMOC) An invitation to join the Aston Martin Owners' Club The sporting spirit of the 1930s exists today in one of the world’s most exclusive car clubs. Enthusiasts in nearly 60 countries are united by an interest in iconic cars with an enviable pedigree.
Page 7 The Aston Martin Heritage Trust is an educational charity dedicated to the preservation, promotion and enhancement of over 100 years of history of Aston Martin. Its world class collection comprising the automotive museum, substantial archive and collection of historical artefacts is housed in the magnificently restored Grade II* listed barn in Oxfordshire which it shares with the Owners' Club.
Page 8 Satellite Navigation ..............9 Aston Martin Dealer for further information. Vehicle Settings..............10 © Copyright Aston Martin Lagonda Limited, 2020. All Rights Convertible Roof ..............11 Reserved. This publication is provided with your vehicle for your Maintenance and Technical Data ......... 12 personal, private and non-commercial use.
Page 9 Produced by the Technical Publications Department Aston Martin Lagonda Limited Banbury Road Gaydon Warwick CV35 0DB England Telephone: +44 (0)1926 644300 Issue 1: May 2020 Part Number: MY63-19A321-AA Barcodes conform to AML specification AMES000043...
Page 11 Quick Start Vehicle Key ................. 1.2 Driving Position..............1.3 Vehicle Controls ..............1.6 Infotainment ..............1.11...
Page 12: Vehicle Key
Vehicle Key Global Close What Do The Buttons On The Key Do? (Refer to ’Vehicle Key’, page 2.2) Press and hold to unlock all vehicle doors and open all windows. Press and hold to lock all doors and close all windows. Keyless Entry To unlock the vehicle, fully push the front edge of the door handle.
Page 13: Driving Position
Driving Position How Do I Adjust The Seat? [1] BOLSTER/LUMBAR ADJUSTMENT SELECTOR SWITCH (OPTIONAL): Press the switch up to select lumbar adjustment. (Refer to ’Seat Adjustment’, page 3.2) Press down to select bolster adjustment. [2] BOLSTER/LUMBAR ADJUSTMENT: Use the directional pad to adjust the position of the lumbar or bolster support.
Page 14 What Do The Door Switches Do? [A] DOOR MIRROR SELECTOR: Press to select left or right door mirror (Refer to ’Exterior Mirrors’, page 3.6). [B] DOOR MIRROR ADJUSTMENT: Use the direction pad to adjust the mirror position. [C] WINDOW SWITCH: Press or pull to operate the driver or passenger windows (Refer to ’Windows’, page 3.4).
Page 15 How Do I Adjust The Steering Column? How Do I Use The Memory Positions? (Refer to ’Setting a Memory Position’, page 3.8) (Refer to ’How Do I Use The Memory Positions?’, page 1.5). Push the lever down or up to adjust the steering column angle. Setting a Position Pull the lever towards you to bring the steering wheel closer and Adjust the seat, steering column and the door rear view mirrors...
Page 16: Vehicle Controls
Vehicle Controls What Do The Lower Switches Do? [1] HAZARD WARNING SWITCH: Press to set the hazard warning lamps on or off. [2] PARK DISTANCE CONTROL: Press to set the Park Distance Control (PDC) sensors to on or off. [3] REVERSE CAMERA: Operates the camera system. [4] RADIO: Open the radio menu.
Page 17 What Does The Control Dial Do? [1] CONTROL DIAL: Use to navigate through menus in the infotainment system. Press down to confirm a selection (referred to as ENTER throughout this handbook). [2] TOUCH PAD: Touch sensitive pad which can be used to navigate menus in the infotainment system.
Page 18 What Are The Steering Wheel Controls? [1] ADAPTIVE DAMPING: Press to cycle adaptive damping modes (Refer to ’Adaptive Switches Damping’, page 5.19). [2] START VOICE CONTROL: Press to start voice control (Refer to ’Voice Control’, page 4.14). [3] MENU HOME: Press to open the instrument cluster menu (Refer to ’Instrument Cluster Menu’, page 4.11).
Page 19 [6] CALL: Transmission Paddles Press to answer an incoming call (Refer to ’Calls’, page (Automatic Transmission only) 7.5). Pull back on either paddle to enter Touchtronic mode (Refer to [7] MENU BACK: ’Touchtronic Controls’, page 5.7). Press to take the instrument cluster menu back one level. [8] HORN: Push to sound the vehicle horn.
Page 20 What Do The Stalks Control? Wiper Controls Indicators and Headlamp Beam Rotate the wipe speed selector (A) to select a wipe speed. [1] : Windscreen wipers OFF [2] : Intermittent wipe (low rain sensor sensitivity) Main Beam [3] : Intermittent wipe (high rain sensor sensitivity) Push the stalk for main beam headlamps.
Page 21: Infotainment
Infotainment How Do I Turn On The Exterior Lamps? How Do I Activate The Vehicle Bluetooth? Bluetooth® must be activate on both the vehicle and the mobile device to be used. Before a Bluetooth® device can be used with the vehicle Bluetooth®, the vehicle's Bluetooth®...
Page 22 Bluetooth® devices in its range. Select Aston Martin Vantage from the device list. If Aston Martin Vantage does not show, check that Bluetooth is active in the infotainment system and search again. Follow the instructions shown on the phone and the infotainment display to pair the phone.
Page 23 How Do I Pair A Bluetooth Audio Device How Do I Change The Media Source? (Refer to ’Bluetooth Connection’, page 8.15) Press or select Media from the main menu to show the Bluetooth® audio must be paired to the vehicle available media sources.
Page 24 What Can I Listen To? Portable Media Audio Radio Press on the centre stack or select Media from the main (Refer to ’Radio’, page 8.4) menu to open the media Now Playing screen. The Now Playing screen shows track information such as album Press on the centre stack or select Radio from the main art, artist and album name on the left side of the screen along...
Page 25 What Can I Watch? How Do I Set A Navigation Destination? Portable Media Video (Refer to ’Destination’, page 9.9) Video files from portable media can also be supported with the Press or select Nav to open the Navigation screen. infotainment system. In the Now Playing screen, highlight the Select Destination from the lower information bar and select view window area and press ENTER.
Page 26 1.16 Quick Start...
Page 27: Table Of Contents
Vehicle Security Vehicle Key ................. 2.2 Unlocking and Opening ............2.5 Emergency Access and Start..........2.9 Anti-Theft Systems............. 2.12 Aston Martin Tracking ............2.13 Homelink® Wireless Control..........2.18...
Page 28: Vehicle Key
If a vehicle key is lost, contact your Aston Martin Dealer. If the vehicle key is not in the vehicle, the message 'Key Not Found' will be displayed in the instrument cluster when trying to start the vehicle.
Page 29 One Step Unlocking Vehicle Key Battery The vehicle key can be set to either unlock only the drivers door Warning: The vehicle key contains a small cell battery. Do not ingest or swallow the battery. If the battery is swallowed, on a single press of or all vehicle doors.
Page 30 Battery Replacement 2. Push down on the battery to tilt the battery (B) and allow access. To replace the vehicle key's battery: 1. Lift the battery cover (A). 3. Remove the battery and install the new battery with the (+) sign facing up.
Page 31: Unlocking And Opening
Unlocking and Opening Keyless Go Zones Unlocking From Outside the Vehicle The Keyless Go function for vehicle locking and ignition will Using The Vehicle Key operate when a vehicle key is inside the vehicle cabin or in one Stand within 5 m (16 ft) of the vehicle, and press .
Page 32 Automatic Locking Using Keyless Entry To unlock the vehicle with keyless-entry active, fully push at point If the vehicle is unlocked but a door or the tailgate is not opened (A) and open the door handle. The front edge of the door handle within 40 seconds, the vehicle will automatically lock and arm will press a switch and the door will unlock and open.
Page 33 Interior Lock Switches Automatic Locking Feature The doors can be locked and unlocked by using the master The central locking can be set to automatically activate once the vehicle speed exceeds 3 km/h (2 mph). unlock (1) and lock (2) switches. The automatic locking feature can be activated or deactivated by pressing and holding either the master lock or unlock buttons.
Page 34 Easy Entry/Exit Tailgate Opening The Tailgate Outside the Vehicle The Easy Entry/Exit function could cause an occupant to become trapped and/or cause injury. Keep clear of the Press and hold (A) on the vehicle key to enable the release steering wheel when the Easy Entry/Exit function is used. catch and lift the Tailgate.
Page 35: Emergency Access And Start
Do not store the emergency key in the vehicle. If the vehicle battery is fully discharged you will need the emergency key to gain access to the vehicle. If the emergency key is lost, contact your Aston Martin Dealer. Closing the Tailgate Push the tailgate down and make sure that the catch engages.
Page 36 Emergency Engine Start Open the door handle and insert the emergency key in the door lock and turn clockwise. Only that door will be unlocked. If the If the keyless start system fails to start the vehicle, the engine can security system was armed, the alarm will start.
Page 37 4. Insert the key into the emergency ignition slot and turn the key clockwise to start the vehicle. If the keyless ignition system fails, contact your Aston Martin Dealer. If the emergency ignition is used to start the vehicle, the START button is disabled.
Page 38: Anti-Theft Systems
Anti-Theft Systems Introduction Alarm This vehicle is protected by an electronic security system which When the alarm has started a siren will be heard for a 25 seconds includes: cycle (ten cycles maximum) and the direction indicators flash five minutes after which the security system returns to the armed •...
Page 39: Aston Martin Tracking
The interior motion sensor will activate 10 seconds after the Please consult your Aston Martin Dealer for details and vehicle is locked and all doors and the tailgate are closed, and the subscription rates.
Page 40 Conforms to the highest European accreditations for stolen Set by the Secure Operating Centre when the vehicle has been vehicle tracking systems - Thatcham, Incert (formerly Assuralia) given to the Aston Martin Dealer for maintenance. and SCM and is approved by major insurers. Theft History Minute by minute theft log helps Police secure convictions.
Page 41 How the System Works If your Vehicle is Stolen The Aston Martin Tracking system is supplied with two unique After an alert has been received, the Secure Operating Centre driver cards. An authorised driver must have a driver card in their advisor will attempt to contact you using the telephone number(s) possession when using the vehicle.
Page 42 Keep these details safe and not Change of Details in the vehicle so you can refer to them if your vehicle is stolen. You must call Aston Martin Tracking Customer Services if any of your personal details change. For example: • Change of address.
Page 43 Radio Equipment Directive Telematics Unit Hereby, Vodafone Automotive SpA declares that the radio Driver Card equipment types 2147 and 2149 are in compliance with Hereby, Vodafone Automotive SpA declares that the radio Directive 2014/53/EU. The full text of the EU declaration of equipment types 2781 and 8015 are in compliance with conformity is available at the following internet address: Directive 2014/53/EU.
Page 44: Homelink® Wireless Control
This device may suffer from interference if operated near to a For information or assistance, contact your Aston Martin Dealer. mobile or fixed station transmitter. This interference can affect the hand-held transmitter as well as the in-vehicle transceiver.
Page 45 Programming 2. Press the HomeLink button you want to program. the HomeLink symbol should begin to slowly flash orange. Step 1 will clear previously programmed devices and is only 3. Press and hold the remote control for the device to be necessary if programming HomeLink for the first time or when programmed at a distance of 20 mm to 200 mm (1"...
Page 46 4. Press and hold the remote control button until the 5. Press the newly programmed HomeLink button. HomeLink symbol turns to either rapidly flashing or • If the symbol stays constantly green, programming is continuously green. complete and your device should operate when the HomeLink button is used.
Page 47 Operation Reprogramming The vehicle should be within the operating range of the device To program a new device, press and hold the desired HomeLink and the ignition should be ON. button for 20 seconds until the LED starts flashing slowly. That button may now be programmed to work with a different device.
Page 48 Radio Equipment Directive Hereby, Gentex Corporation declares that HomeLink® Model UAHL5 is in compliance with Radio Equipment Directive 2014/ 53/EU. The full text of the EU Declaration of Conformity is available at the following internet address: http:// www.homelink.com/regulatory Frequency Bands in which the radio equipment operates: •...
Page 49 Before Driving Checks Before Driving ............3.2 Seat Adjustment ..............3.2 Windows................3.4 Mirrors ................3.6 Steering Column ..............3.7 Memory Functions .............. 3.8 Occupant Restraint System..........3.9 Child Safety............... 3.17 Child Seats - ISOFIX Installation......... 3.21 Child Seats - Seat Belt Installation ........3.26 Storage................
Page 50: Checks Before Driving
Checks Before Driving Seat Adjustment Inspect your vehicle to make sure that everything is according to Warning: Do not adjust the drivers seat whilst driving. the information and specifications in this Owner’s Guide. The seats can also be adjusted: Outside the Vehicle: •...
Page 51 Seat Controls [1] LUMBAR/BOLSTER ADJUSTMENT SELECTOR SWITCH: Press the switch up to select lumbar adjustment. Press down to The ignition must be on before the lumbar and bolster select bolster adjustment support can be operated. [2] LUMBAR/BOLSTER ADJUSTMENT: Use the directional pad to adjust the position of the lumbar or bolster support [3] SEAT POSITION ADJUST: Seat forward/backward and height adjust.
Page 52: Windows
Windows The driver and passenger seats include non-adjustable head Warning: Misuse of the window switches, especially by restraints, which limit the rearward travel of the head in a rear children, can result in injury due to entrapment in the impact and may reduce whip lash injuries. When sitting in the window closure.
Page 53 Press or pull past resistance on the window switch to perform a Door Sealing one-touch movement down or up. Warning: Make sure that all passengers are clear when the window mechanism is operating. To minimise wind noise and to make sure that the window seal is watertight, a door sealing system is used to provide a tight fit of the door glass to the seals around the top of the door opening.
Page 54: Mirrors
Mirrors Interior Mirrors Exterior Mirrors To adjust the exterior mirrors press the mirror switch (A) left or right to select a side to adjust. Move the direction pad (B) up, down, left or right to adjust the selected mirror. Automatic Dim Adjust the mirror (A) on its ball mounting until a satisfactory rear view is obtained.
Page 55: Steering Column
Steering Column Adjustment Heated Mirrors The heated door mirrors will operate when the heated rear Warning: Do not adjust the steering wheel whilst driving. window is switched on. The steering column can be adjusted with the ignition set to Mirror Fold OFF.
Page 56: Memory Functions
Memory Functions Setting a Memory Position (Optional) Warning: Make sure that there is nothing in the movement path of the seat or the steering column during adjustment that could cause obstruction. Warning: To avoid injury, make sure that children do not play with the memory position switches.
Page 57: Occupant Restraint System
Occupant Restraint System To Save A Memory Position The system provides protection to the driver and all passengers in a variety of impact conditions. Warning: Do not attempt to adjust the driver's seat whilst The system consists of: driving. • Driver and passenger safety belts with dual pre-tensioners and Adjust the seat, steering column and the exterior rear view load limiting systems.
Page 58 (crash If either of these conditions occur, even intermittently, have the severity, belt usage, etc.) were not appropriate to operate these restraint system serviced at your Aston Martin Dealer safety devices. immediately. Unless serviced, the system may not operate Front airbags are designed to operate only in frontal and near- correctly in the event of a collision.
Page 59 Aston Martin Dealer. Warning: Be sure that you and your passengers always fasten their seat belts and use them correctly even though airbags are provided.
Page 60 Pre-tensioner and Load Limiting Warning: No modifications or additions should be made by the user which will either prevent seat belt adjusting Seat belts are equipped with dual pre-tensioners and load devices from operating, or prevent seat belt assembly from limiting systems.
Page 61 Seat Belt Fastening Pull out the seat belt, drawing the buckle over the shoulder and across the chest. When parked on an incline, the seat belt may lock as it is withdrawn. This is not a fault. If the mechanism locks, release the belt tension and then pull the belt very gently to avoid operation of the inertia lock.
Page 62 Pull upwards on the diagonal belt to make sure that the latching Seat Belt Unfastening is secure and to remove all slack from the belt. Push the button on the buckle. While holding the seat belt Check that the lap belt is installed snugly, low down across the buckle, allow the belt to slowly retract to its stored position.
Page 63 Airbags The side airbags (C) located in the front seats and the curtain airbag (D), located in the roof trim (coupe) or door trim (roadster), The purpose of the airbags is to provide additional protection for only deploy according to which side has been impacted in a the driver and passenger in the event of a serious impact (front or serious side collision.
Page 64 Airbag Deployment Warning: The use of accessory seat covers may prevent the deployment of the seat side airbags and increase the risk of injury in an accident. Do not use accessory seat covers. Warning: All passengers, including the driver, should always wear seat belts, whether or not an airbag is provided, to decrease the risk of injury or death in the event of a crash.
Page 65: Child Safety
Child Safety Airbags inflate rapidly and with considerable force; there is Aston Martin Strongly Recommends: therefore a risk of death or serious injury such as fractures, facial • Always use ISOFIX anchors where available. and eye injuries or internal injuries, particularly to passengers •...
Page 66 Passenger Airbag Deactivation Your vehicle has the following devices for the installation of child restraints: Warning: Before installing a child seat on the passenger • Passenger Airbag Deactivation (PAD). (Refer to ’Passenger seat, the passenger airbag must be set to OFF. Airbag Deactivation’, page 3.18) Warning: Before driving always confirm that the PAD •...
Page 67 At ignition ON if the front passenger airbag is set to OFF, then PASS AIRBAG OFF will show in the message centre. The PAD switch should be inspected by an Aston Martin Dealer if any of the following conditions occur: •...
Page 68 Warning Labels Child Seats and Front Passenger Airbag Warning: Never place a child in a child seat or on a Warning: Extreme Hazard: NEVER use a rearward facing booster cushion on the passenger seat if the airbag is set to child restraint on a seat protected by an ACTIVE AIRBAG in front of it.
Page 69: Child Seats - Isofix Installation
Child Seats - ISOFIX Installation All markets with ISOFIX Front seat. Table Key (Sport Seat Only) IUF: Suitable for ‘ISOFIX’ forward child restraints systems of universal category approved for use in the mass group. Always follow the child seat manufacturer’s instructions. Not following the child seat manufacturer’s instructions when IL: Suitable for particular ISOFIX Child Restraint Systems (CRS) installing the child seat is dangerous.
Page 70 ISOFIX Anchors i-Size Child Restraints. Always follow the child seat manufacturer’s instructions. Not (Optional With Sport Seat) following the child seat manufacturer’s instructions when Warning: An unsecured child seat is dangerous. In a installing the child seat is dangerous. sudden stop or a collision it could move, causing serious Front Passenger injury or death to the child or other passengers.
Page 71 The passenger seat is equipped with ISOFIX (International To install a child seat using ISOFIX, use the procedure that Standards Organisation FIX) anchors for the installation of child follows: seats. The anchors (A) are located between the seat base and the 1.
Page 72 3. Fully recline the back of the seat (the front of the seat will 5. Move the passenger seat backwards. The back of the move forward until the seat back is fully reclined). passenger seat will then rise. Continue to move the seat back until the child seat is supported by the back of the passenger seat.
Page 73 Tether Anchors (Optional) The tether anchor point for the passenger seat is located at the Warning: An infant or child that is not properly restrained rear base of the passenger seat. Move the seat forward to access can be seriously injured or killed in a crash. Seat belts are the tether anchor point.
Page 74: Child Seats - Seat Belt Installation
Child Seats - Seat Belt Installation Consult with local manufacturers of forward facing restraint and Warning: An unsecured child seat is dangerous. In a booster cushions. These manufacturers can supply you with sudden stop or a collision it could move, causing serious advice on the safety of their particular child restraints and also injury or death to the child or other passengers.
Page 75 Seat Position - Seat Belt Installation Table Key U: Suitable for 'universal' category restraints approved for this Warning: Always follow the child seat manufacturer’s mass group. instructions for correct installation. Not following the child UF: Suitable for forward facing 'universal' category restraints seat manufacturer’s instructions when installing the child approved for this mass group.
Page 76 ALR Operation Passenger Seat Installation Gently pull out the seat belt until fully extended. The ALR system To install a child seat to the front seat using the seat belt, use the will only engage at the maximum extension point of the seat belt. procedure that follows: Thread the belt tongue through the child seat as per the child seat 1.
Page 77: Storage
Storage Door Pockets Armrest Storage Box Both front doors have door pockets. The armrest storage box gives access to the media interface panel (SD card port and two USB ports), a 12V accessory power socket Do not use the door pocket to store items that could easily and the emergency ignition switch.
Page 78 Luggage Space Rear Console Storage Box (Roadster Only) Boot Divider There is a stowage box in the rear of the cabin to offer increased (Coupe Only) storage in the cabin. Press the stowage box button (A) to open the The boot divider can be raised or lowered to create a partition or box.
Page 79: Accessory Sockets
Accessory Sockets Parcel Shelf Warning: Only connect accessories which are designed The parcel shelf can be removed to increase the available height for use in a motor vehicle with a 12V electrical system. The in the luggage compartment. to remove the parcel shelf: electrical system could become damaged if there is more than 10A used from the accessory socket.
Page 80 Ashtray and Cigar Lighter (Optional) Warning: The cigar lighter will be very hot when in use. Always hold the cigar lighter by the handle and always make sure that the cigar lighter is out of reach of children. Never leave children unattended in a vehicle that has a cigar lighter.
Page 81 Controls Instrument Display .............. 4.2 Centre Stack Controls ............4.5 Steering Wheel Controls ............ 4.10 Instrument Cluster Menu ........... 4.11 Voice Control ..............4.14 Wiper Controls..............4.15 Lighting Controls ............... 4.15...
Page 82: Instrument Display
A warning message will also show in the right systems test and then turn off. If it does not come on, or if it instrument cluster window. Contact your Aston Martin Dealer as comes on and stays on, or if it comes on whilst driving, the soon as possible.
Page 83 Consult your Aston This symbol shows there is a fault with the EPAS system. Consult Martin Dealer as soon as possible your Aston Martin Dealer as soon as possible. [11] ABS: [7] MALFUNCTION INDICATION LAMP:...
Page 84 Instrument Cluster Overview [4] INSTRUMENT CLUSTER MENU: Shows an auxiliary screen for a number of vehicle functions (Refer to ’Instrument Cluster Menu’, page 4.11). Warning messages will also appear in the right side of the instrument cluster. [5] CLOCK: Shows the time. [6] DRIVE MODE SETTING: Shows which drive mode the vehicle is in (Refer to ’Drive Modes’, page 5.12).
Page 85: Centre Stack Controls
Centre Stack Controls [1] HAZARD WARNING SWITCH: Press to set the hazard warning lamps on or off. [2] PARK DISTANCE CONTROL: Press to set the Park Distance Control (PDC) sensors to on or off. [3] REVERSE CAMERA: Operates the camera system. [4] RADIO: Open the radio menu.
Page 86 Control Dial [1] CONTROL DIAL: Use to navigate through menus in the infotainment system. Press down to confirm a selection (referred to as ENTER throughout this handbook). [2] TOUCH PAD: Touch sensitive pad which can be used to navigate menus in the infotainment system. Press down to confirm a selection (referred to as ENTER throughout this manual).
Page 87 Touch Pad To press ENTER press down on the surface of the touch pad. Touch Pad ON/OFF To activate the TOUCH PAD navigate to the Vehicle Settings menu and open the System Settings menu (Refer to ’System Settings’, page 10.3). Select Activate Touch Pad to activate the TOUCH PAD.
Page 88 Quick Access Menu Rotary Controls To open the Quick Access menu, use two fingers and swipe up The touch pad can also be used to operate rotational controls. Use two fingers to rotate as shown. or press The Quick Access menu will then show an overview window either: •...
Page 89 Zoom Handwriting Recognition Pinch together to zoom out, or swipe apart to zoom in. Where text needs to be entered, such as writing a text message, characters can be 'written' using the touch pad. To begin handwriting recognition, press ENTER on the touch pad. To enter characters, trace the outline on the surface of the touch pad.
Page 90: Steering Wheel Controls
Steering Wheel Controls [1] ADAPTIVE DAMPING: Press to cycle adaptive damping modes (Refer to ’Adaptive Damping’, page 5.19). [2] START VOICE CONTROL: Press to start voice control (Refer to ’Voice Control’, page 4.14). [3] MENU HOME: Press to open the instrument cluster menu (Refer to ’Instrument Cluster Menu’, page 4.11).
Page 91: Instrument Cluster Menu
Instrument Cluster Menu [7] MENU BACK: Press to go back one level in the instrument cluster menu. [8] HORN: Push to sound the vehicle horn. [9] END VOICE CONTROL: End voice control. [10] END CALL: Press to end a call or reject an incoming call. [11] VOLUME DIAL: Roll the volume scroll wheel up or down to increase or decrease volume for the audio system, or volume The instrument cluster includes a secondary infotainment system...
Page 92 Trip Use the button (A) to open the menu home screen. Scroll The trip menu will show journey information about the vehicle. through the available options with the menu scroll wheel (B) and From the trip menu select: select an item by pressing the scroll wheel button (referred to in •...
Page 93 Navigation Service Shows the next turn if a route has been set. If no route has been The service menu shows information on vehicle. Select from: set, shows direction of travel. • Messages: Radio Show any stored warning messages. • Tyres Pressure: Shows the selected radio station.
Page 94: Voice Control
Voice Control Individualisation Individualisation is a function that can help refine the Voice Control system to your own voice. To begin individualisation, navigate to Vehicle on the main menu and select System Settings on the lower information bar. Select Voice Control and select Individualisation.
Page 95: Wiper Controls
Wiper Controls Lighting Controls Exterior lamps Master Lamp Switch Turn the dial to the required light setting. Press the fog lamp button to operate the rear fog lamp. Rotate the wipe speed selector (A) to select a wipe speed. [1] : Windscreen wipers OFF [2] : Intermittent wipe (low rain sensor sensitivity) [3] : Intermittent wipe (high rain sensor sensitivity) [4] : Continuous wipe (slow)
Page 96 Automatic Headlamp Mode Stalk Controls If ambient light fades, headlamps, rear and registration plate lamps will switch ON automatically. If ambient light then increases, headlamps, rear and registration plate lamps will automatically go OFF. Automatic lamps are market specific. The automatic headlamp function features an internal timer that starts when the lamps are turned on.
Page 97 Interior Lamps Hazard lamps The hazard warning lamps will continue to operate if the Instrument Illumination ignition is switched off. During the daylight hours the level of instrument brightness defaults to maximum brightness. During the twilight and night Press the hazard warning lamp button (A) to set the hazard time hours, a twilight sensor located at the top of the windscreen warning lamps to on.
Page 98 Reading Lamps Two reading lamps (A) are located in the front header trim. To operate the lamps (on or off) use the reading lamp switch for either side (B). Unless set to off or on they will continue to operate up to six minutes after the ignition is set to off.
Page 99 Driving Driving Techniques ............. 5.2 How To Start The Engine............. 5.4 Transmission Controls............5.5 Cruise Control with Speed Limiter ........5.9 Drive Modes ..............5.12 Blind Spot Assist ..............5.16 Adaptive Damping ............5.19 Brakes ................5.20 Electronic Stability Program (ESP)........5.26 Tyre Pressure Monitoring System (TPMS) ......
Page 100: Driving Techniques
To make sure that you have a safe and enjoyable Performance driving courses are available to enable you to fully entry into this new phase of Aston Martin motoring, please take understand the control functions of your vehicle and also the time to safely acquire the necessary new driving skills.
Page 101 Wet Conditions Driving Through Deep Water When driving in wet conditions, water can build up under your If in any doubt whether to drive through deep water, always take tyres so that they ride on a layer of water. This is called the side of caution to avoid potentially costly damage to the aquaplaning or hydroplaning.
Page 102: How To Start The Engine
How To Start The Engine Warning: The engine can be started by any person in the Caution: Make sure the park brake is applied and the vehicle if the brake pedal is pressed down. Care should be transmission (automatic) is in PARK (P). taken that the vehicle is not left unattended with the key This will prevent the vehicle from moving once the engine is present and occupants such as young children inside.
Page 103: Transmission Controls
Transmission Controls Automatic Transmission Touchtronic Mode In Touchtronic mode, forward gears and Neutral are selected by The automatic transmission has two main driver modes. using the paddles located behind the steering wheel. Reverse and Automatic Mode Park are selected by using the PRND buttons. In Automatic mode, gearshifts are made using the Park, Reverse, While in Touchtronic mode, move to Automatic mode at any Neutral and Drive (PRND) buttons mounted on the lower...
Page 104 PRND Buttons [1] P (PARK): Press and release to select Park when the vehicle is stationary. The transmission will mechanically lock. Caution: Always make sure that the park brake is ON. This will help to make sure the vehicle will not roll. It is not possible to select Park above 2 km/h.
Page 105 Touchtronic Controls Pull back on either the upshift (+) or downshift (-) paddle to enter Touchtronic mode. As the vehicle speed increases and decreases, Forward gearshifts are selected with the gearshift paddles make upshifts and downshifts with the upshift or downshift mounted on the steering column.
Page 106 Manual Transmission You must overcome spring resistance to move the gearstick left to select reverse gear. Gearshifts Caution: Do not drive with your foot resting on the clutch Take time to familiarise yourself with the gear selection pedal, and make sure that the clutch pedal is fully pushed pattern on this vehicle as it may be unfamiliar to some users.
Page 107: Cruise Control With Speed Limiter
Cruise Control with Speed Limiter AMShift Warning: Only use cruise control or the variable speed When AMShift is active, up or down shifts do not require the limiter if road and traffic conditions are appropriate for driver to lift their foot off the accelerator pedal. The engine maintaining a steady speed for a prolonged period.
Page 108 Selecting Cruise Control or Speed Limiter Operation Cruise control can be used to maintain a selected vehicle speed without having to use the accelerator. The variable speed limiter brakes automatically so that you do not exceed the set speed. This feature is an aid only and cannot take into account road, weather or traffic conditions.
Page 109 Setting A Speed Resuming the Set Speed Lightly push the cruise control lever up to increase speed, or Warning: Set speed should only be resumed if the driver down to decrease speed in 1 km/h (1 mph) increments. A hard is aware of the set speed and intends to return to it.
Page 110: Drive Modes
Drive Modes Deactivating Cruise Control Vehicle driving characteristics, such as gear changes and throttle response, can be changed by selecting different drive modes. Push the cruise control lever away from you to deactivate cruise control or speed limiter. Three drive modes are available. Press the S button (A) to cycle between: The cruise control and speed limiter set speeds will also be cleared when the ignition is set to off.
Page 111 Sport Mode The selected mode will be shown in the right instrument cluster window (B). Sport mode provides a default sport setting, best suited to Drive modes operate independently of Electronic Stability casual and motorway driving. Program (ESP) and Adaptive Damping System (ADS) modes. The Stop/Start(Refer to ’Stop/Start’, page 5.32)function is available to improve fuel economy.
Page 112 Sport+ Mode Track Mode Sport+ gives an increased throttle response with a more Track mode further increases engine response, with the sporting throttle pedal calibration. exhaust bypass valves also revised to open at lower engine loads and speed. The exhaust bypass valves operate at lower engine speed to give a sense of increase driver involvement.
Page 113 Launch Mode To activate launch mode: 1. The vehicle must meet all of the below conditions: Warning: It is always the drivers responsibility to drive • The engine must be at normal operating temperature. safely according to the law and with due regard to prevailing •...
Page 114: Blind Spot Assist
Blind Spot Assist Launch mode will be cancelled if: Warning: Blind Spot Assist is for visual aid only and does • The vehicle is held in launch mode for more than 5 seconds. not replace the need for driver awareness. It is the driver's •...
Page 115 Operation Conditions If a vehicle is detected at speeds above approximately 30 km/h (18 mph) and enters the monitoring range directly next to your For the Blind Spot Assist system to operate the below conditions vehicle, the warning lamp in the exterior mirror will illuminate must be met: amber.
Page 116 Blind Spot Warnings Stage Two Warning The BSA system will be set to stage two if: Stage One Warning • A vehicle is detected in the blind spot area. When the BSA system detects a vehicle in the driver's blind spot •...
Page 117: Adaptive Damping
The system then message will also show in the instrument cluster. Contact your adjusts the suspension damping characteristics to suit the Aston Martin Dealer. conditions. Radio Equipment Directive Three adaptive damping modes are available. Press the...
Page 118: Brakes
Brake action may be delayed and increased braking pressure may be required. Warning: Aston Martin recommend that the brake fluid is replaced before and after the vehicle is used for high performance driving such as a track day. Failure to do so Sport may result in greatly reduced brake performance.
Page 119 Contact conditions. However, an inherent characteristic of this braking your Aston Martin Dealer. system is some brake noise. Certain combinations of speed, Carbon ceramic brake systems combine low weight with high...
Page 120 In the event of an ABS fault, have the braking and ABS systems • The brake booster system has a fault and braking performance checked immediately by an Aston Martin Dealer. may be affected. ABS and Electronic Stability Program (ESP) Warnings •...
Page 121 ABS compared to locked wheels on slushy snow, gravel, sand or certain heavily corrugated or ridged warning sections of road surfaces. If any braking system malfunctions, have the braking and ABS systems checked immediately by your Aston Martin Dealer. 5.23 Driving...
Page 122 Warning: If the brake system warning symbol is ON or condition the pads may result in greatly reduced brake flashing, do not rely on the park brake to hold the vehicle performance. Contact your Aston Martin Dealer for further stationary. Contact your Aston Martin Dealer. information.
Page 123 Park Brake Operation While Moving The park brake operates on the rear wheels of the vehicle. Warning: Repeated use of the park brake to slow the Caution: Secure parking of the vehicle is dependent on vehicle, or driving the vehicle with the park brake applied being on a hard and stable surface.
Page 124: Electronic Stability Program (Esp)
Active Yaw Control (AYC) is also modified to allow a higher level Aston Martin Dealer. There is a sensor in the steering system of yaw. ABS is set to stage two. When the ESP is set to track, the which detects steering angle.
Page 125 Two-Stage Anti-lock Braking System (ABS) To change ESP mode To change the ESP modes the engine ignition must be on with the The Anti-lock Braking System (ABS) will change its operation depending on ESP mode. transmission in gear. Press and hold the ESP switch (A) for 4 Stage One seconds to change from ON to Track mode.
Page 126 Electronic Differential (E-Diff) Stage Two When ESP is set to Track or OFF, the ABS is tuned to allow more (Automatic Transmission) experienced drivers to drive closer to the limits of the vehicle's This vehicle features an Electronic Rear Differential (E-Diff), ability and enjoy its natural balance in a track environment.
Page 127: Tyre Pressure Monitoring System (Tpms)
Tyre Pressure Monitoring System (TPMS) Traction Control System (TCS) Warning: Driving on a significantly under-inflated tyre causes the tyre to overheat and can lead to tyre failure. Over- The Traction Control System (TCS) is a function of ESP and is used inflation and under-inflation also reduces fuel efficiency and to prevent excessive wheel spin at standing starts, or during tyre tread life, and may affect the vehicle's handling and...
Page 128 Tyre Pressure Display Tyre Pressure Indicator The TPMS display is shown in the right window of the instrument If an under-inflated tyre is detected by the system, the TPMS cluster. Use the right scroll wheel on the steering wheel to symbol is solidly illuminated.
Page 129 • TPMS system or software fault. reference values. If the system shows there is a TPMS fault, continue at a reduced speed of 30mph / 48 km/h maximum. Contact your Aston Martin Dealer. Radio Equipment Directive Hereby, Schrader Electronics Ltd., declares that this TPMS is in compliance with the essential requirements and other provisions of directive 1999/5/EC.
Page 130: Eco Driving Features
Eco Driving Features Stop/Start Engine Stop Conditions With Stop/Start active, the engine will switch off when the vehicle The Stop/Start function switches the engine off when the vehicle is completely stopped, and if the following conditions are met: comes to a stop to reduce fuel consumption and emissions. •...
Page 131: Gasoline Particulate Filter (Gpf)
If the vehicle detects a level of braking that it determines to be an emergency stop, the stop/start will prevent the engine switching If, after a period of driving and doing the above instructions, the off. warning lamp is still shown, contact your Aston Martin Dealer for assistance. 5.33 Driving...
Page 132: Park Assist Systems
If this warning symbol is obstacles and estimate the vehicle’s distance from them. shown, contact your Aston Martin Dealer as soon as possible. Some overhanging objects, barriers, thin obstructions or painted surfaces which could possibly cause damage to the vehicle may not be detected by the system.
Page 133 Activation Operation PDC will activate automatically at ignition on and the sensors Caution: In heavy rain or similar adverse conditions, the activated depend on which gear is selected. PDC sensors may not always be able to accurately measure Automatic Transmission distance to close objects.
Page 134 Active Park Assist Active Park Assist measures the road on both sides of the vehicle to locate a parking space the vehicle will fit in. The active park system will also provide vehicle steering to assist parking in spaces. Important Safety Information Active Park Assist is only an aid.
Page 135 Parking Space Detection Caution: Parking spaces that are partially occupied may be measured incorrectly. Examples of partially occupied parking Active Park Assist operates at speeds of up to approximately spaces can be trailer draw bars, over grown parking spaces or 22 mph (35 km/h).
Page 136 Active Park Assist does not assist with parking in right angle space Parking with Active Park Assist When a parking space has been found and is shown in the • two parking spaces are located directly next to each other instrument cluster, stop the vehicle and select R (Reverse).
Page 137 360° Camera System Activation Caution: The camera system can show a distorted, delayed To activate the 360° camera, press the button or select 360° or incorrect view of obstacles or not at all. Obstacles will not cameras from the Vehicle Settings menu. The camera will show be shown under, or in very close proximity to, the front or the split screen with either the front or rear view, depending on rear bumpers.
Page 138 View Selection 180° View To select the different views, push up on the CONTROL DIAL to When the camera shows the front or rear view, select 180° view. the view selection bar. The split-screen views that can be shown This will replace the split-screen view and show a much wider are: angle for the front or rear.
Page 139 Top View with Park Distance Control (Front and Rear views) Top View with Corner Views To aid with parking the vehicle, a dynamic overlay screen will be The corner view cameras show both sides of the vehicle from the shown over the camera image. The overlay screen adjusts with door mirrors.
Page 140: Emergency Call System
SOS button while the system is performing a self-test. It will be replaced by a green LED within one minute if there are no errors. If the red LED is on, contact your Aston Martin dealer. Once a call has started, only the operator can end the call.
Page 141 LED within one minute if there are no errors. unconscious, the emergency services will be automatically If the red LED is on, contact your Aston Martin dealer. dispatched to your location. Malfunction Warning In the unlikely event of a fault with the eCall system, the red LED in the SOS button will stay as constantly red.
Page 142 GLONASS operating centre. LED is constantly red or does not show constant green when the system is not in use, contact your Aston Martin Dealer for This can be used in the event of an accident that was not severe assistance.
Page 143 Climate Control Climate Controls ..............6.2 Climate Menu ..............6.5 Defrost and Demist ............. 6.8 Air Distribution Vents ............6.8 Climate Control Operating Tips ........... 6.9...
Page 144: Climate Controls
Climate Controls Centre Stack Climate Controls [1] AIR DISTRIBUTION: Press the rocker switch up or down to change airflow modes. [2] TEMPERATURE: Rotate the dial to increase or decrease the temperature. [3] AIR CIRCULATION: Warning: Re-circulated air can cause the interior glass to mist up in cold or rainy weather.
Page 145 [5] A/C: [10] SEAT HEATING/COOLING (OPTIONAL): When in manual mode press and release to set the air Warning: Do not press the seat heater switch repeatedly. conditioning ON or OFF. This can cause the seat to become very hot and can cause [6] AIRFLOW SPEED: burn injuries to persons with limited sensitivity to temperature changes.
Page 146 Infotainment Climate Controls Automatic Climate Control The temperature is maintained at a set level in automatic mode. The climate system will automatically control the temperature, airflow and the air distribution according to the interior and exterior conditions. To set a temperature for automatic operation: •...
Page 147: Climate Menu
Climate Menu Manual Climate Control The climate control system can also be operated within the infotainment system. Use the CONTROL DIAL or the applicable Manually set the temperature, airflow speed and air distribution: rocker switch or dial to adjust each function. Warning: Re-circulated air can cause the interior glass to Climate Mode mist up in cold or rainy weather.
Page 148 Temperature Air Distribution Rotate the CONTROL DIAL to set the temperature. Rotate the CONTROL DIAL to choose an air distribution mode. Climate Control...
Page 149 Airflow Climate Options Rotate the CONTROL DIAL to choose an airflow speed from [1] SYNC.: between 1 and 7 or AUTO. Select to synchronise the left and right climate zones. Only one setting dial will be shown when climate conditions are being set. If SYNC is set to OFF, push the CONTROL DIAL left or right to select which zone to adjust.
Page 150: Defrost And Demist
Defrost and Demist Air Distribution Vents To adjust the air vents, use the vent knob (A). Push up or down Caution: To defrost or demist the windscreen on vehicle to adjust the blades inside the vent. Push left or right to adjust the start up in extreme cold weather conditions, operate the angle of the vent unit.
Page 151: Climate Control Operating Tips
If the climate control system is low on refrigerant or control system to demist the windows. has a malfunction, consult your Aston Martin Dealer. • Clear all obstructions like leaves, snow and ice from the • Mist may come out from the vents when using the air bonnet and the air inlet below the windscreen to improve the conditioning.
Page 152 6.10 Climate Control...
Page 153 Phone System Hands-Free Controls ............7.2 Device Management ............7.2 Phone Features ..............7.5...
Page 154 Hands-Free Controls Device Management Bluetooth® technology is a standard for short-range wireless data transmissions up to approximately 10 metres. Bluetooth can be used to connect your mobile device to the vehicle infotainment system. This system can then be used to operate the hands-free phone system, Bluetooth audio streaming and internet access.
Page 155 'listen' for a device. Follow the device manufacturer's instructions to search and connect to a new Bluetooth connection in range. Select Aston Martin Vantage from the device list. If the vehicle does not show, check that Bluetooth is active in the infotainment system and search again.
Page 156 Device Details Completing Device Pairing Once the mobile device is paired, it is ready for use with the To show device details, select TEL from the main menu and vehicle audio and hands-free system. The infotainment system navigate to Connect Device. Scroll through the list and select a will also request access to call history, contact list and messages.
Page 157 Phone Features Contact Lists Calls The contact list displays all available contacts for your phone Make a Call contacts which have a phone number. A call can be made in several ways: • Choose a contact from the Contacts list. To access the contact list press on the centre stack or •...
Page 158 Multiple Call Handling Second Incoming Call (Network Provider Dependant) If there is an incoming call during an active call, press Add a Call answer the new call and put the original call on hold. To make a second call during a call, select the 2ND CALL icon To reject the call press , or select Reject Call and press and select a contact.
Page 159 Messages The lower information bar has the below options: [1] BACK: The connected mobile phone must support Message Access Return to phone menu. Profile (MAP) to be able to access text and email messages. This may have to confirmed separately for some devices when paired [2] SETTINGS: to the vehicle.
Page 160 Message Entry [1] TEXT TEMPLATES: Opens a list of common phrases to be entered into a message. [2] RETURN: Starts a new line of text. [3] CASE: Switch between upper and lower case characters. [4] NON-ALPHABETICAL CHARACTERS: Show numbers and miscellaneous characters. [5] LANGUAGE: Select to open the languages list.
Page 161 Media Systems Audio Specification ............. 8.2 Multimedia Controls............8.4 Radio .................. 8.4 Radio Menu ................ 8.5 Media ................. 8.9 Media Menu ..............8.11 Media Register ..............8.14 Bluetooth Audio ..............8.15 Sound ................8.16...
Page 162: Audio Specification
Audio Specification Radio • Digital Audio Broadcasting (DAB) radio. • AM and FM radio. Inputs • 2 x USB ports in centre storage tray. • SD Card reader in centre storage tray. • Bluetooth® Wireless technology. Media Systems...
Page 163 Aston Martin Standard Audio Aston Martin Premium Audio Power Output Power Output 4 Channel Audio system. 10 Channel 640W Audio System. Speakers Speakers [1] TWEETERS: [1] TWEETERS: Two 25 mm tweeters. Two 25 mm tweeters. [2] CENTRE SPEAKER: [2] CENTRE SPEAKER: Not Installed.
Page 164: Multimedia Controls
Multimedia Controls Radio Press on the centre stack or select Radio from the main menu to open the Radio screen. The display area will show the currently selected radio station and available radio stations. [1] RADIO: Open the Radio screen (Refer to ’Radio’, page 8.4). Opens the radio source list if media screen is already open.
Page 165: Radio Menu
Radio Menu Radio Stations On the lower bar of the radio screen there will be several option buttons: Selecting a station from the display screen • Options The display screen shows available stations that can be played. • Search (FM/DAB only) Rotate the CONTROL DIAL with the centre display highlighted to •...
Page 166 Options Tag This Track (FM and Radio Presets) Select to tag the track currently being played. Tagged tracks can then be later downloaded using a mobile phone Direct Entry Opens a window to enter the frequency or preset number for a radio station.
Page 167 Search Sort Station List (FM and Radio Presets) Opens a window to enter the keywords to find a radio station. Sort available stations alphabetically or by genre. Preset Station tracking (FM and Radio Presets) Select whether the radio system automatically adjusts frequency for best reception.
Page 168 Waveband Save Current Station Save the current station to the presets lists. Rotate the CONTROL DIAL to select a slot in the presets list and press ENTER to save the radio station. Edit Station Opens the list of preset stations. Rotate the CONTROL DIAL to select a slot in the presets list and press ENTER to open the edit options: •...
Page 169: Media
Media Information Press on the centre stack or select Media from the main menu to open the media Now Playing screen. Now Playing screen layout will depend on the media device last used. Now Playing Media The Now Playing screen shows track information such as album art, artist and album name on the left side of the screen along with track play time and track number.
Page 170 Media Sources Media Formats and File Systems Press MEDIA or select Media from the main menu with to show Media Formats the available media sources. Rotate the CONTROL DIAL and Audio press ENTER to select a media source. • .MP3 •...
Page 171: Media Menu
Media Menu File Systems On the lower bar of the Media screen there will be several options: USB and SD Memory Card • Options • FAT16 • Play/Pause • FAT32 • Search • exFAT • Devices • NTFS • Sound 8.11 Media Systems...
Page 172 Options Play Similar Tracks Play tracks that are of the same genre. Media Options Play Mode Select from Normal Track Sequence, Random Track List or Random Media. Direct Track Entry Manually enter track name. Skip to Time Rotate the CONTROL DIAL to select a set time in the track. Press ENTER to play.
Page 173 Search Save Files to Media Register Save the current file or files to vehicles internal hard drive. Search for a media file from a list of the below information fields: Manage Media Register • Current tracklist Opens the Media Register options menu. (Refer to ’Media •...
Page 174: Media Register
Media Register Devices The media register can be used to store music, picture and video files directly on the vehicle's hard drive. Storage capacity for the media register is approximately 10.8 GB, enough to store approximately 10000 minutes (166 hours) of music, 4700 pictures or 1300 minutes (21 hours) of video Media Register Options Select the Manage Media Register option in the Options menu.
Page 175: Bluetooth Audio
Bluetooth Audio Bluetooth Connection Options • Bluetooth Audio Devices Bluetooth audio must be paired to the vehicle independently • Play mode from the Bluetooth® hands free connection. • Volume To select a Bluetooth audio device: Bluetooth Audio Devices 1. Make sure Bluetooth is activated on your device and in Opens menu to manage Bluetooth devices.
Page 176: Sound
Sound The Sound menu screen can be accessed from either the Radio or Media screens. • Equaliser • Balance/Fader • Sound Field Equaliser Adjust the Treble, Mid-tones and Bass frequencies between -10 and 10. Balance Fader Adjust the Balance (left to right) and Fader (front to rear) sound distribution between -10 and 10 (0 is equal distribution).
Page 177 Satellite Navigation Safety Information ............... 9.2 Navigation Controls ............. 9.2 Navigation Menu..............9.3 Options................9.4 Traffic ................. 9.6 Route .................. 9.7 Position ................9.8 Destination ................. 9.9 Navigation Menu............... 9.13...
Page 178: Satellite Navigation
Safety Information Navigation Controls Warning: Failure to avoid the following potentially hazardous situations could result in an accident or collision resulting in death or serious injury. Warning: Always use your best judgement, and operate the vehicle in a safe manner. Do not become distracted by the navigation system while driving, and always be fully aware of all driving conditions.
Page 179: Navigation Menu
Navigation Menu Audio Controls From the navigation menu select from the following options: • Options (Refer to ’Route Settings’, page 9.4) Use the left scroll wheel on the steering (B) or the volume dial (C) • Traffic to adjust the volume for navigation announcement. Press and (Refer to ’Traffic’, page 9.6) hold the scroll wheel button during a navigation announcement •...
Page 180: Options
Options Route Settings Avoid Options Select from the following options: Choose from the following route settings: • Avoid Area • Fast Route Select Avoid New Area and choose from: Finds a route with the shortest journey time. • Using Map •...
Page 181 Map Orientation Map Content Select to change the orientation of the display map. Select from: Choose from the following map content options: • North Up • POI Symbols on Map Map is displayed so that north is always up. • Standard Symbols: •...
Page 182: Traffic
Traffic Personal POIs Traffic Reports from FM RDS-TMC An RDS-TMC radio station transmits traffic reports in addition to Load any saved personal points of interest from an SD Memory the radio programme. your vehicle can receive these reports and Card. make adjustments to the route guidance.
Page 183: Route
Route Read Out All Message On Route Destination Information Select to read out traffic reports along the route. If there are no Shows the destination and any intermediate destinations along traffic reports this option will not be available. with expected arrival time, distance and journey time. To cancel the report being read, select Cancel Read-Aloud Select a destination to view details.
Page 184: Position
Position Detour Save Manually add an area to avoid on the route. Save the current position to the From previous destination list. Saved destination will have a symbol next to the location name. Select Beginning and press ENTER. Rotate the CONTROL DIAL POI Symbol Guide to move through the route and press ENTER to set the beginning detour area.
Page 185: Destination
Destination 3D Map Rotation Cancel Route Guidance View the area around the vehicle in a 3D perspective. Rotate the Select to cancel current route guidance. CONTROL DIAL to change the direction of view or push the Address Entry CONTROL DIAL to move the map cursor in that direction. Select to open the address entry screen.
Page 186 Keyword Search Once you have entered one of the above items of information you can filter your search further by adding more information to Keyword search can be used to find a location without having to the above or entering one of the following: enter the full name.
Page 187 From Previous Destinations Addresses Shows a list of both exact and approximate addresses that match Search from a list of previously entered addresses. Scroll through your search terms. Exact matches are shown at the top of the list the list of available locations and press ENTER to select a in alphabetical order.
Page 188 From POI Using Map Select to choose a location based on a point of interest. Find a destination using the map display. Move the cursor by pushing the CONTROL DIAL in the chosen direction. Rotate the Near Destination CONTROL DIAL clockwise to zoom out and counter-clockwise to (Only available while route guidance is active) zoom in.
Page 189: Navigation Menu
Navigation Menu From Memory Card From the navigation display press the NAV button, or push the joystick up, to access the main vehicle menu and navigate to Nav Load a saved route from a SD memory card. to open the navigation menu. This function is only available if a SD Memory card with route In the navigation menu you will be shown the options that follow: data is inserted into the SD card slot.
Page 190 9.14 Satellite Navigation...
Page 191 Vehicle Settings Vehicle Settings ..............10.2 Time Settings..............10.2 System Settings..............10.3...
Page 192 Vehicle Settings Time Settings Acoustic Lock Feedback Automatic Time Settings Set audible lock note on or off. Select to set automatic time settings to on or off. Auto-Fold Mirror Time Zone Set if mirrors are folded when vehicle is locked to on or off. Select the required local time zone.
Page 193 System Settings Favorite Functions Display When Favorite Functions is selected the below menu options are Select Display to access the display settings options: available. Use the joystick to select: • Day • Navigation Brighter display colours for clearer viewing during daytime •...
Page 194 Language Touchpad Select the language for the vehicle infotainment system from one Select to set Activate Touchpad or Read Out Handwriting of the available languages. Recognition to on or off. Voice Control Activate Bluetooth • Help Window Select to set Bluetooth to on or off. •...
Page 195 Convertible Roof Roof Operation ..............11.2 Emergency Roof operation ..........11.4...
Page 196 Warning: Misuse of the roof switch, especially by Caution: Aston Martin recommend that the roof is only children, can result in injury due to entrapment in the roof operated while the vehicle is stationary and that the engine is mechanism and locking points.
Page 197 Operation Window Operation The windows can be lowered and raised independently of the Warning: If roof movement is not complete the message roof. When the roof is fully lowered or raised use the window "Open/close top completely" will be shown in the instrument switch to operate the windows as normal.
Page 198 Reduce the Warning: Aston Martin recommend that a minimum of vehicle speed to below 50 km/h (31 mph). Press the roof switch two people are required to manually raise and lock the roof.
Page 199 1. Remove the emergency roof tool from the luggage Once the screw is removed it cannot be used again and must compartment. be replaced by an Aston Martin Dealer. 3. Remove the emergency screw for the other side of the vehicle.
Page 200 4. With a person each side, lift the roof to it's nearly closed 6. Use the emergency roof tool to turn the motor screw (B) one position. and a half turns clockwise. 5. Inside the vehicle, carefully remove the cover for the front latch from the convertible roof.
Page 201 7. Fully raise the roof making sure the 2 latch guides correctly 9. Use the emergency roof tool (B) to turn the motor counter- engage with the receivers. clockwise to fully engage the latch hook (C). To begin movement of the latch claw, also push the claw by hand. A high torque will need to be applied to turn the latch with the tool.
Page 202 Caution: When resistance is felt, the latch is fully closed. do not over torque the latch as this can damage the motor. 11. Once the roof is closed, do not operate the button for the roof system. Contact your Aston Martin dealer. 11.8 Convertible Roof...
Page 203 Maintenance and Technical Data Introduction ..............12.2 Servicing Precautions............12.3 Owner Maintenance Checks ..........12.5 Bonnet Release ..............12.6 Fluid Checks and Capacities ..........12.8 Washers and Wipers ............12.12 Chassis Systems ............... 12.13 Wheels and Tyres............12.14 Electrical Systems ............12.18 Vehicle Care ..............
Page 204: Maintenance And Technical Data
If it is evident to Aston Martin that use of products other than those which are recommended by the manufacturer have caused damage to...
Page 205: Servicing Precautions
Warning: Any loose objects, such as ties, should be safe vehicle emissions. You are, therefore, strongly advised to removed before working on a vehicle. Any jewellery should entrust all service work to an Aston Martin Dealer. also be removed before working on a vehicle, especially Restraint Systems work on the electrical system.
Page 206 Dangerous Substances Warning: Do not breathe exhaust fumes. Exhaust fumes contain carbon monoxide. Carbon monoxide is a dangerous Warning: Dangerous substances should be kept out of gas, which is colourless and odourless and can cause reach of children. unconsciousness and may be fatal. Never start or leave the Warning: Many liquids and other substances used in engine running in an enclosed, unventilated area.
Page 207: Owner Maintenance Checks
Owner Maintenance Checks Engine Oils In the interests of safety and reliability, it is advisable to carry out the following checks at the intervals suggested (more frequently if Warning: Prolonged and repeated contact with used your vehicle is heavily used or operating in adverse conditions), engine oils can cause serious skin disorders, including and always before starting on a long journey.
Page 208: Bonnet Release
Bonnet Release Engine Oil Level To open the bonnet, pull the lever (A) located under the instrument panel to release the bonnet latch. The bonnet will rise Caution: It is important to check the engine oil level but stay secured by the bonnet secondary catch. regularly.
Page 209 Slightly lift the front edge of the bonnet and move the bonnet To close the bonnet, lower the bonnet until it starts to fall under secondary catch (B) to release it. Lift the bonnet until fully open. its own weight, then let the bonnet fall to close. If the bonnet The bonnet is held open by two gas struts.
Page 210: Fluid Checks And Capacities
Fluid Checks and Capacities Engine Oil Level Warning: Engine components may be hot and could cause severe burns. Warning: Engine oil or components may be hot and could cause severe burns. Caution: Running the engine with engine oil below the lower mark or above the upper mark can cause serious engine damage.
Page 211 Engine Oil Level Check: Engine Oil Level Sensing • The vehicle should be on level ground. Caution: The electronic engine oil level sensing system • Check the engine oil level every fourth fuel tank fill or weekly does not replace the need for the owner to regularly check - which ever is the sooner.
Page 212 Engine Coolant Level Brake Fluid Level Warning: Do not remove the filler cap until the coolant Warning: Do not drive the vehicle if the brake fluid level system has cooled. Scalding can be caused by escaping steam is below the minimum mark. or coolant.
Page 213 8.5 Litres Automatic Transmission Differential 1.1 Litres Manual Transmission 3.2 Litres ILSAC Engine Coolant Screen Washer Reservoir 4.0 Litres Contact your Aston Martin Dealer for information on engine coolant. Brake Fluid DOT 4 Market dependent 12.11 Maintenance and Technical Data...
Page 214: Washers And Wipers
Washers and Wipers Windscreen Wash Fluid Local or state regulations may restrict the use of volatile organic compounds (VOCs), which are commonly used as To refill the washer fluid, open the washer fluid reservoir cap (A) antifreeze agents in windscreen washer fluid. A windscreen and top up as required.
Page 215: Chassis Systems
Chassis Systems Vehicle Body Brakes Two door coupe with 2+0 seating. Foot Brake Two door convertible with 2+0 seating. Standard Steering Front Rear Electrically assisted, speed sensitive rack and pinion power Disc Construction 2-piece ventilated Combination cast steering. Column adjustment for reach and tilt. disc ventilated disc Turns Lock to Lock...
Page 216: Wheels And Tyres
• Limited Slip Differential (LSD) (Manual transmission). Wheel Bolt Torque For wheel bolt torque (Refer to ’Wheel Bolt Torque’, page 12.44). Wheel Alignment For the most up to date wheel alignment values, contact your Aston Martin dealer 12.14 Maintenance and Technical Data...
Page 217 Because of the high performance potential of this vehicle, vehicle’s design. Regular maintenance of tyres contributes not Aston Martin strongly recommend replacement of any damaged only to safety, but to the designed function of the vehicle. or worn tyre.
Page 218 Contact your Aston Martin Dealer for more information. tread, in all primary grooves. When a tyre has worn causing one or more of the marks to be flush with the outer face of the tread the tyre has reached its wear limit.
Page 219 Only use Aston Martin approved winter tyres - contact your Aston Martin dealer for more information. Warning: The maximum speed limit of the vehicle should be reduced when winter tyres are installed.
Page 220: Electrical Systems
Electrical Systems Fuses Snow Traction Devices Warning: The maximum speed when using snow traction The electrical systems are protected by fuses. If any lamps, devices is 48 km/h. Remove the snow traction devices accessories, or controls do not function, inspect the applicable immediately when the roads are clear of snow.
Page 221 Front Fuses 12.19 Maintenance and Technical Data...
Page 222 Engine Primary Fuse Box (A) IP Fuse Box (B) 150A Electronic Power Assisted Steering (EPAS) Control Dial Touch Pad 100A Cooling Fan Instrument Cluster Fan 150A Right Side Engine Fuse Box HVAC Module ABS Module Instrument Cluster 100A Right Side Engine Fuse Box OBD Socket 100A Right Side Powerhold Fuse Box...
Page 223 Right Powerhold Fuse Box (C) Left Powerhold Fuse Box (D) ABS Module Engine Control Module Wake up Tyre Pressure Monitoring System (TPMS) Daytime Running Lights Differential Cooling Pump Engine Supply Coolant water pump B Engine Supply Cooling Fan Sound Regulator Coolant water pump A Exhaust Flaps Engine Supply...
Page 224 Right Side Engine Fuse Box (E) ECM Keep Awake Right Side Powerhold Supply ABS Module Starter Motor Left Side Wiper Motor Right Side Wiper Motor Relay Tracker ABS Module Horn 12.22 Maintenance and Technical Data...
Page 225 Rear Fuses 12.23 Maintenance and Technical Data...
Page 226 Rear Primary Fuse Box (F) Rear Primary Fuse Box (G) IP Fuse box (B) Supply IP Fuse box (B) Supply IP Fuse box (B) Supply Fuse Box (I) Supply Fuse Box (J) Supply Fuse Box (I) Supply Fuse Box (J) Supply Fuse Box (I) Supply Fuse Box (J) Supply Fuse Box (I) Supply...
Page 227 Fuse Box (H) Fuse Box (I) Left Side Seat Module Microwave Sensors Camera Module 7.5A Transmission Control Module (Automatic Ignition/accessory Relay Control Transmission) Left Side Seat Module Left Side Seat Lumbar Adjust Keyless Go Module Charger Port Multimedia Box Right Side Seat Module Tuner Box Tailgate Latch Right Side Seat Lumbar Adjust...
Page 228 Vehicle Battery: Banner 92AH 7.5A Occupant Restraint Controller (ORC) The vehicle battery is maintenance free and should only require checking by your Aston Martin Dealer during regular vehicle Seat Comfort Functions services. To access the vehicle battery remove the trim panel, eCall/Tracker located in the right rear environment.
Page 229 When working near the battery, always make sure engine. In this case the vehicle battery must be replaced. that neither you nor the battery is electrostatically charged. Contact your Aston Martin Dealer. Always have sufficient ventilation. Warning: Battery posts, terminals and related accessories Warning: Never place metal objects on the battery or contain lead and lead compounds.
Page 230 Battery Level Protection Vehicle Battery Disposal The incorrect disposal of a vehicle battery can be extremely Caution: If the battery is not capable of starting the engine, hazardous to health and the environment. Most batteries contain replace the battery as soon as possible. materials that, when disposed of incorrectly, may leak into the Using vehicle electrical systems such as the infotainment system, environment.
Page 231 If necessary, clean the charger socket before connecting the charger plug. The Aston Martin battery conditioner is suitable for use on all types of 12 volt AGM and lead acid batteries. If this vehicle is not going to be used for a period of time, and mains power is available, use a battery conditioner to maintain the battery charge level.
Page 232: Vehicle Care
. The headlamps meet ECE requirement to Aston Martin are able to supply a range of products to clean and operate without conversion. protect your vehicle. Contact you Aston Martin Dealer for further information.
Page 233 Rinse the dirt out of the wash mitt or soft sponge in the bucket with plain water frequently. The Aston Martin new car warranty covers defects in 4. After one section is washed, rinse it with the hose before materials or workmanship of the paint work. The warranty...
Page 234 1. Only use cleaning products recommended by Aston Martin. mild soapy water solution always remove the wheels from the Abrasive cleaning products will change the satin appearance vehicle.
Page 235 Several times a year, a leather conditioner or preservative should periodically and clear if necessary. be used. Appropriate care materials are obtainable from your Aston Martin Dealer. The brushed and anodised aluminium trim should be cleaned using a dry clean lint free cloth.
Page 236 Consult your Aston Martin Dealer for instructions on the removal soiling and fading along folds. of more difficult stains such as oil, grease or ballpoint ink.
Page 237: Powertrain Specifications
Powertrain Specifications 4.0L V8 Engine Firing Order 1 - 5 - 4 - 2 - 6 - 3 - 7 - 8. All alloy 32 valve twin turbocharged V8 engine featuring: Fuel delivery • Independent quad-variable camshaft timing. • 3 driver selectable powertrain modes. Multi-point sequential fuel injection.
Page 238 Transmission Manual Transmission Rear mounted Graziano seven-speed dog leg manual Touchtronic IV Automatic Transmission transmission with AMshift, Stop/Start ignition support and Rear mounted ZF 8HP70 eight-speed automatic gearbox with integrated final drive Limited Slip Differential. 'Shift by Wire' gear shift and Stop/Start ignition support. Cast aluminium torque tube with carbon fibre drive shaft.
Page 239: Performance
Performance Dimensions Interior Dimensions Maximum Power 375 kW | 503 Bhp at 6000 rpm Maximum Engine Speed 7000 rpm Effective Headroom 920 mm / 36 Inches Maximum Torque 685 Nm | 505 Lb.ft at 2000 rpm Effective Leg-room 1075 mm / 42 Inches Maximum Speed 195 mph | 314 km/h Effective Shoulder-room...
Page 240 External Dimensions Coupe All dimensions shown in mm. 12.38 Maintenance and Technical Data...
Page 241 Roadster 12.39 Maintenance and Technical Data...
Page 242: Emergency And Breakdown
Caution: If there is a transmission fault, this vehicle must be transported. If the park brake was applied and the vehicle has lost power, the park brake will not release. Call Aston Martin Assistance or your local Aston Martin Dealer. Your vehicle should always be recovered on a vehicle...
Page 243 Contact your Aston Martin Dealer engine. In this case the vehicle battery must be replaced. In certain circumstances forward drive will be restricted to a Caution: If the voltage or earth of the donor vehicle is fixed gear.
Page 244 Recharge time will depend on the initial ‘state of health’ of the discharged battery. If the vehicle still will not start, contact your Aston Martin Dealer. 5. Connect the positive cable (4) between the positive terminal of the donor battery and the positive (+) jump point (2) on 1.
Page 245 Set the engine to OFF and restart the engine. Take the vehicle on a long run to fully charge the battery. Contact your Aston Martin Dealer to have the battery checked or replaced. Charge time can depend on the battery state of the donor vehicle.
Page 246 Wheel Bolt Torque If this vehicle is to be raised using a vehicle jack make sure that the following jacking points are used. Caution: You must use an applicable plastic-sleeved socket to remove, install, and tighten the wheel bolts. This will help to prevent damage to the surface of the wheel.
Page 247 Do not attempt to Read the following instructions and warnings carefully before re-inflate the tyre. Contact your Aston Martin Dealer. using the tyre sealant kit. Compliance with these instructions is vital to make sure of vehicle and user safety. Non-compliance...
Page 248: Fuel
Aston Martin Dealer. 1. The first fuel level warnings changes the fuel symbol on the • If the nearest Aston Martin Dealer is over 200 km (125 miles) fuel gauge from white to amber. This means that the vehicle away, arrange for collection with Aston Martin Assistance.
Page 249 Fuel Filling Fuel Filler Bowl To stop water gathering in the fuel filler bowl and flowing into the The fuel tank filler neck has a restricted opening which will fuel tank, the fuel filler bowl has a pipe to let the water drain from only accept the fuel supply nozzle of unleaded fuel pumps.
Page 250 Fuel Filler Flap Emergency Release 2. Pull the emergency release (ER) tab to unlock the fuel cap. To manually unlock the fuel filler flap: Caution: The emergency release cable only unlocks the fuel flap. It does not open the fuel flap. Do not pull too hard 1.
Page 251 Service Aston Martin Facilities ............A.2 Vehicle Provenance.............A.3 Servicing ................A.5 Service Record ..............A.7 Replacement of Airbag Units ..........A.29 Replacement of Seat Belt Pre-tensioners ......A.29 Brake Disc Check ..............A.30 Field Service Actions ............A.33 Service Action Recalls............A.34...
Page 252: Aston Martin Facilities
Aston Martin franchise can occur. Neither meet the owner’s requirements, but the availability of certain Aston Martin nor any listed Importer or Dealer shall in any parts may be affected by differences in vehicle and component circumstances be held liable for any inaccuracy, or the specifications.
Page 253: Vehicle Provenance
Vehicle Provenance Aston Martin Authorised Body Repairers Model: A full list of Aston Martin Authorised Body Repairers worldwide Vehicle Identification Number: can be found at: As on the VIN plate www.astonmartin.com All Aston Martin Approved Body Repair centres have been assessed and audited to Aston Martin Body Repair Centre standards in either Category A or B.
Page 254 First Owner Fourth Owner Selling Dealer Selling Dealer Delivery Date Delivery Date Second Owner Fifth Owner Selling Dealer Selling Dealer Delivery Date Delivery Date Third Owner Sixth Owner Selling Dealer Selling Dealer Delivery Date Delivery Date Service...
Page 255: Servicing
The schedules may be modified if necessary. Please warranties. It is the owner’s responsibility to see that the vehicle consult your Aston Martin Dealer for details of any service is maintained correctly and in accordance with the schedule updates.
Page 256 Item Item Interval Annual Service Inspections Fluids and Consumables Examine the condition, operation, adjustment and attachment of the Replace the engine oil and engine 16,000 km / 10,000 miles below items: oil filter. Engine and transmission mounting system. Check for leaks. Replace the spark plugs.
Page 257: Service Record
Service Record The following service records cover the regular services at 16,000 Free Pre-delivery Inspection km, 10,000 miles or 12 months intervals, which ever occurs first. Make sure that at each service the appropriate entry is stamped and signed as completed. Service Actions Checked: Yes / No Open Service Actions Completed:...
Page 258 Service Information Authorised Dealer Stamp Odometer: Technician Name: Service Advisor Name: Date: Service Advisor Signature: Next Service Due: Additional Service Information Service Details Service Actions Checked: Yes / No Air Filter Changed: Yes / No Pollen Filter Changed: Yes / No Spark Plugs Changed: Yes / No Anti Corrosion Inspection:...
Page 259 Service Information Authorised Dealer Stamp Odometer: Technician Name: Service Advisor Name: Date: Service Advisor Signature: Next Service Due: Additional Service Information Service Details Service Actions Checked: Yes / No Air Filter Changed: Yes / No Pollen Filter Changed: Yes / No Spark Plugs Changed: Yes / No Anti Corrosion Inspection:...
Page 260 Service Information Authorised Dealer Stamp Odometer: Technician Name: Service Advisor Name: Date: Service Advisor Signature: Next Service Due: Additional Service Information Service Details Service Actions Checked: Yes / No Air Filter Changed: Yes / No Pollen Filter Changed: Yes / No Spark Plugs Changed: Yes / No Anti Corrosion Inspection:...
Page 261 Service Information Authorised Dealer Stamp Odometer: Technician Name: Service Advisor Name: Date: Service Advisor Signature: Next Service Due: Additional Service Information Service Details Service Actions Checked: Yes / No Air Filter Changed: Yes / No Pollen Filter Changed: Yes / No Spark Plugs Changed: Yes / No Anti Corrosion Inspection:...
Page 262 Service Information Authorised Dealer Stamp Odometer: Technician Name: Service Advisor Name: Date: Service Advisor Signature: Next Service Due: Additional Service Information Service Details Service Actions Checked: Yes / No Air Filter Changed: Yes / No Pollen Filter Changed: Yes / No Spark Plugs Changed: Yes / No Anti Corrosion Inspection:...
Page 263 Service Information Authorised Dealer Stamp Odometer: Technician Name: Service Advisor Name: Date: Service Advisor Signature: Next Service Due: Additional Service Information Service Details Service Actions Checked: Yes / No Air Filter Changed: Yes / No Pollen Filter Changed: Yes / No Spark Plugs Changed: Yes / No Anti Corrosion Inspection:...
Page 264 Service Information Authorised Dealer Stamp Odometer: Technician Name: Service Advisor Name: Date: Service Advisor Signature: Next Service Due: Additional Service Information Service Details Service Actions Checked: Yes / No Air Filter Changed: Yes / No Pollen Filter Changed: Yes / No Spark Plugs Changed: Yes / No Anti Corrosion Inspection:...
Page 265 Service Information Authorised Dealer Stamp Odometer: Technician Name: Service Advisor Name: Date: Service Advisor Signature: Next Service Due: Additional Service Information Service Details Service Actions Checked: Yes / No Air Filter Changed: Yes / No Pollen Filter Changed: Yes / No Spark Plugs Changed: Yes / No Anti Corrosion Inspection:...
Page 266 Service Information Authorised Dealer Stamp Odometer: Technician Name: Service Advisor Name: Date: Service Advisor Signature: Next Service Due: Additional Service Information Service Details Service Actions Checked: Yes / No Air Filter Changed: Yes / No Pollen Filter Changed: Yes / No Spark Plugs Changed: Yes / No Anti Corrosion Inspection:...
Page 267 Service Information Authorised Dealer Stamp Odometer: Technician Name: Service Advisor Name: Date: Service Advisor Signature: Next Service Due: Additional Service Information Service Details Service Actions Checked: Yes / No Air Filter Changed: Yes / No Pollen Filter Changed: Yes / No Spark Plugs Changed: Yes / No Anti Corrosion Inspection:...
Page 268 Service Information Authorised Dealer Stamp Odometer: Technician Name: Service Advisor Name: Date: Service Advisor Signature: Next Service Due: Additional Service Information Service Details Service Actions Checked: Yes / No Air Filter Changed: Yes / No Pollen Filter Changed: Yes / No Spark Plugs Changed: Yes / No Anti Corrosion Inspection:...
Page 269 Service Information Authorised Dealer Stamp Odometer: Technician Name: Service Advisor Name: Date: Service Advisor Signature: Next Service Due: Additional Service Information Service Details Service Actions Checked: Yes / No Air Filter Changed: Yes / No Pollen Filter Changed: Yes / No Spark Plugs Changed: Yes / No Anti Corrosion Inspection:...
Page 270 Service Information Authorised Dealer Stamp Odometer: Technician Name: Service Advisor Name: Date: Service Advisor Signature: Next Service Due: Additional Service Information Service Details Service Actions Checked: Yes / No Air Filter Changed: Yes / No Pollen Filter Changed: Yes / No Spark Plugs Changed: Yes / No Anti Corrosion Inspection:...
Page 271 Service Information Authorised Dealer Stamp Odometer: Technician Name: Service Advisor Name: Date: Service Advisor Signature: Next Service Due: Additional Service Information Service Details Service Actions Checked: Yes / No Air Filter Changed: Yes / No Pollen Filter Changed: Yes / No Spark Plugs Changed: Yes / No Anti Corrosion Inspection:...
Page 272 Service Information Authorised Dealer Stamp Odometer: Technician Name: Service Advisor Name: Date: Service Advisor Signature: Next Service Due: Additional Service Information Service Details Service Actions Checked: Yes / No Air Filter Changed: Yes / No Pollen Filter Changed: Yes / No Spark Plugs Changed: Yes / No Anti Corrosion Inspection:...
Page 273 Service Information Authorised Dealer Stamp Odometer: Technician Name: Service Advisor Name: Date: Service Advisor Signature: Next Service Due: Additional Service Information Service Details Service Actions Checked: Yes / No Air Filter Changed: Yes / No Pollen Filter Changed: Yes / No Spark Plugs Changed: Yes / No Anti Corrosion Inspection:...
Page 274 Service Information Authorised Dealer Stamp Odometer: Technician Name: Service Advisor Name: Date: Service Advisor Signature: Next Service Due: Additional Service Information Service Details Service Actions Checked: Yes / No Air Filter Changed: Yes / No Pollen Filter Changed: Yes / No Spark Plugs Changed: Yes / No Anti Corrosion Inspection:...
Page 275 Service Information Authorised Dealer Stamp Odometer: Technician Name: Service Advisor Name: Date: Service Advisor Signature: Next Service Due: Additional Service Information Service Details Service Actions Checked: Yes / No Air Filter Changed: Yes / No Pollen Filter Changed: Yes / No Spark Plugs Changed: Yes / No Anti Corrosion Inspection:...
Page 276 Service Information Authorised Dealer Stamp Odometer: Technician Name: Service Advisor Name: Date: Service Advisor Signature: Next Service Due: Additional Service Information Service Details Service Actions Checked: Yes / No Air Filter Changed: Yes / No Pollen Filter Changed: Yes / No Spark Plugs Changed: Yes / No Anti Corrosion Inspection:...
Page 277 Service Information Authorised Dealer Stamp Odometer: Technician Name: Service Advisor Name: Date: Service Advisor Signature: Next Service Due: Additional Service Information Service Details Service Actions Checked: Yes / No Air Filter Changed: Yes / No Pollen Filter Changed: Yes / No Spark Plugs Changed: Yes / No Anti Corrosion Inspection:...
Page 278 Service Information Authorised Dealer Stamp Odometer: Technician Name: Service Advisor Name: Date: Service Advisor Signature: Next Service Due: Additional Service Information Service Details Service Actions Checked: Yes / No Air Filter Changed: Yes / No Pollen Filter Changed: Yes / No Spark Plugs Changed: Yes / No Anti Corrosion Inspection:...
Page 279: Replacement Of Airbag Units
Replacement of Airbag Units Replacement of Seat Belt Pre-tensioners Aston Martin recommend that all airbag units are replaced every Aston Martin recommend that all seat belt pre-tensioners units 10 years from the date of manufacture. To make sure this is are replaced every 10 years from the date of manufacture.
Page 280: Brake Disc Check
Brake Disc Check At each brake pad change (per axle), the ceramic brake discs are Brake Pads Changed - Brake Discs Checked required to be cleaned, dried and weighed. Record the date of each brake pad change and disc weight. Disc Weight (Front Axle): Disc Weight (Rear Axle): Odometer:...
Page 281 Brake Pads Changed - Brake Discs Checked Brake Pads Changed - Brake Discs Checked Disc Weight (Front Axle): Disc Weight (Front Axle): Disc Weight (Rear Axle): Disc Weight (Rear Axle): Odometer: Odometer: Signature: Date: Signature: Date: Brake Pads Changed - Brake Discs Checked Brake Pads Changed - Brake Discs Checked Disc Weight (Front Axle): Disc Weight (Front Axle):...
Page 282 Brake Pads Changed - Brake Discs Checked Brake Pads Changed - Brake Discs Checked Disc Weight (Front Axle): Disc Weight (Front Axle): Disc Weight (Rear Axle): Disc Weight (Rear Axle): Odometer: Odometer: Signature: Date: Signature: Date: Brake Pads Changed - Brake Discs Checked Brake Pads Changed - Brake Discs Checked Disc Weight (Front Axle): Disc Weight (Front Axle):...
Page 283: Field Service Actions
Field Service Actions Action No. Date Dealer Action No. Date Dealer A.33 Service...
Page 284: Service Action Recalls
Service Action Recalls Action No. Date Dealer Recall No. Date Dealer A.34 Service...
Page 285 Aston Martin Warranty Vehicle Warranties ..............B.2 Warranty Period..............B.4 Who May Repair the Vehicle..........B.4 Wear and Tear Items ............B.5 What is Not Covered............B.6 Customer Responsibility ............B.8 Warranty Coverage when Touring ........B.8 Aston Martin Extended Warranty.........B.9 Consumer Law ..............B.9 Owner And Vehicle Details ..........B.10...
Page 286: Aston Martin Warranty
Aston Martin vehicle was purchased, where Region for which it is manufactured and is compliant with the there is an Aston Martin authorised dealer or repairer; or (b) any local regulatory requirements of that Region. As a result, the country agreed in writing with Aston Martin.
Page 287 Corrosion Warranty. Should any part of the bodywork of the from the date the vehicle is handed over to the first retail Aston Martin vehicle be perforated, the panel(s) affected by the customer. Thereafter exchange parts must be used where perforation will be repaired or replaced.
Page 288: Warranty Period
The Vehicle Warranty period of cover is three years with to the owner, any part or assemble proved to Aston Martin's unlimited mileage. satisfaction to show a defect in materials or workmanship within The Anti-Perforation Corrosion Warranty period of cover is the applicable period.
Page 289: Wear And Tear Items
• Oil, air, pollen and fuel filters. (whether in material or workmanship) for the duration of the Vehicle Warranty. The period of warranty cover for any item may not exceed the time and distance limitation of the vehicle warranty. Aston Martin Warranty...
Page 290: What Is Not Covered
• Failure to properly maintain the vehicle in accordance with Aston Martin’s maintenance schedules and service instructions. • Failure to use Aston Martin specified parts or fluids during a warranty repair (or parts of equivalent quality during a retail repair).
Page 291 Paint Surface and Corrosion Protection Other Exclusions Aston Martin is not responsible for any repair or replacement that The Aston Martin warranty excludes liability for any lost time, is required as a direct result of the following: inconvenience, loss of transportation, or any other incidental or consequential damage you (or anyone else) may incur as a result •...
Page 292: Customer Responsibility
Aston Martin has a comprehensive service network in most parts Proper maintenance and use guard against major repair expenses of the world. Any authorised Aston Martin Dealer can carry out resulting from misuse, neglect or inadequate maintenance, and repairs under the terms of the vehicle warranty. Under normal...
Page 293: Aston Martin Extended Warranty
Aston Martin will be repaired by governing the sale of consumer goods. trained technicians using only genuine Aston Martin parts.
Page 294: Owner And Vehicle Details
If the vehicle is sold, the benefits of any un-expired portion of the Post Code: warranties can be transferred to the new owner. The new owner should complete a ‘tear off’ sheet (next page) and send the new details to: Aston Martin Warranty Department Aston Martin Lagonda Limited Banbury Road Gaydon Warwick...
Page 295 Owner Warranty Transfer (1) VIN No.: VIN No.: Odometer: Odometer: Date of Purchase: Date of Purchase: Name: Name: Address: Address: Post Code: Post Code: Telephone No.: Telephone No.: Email Address: Email Address: Signature: Signature: Date: Date: B.11 Aston Martin Warranty...
Page 296 B.12 Aston Martin Warranty...
Page 297 Owner Warranty Transfer (3) VIN No.: VIN No.: Odometer: Odometer: Date of Purchase: Date of Purchase: Name: Name: Address: Address: Post Code: Post Code: Telephone No.: Telephone No.: Email Address: Email Address: Signature: Signature: Date: Date: B.13 Aston Martin Warranty...
Page 298 B.14 Aston Martin Warranty...
Page 299 Owner Warranty Transfer (5) VIN No.: VIN No.: Odometer: Odometer: Date of Purchase: Date of Purchase: Name: Name: Address: Address: Post Code: Post Code: Telephone No.: Telephone No.: Email Address: Email Address: Signature: Signature: Date: Date: B.15 Aston Martin Warranty...
Page 300 B.16 Aston Martin Warranty...
Page 301 Aston Martin Assistance Emergency Assistance ............C.2 Benefits ................C.3 Alternative Travel Arrangements ..........C.5 What To Do In An Emergency ..........C.9 European Autoroute Restrictions........C.10 What is not Covered ............C.10 Schedule - Eligible Vehicles ..........C.14...
Page 302: Aston Martin Assistance
Emergency Assistance Vehicles Covered As the owner of an Aston Martin vehicle you should enjoy a high standard of trouble free motoring. However, should the The benefits of Aston Martin Emergency Assistance are applicable unexpected occur, our worldwide Dealer network is there to to new and approved pre-owned Aston Martin vehicles help you.
Page 303: Benefits
(45 minutes), the Service Provider will take you, the Vehicle and your passengers to the nearest Aston Martin Dealer. In the event that you (or your passengers) need to keep an important appointment, you will be taken there before the disabled Vehicle is transported to its required destination.
Page 304 If your Vehicle has been involved in an accident or has gone off towed, is able to carry out the repairs at its premises, then the the road and needs to be salvaged before towing, Aston Martin Vehicle will be repaired there.
Page 305: Alternative Travel Arrangements
Vehicle Collection Following Repair If the Service Provider estimates that the repairs to your Vehicle will take more than eight hours, the Aston Martin Emergency Following repairs organised by Aston Martin Emergency Assistance will cover your reasonable costs for alternative Assistance, the cost of a first class rail ticket or (if rail transport necessary travel, including for members of your party.
Page 306 Replacement Vehicle Aston Martin Emergency Assistance aim to make sure that the alternative replacement vehicle is a suitable vehicle for you. If following a Breakdown Incident: Specially adapted replacement vehicles will not be provided. • Your Vehicle is immobilised. The alternative replacement vehicle will be delivered to you, •...
Page 307 Martin Customer Service, Aston Martin Lagonda Limited, Banbury Road, Gaydon, Warwick, CV35 0DB. Only costs directly connected with the Breakdown Incident will be covered. The refund process to you shall be managed by Aston Martin Emergency Assistance. Aston Martin Assistance...
Page 308 Repatriation of Un-repaired Vehicle from Abroad Aston Martin Emergency Assistance will attempt to contact you If the Vehicle cannot be repaired by Aston Martin Emergency within 24 hours of successful repair at the Dealer in order to Assistance within an agreed time schedule (three working days),...
Page 309: What To Do In An Emergency
Please do not make your own arrangements as • Telephone number where you can be contacted. Aston Martin Emergency Assistance will be not be able to • Description of the concern experienced. reimburse you. If you are in a remote location and need assistance, the time taken to receive the assistance may be longer because of distance and local restrictions.
Page 310: European Autoroute Restrictions
2. Where any loss, theft, damage, death, bodily injury, cost or Once your Aston Martin has been recovered from the Autoroute, expense that is not directly associated with the incident that you should contact Aston Martin Emergency Assistance at the caused you to claim, unless expressly stated in this policy.
Page 311 10. Customer induced breakdown incidents are not covered subsequently recovered by the police, you may be asked to under Aston Martin Emergency Assistance. However, Aston pay a release fee before we can remove your Vehicle to an Martin and the Service Provider will, at their sole discretion, authorised Aston Martin Dealer.
Page 312 Service Provider. If which Aston Martin Emergency Assistance has reason to it is determined that Aston Martin is at fault for the believe have just been imported or purchased at Vehicle not being recorded as an eligible Vehicle, then auction.
Page 313 12.9 For transit risk insurance, which Aston Martin 13. The Service Provider may charge you directly for: Emergency Assistance recommends you take out where • Any replacement component, lubricant and / or fuel (the a Vehicle is to be repatriated.
Page 314: Schedule - Eligible Vehicles
New Vehicles - 36 Months Cover or other waterborne craft on or in the Vehicle and any Any Aston Martin vehicle which is sold directly by Aston Martin trailer or caravan. Aston Martin Emergency Assistance will or a Dealer in the UK or European Territories and which is first not consider any claim for loss resulting from damage to / registered in the UK or European Territories (Refer to ’Emergency...
Page 315 Automatic Climate Control ............6.4 Motion Sensor ............... 2.13 Manual Climate Control ............6.5 Tow Away Protection ............2.13 Climate Controls ................6.2 Aston Martin Assistance .............. C.1 Infotainment ................6.4 Aston Martin Facilities ..............A.2 Switches ..................6.2 Aston Martin Tracking ............... 2.13 Cruise Control ................5.9...
Page 316 Lighting ..................4.15 Exterior ................... 4.15 Fluid Capacities ................12.11 Interior ..................4.17 Fluid Specifications ..............12.11 Locking and Opening Fluids and Capacities ..............12.8 Outside ..................2.6 Fuel ....................12.46 Fuses ..................12.18 Media Media select ................8.9 Gasoline Particulate Filter (GPF) ..........5.33 Radio Functions ...............
Page 317 Time ..................10.2 Vehicle ..................10.2 Occupant Restraint System ............3.9 Specifications 4.0L V8 Engine ..............12.35 Airbags ..................3.15 Body ..................12.13 Seat Belts ................3.11 Brakes ..................12.13 Owner Maintenance Checks ........... 12.5 Steering .................12.13 Suspension ................12.13 Transmission Park Assist Systems .................12.36 ..............5.34 Steering Column 360°...
Page 318 Unlocking and Opening .............2.5 Interior ..................2.7 Outside ..................2.5 Tailgate ..................2.8 Vehicle Identification ..............E.3 Vehicle Key ...................2.2 Vehicle Provenance ..............A.3 Vehicle Recovery ..............12.40 Voice Control ................4.14 Washers and Wipers ...............12.12 Windows ..................3.4 Wiper Controls ................4.15 Alphabetical Index...

Aston Martin Vantage Manual

Quick Start

Vehicle Security

Before Driving

Controls

Driving

Climate Control

Media Systems

Satellite Navigation

Maintenance and Technical Data

Service

Aston Martin Warranty

Quick Links

Chapters

Need help?

Questions and answers

Related Manuals for Aston Martin Vantage

Summary of Contents for Aston Martin Vantage

Table of Contents
