Muse M-800 BT - Bluetooth Speaker Manual

Table of Contents

Contents

1 LOCATION AND DESCRIPTION OF CONTROLS
2 POWER SUPPLY
- 2.1 Charging your device via the USB port
3 PAIRING & LINKING OPERATION
4 TROUBLE SHOOTING GUIDE
5 SPECIFICATIONS
6 Documents / Resources
- 6.1 Download manual

LOCATION AND DESCRIPTION OF CONTROLS

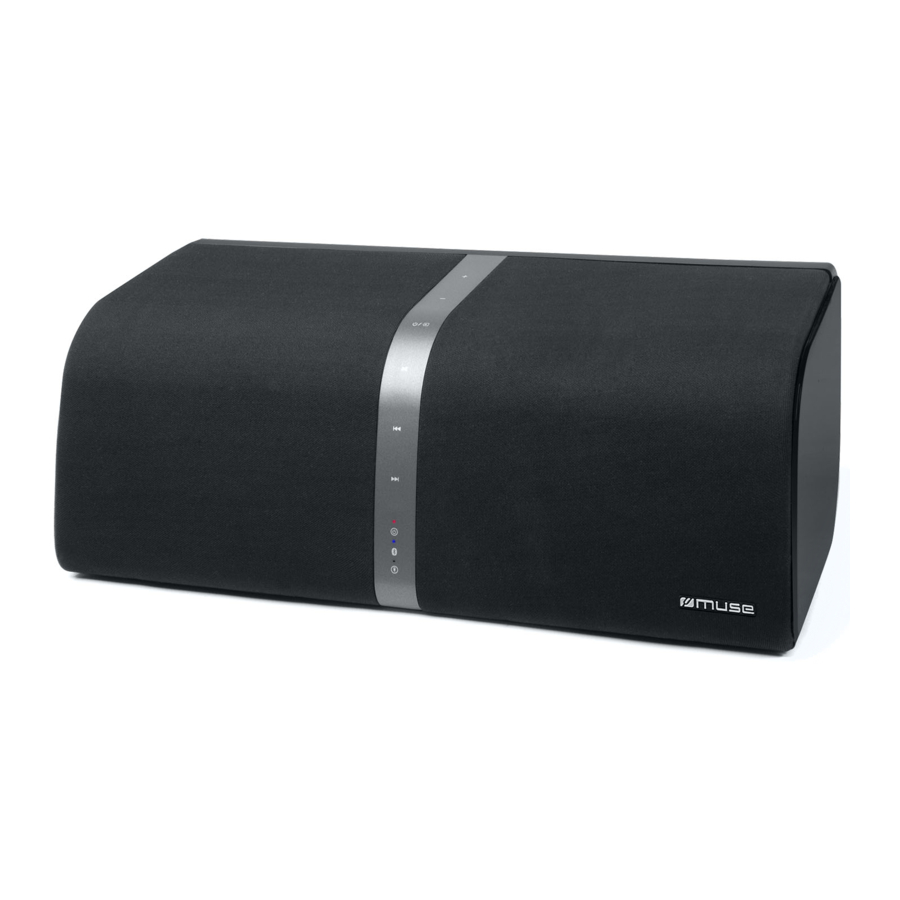

FRONT VIEW (Capacitive touch keys enable on front panel):

+/-: Volume up/ volume down
(Standby / Source Selection): Press to switch between Bluetooth mode and AUX IN mode. Press and Hold it to standby mode.
PLAY/PAUSE
: Previous / Next
Standby indicator
: Bluetooth LED indicator
: Aux in indicator
SPEAKER

REAR PANEL:

POWER Switch(ON/OFF)
DC input(AC adaptor jack)
AUX IN jack
USB Charging port

REMOTE CONTROL

STANDBY: press to power on the unit; press it again to put the unit in standby mode.
Bluetooth: press to enter to the Bluetooth mode.
Previous: press to return to the previous track.
PLAY/PAUSE: To start and pause the playback
CLASSIC/POP/ROCK/JAZZ/LIVE/FLAT: Press to select the equalizer mode.
MUTE: To mute or restore sound of the speaker.
AUX IN: press to enter AUX IN mode.
Volume + / Volume-: press to turn up / down the volume.
Next: Press to skip to the next track.

Remove the spacer tab before use

Remove the spacer tab when you use the remote control for the first time. To remove the tab, pull it in the direction of the arrow in the illustration as shown.

Replacing battery for the remote control

Pull out of the battery holder.
Install 1pc "CR2025" lithium battery according to the polarity diagram on the battery compartment.
Insert the battery holder into the remote control.

Before throwing any batteries away, consult your distributor who may be able to take them back for specific recycling.

NOTES:

Never recharge the batteries, apply heat to them or take them apart.
If the remote control is not going to be used for a long time, remove the battery to avoid damage caused by battery leakage corrosion.

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

POWER SUPPLY

AC adapter (included) Input 100-240 V ~, 50/60 Hz.

The included AC adapter is exclusively intended to be used with this device.
Turn off the power before unplugging the AC adapter to avoid damaging the device.
In case of unused for long periods, unplug the AC adapter from the outlet.
Place the unit near the outlet and make sure it is easily accessible. If a malfunction occurs, immediately disconnect the unit from the wall outlet.
The adapter enables you to unplug the unit. It must be easily accessible during use.
To completely turn off power, unplug the adapter from the wall outlet.
Never use a damaged power adapter. Place the power cord safely and so that you do not pinch or crush it. If the cable is damaged, contact a repair service

Charging your device via the USB port

Use the USB cable(no supplied) to connect one end of the USB charging port of the speaker and the other end to a device input terminals for battery charging, likes mobile phone, etc.

Note: The charging port can provide 5V 500mA power.

PAIRING & LINKING OPERATION

Turn off the Bluetooth functionality of other devices that were paired with your unit.
Slide POWER switch to ON(turn right) position on the unit.
Turn on Bluetooth functionality on your Bluetooth device. Typically, Bluetooth controls are found on the device's tools or settings menu (see your user manual). Turn on Bluetooth connectivity and make your device "discoverable".
Pressbutton on unit or press button on remote control, you can see the Bluetooth light LED flash in blue quickly which put the unit in pairing mode.
Clean out the pairing list on your Bluetooth device.
Choose "add a new Bluetooth device" or "setup Bluetooth device" on your device. It will start to search. Once " M-800 BT" shows on your device, select it. If your device prompts you for a pass code, please enter 0000. If the pairing attempt fails or times out, please start pairing procedure again (see steps 2-6).
After your device and the "M-800 BT" have discovered each other, one beep tone voice can be heard.

Play MUSIC from Bluetooth devices

Make sure the Bluetooth connection between the unit and the device is active.

To start play, press on unit.
To pause/resume play, press again.

Note: the Bluetooth light in blue will remain lit when music is playing.

Play EQ mode

During the music playback, press the CLASS/POP/LIVE/ROCK/JAZZ/ FLAT to select your desired EQ mode.

Play from an external device

Plug one end of cable (not included) into the LINE IN jack on back of the unit.
Plug the other end of the cable into the Line Out jack of the external source.
Press button on unit or press [AUX IN] button on the remote control, the Aux IN indicator turns green.
Start to play the device.

Note: please unplug the Aux-in link cable if you don't want to play with it.

Adjust volume level

During play, press +/- to increase/decrease the volume level.

Note:

Sometimes volume adjustment made on your device will also affect volume output from the speaker.
Standby indicator will flash once the volume be adjusted to maximum or minimum.

Changing tracks/songs

To skip to the previous/next songs in Bluetooth mode, press the or button to change.

Note: Make sure your Bluetooth device support AVRCP Bluetooth profile.

TROUBLE SHOOTING GUIDE

Problem	Solution
No Power	Connect the DC power cord to the power supply or connect to a power supply securely.
No connection	Make sure the speaker and audio source is not out of range of the speaker. Make sure that your Bluetooth devices are properly paired.
Not functioning correctly	If the speaker is not functioning correctly, please slide the POWER switch to OFF position, then connect the plug to the power supply and switch it on again.
Cannot stream music	Make sure your device must support the A2DP Bluetooth profile.
The remote control does not function	Make the battery is placed on the remote control. Replace the batteries with new ones. Make sure the remote control is pointed to the remote control sensor. Make sure the remote control is within the operating area. Switch off the unit and disconnect it from the outlet. Then power on the unit again.
Cannot charge through USB port	Please power on the unit.

This unit will not operate or may operate improperly with some Bluetooth mobile phones / audio players.
There are many mobile phones in the market. We cannot guarantee the compatibility of all mobile phones together with the unit.
If you found the conversation is not clear, try to move closer to the microphone.
Never expose the product to fire as this could result in personal injury.
Do not store the product in extremely cold or warm environments.
Never dismantle the product.
Never let children play with the product.
Do not expose the product to dampness or moisture
The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

SPECIFICATIONS

Weight: Approx 1.6 KG

Bluetooth version V2.1+EDR

Audio output power: 2x10W

Working distance: Up to 10 meters measured in open space. (Wall and structures may affect range of device)

If at any time in the future you should need to dispose of this product please note that Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. (Waste Electrical and Electronic Equipment Directive.)

Hereby, NEW ONE S.A.S, declares that this MUSE M-800 BT is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be consulted at http://www.muse-europe.com/conformity/M-800BT.pdf

NEW ONE S.A.S
10, Rue de la Mission, 25480 Ecole Valentin, France
