UNIS Fantasy Soccer Operation Manual

Hide thumbs Also See for Fantasy Soccer:
Table of Contents

Advertisement

Quick Links

Download this manual
IMPORTANT
www.universal-space.com
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fantasy Soccer and is the answer not in the manual?

Questions and answers

Related Manuals for UNIS Fantasy Soccer

Summary of Contents for UNIS Fantasy Soccer

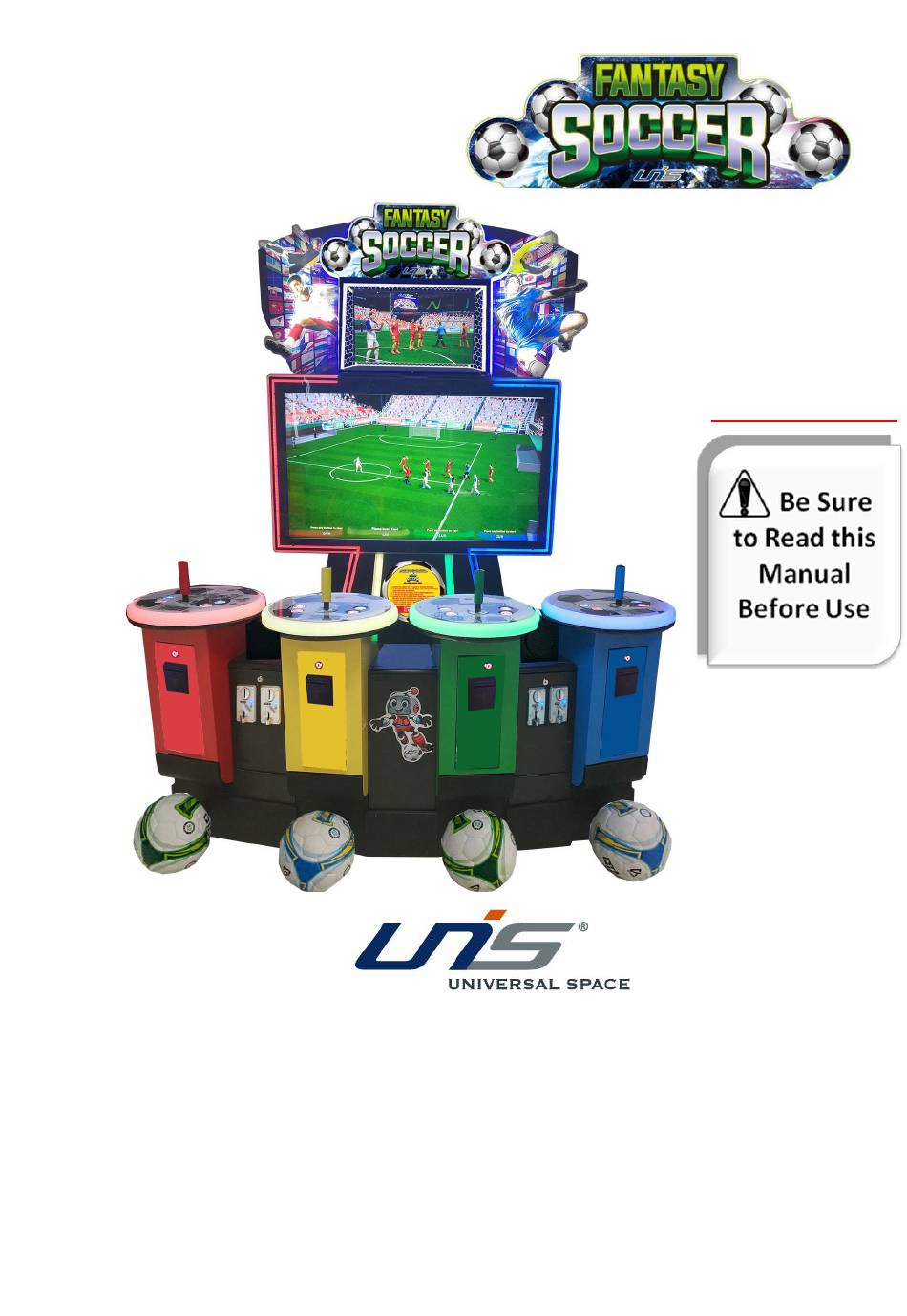

  • Page 1 IMPORTANT www.universal-space.com Operation Manual...
  • Page 2 Fantasy Soccer GMP Manual WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Email: service@unispartsandservice.com When contacting Service, you will need the following information and the name of your authorized distributor.

  • Page 3: Table Of Contents

    Fantasy Soccer GMP Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ............... 3 1. SPECIFICATIONS ....................5 2. CONTENTS OF THE ACCESSORY KIT ..............7 3. PART NAME ......................8 4. SET UP & INSTALLATION ..................9 5. HOW TO PLAY ...................... 18 6.

  • Page 4: Important Safety Instructions

    Fantasy Soccer GMP Manual Thank you for purchasing Fantasy Soccer. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 Fantasy Soccer GMP Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: ...

  • Page 6: Specifications

    Fantasy Soccer GMP Manual 1. SPECIFICATIONS Rated power supply: AC110V~ 50/60Hz; AC220V-240V~ 50/60Hz Min. Power consumption: 330W Max. Power consumption: 580W Dimension: W74.75×D67.20×H103.42 in W1898.6×D1706.9×H2626.8 mm Weight: Approximately 767 lb Approximately 348 kg Part No: F154 Model No: C-531 NOTICE: After turning off the game, please wait at least 1 minute before restarting again.
  • Page 7 Fantasy Soccer GMP Manual Back Cabinet: W65.11×D27.60×H103.42 in W1653.6×D701.1×H2626.8 mm Connective part: W31.50×D18.98×H15.59 in W800×D482.1×H396 mm Control panel: W74.75×D30.20×H42.98 in W1898.6×D767.1×H1091.6 mm 07/03/2019...

  • Page 8: Contents Of The Accessory Kit

    Fantasy Soccer GMP Manual 2. CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included: 1. Following accessories Part No. Code Name Picture F154-801-000 25300171002 F154-802-000 25300172002 F154-803-000 41440000254C Manual F154-806-000 23301010020 Power cord...

  • Page 9: Part Name

    Fantasy Soccer GMP Manual 3. PART NAME Key Components Marquee assembly Top monitor Monitor Control panel assembly Joystick Ready for Speaker Coin mechanism Ball assembly 07/03/2019...

  • Page 10: Set Up & Installation

    Fantasy Soccer GMP Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid.
  • Page 11 Fantasy Soccer GMP Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Service area: 40 in Service area Play area 4.4 Remove the Packing Support plate Please remove the packing support plates before operating the game.
  • Page 12 Fantasy Soccer GMP Manual 4.5 Machine Installation 4.5.1 Connective Part Before processing with assembly assure you have the following tools. Part No. Code Name Picture F154-350-000 20104023004 Cross recessed hexagon bolt Phillips screwdriver 1) Utilize the Phillips screwdriver to tighten four screws to fix L Connective Box B to Box A.
  • Page 13 Fantasy Soccer GMP Manual 3) Put the R Connective Box B together and utilize the Phillips screwdriver to tighten four screws to fix it to Box A. Utilize the Phillips screwdriver to tighten two screws to fix the L&R Connective Box B together.
  • Page 14 Fantasy Soccer GMP Manual 4.5.2 Control Panel Assembly Part No. Code Name Picture Cross recessed hexagon F154-348-000 20104020004 screw set(M6×25) F154-346-000 20104010004 Cross recessed hexagon bolt Phillips screwdriver 1) Align the three sub-assemblies of the Control Panel as shown below.
  • Page 15 Fantasy Soccer GMP Manual 2) Open the middle two back door plates. Utilize the Phillips screwdriver to tighten five screws(M6×25) indicated on each side to fix the three sub-assemblies together. back door back door plate plate 07/03/2019...
  • Page 16 Fantasy Soccer GMP Manual 3) Route the cables at the bottom of the Control Panel through L&R Connective Box B to connect the cables to the Box A. 4) Align Control Panel and Box B and fix the metal brackets indicated by the circles on both sides.
  • Page 17 Fantasy Soccer GMP Manual 4.5.3 Marquee Assembly Part No. Code Name Picture Cross recessed hexagon F154-346-000 20104010004 bolt Phillips screwdriver 1) Raise the marquee upright by following pictures 1-4. 2) Utilize Phillips screwdriver to tighten 6 screws indicated by circles to fix the marquee.
  • Page 18 Fantasy Soccer GMP Manual 4.6 Voltage Conversion (110V convert to 220V) Power off the machine. Step 1 Locate the power supply and the PC inside the back box. Step 2 Toggle the switches from 115V to 230V on the power supply and PC.

  • Page 19: How To Play

    Fantasy Soccer GMP Manual 5. HOW TO PLAY 1. Tap card and press any button to start. 2. Control the joystick to move the player. 3. Kick the ball with your feet to shoot and tackle. 4. Press SWTICH PLAYERS to switch your own side available player.
  • Page 20 Fantasy Soccer GMP Manual 5. Press ACCELERATE to speed up the player. 6. To ensure customers’ safety, please pay attention to this Caution. Game Rules: 1. 1-4 player(s) compose the USA team to compete with other teams. 2. Player(s) can win the champion after wining the Quarter Final, Semi-final and Final.

  • Page 21: Game Option

    Fantasy Soccer GMP Manual 6. GAME OPTION 6.1 Adjustment button instruction Open the coin door and there is a counter panel. Press Settings button to enter the setting menu. Settings Test Reset 6.2 Setting menu 6.2.2 Basic Setting 6.2.1 Main menu...
  • Page 22 Fantasy Soccer GMP Manual 6.2.4 Input Test Options Parameter Note Note Options Parameter Kick the ball 3P Ball sensor and the images 1P Coin 0-999 4P Ball sensor will turn dark. 2P Coin 0-999 1P Joystick Slowly move the 3P Coin...
  • Page 23 Fantasy Soccer GMP Manual 6.2.7 Game Reset Options Parameter Factory Restore Ok/Cancel Clear Daily Record Ok/Cancel Clear Unused Coin Ok/Cancel Back 6.2.8 Date/Time Setting 6.2.9 Language/语言 Options Parameter Options Year 1970-2118 中文 Month 1-12 1-31 English Hour 0-24 Back 0-59 0-59 Back &...

  • Page 24: Trouble Shootings

    Fantasy Soccer GMP Manual 7. TROUBLE SHOOTINGS 7.1 Common Problem Please confirm that all connectors fit tightly. Symptom Possible Cause Recommended action Frame assembly connector is Game will not Check connector. loose. start Frame assembly fault Contact with UNIS Service.
  • Page 25 Fantasy Soccer GMP Manual If you see following error signs showing on the display, please try the recommended action. Error code Possible cause Recommended action Dongle Dongle is loose. Reinsert the dongle. failed Dongle breaks down. Change a dongle. IO board IO board plug is loose.
  • Page 26 Fantasy Soccer GMP Manual 7.2 System Recovery Operation (NOTE: Do not disconnect power during this process.) 1. Turn off the game. Remove recovery stick from the machine. (Note: This process may take up to 60 minutes) Insert the recovery stick into the port at the back of the computer.

  • Page 27: Maintenance & Inspection

    Fantasy Soccer GMP Manual 8. MAINTENANCE & INSPECTION 8.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition 3.
  • Page 28 Fantasy Soccer GMP Manual Step 2 Open the back top door. Unplug the monitor cables. One person needs to hold the monitor in front of the machine while the other person utilize the Phillips screwdriver to loosen the monitor screws. Take the monitor off.
  • Page 29 Fantasy Soccer GMP Manual Step 3 Open the back door. Reach the joystick and button cables and unplug them. Utilize the Phillips screwdriver to loosen four screws to take the joystick assembly off. Joystick assembly Screws Back door Step 4 Replace with the new joystick and install it in reverse order.
  • Page 30 Fantasy Soccer GMP Manual Step 2 Utilize the Phillips screwdriver to loosen the back cover plate screws and take the plate off. Unplug the cables. Loosen the screws and take the ball assembly off. Screws Screws Back cover plate Cables Step 3 Replace with the new ball assembly and install it in reverse order.

  • Page 31: Overall Construction

    Fantasy Soccer GMP Manual 9. OVERALL CONSTRUCTION 9.1 Marquee Assembly Part No. Code Name F154-148-000 20241804C021 Marquee down frame F154-157-000 20641804C013 Light plastic 3 F154-150-000 20641804C012 Light plastic 2 F154-754-000 20541804B012 Marquee plastic F154-149-000 20641804C011 Light plastic 1 F154-201-000 20241804032...
  • Page 32 Fantasy Soccer GMP Manual 9.2 Monitor Assembly Part No. Code Name F154-106-000 26000012000 Shakeproof screw A F154-518-000 20341804C004 Connective plate 2 F154-122-000 20241804C005 Side angle bead 3 F154-111-001 20241804C031 Dongle holder 4 F154-112-000 26000064000 Recovery stick fixed plate 5 F154-707-000 20541804C010 Monitor down light plastic 1 1...
  • Page 33 Fantasy Soccer GMP Manual Part No. Code Name 20 F154-129-000 20641804C019 Horizontal bar 21 F154-136-000 20241804C009 Light down plate 22 F154-133-000 20641804C016 Down light plastic 23 F154-708-000 20541804C011 Monitor down light plastic 3 1 24 F154-123-000 20641804C009 Light plastic 4...
  • Page 34 Fantasy Soccer GMP Manual 9.3 L Connective Box Part No. Code Name F154-194-000 20241804022A Connective plate(large) F154-525-000 20341804C028 Connective part side plate F154-195-000 20241804023A Connective plate(small) F154-524-000 20341804C027 Connective part back plate F154-529-000 20341804C031 Top plate F154-528-000 20341804C030 Connective part door plate...
  • Page 35 Fantasy Soccer GMP Manual 9.4 R Connective Box Part No. Code Name F154-101-000 26000008000 Cabinet leveller F154-102-000 26000010000 Caster bracket F154-608-000 25501000047 2.5'' castor F154-534-000 20341804C026 Connective part bed plate F154-194-000 20241804022A Connective plate(large) F154-195-000 20241804023A Connective plate(small) F154-533-000 20341804C035...
  • Page 36 Fantasy Soccer GMP Manual 9.5 Control Panel Assembly Part No. Code Name F154-198-000 20241804035 Outboard plastic plate F154-199-000 20241804027 Outboard plate 2 F154-164-000 20241804010 Main plate 3 F154-165-000 20241804011 Reinforcing plate 4 F154-213-000 20241804024 Coin box frame 5 F154-166-000 20241804013...
  • Page 37 Fantasy Soccer GMP Manual Part No. Code Name 1 F154-563-000 20341804B028 Control panel plate 2 F154-192-000 20641804031 Control panel light plate 3 F154-564-000 20341804B029 Control panel back door plate 4 F154-204-000 20241804B011A Control panel 1 5 F154-203-000 20241804B001 DBV door plate 1...
  • Page 38 Fantasy Soccer GMP Manual 9.6 Ball Assembly Part No. Code Name F154-138-000 20241804C022 Fixed case F154-186-000 20641804025 Buffer rubber F154-187-000 20241804054 Compression spring F154-191-000 20241804049 Sensor block F154-188-000 20641804029 Buffer rubber 2 F154-189-000 20241804048 Sensor fixed plate F154-185-000 20241804047A Cover...
  • Page 39 Fantasy Soccer GMP Manual 9.7 Joystick Assembly Part No. Code Name F154-139-000 20241804C013 1P Joystick F154-140-000 20241804C014 2P Joystick F154-141-000 20241804C015 3P Joystick F154-142-000 20241804C016 4P Joystick F154-170-000 20241804014A Joystick plate F154-179-000 20641804026A Plastic plate F154-167-000 20241804043 Fixed plate F154-168-000 20641804018...
  • Page 40 Fantasy Soccer GMP Manual 9.8 Woofer Assembly Part No. Code Name F154-540-000 20341804C041 Woofer bed plate F154-537-000 20341804C038 Woofer back plate 1 F154-538-000 20341804C039 Woofer side plate F154-539-000 20341804C040 Woofer cover plate 1 F154-113-000 26000067000 Plastic bar F154-161-000 20241804C025 Woofer net...
  • Page 41 Fantasy Soccer GMP Manual 9.9 Speaker Assembly Part No. Code Name F154-542-000 20341804C044 Side plate 3 2x2 F154-544-000 20341804C046 Side plate 2 1x2 F154-163-000 20241804C029 Top plate F154-545-000 20341804C047 Side plate 1 1x2 F154-543-000 20341804C045 Cover plate 1x2 F154-162-000 20241804C028 Speaker net 1x2...
  • Page 42 Fantasy Soccer GMP Manual 9.10 Decals Part No. Code Name F154-754-000 20541804B012 Marquee plastic F154-701-000 20541804C002 Monitor plastic F154-702-000 20541804C004 L P plastic(large) F154-703-000 20541804C006 R P plastic(large) F154-704-000 20541804C007 L P plastic(small) F154-705-000 20541804C008 R P plastic(small) F154-709-001 20541804C012A...
  • Page 43 Fantasy Soccer GMP Manual Part No. Code Name F154-755-000 20541804B013 Counter label F154-726-000 25600000093 Dongle label F154-730-000 25600000036 Warning label(small) F154-728-000 25600000037 Warning label(large) F154-738-000 25600000067 Service warning label 1 F154-739-000 25600000095 Service label(large) F154-737-000 25600000042 Service label 1 F154-729-000 25600000016...
  • Page 44 Fantasy Soccer GMP Manual Part No. Code Name F154-711-000 20541804C018 Amplifier label F154-744-000 20511605A041 Amplifier power label F154-743-000 20511605A040 Adapter label F154-712-000 20541804C019 P3&P4 card reader power label 1 F154-718-000 20541804C028 P1&P2 card reader power label 1 F154-722-000 20541804C034 Monitor power label...
  • Page 45 Fantasy Soccer GMP Manual 9.11 Electrical Components Part No. Code Name F154-430-001 22006012009 B2835W light strip(white) 9.9in (250mm) 19.7in+13.8in F154-430-001 22006012009 B2835W light strip(white) (500mm+350mm) 7.9in+9.9in F154-430-001 22006012009 B2835W light strip(white) (200mm+250mm) 7.9in+13.8inx2 F154-430-001 22006012009 B2835W light strip(white) (200mm+350mmx2) F154-423-001 21201027008 27"...
  • Page 46 Fantasy Soccer GMP Manual 27” monitor 65” monitor -era Counter port Part No. Code Name F154-435-000 21102000075 F154-401-000 23301050002 Power cord F154-461-000 21107220012 Main board F154-462-000 21107190026 F154-463-000 21107090014 Memory F154-464-000 21107060006 Hard disk F154-465-000 21107170012 PC power supply 1...
  • Page 47 Fantasy Soccer GMP Manual Part No. Code Name F154-440-000 41300000007 Recovery stick F154-447-000 23309000282 Cable set F154-422-000 23305000011 Audio cable F154-441-000 23304000100 Dongle cable F154-449-000 21603000027 Adapter F154-402-000 23301050001 Power cord 10 F154-404-000 23304010028 Extended cable 11 F154-405-000 23304000028 Extended cable...
  • Page 48 Fantasy Soccer GMP Manual Part No. Code Name F154-434-000 21501000051 Sensor(front) F154-434-000 21501000051 Sensor(back) F154-443-000 22501000030 5K POT(L&R) F154-443-000 22501000030 5K POT(front&back) 1x4 F154-415-000 22401030006 Button F154-432-000 22604000006 Micro SW F154-408-000 22003000006 LED bulb F154-452-000 22801000085 Speaker F154-162-000 20241804C028 Speaker net...
  • Page 49 Fantasy Soccer GMP Manual AC 110~ Part No. Code Name 1 F154-424-000 29791300001 M3 main board 2 F154-436-000 22803010010 Amplifier board F154-449-000 21603000027 Adapter F154-401-000 23301050002 Power cord F154-446-000 23301040022 Cable joint 4 F154-416-000 21602000114 Power supply 5 F154-414-001 21714000148D...

  • Page 50: Wiring Diagram

    Fantasy Soccer GMP Manual WIRING DIAGRAM AC IN AC IN 07/03/2019...
  • Page 51 Fantasy Soccer GMP Manual 07/03/2019...
