Summary of Contents for UNIS FANTASTC PRIZE

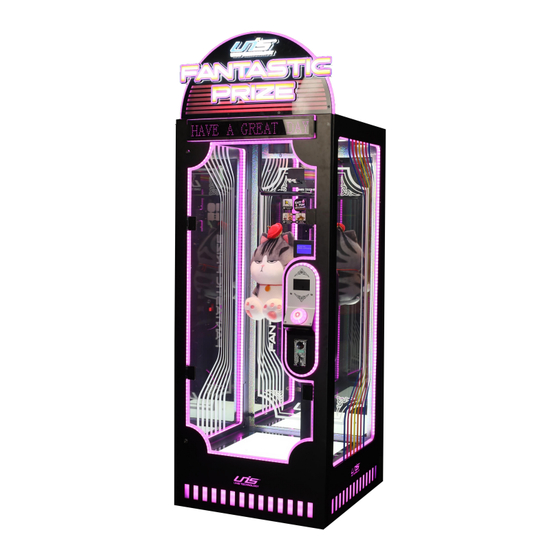

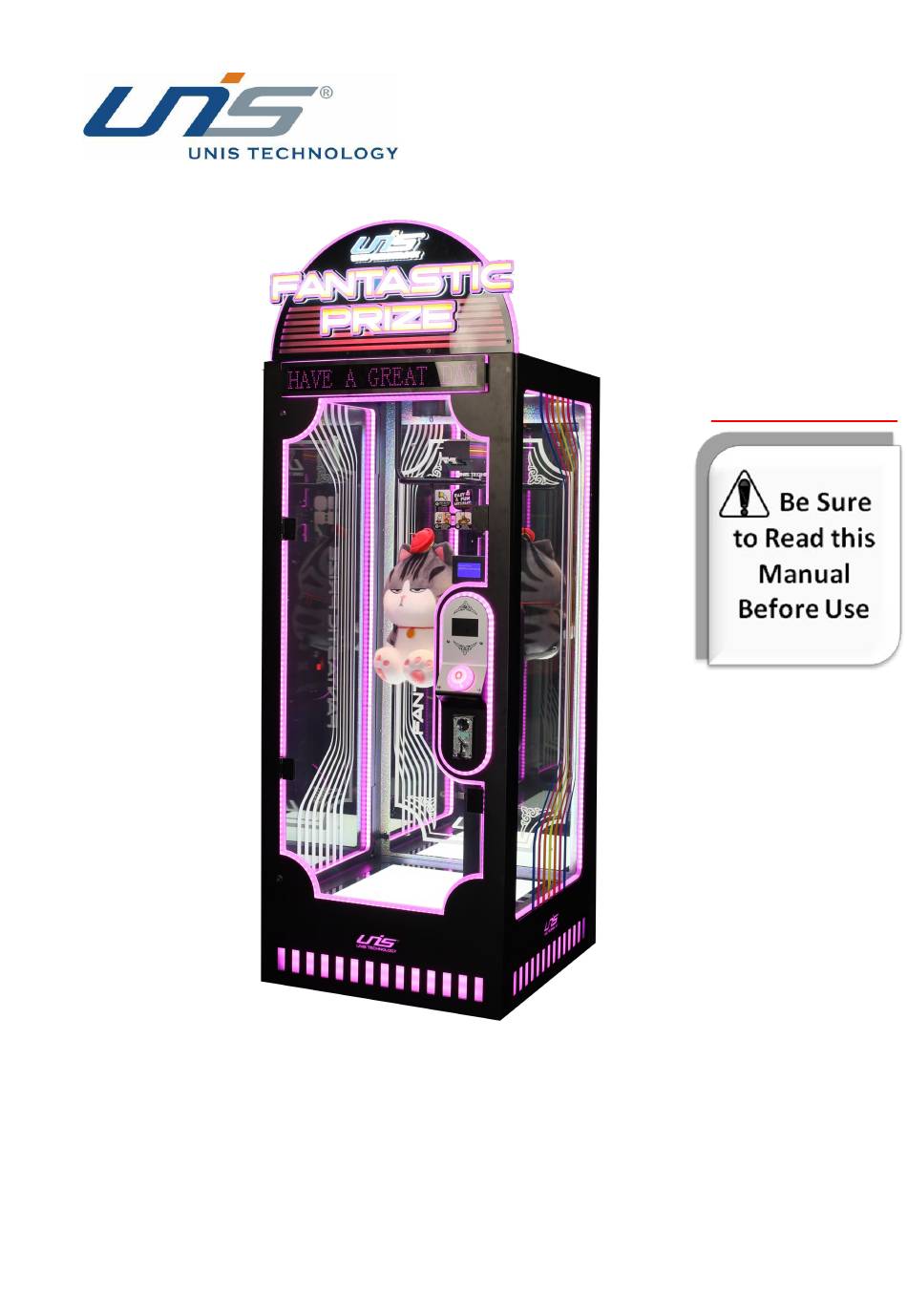

  • Page 1 IMPORTANT Operation Manual...
  • Page 2 Skill Fantastic Prize 2 GMP Manual WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Email: service@unispartsandservice.com www.unispartsandservice.com When contacting Service, you will need the following information and the name of your authorized distributor.

  • Page 3: Table Of Contents

    Skill Fantastic Prize 2 GMP Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ................ 3 1. SPECIFICATIONS ...................... 5 2. CONTENTS OF THE ACCESSORY KIT ..............6 3. PART NAME ......................7 4. SET UP & INSTALLATION ..................8 5. LOCATION OPERATION INSTRUCTIONS ..............10 6.

  • Page 4: Important Safety Instructions

    Skill Fantastic Prize 2 GMP Manual Thank you for purchasing Fantastic Prize 2 GMP. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 Skill Fantastic Prize 2 GMP Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: ...

  • Page 6: Specifications

    Skill Fantastic Prize 2 GMP Manual 1. SPECIFICATIONS Rated power supply: AC110V 50/60Hz; Min. Power consumption: 550W Max. Power consumption: 700W Dimension: W31.69×D34.37×H93.54 in W805 ×D873 ×H2376 mm Weight：Approximately 513.67 lb/ 233kg Model No: A-495 Part No.: F164 NOTICE: After turning off the game, please wait at least 1 minute before restarting again.

  • Page 7: Contents Of The Accessory Kit

    Skill Fantastic Prize 2 GMP Manual 2. CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included: Following accessories Part No. Part No. Name/SPEC Picture F164-0503-00 2.53.00608837 1408a key F164-0504-00 2.53.00608838 1408b key F164-0505-00 2.53.00608839 1408c key F164-0506-00...

  • Page 8: Part Name

    Skill Fantastic Prize 2 GMP Manual 3. PART NAME Key Components Marquee Assembly Scissor Display Button Coin mechanism 06/15/2023...

  • Page 9: Set Up & Installation

    Skill Fantastic Prize 2 GMP Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid. ...
  • Page 10 Skill Fantastic Prize 2 GMP Manual 4.3 Machine Installation Step 1 Place the marquee on the top, connect the connectors for marquee, and tighten screws; Marquee Marquee Finish! 06/15/2023...

  • Page 11: Location Operation Instructions

    Skill Fantastic Prize 2 GMP Manual 5. LOCATION OPERATION INSTRUCTIONS 5.1 First Power On Operation Step 1. When first power on the machine, only need to confirm and adjust below parameter ↓ Open front Prize door with door key, there is a Keyboard near the Coin box. Press “PROGRAM”...

  • Page 12: How To Play

    Skill Fantastic Prize 2 GMP Manual Step 2. Tie one end of String to the Hook and the other end of String to the Prize; The String must be tied inside the middle lowest point of Hook, and must be fixed straight; Hook Scissor Prize...

  • Page 13: Game Option

    Skill Fantastic Prize 2 GMP Manual 7. GAME OPTION 7.1 Keyboard instruction Open front Prize door with door key, there is a Keyboard near the Coin box. Press “PROGRAM” button to enter the setting menu. After entering the menu, use the keyboard to control mini screen cursor to up, down, left and right to choose, press “Confirm”...
  • Page 14 Skill Fantastic Prize 2 GMP Manual 7.2.2 Accounts: operation records are included as below Options Description COINS The total number of coins inserted. GAMES The total number of game plays. PRIZES The total number of prize out. 7.2.3 Para Set: Game settings up are included as below Options Adjustable value Default...
  • Page 15 Skill Fantastic Prize 2 GMP Manual 7.2.4 Hardware Options Description Test Test the electrical components. Cut Off Test the crane to cut the string. Open Door Open the front glass door. Demo Color Change the led lighting colors. Music Test Exit 7.2.5 Ver Info (Show Version number &...

  • Page 16: Troubleshooting

    Contact with UNIS Service. Turn on power SW again. If appeared Circuit protector make power SW again and again, machine has Power off in off state. anomaly. Please contact with UNIS Service. Low volume Raise the volume. Connector loose. Check connector.
  • Page 17 Skill Fantastic Prize 2 GMP Manual If you see following error signs showing on the display, please try the recommended action. Display Possible Cause Recommended action The prize door is not been E5 Pls Close Close the prize door closed. Door The prize door lock is faulty.

  • Page 18: Maintenance & Inspection

    Skill Fantastic Prize 2 GMP Manual 9. MAINTENANCE & INSPECTION 9.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition.

  • Page 19: Overall Construction

    Skill Fantastic Prize 2 GMP Manual 10. OVERALL CONSTRUCTION 10.1 General Assembly Part No. Code No. Name Version F164-0002-00 206.2.2306.002 Glass door PVC board V1.1 F164-0004-00 206.2.2306.026 Glass door hole rubber pad V1.1 F164-0009-00 206.2.2306.008 Front glass door light plastic V1.1 F164-0010-00 206.2.2306.009...
  • Page 20 Skill Fantastic Prize 2 GMP Manual Part No. Code No. Name Version Qty F164-0023-00 206.2.2306.023 Side bottom light plastic V1.1 F164-0024-00 206.2.2306.024 Front bottom light plastic V1.1 F164-0025-00 2.60.00008000 Leveller V1.1 F164-0026-00 2.60.00010000 Caster plate V1.1 21 F164-0029-00 203.2.2306.001 Electrical mounting plate 1 V1.1 F164-0030-00 203.2.2306.002...
  • Page 21 Skill Fantastic Prize 2 GMP Manual Part No. Code No. Name Version Qty F164-0701-00 LJ.G-01-01 Cabinet bracket V1.1 F164-0702-00 LJ.G-01-02 Coin outer box V1.1 F164-0703-00 LJ.G-01-03 Coin inner box V1.1 F164-0704-00 LJ.G-01-04 Coin-in chute V1.1 F164-0705-00 LJ.G-01-05 Upper plate V1.1 F164-0706-00 LJ.G-01-07 Bending tube bracket...
  • Page 22 Skill Fantastic Prize 2 GMP Manual 10.3 Front Door 06/15/2023...
  • Page 23 Skill Fantastic Prize 2 GMP Manual Part No. Code No. Name Version Qty F164-0801-00 LJ.G-02-04 Front door V1.1 F164-0802-00 LJ.G-02-05 Pane bracket V1.1 F164-0803-00 LJ.G-02-06 Panel V1.1 F164-0804-00 LJ.G-02-07 Coin chute V1.1 F164-0805-00 LJ.G-02-09 Bottom light marquee V1.1 F164-0806-00 LJ.G-02-10 Lock box V1.1 F164-0807-00...
  • Page 24 Skill Fantastic Prize 2 GMP Manual 10.5 Decals 06/15/2023...
  • Page 25 Skill Fantastic Prize 2 GMP Manual Part No. Code No. Name Version Qty 1 F164-0113-00 205.2.2306.003 Marquee plastic V1.1 2 F164-0117-00 205.2.2306.007 UNIS Logo V1.1 3 F164-0116-00 205.2.2306.006 Machine LOGO V1.1 4 F164-0114-00 205.2.2306.004 R side decal PET V1.1 5 F164-0115-00 205.2.2306.005...
  • Page 26 Skill Fantastic Prize 2 GMP Manual 06/15/2023...
  • Page 27 Skill Fantastic Prize 2 GMP Manual Part No. Code No. Name Version Qty 1 F164-0123-00 205.2.2306.016 Fuse decal V1.1 2 F164-0128-00 205.2.2306.021 Counter decal V1.1 3 F164-0124-00 205.2.2306.017 Wiring decal V1.1 4 F164-0107-00 2.56.00.000071 110V decal V1.1 5 F164-0127-00 205.2.2306.020 Warning decal V1.1 6 F164-0111-00...
  • Page 28 Skill Fantastic Prize 2 GMP Manual 10.6 Electrical Components Part No. Code No. Name Version 1 F164-0219-00 2.20.02.020107 5050 RGB light strip V1.1 47.24 in (1200mm) 2 F164-0116-00 205.2.2306.006 Machine LOGO V1.1 3 F164-0218-00 2.20.02.020092 2811 light strip V1.1 27.55 in×4 (700mm×4) F164-0211-00 5.08.01000020 Display V1.1...
  • Page 29 14 F164-0219-00 2.20.02.020107 5050 RGB light strip V1.1 11.81 in (300mm) 15 F164-0220-00 2.20.02.015019 BG5050W white light V1.1 157.48 in 16 F164-0117-00 205.2.2306.007 UNIS Logo V1.1 Bottom: Part No. Code No. Name Version 1 F164-0219-00 2.20.02.020107 5050 RGB light strip V1.1 17.71 in (450mm)
  • Page 30 Skill Fantastic Prize 2 GMP Manual Top: Part No. Code No. Name Version F164-0222-00 2.20.03.230052 Spotlight V1.1 F164-0221-00 2.20.03.230051 Downlight V1.1 Part No. Code No. Name Version F164-0401-00 208.2.2306.001 Crane V1.1 06/15/2023...
  • Page 31 Skill Fantastic Prize 2 GMP Manual Part No. Code No. Name Version F164-0402-00 208.2.2306.003 Hook micro switch V1.1 Part No. Code No. Name Version F164-0225-00 2.20.03.230012 White light board V1.1 F164-0222-00 2.20.03.230052 Spotlight V1.1 06/15/2023...
  • Page 32 Skill Fantastic Prize 2 GMP Manual Part No. Code No. Name Version 1 F164-0404-00 208.2.2306.005 Display control board V1.1 2 F164-0233-00 2.18.00000018 Magnet ring V1.1 3 F164-0219-00 2.20.02.020107 5050 RGB light strip V1.1 11.81 in(300mm) 4 F164-0219-00 2.20.02.020107 5050 RGB light strip V1.1 53.14 in (1350mm) Part No.
  • Page 33 Skill Fantastic Prize 2 GMP Manual Part No. Code No. Name Version F164-0203-00 2.16.02.000172 Power supply(RD-125B) V1.1 F164-0403-00 208.2.2306.004 Crane mainboard V1.1 F164-0238-00 208.2.2306.006 TF card V1.1 F164-0207-00 2.30.00000005 Counter V1.1 F164-0206-00 2.26.01.040005 Power SW V1.1 F164-0208-00 297.9.1400001 POT board V1.1 F164-0209-00 2.24.03.000001...
  • Page 34 Skill Fantastic Prize 2 GMP Manual Part No. Code No. Name Version F164-0202-00 2.16.02.000171 Power supply(12V) V1.1 F164-0204-00 2.27.02.050017 V1.1 F164-0205-00 2.27.02.000010 Fan net V1.1 F164-0215-00 2.16.03.000027 Adapter V1.1 F164-0403-00 208.2.2306.004 Crane mainboard V1.1 F164-0210-00 2.28.01.000005 Speaker V1.1 F164-0223-00 2.20.03.230046 LED light board V1.1 F164-0229-00...
  • Page 35 Skill Fantastic Prize 2 GMP Manual Part No. Code No. Name Version 1 F164-0218-00 2.20.02.020092 2811 light strip V1.1 27.55 in×4 (700mm×4) 2 F164-0217-00 2.21.1.000040 Light controller V1.1 Part No. Code No. Name Version F164-0214-00 2.24.01.300029 Emergency Button V1.1 www.unistechnology.com 06/15/2023...
