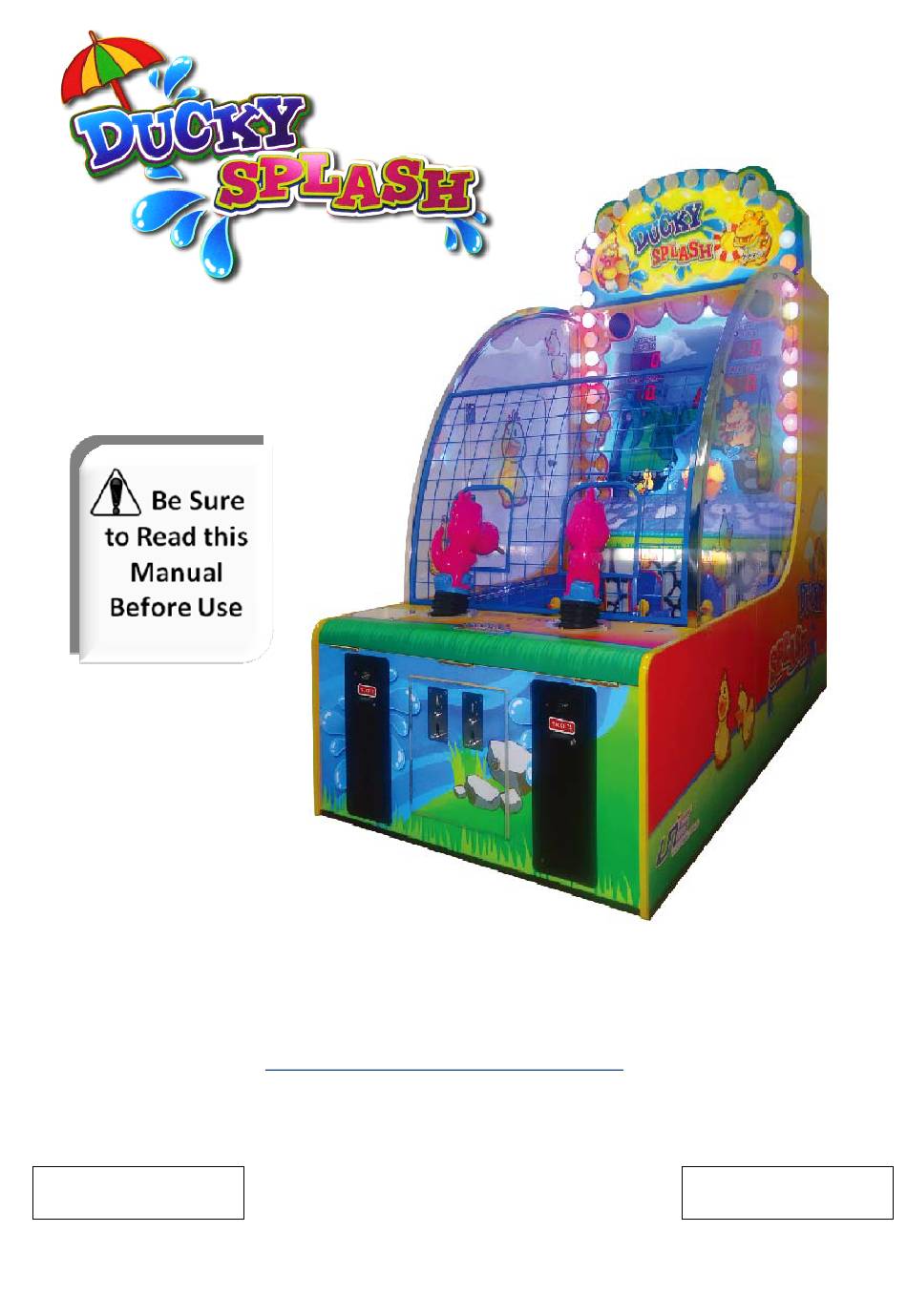

CEC version
Operation Manual
Distributed by: Amusements Worldwide
www.amusementsworldwide.com
Tel: 214-750-9202
Date of installation
:
Serial Number
:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ducky Splash and is the answer not in the manual?

Questions and answers

Related Manuals for UNIS Ducky Splash

Summary of Contents for UNIS Ducky Splash

  • Page 1 CEC version Operation Manual Distributed by: Amusements Worldwide www.amusementsworldwide.com Tel: 214-750-9202 Date of installation Serial Number...

  • Page 2: Table Of Contents

    Ducky Splash CEC Rev. 1.02 CONTENT IMPORTANT SAFETY INSTRUCTIONS…………………………………………………………… 2 1. SPECIFICATIONS………………………………………………………………………………………4 2. PACKAGE CONTENTS....................5 3. SET UP & INSTALLATION ..................6 4. HOW TO PLAY…………………………………………………………………………………………10 5. PARAMETER SETTINGS ................……….11 6. MAINTENANCE&INSPECTION…………………………………………………………………..17 7. OVERALL CONSTRUCTION………………………………………………………………………..21 8. GAME DECALS ………………………………………………………………………………………..37 9.

  • Page 3: Important Safety Instructions

    Ducky Splash CEC Rev. 1.02 Thank you for purchasing Ducky splash. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and personnel in charge of product operation.
  • Page 4 Ducky Splash CEC Rev. 1.02 This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: • Places subject to rain/moisture, or places subject to high humidity.

  • Page 5: Specifications

    Ducky Splash CEC Rev. 1.02 1. SPECIFICATIONS Rated power supply：110V 50/60Hz Min. Power consumption: 120W Max. Power consumption： 630W Dimension：W760×D394×H823 (inches) Weight：approximately474 (lb) Note: After turning off the game, please wait at least 1 minute before restarting again. Note: Game parameters are subject to change without notice.

  • Page 6: Package Contents

    Ducky Splash CEC Rev. 1.02 2. PACKAGE CONTENT 2.1 Open the package and make sure all the items are included: 1 x Body Assembly Following accessories Part No. Name AC Power cord D114-142-000 Fuse D114-143-000 Manual D114-144-000 D114-145-000 D114-146-000 Bucket...

  • Page 7: Set Up & Installation

    Ducky Splash CEC Rev. 1.02 3. SET UP & INSTALLATION 3.1 Play Zone △ ! Warning This product is an indoor game machine. Do not install outdoors. 3.2 Installation Area This machine requires space for playing and for maintenance as shown below.
  • Page 8 Ducky Splash CEC Rev. 1.02 3.4 Level Adjustment Install this machine on a flat surface. Adjust levers to lift casters off the ground to level the game If the game is installed on an unsuitable floor, it could cause a malfunction.
  • Page 9 Ducky Splash CEC Rev. 1.02 △ ! NOTICE Turn off the power switch and unplug the connector wire before moving； Replace a new caster if it broke； For longer distance transport, package the game properly to prevent damages; Random movement ，overturn、transportation might damage the machine；...
  • Page 10 Ducky Splash CEC Rev. 1.02 △ ! WARNING Ensure no heavy objects rest on the power cord. Check to make sure the game cabinet does not sit on the power cord as this could damage the cord and become hazardous To disconnect the game, grip the plug and pull it from the wall outlet.
  • Page 11 Ducky Splash CEC Rev. 1.02 4. HOW TO PLAY Ducky Splash is a 1- 2 player water shooting game for children and the whole family! The object of the game is to use the Dino water guns to shoot rubber ducks into the 2 tunnel entrances.

  • Page 12: Parameter Settings

    Ducky Splash CEC Rev. 1.02 5. Parameter Settings Please refer to the I/O chart and schematics included with the game. To adjust DIP settings, please refer to the I/O chart. The initial settings are in CAPITAL LETTERS. 5.3 Main Board: Test mode: Press “test”...
  • Page 13 Ducky Splash CEC Rev. 1.02 Testing - Options LED displays segment scan, digit scan and shows <1, 2, 3, 4, 5, 6, 7, 8> and <87654321> - To check LED display. Press TEST button again and LED displays 1 - shows the LED 1and LED2 of 1# in DIP SW.
  • Page 14 Ducky Splash CEC Rev. 1.02 5.5 Parameter Settings DIP Adjust 1 (SW1) (1) Coin(s) per game DIP (SW1) Item Content Note Coin(s) per game (2) Play time (s) DIP (SW1) Item Content Note Play time (s) (3) Mercy Tickets DIP (SW1)
  • Page 15 Ducky Splash CEC Rev. 1.02 DIP 2 (SW2) (5) Payout (Score per ticket) DIP (SW2) Item Content Score 1-150 151-300 301-999 0 tickets 0 tickets 0 tickets 1 tickets 2 tickets 3 tickets 2 tickets 4 tickets 6 tickets 5 tickets...
  • Page 16 Ducky Splash CEC Rev. 1.02 5.6 Input & Output Parts： Input part: Output part: CONTENT INPUT OUTPUT CONTENT OUTPUT CONTENT OUTPUT CONTENT J9-1 Ticket reset J23-9 J24-17 Left gun J4-1 L_ entrance J9-2 J23-10 J24-18 Left gun J4-2 R_ entrance...
  • Page 17 Ducky Splash CEC Rev. 1.02 6. MAINTENANCE & INSPECTION 6.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Try to run the game before operation each day. 2. Conduct monthly routine checks of game components ensure good working condition 3.
  • Page 18 Ducky Splash CEC Rev. 1.02 6.4 Adding and Draining Water: Draining Water NOTE: Always empty water in the tank and in the pump before transporting Step 3: Press and hold the Drain Button until water is fully emptied Step 2: Turn on...
  • Page 19 Ducky Splash CEC Rev. 1.02 6.5 Left & Right Gun Assembly Maintenance： Step 1: Fasten the Lock Pin from the inside to secure the front panel Control Switch Frame Step 2: To open the control panel, grip the two Dino water guns at the base then pull them towards you.
  • Page 20 Ducky Splash CEC Rev. 1.02 6.5 Other Parts Maintenance： 1Water pipe maintenances 2Filter maintenances Unscrewed and take out water pipe. Unscrewed and clean up filter filter 3Filter maintenances Unscrewed and maintenance sensor...

  • Page 21: Overall Construction

    Ducky Splash CEC Rev. 1.02 7. OVERALL CONSTRUCTION 7.1 Main Assembly 1:...
  • Page 22 Ducky Splash CEC Rev. 1.02 Part No. Name D114-500-000 Coin box (inner) D114-400-000 Lock D114-100-000 Ticket box 120 D114-101-000 Counter install board A D114-401-000 D114-102-000 Front waterproof board D114-402-000 Gun expanding ring D114-600-000 Gun half circle piece D114-103-000 Tank side pressing edge...
  • Page 23 Ducky Splash CEC Rev. 1.02 Main Assembly 2：...
  • Page 24 Ducky Splash CEC Rev. 1.02 Part no. Name D114-144-000 Console SW bracket Front water funnel D114-115-000 Upper lamp plate fixed strip D114-116-000 D114-117-000 Lamp tube fixed plate D114-800-000 Relay holder D114-801-000 Power holder D114-118-000 Tank back pressing edge D114-119-000 Button board D114-006-000 Pump assy.
  • Page 25 Ducky Splash CEC Rev. 1.02 7.2 Pump Assembly：...
  • Page 26 Ducky Splash CEC Rev. 1.02 Part No. Name D114-410-000 Rubber pipe D114-411-000 Rubber pipe 8MM pipe D114-409-000 D114-437-000 Water pipe nut D114-436-000 8MM pipe 1/4 inch wire pipe D114-419-000 Square bent D114-432-000 Manometer D114-431-000 Screw D114-414-000 Four head connect D114-415-000...
  • Page 27 Ducky Splash CEC Rev. 1.02...
  • Page 28 Ducky Splash CEC Rev. 1.02 Part No. Name D114-444-000 Water pipe nut D114-701-000 Picture D114-138-000 Waterproof fixed board D114-139-000 Waterproof cover board D114-614-000 Before waterproof board D114-610-000 Separator base D114-439-000 Separator D114-609--000 water tank D114-133-000 R fixed bracket D114-616-000 Infrared cover board...
  • Page 29 7.3 Right gun Assembly： Add lubricating greasing...
  • Page 30 Ducky Splash CEC Rev. 1.02 Part No. Name Gun mouth D114-445-000 D114-446-000 D114-617-000 Gun shell D114-447-000 Screw D114-448-000 Pin (R&L) D114-449-000 Pin (U&D) D114-450-000 Pin sleeve (U&D) D114-451-000 Screw D114-452-000 Spring pin D114-140-000 Assy. holder D114-141-000 Right holder D114-453-000 Screw D114-454-000 Pin (R&L)
  • Page 31 Ducky Splash CEC Rev. 1.02 7.4 Electrical Part： Part No. Name D114-461-000 Counter D114-461000 Button D114-463-000 D114-464-000 Button D114-465-000 Wire connect pillar D114-466-000 Small ship SW D114-467-000 Filter...
  • Page 32 Ducky Splash CEC Rev. 1.02...
  • Page 33 Ducky Splash CEC Rev. 1.02 Part No. Name D114-468-000 Power supply D114-469-000 Relay D114-470-000 Fuse holder D114-471-000 Fuse D114-472-000 Wire connect bank D114-473-000 Leakage protection switch 2.3 inch LED PCB D114-474-000 D114-475-000 LED PCB D114-476-000 Lamp control panel D114-477-000 Main board...
  • Page 34 Ducky Splash CEC Rev. 1.02...
  • Page 35 Ducky Splash CEC Rev. 1.02 Part No. Name D114-478-000 Coin mech. D114-479-000 Ticket mech. D114-480-000 30 card style button D114-481-000 Φ60 lamp shade D114-482-000 LED single layer light house D114-483-000 Receiver sensor D114-484-000 Transmitting sensor D114-485-000 Lamp strip D114-486-000 Speaker...

  • Page 36: Game Decals

    Ducky Splash CEC Rev. 1.02 8.Game Decals： Front ：...
  • Page 37 Ducky Splash CEC Rev. 1.02 Part No. Name D114-702-000 Coin counter D114-703-000 Ticket counter D114-704-000 Volume D114-705-000 U_ board decal D114-486-000 R_ board menu D114-706-000 L_ board menu D114-707-000 Console decal D114-708-000 Front door decal D114--709-000 L_ board front decal...
  • Page 38 Ducky Splash CEC Rev. 1.02 Back ：...
  • Page 39 Ducky Splash CEC Rev. 1.02 Part No. Name D114-723-000 Notice label D114-724-000 Description decal 1 D114-725-000 Description decal 2 D114-726-000 Description decal 3 D114-727-000 High voltage decal (small) D114-728-000 Description decal 4 D114-729-000 T10A label D114-730-000 Power SW decal D114-731-000...

  • Page 40: Wiring Diagram

    Ducky Splash CEC Rev. 1.02 10. WIRING DIAGRAM...
  • Page 41 Ducky Splash CEC Rev. 1.02...
