Summary of Contents for UNIS RODEO RACE

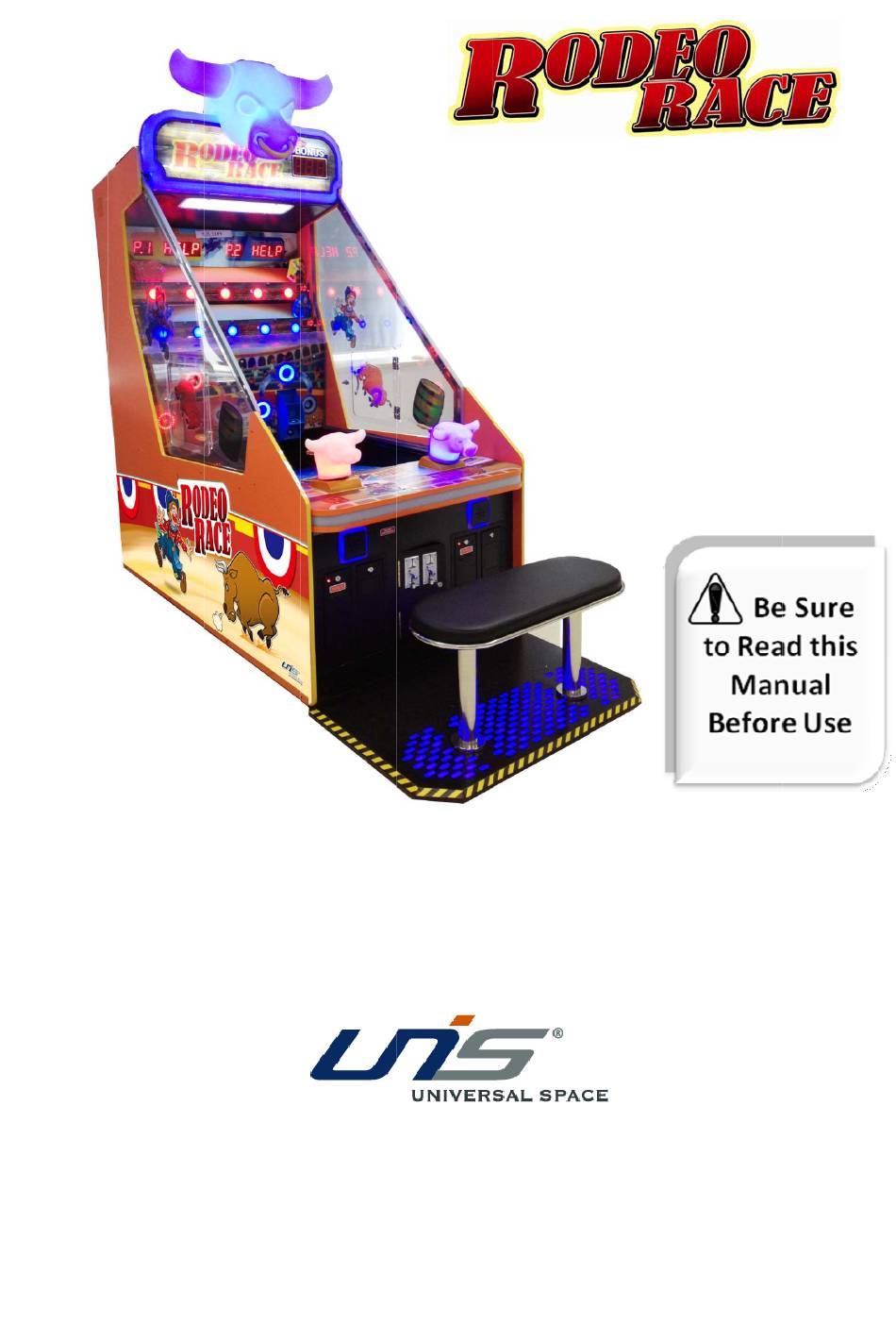

- Page 1 O Op pera atio ual l www.univ versal-sp pace.com...
-
Page 2: Table Of Contents
Rodeo Race Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ................ 46 1. SPECIFICATIONS ..................... 48 2. PACKAGE CONTENTS ....................49 3. PART NAME ......................50 4. SET UP & INSTALLATION ..................51 5. HOW TO PLAY ......................55 6. GAME OPTIONS ....................... 56 ... -
Page 3: Important Safety Instructions
Rodeo Race Manual Thank you for purchasing Rodeo Race from Universal Space. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation. - Page 4 Rodeo Race Manual This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: Places subject to rain/moisture, or places subject to high humidity.
-
Page 5: Specifications
Rodeo Race Manual 1. SPECIFICATIONS Rated power supply: AC220V50Hz/60Hz; AC110V 50Hz/60Hz Min. Power consumption: 150W Max. Power consumption：720W Dimensions： W2555×D1082×H2546 (mm) Weight： Approximately 200kg NOTICE: After turning off the game, please wait at least 1 minute before restarting again. Note: The contents of this manual may be updated without notice. -
Page 6: Package Contents
Rode eo Race Manual 2. PACK KAGE C CONTEN Open the p package an d make su re all the ite ems are inc cluded: 1 x Body Assem mbly Foll owing acce essories Part No Code Name Spec. -
Page 7: Part Name
Rodeo Race Manual 3. PART NAME Marquee Digital display Bull Assy. Target Bull head stick Speaker Ticket dispenser Stool assy. -
Page 8: Set Up & Installation
Rodeo Race Manual 4. SET UP & INSTALLATION This product is an indoor game machine. Do not install outdoors. Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 2) for places to avoid Place the unit on a dry level surface ... - Page 9 Rodeo Race Manual 4.2 Level Adjustment Install this machine on a flat surface. Adjust levers to lift casters off the ground to level the game. If the game is installed on an unsuitable floor, it could cause game malfunction. To secure the game, adjust the Leveler down until it touches the floor, lifting the casters off the ground by 5mm.
- Page 10 Rodeo Race Manual Connect the grounding conductor to the earth terminal (GND): Power socket Power outlet Power plug Power plug Power cord WARNING Ensure no heavy objects rest on the power cord. Check to make sure the game cabinet does not sit on the power cord as this could damage the cord and become hazardous.
- Page 11 Rodeo Race Manual 4.5 Cabinet installation 4.5.1 Stool installation Connect these plugs, move pedal near to cabinet, then fixed with 4pcs of M5*12 cross recessed countersunk head screw. 4.5.2 Marquee installation Connect these plugs, fixed marquee with 4pca of M6x20 cross recessed...
-
Page 12: How To Play
Rodeo Race Manual 5. HOW TO PLAY... -
Page 13: Game Options
Rodeo Race M Manual 6. GAM ME OPTIO Check the attached I/ /O chart an nd schema tic diagram m, PC plan available m machine inp put and output corr respond to each conn nection pos sition. Base ed on the D... - Page 14 Rodeo Race Manual IO Settings Item Content Coin(s) per game Game time 120s 180s Demo music 240s Memory Item Content Wheel score Double score when hole light Continue if Continue no tik. Stop...
- Page 15 Rodeo Race Manual Item Content 2000 2600 3000 Buffalo 5 3600 lights end 4000 point value 4600 5000 6000 ① ② ③ ④ Tik. Group ⑤ ⑥ ⑦ ⑧ Item Content Buffalo 5 lights bonus initial value bonus value+...
- Page 16 Rodeo Race Manual Score group Buffalo 1st light 2nd light 3rd light 4th light light light bonus ① bonus ② bonus ③ bonus ④ bonus ⑤ bonus ⑥ bonus ⑦ bonus ⑧ Input INPUT CONTENT INPUT CONTENT INPUT CONTENT 1P buffalo 1 target...
- Page 17 Rodeo Race Manual OUTPUT CONTENT OUTPUT CONTENT J26-33 1P forward(low) J4-1 Marquee LAT J26-34 1P backward(low) J4-2 Marquee CLK J26-35 2P forward(low) J4-3 Marquee DAT J26-36 2P backward(low) J4-4 Buffalo light LAT J26-37 J4-5 Buffalo light CLK J26-38 J4-6 1P buffalo light DAT...
-
Page 18: Maintenance, Inspection
Rodeo Race Manual 7. MAINTENANCE, INSPECTION 7.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Try to run the game before operation each day. 2. Conduct monthly routine checks of game components ensure good working condition 3. - Page 19 Rodeo Race Manual Add lubricating oil into And sliding bar every 40 days. 4. Clean the gun jet when water jetting is not normal. Loosen the gun jet with pincher when water jetting isn’t normal. 5. Water pressure adjustment Pressure gauge value recommended to 0.1.
- Page 20 Rodeo Race Manual 7. Clean filter net every 40 days. Loosen these 4 screws to remove the metal, then take out the filter and clean it, Take out filter tank and clean it. 8. Change water.
- Page 21 Rodeo Race Manual WARNING • Before servicing the machine, be sure to turn power off. Servicing without turning the power off can cause electric shock or short circuit. • To avoid electric shock or short circuit, do not plug then unplug the power quickly •...
-
Page 22: Wiring Diagram
Rodeo Race Manual WIRING DIAGRAM TO HLDN-PX-00-02 HLDN-PX-01 Electric leakage protection SW DPNa C20 HLDN-PX-25... - Page 23 Rodeo Race Manual...
- Page 25 Have Ques stions? C ontact us www.uni versal-sp ace.com Inte ernationa al Support t Center SA Suppo ort Center Tel: +1-90 05-477-282 Tel: : 972-241-4 4263 Fax: +1-90 05-477-266 : 214-919-4 4918 Email: service@u universal-sp pace.com Emai il:tsnelling@ @unisusasu upportcente er.com (Contact: C Clement Ya...
