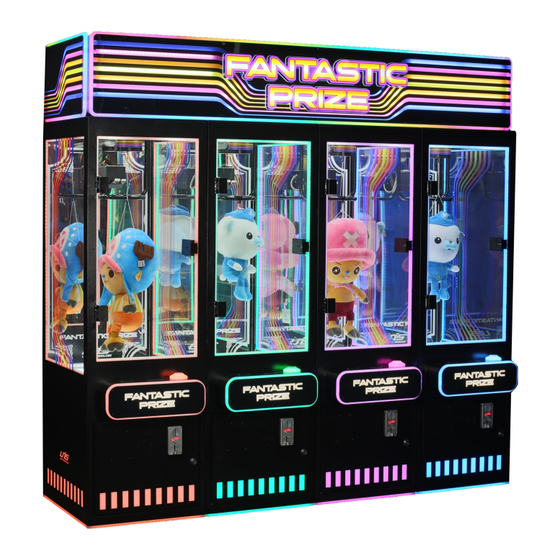

Summary of Contents for UNIS FANTASTIC PRIZE

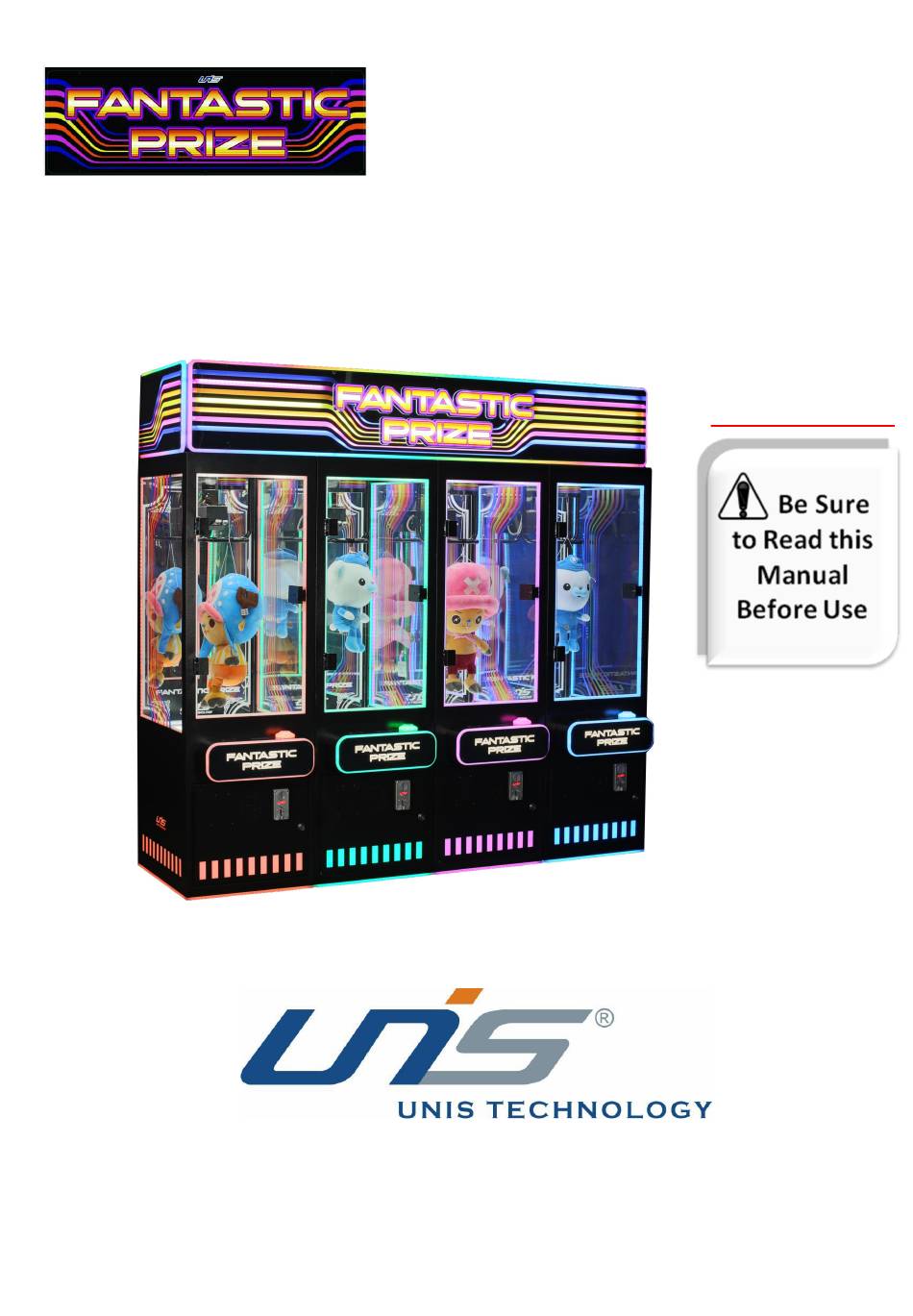

  • Page 1 (110V Version) IMPORTANT Operation Manual...
  • Page 2 Skill Mini Fantastic Prize 4P Manual WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Email: service@unispartsandservice.com www.unispartsandservice.com When contacting Service, you will need the following information and the name of your authorized distributor.

  • Page 3: Table Of Contents

    Skill Mini Fantastic Prize 4P Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ................ 3 1. SPECIFICATIONS ...................... 5 2. CONTENTS OF THE ACCESSORY KIT ..............6 3. PART NAME ......................7 4. SET UP & INSTALLATION ..................8 5. LOCATION OPERATION INSTRUCTIONS ..............14 6.

  • Page 4: Important Safety Instructions

    Skill Mini Fantastic Prize 4P Manual Thank you for purchasing Mini Fantastic Prize 4P. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 Skill Mini Fantastic Prize 4P Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors.

  • Page 6: Specifications

    Skill Mini Fantastic Prize 4P Manual 1. SPECIFICATIONS Rated power supply: AC110V 50/60Hz; Min. Power consumption: Max. Power consumption: Dimension: H83.97×W83.46×D30.66 in H2133×W2120 ×D779 mm Weight：Approximately 749.57 lb/340 KG Model No: T-419 Part No.: M151 NOTICE : After turning off the game, please wait at least 1 minute before restarting again.

  • Page 7: Contents Of The Accessory Kit

    Skill Mini Fantastic Prize 4P Manual 2. CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included: Following accessories Part No. Code No. Name/SPEC Picture M151-0804-00 2.53.00608837 1408a key M151-0805-00 2.53.00608838 1408b key M151-0806-00 2.33.01.010020...

  • Page 8: Part Name

    Skill Mini Fantastic Prize 4P Manual 3. PART NAME Key Components Marquee Assembly Crane Display Button Coin mechanism 09/27/2023...

  • Page 9: Set Up & Installation

    Skill Mini Fantastic Prize 4P Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid.
  • Page 10 Skill Mini Fantastic Prize 4P Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Service area: 20 in Service area Play area NOTICE Your unit must be leveled to operate properly.
  • Page 11 Skill Mini Fantastic Prize 4P Manual 4.4 Machine Installation Before processing with assembly assure you have the following tools. Name Picture Phillips screwdriver 1408a key Step 1 Power on the machine. Utilize key to open bottom door. Locate Meter panel. Press L button “Open door”...
  • Page 12 Skill Mini Fantastic Prize 4P Manual Step 3 Place Control panel assy. to the Cabinet. Connect the connectors. Lead the cabinet cables through the hole to the panel. Connect these connectors to the panel port. Connecto Panel Step 4 Utilize screws to secure Panel.(From cabinet inside)
  • Page 13 Skill Mini Fantastic Prize 4P Manual Step 5 Install Panel plastic back. Panel plastic Step 6-1 First check and find Mounting plate on the machine back&top side. Loosen screws to remove Mounting plate. Step 6-2 Place 4 machines together. Utilize Mounting plate to secure 4 machines as shown below.
  • Page 14 Skill Mini Fantastic Prize 4P Manual Step 7-1 Install Mid Marquee. Utilize screws to secure. Step 7-2 Install L&R side marquee. Utilize screws to secure. Connect the connectors. Side marquee Connectors marquee Connectors Finish! 4.5 Card Reader Installation Safety Notice Take precaution to assure that all wiring voltages are confirmed prior to installation of card reader.

  • Page 15: Location Operation Instructions

    Skill Mini Fantastic Prize 4P Manual 4.6 Voltage Conversion Step 1 Power off the machine. Locate the Power supply. Step 2 Toggle the Power supply and PC switch to 115V or 230V according to your need. 5. LOCATION OPERATION INSTRUCTIONS 5.1 First Power On Operation...
  • Page 16 Skill Mini Fantastic Prize 4P Manual 5.2 Prize Hanging Important Notice Note: Please follow the process to hang the prize! Step 1. Take out the String from accessory bag (see below picture). Step 2. Tie one end of String to the Hook and the other end of String to the Prize; The String must be tied inside the middle lowest point of Hook, and must be fixed straight;...

  • Page 17: How To Play

    Skill Mini Fantastic Prize 4P Manual 6. HOW TO PLAY 1. Insert Coin(s) or Tap/Swipe Card to Start. 2. Press and hold the button to extend the scissors. 3. Release the button in a good timing to cut the string.

  • Page 18: Game Option

    Skill Mini Fantastic Prize 4P Manual 7. GAME OPTION 7.1 Keyboard instruction Open front Prize door with door key, there is a Keyboard near the Coin box. Press “PROGRAM” button to enter the setting menu. After entering the menu, use the keyboard to control mini screen cursor to up, down, left and right to choose, press “Confirm”...
  • Page 19 Skill Mini Fantastic Prize 4P Manual 7.2.2 Accounts: operation records are included as below Options Description COINS The total number of coins inserted. GAMES The total number of game plays. PRIZES The total number of prize out. 7.2.3 Para Set: Game settings up are included as below...
  • Page 20 Skill Mini Fantastic Prize 4P Manual 7.2.4 Hardware Options Description Test Test the electrical components. Cut Off Test the crane to cut the string. Open Door Open the front glass door. Demo Color Change the led lighting colors. Music Test Exit 7.2.5 Ver Info (Show Version number &...

  • Page 21: Troubleshooting

    Skill Mini Fantastic Prize 4P Manual 8. TROUBLESHOOTING 8.1 Common Problem Please confirm that all connectors fit tightly. Symptom Possible Cause Recommended action Frame assembly connector is Game will not Check connector. loose. start Frame assembly fault Contact with UNIS Service.
  • Page 22 Skill Mini Fantastic Prize 4P Manual If you see following error signs showing on the display, please try the recommended action. Display Possible Cause Recommended action The prize door is not been E5 Pls Close Close the prize door closed.

  • Page 23: Maintenance & Inspection

    Skill Mini Fantastic Prize 4P Manual 9. MAINTENANCE & INSPECTION 9.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition.

  • Page 24: Overall Construction

    Skill Mini Fantastic Prize 4P Manual 10. OVERALL CONSTRUCTION 10.1 General Assembly 09/27/2023...
  • Page 25 Skill Mini Fantastic Prize 4P Manual Part no. Code No. Name Version Qty 1 M151-0303-00 202.2.2353.004 Power socket plate V1.1 1X4 2 M151-0304-00 206.2.2353.005 Base front plastic V1.1 1X4 3 M151-0305-00 206.2.2353.006 Base L&R plastic V1.1 2X4 4 M151-0307-00 202.2.2353.001 Frame V1.1 1X4...
  • Page 26 Skill Mini Fantastic Prize 4P Manual 10.2 Glass Door Part no. Code No. Name Version M151-1102-00 206.2.2353.012 Glass door V1.1 M151-1102-00 206.2.2353.012 Glass door V1.1 M151-1103-00 202.2.2353.024 Chain mounting plate V1.1 M151-1104-00 202.2.2353.026 Lock mounting plate V1.1 M151-1105-00 202.2.2353.025 Glass door back plate V1.1...
  • Page 27 Skill Mini Fantastic Prize 4P Manual 10.3 Control Panel Part no. Code No. Name Version Qty 1 M151-0403-00 206.2.2353.010 Control panel light plastic V1.1 2X4 2 M151-0404-00 206.2.2318.031 Card reader blanking plastic V1.1 1X4 3 M151-0405-00 206.2.2353.024 Display protect plastic V1.1 1X4...
  • Page 28 Skill Mini Fantastic Prize 4P Manual 10.5 Side Marquee Part no. Code No. Name Version Qty M151-0202-00 206.2.2353.023 Side marquee light plastic V1.1 M151-0103-00 206.2.2353.021 Side light plastic V1.1 M151-0205-00 202.2.2353.034 Side marquee bracket V1.1 09/27/2023...
  • Page 29 Skill Mini Fantastic Prize 4P Manual 10.6 Connection Part Part no. Code No. Name Version Qty M151-0001-00 202.2.2353.031 Bottom connect plate V1.1 M151-0002-00 202.2.2353.030 Upper connect plate V1.1 09/27/2023...
  • Page 30 Skill Mini Fantastic Prize 4P Manual 10.6 Decals 09/27/2023...
  • Page 31 Skill Mini Fantastic Prize 4P Manual Part No. Code No. Name Version Qty M151-0104-00 205.2.2355.001 4P marquee V1.1 M151-0204-00 205.2.2355.003 L side marquee V1.1 M151-0702-00 205.2.2355.002 R side marquee V1.1 M151-0346-00 205.2.2353.005 R side glass V1.1 M151-0347-00 205.2.2353.002 L side glass V1.1...
  • Page 32 Skill Mini Fantastic Prize 4P Manual 09/27/2023...
  • Page 33 Skill Mini Fantastic Prize 4P Manual Part No. Code No. Name Version Qty M151-1004-00 205.2.2353.009 Fuse instruction decal V1.1 M151-1002-00 205.2.2353.007 Counter decal V1.1 M151-1003-00 205.2.2353.008 Wiring decal V1.1 M151-1018-00 2.56.00.000127 Warning label V1.1 M151-1017-00 2.56.00.000126 220V warning label V1.1 M151-1021-00 205.2.2353.011...
