110V Version
IMPORTANT
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Power Puck Fever and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for UNIS Power Puck Fever

Summary of Contents for UNIS Power Puck Fever

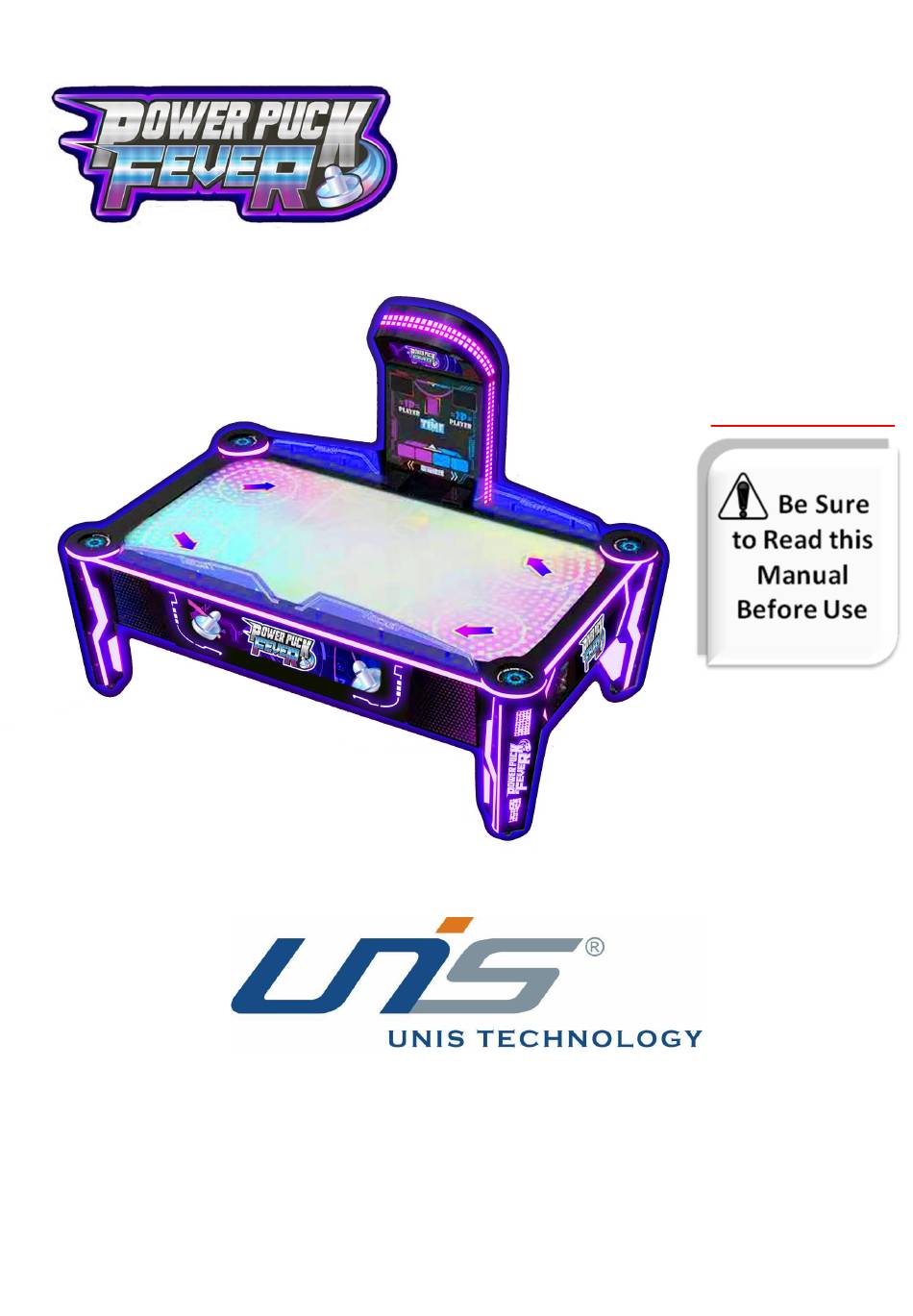

  • Page 1 110V Version IMPORTANT Operation Manual...
  • Page 2 Power Puck Fever GMP Manual WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Email: service@unispartsandservice.com www.unispartsandservice.com When contacting Service, you will need the following information and the name of your authorized distributor.

  • Page 3: Table Of Contents

    Power Puck Fever GMP Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ............... 3 1. SPECIFICATIONS ....................5 2. CONTENTS OF THE ACCESSORY KIT ..............6 3. PART NAME ......................7 4. SET UP & INSTALLATION ..................8 5. LOCATION OPERATION INSTRUCTIONS ............15 6.

  • Page 4: Important Safety Instructions

    Power Puck Fever GMP Manual Thank you for purchasing Power Puck Fever GMP. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 Power Puck Fever GMP Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors.

  • Page 6: Specifications

    Power Puck Fever GMP Manual 1. SPECIFICATIONS Rated power supply: AC110V 50/60Hz; Min. Power consumption: 335W Max. Power consumption: 590W Dimension: H67.32×W93.11×D60.78 in H1710×W2365 ×D1544 mm Weight：Approximately 632.72 lb/287 kg Model No.: A-483 NOTICE: After turning off the game, please wait at least 1 minute before restarting again.

  • Page 7: Contents Of The Accessory Kit

    Power Puck Fever GMP Manual 2. CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included: Following accessories Code No. Name/SPEC Picture Manual Power cord Puck Mallet Screws(M6×12) Screws(M5×48) Screws(M5×50) Screws(M6×40) Washer NOTE: Part models are subject to change without notice.

  • Page 8: Part Name

    Power Puck Fever GMP Manual 3. PART NAME Key Components Mallet Placed Position Display Play area 09/27/2022...

  • Page 9: Set Up & Installation

    Power Puck Fever GMP Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid.
  • Page 10 Power Puck Fever GMP Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Play area: 500 mm/20in NOTICE Your unit must be leveled to operate properly.
  • Page 11 Power Puck Fever GMP Manual Fasten the round acrylic and round fastener with 5X48 countersunk screws on the 4 corners of table. Step 3 Installation of legs(Please note the difference of left and right of legs.) Right Left The red cycle is how to distinguish the difference of left and right legs.
  • Page 12 Power Puck Fever GMP Manual Step 4 Plug the light wire on the connector board. Find the connector inside the legs. Leg light wires connector Leg light Black 6X12 screws connector board Fasten 1 leg with 8pcs Plug it on the connector black 6X12 screws.
  • Page 13 Power Puck Fever GMP Manual Step 5 Take away the stools after fasten 4 legs same as below pictures. Step 6 Install 4 table baffle acrylics same as below pictures. Baffle acrylics Black hexagon socket screw 09/27/2022...
  • Page 14 Power Puck Fever GMP Manual Step 7 Connection of side cabinet and table as below pictures. Plug the wire connector. Move these two cabinet close together and plug the connector. Fasten with 4 6X40 screws and the bolt washers. (Note: After connecting the wires, please place the wires avoid the position of pucks drop, otherwise pucks will be stuck.
  • Page 15 Power Puck Fever GMP Manual Step 8 Finally, put 4 round stickers on the round acrylic and press down the wheel brake. Press down the wheel brake. Finish! 4.5 Card Reader Installation Safety Notice Take precaution to assure that all wiring voltages are confirmed prior to installation of card reader.

  • Page 16: Location Operation Instructions

    Power Puck Fever GMP Manual 5. LOCATION OPERATION INSTRUCTIONS 5.1. First Power On Operation Step 1. The first time when you power on the machine, please put in 31pcs of pucks, long press the forward turn button on the drive board, so that the pucks can move to the top of the track as below pictures.

  • Page 17: How To Play

    Power Puck Fever GMP Manual 6. HOW TO PLAY 1. Insert coins/Tap card to play. Game start, machine will release the pucks automatically. 2. Count down,goal detection, display the scores of both sides with the sound of goal and crashing.

  • Page 18: Game Option

    Power Puck Fever GMP Manual 7.GAME OPTION 7.1 IO Settings SW1 (Note:○=OFF,●=ON) COIN1 ROUND1 ● ● ● ○ ● ● ● ○ ● ○ ○ ● ● ● ○ ○ ● ○ ● ○ ○ ○ ○ ○ LOSE NONE TICKET ○...
  • Page 19 Power Puck Fever GMP Manual SW2 (Note:○=OFF,●=ON) No Limit ○ ○ ○ ● ○ ○ ○ ● ○ ● ● ○ Goal ○ ○ ● ● ○ ● ○ ● ● ● ● ● ○ ○ ○ ● ○ ○...
  • Page 20 Power Puck Fever GMP Manual SW3 (Note:○=OFF,●=ON) Mode 1 ○ ○ ○ Mode 2 ● ○ ○ Mode 3 ○ ● ○ BURST Mode 4 ● ● ○ MODE Mode 5 ○ ○ ● Mode 6 ● ○ ● Mode 6 ○...
  • Page 21 Power Puck Fever GMP Manual IO board Button Instruction S1: free game; S2: clear up the ticket refund; S3: enter the test; 09/27/2022...
  • Page 22 Power Puck Fever GMP Manual 7.2 Test Locate IO board and press S3 to enter machine test. (Notice: A=Green Digital Tube；B=Red Digital Tube；J=Game round Digital Tube) Digital Tube Test Content Function Key S2/S3 Test Item. （J） Digital Tube, Chase ‘--’,‘--’...
  • Page 23 Power Puck Fever GMP Manual 7.3 Four Legs Light Control Instruction Open the Side cabinet back door and there is a Light controller. Press the Left/Right button to select. Note: Left button to control and adjust light color and status.

  • Page 24: Troubleshooting

    Power Puck Fever GMP Manual 8. TROUBLESHOOTING 8.1 Common Problem Please confirm that all connectors fit tightly. Symptom Possible Cause Recommended action Frame assembly connector is Game will not Check connector. loose. start Frame assembly fault Contact with UNIS Service.

  • Page 25: Maintenance & Inspection

    Power Puck Fever GMP Manual 9. MAINTENANCE & INSPECTION 9.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition.
  • Page 26 Power Puck Fever GMP Manual 9.4 Light Controller Instruction(RF IC Controller Instruction) General description This controller is design for led production which uses IC as driver, it is very useful for light box advertisement, stage light, house decorating, and so on.
  • Page 27 Power Puck Fever GMP Manual Function of remote panels ON/OFF: ON/OFF button, it can open or close led anytime PAUSE: Play/pause button, pressing this button to pause, you can see the static affection of led. PAUSE: Play/pause button, pressing this button to pause, you can see the static affection of led.
  • Page 28 Power Puck Fever GMP Manual PROGRAM Description: Function Description Function Description Static red Static green Static blue Static yellow Static cyan Static purple Static white Three color jumpy change Seven color jumpy change even color stroboflash Red horse race lamp to right...
  • Page 29 Power Puck Fever GMP Manual Function Description Function Description Purple trail to left single direction Blue trail to left single direction Cyan trail to left single direction White trail to left single direction Yellow trail to left single Green trail to left single direction...
  • Page 30 Power Puck Fever GMP Manual Function Description Function Description Seven color jumping trail to right Seven color queue trail to right double double direction direction Seven color alternation trail to right Full color wave to right direction double direction Seven color water move to left...
