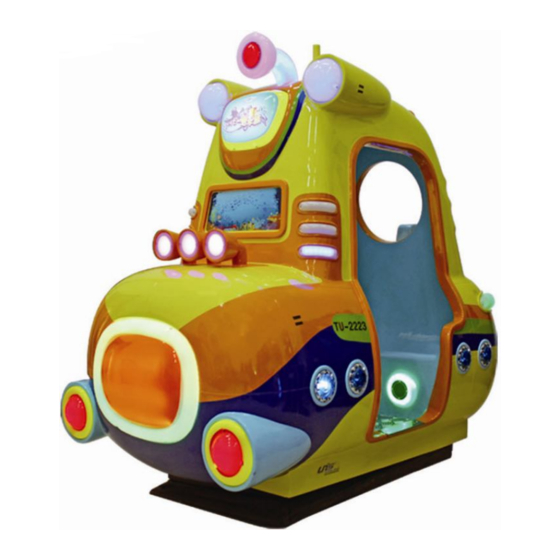

UNIS Seaway Submarine Operation Manual
  1. Manuals
  2. Brands
  3. UNIS Manuals
  4. Arcade Game Machines
  5. Seaway Submarine
  6. Operation manual

UNIS Seaway Submarine Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operation Manual
www.universal-space.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Seaway Submarine and is the answer not in the manual?

Questions and answers

Related Manuals for UNIS Seaway Submarine

Summary of Contents for UNIS Seaway Submarine

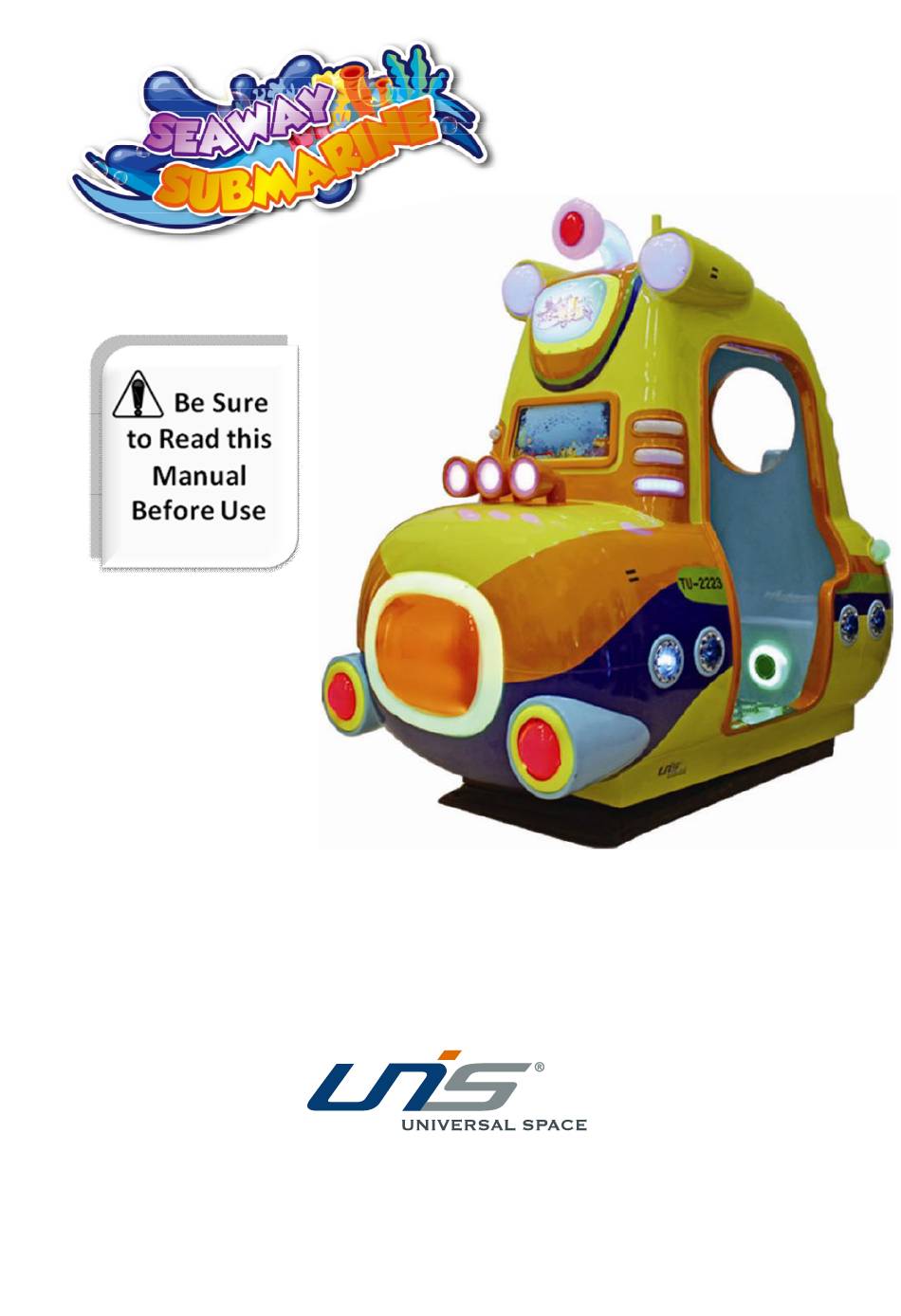

  • Page 1 Operation Manual www.universal-space.com...

  • Page 2: Table Of Contents

    Seaway Submarine manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ..............2 1. SPECIFICATIONS..................... 4 2. PACKAGE CONTENTS ..................5 3. PART NAMES ....................6 4. SET UP & INSTALLATION ................7 5. HOW TO PLAY ....................10 6. MAINTENANCE & INSPECTION ..............11 7.

  • Page 3: Important Safety Instructions

    Seaway Submarine manual Thank you for purchasing Seaway Submarine. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 4 Seaway Submarine manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: ...

  • Page 5: Specifications

    Seaway Submarine manual 1. SPECIFICATIONS Rated power supply： 110V, 50/60Hz Min. Power consumption： 90W Max. Power consumption： 380W Dimensions： W1185×D1981×H1891 (mm) Weight： Approximately 400KG NOTICE: After turning off the game, please wait at least 1 minute before restarting again. Note: Game parameters are subject to change without notice.

  • Page 6: Package Contents

    Seaway Submarine manual 2. PACKAGE CONTENTS Open the package and make sure all the items are included:  1 x Body Assembly Part No. Draw No. Name SPEC. Φ6×30mm S119-401-000 21901000014 Fuse T10A 250VAC 57-1820-02 S119-402-000 22402000201 Catch fish button...

  • Page 7: Part Names

    Seaway Submarine manual 3. PART NAMES Monitor Fiberglass Control panel Coin mech Pedal Motion base...

  • Page 8: Set Up & Installation

    Seaway Submarine manual 4. SET UP & INSTALLATION This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 2) for places to avoid  Place the unit on a dry level surface ...
  • Page 9 Seaway Submarine manual 4.2 Level Adjustment Install this machine on a flat surface. Adjust levers to lift casters off the ground to level the game If the game is installed on an unsuitable floor, it could cause game malfunction. To secure the game, adjust the Leveler down until it touches the floor, lifting the casters off the ground by 5mm.
  • Page 10 Seaway Submarine manual 4.4 Connecting Power WARNING: Check the voltage rating before you connect the equipment to an electrical outlet to ensure that the required voltage and frequency match the available power source. Please refer the label of the machine.

  • Page 11: How To Play

    Seaway Submarine manual 5. HOW TO PLAY Insert coins to begin your adventure! Explore the ocean floor in your submarine. Capture interesting sea creatures to learn more about them. Change the color of your submarine and try out some special effects.

  • Page 12: Maintenance & Inspection

    Seaway Submarine manual 6. MAINTENANCE & INSPECTION 6.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Try to run the game before operation each day. 2. Conduct monthly routine checks of game components ensure good working condition 3.

  • Page 13: Overall Construction

    Seaway Submarine manual 7. OVERALL CONSTRUCTION 7.1 Base mechanism 1 Part No. Code Name Material Qty S119-1480-000 20251302068 Skirt metal strip A Q235 S119-301-000 20101010029 Cross recessed pan head screws Q235 S119-302-000 20113010053 C class flat washer Q235 S119-342-000 20101048007...
  • Page 14 Seaway Submarine manual 7.2 Base mechanism 2...
  • Page 15 Seaway Submarine manual Part No. Code Name Material S119-458-000 23405010010 Motor S119-303-000 20104040030 Hexagon bolt S119-304-000 20113000005 Standard spring washer S119-305-000 20113000051 C class flat washer S119-306-000 20102000013 Hexagon nut Q235 S119-101-000 20251302027 Eccentric shaft S119-465-000 20105000197 A type circlip for shaft...
  • Page 16 Seaway Submarine manual 7.4 Main Body Part 1 Part No. Code Name Material S119-606-000 20651302002 Fiberglass body Fiberglass S119-117-000 20251302039 propellers plate Q235 Cross recessed pan head self-tapping S119-319-000 20103020001 Q235 screw S119-118-000 20251302040 Propellers light mounted plate Q235 S119-417-000 29751302003 Propellers light board...
  • Page 17 Seaway Submarine manual Part No. Code Name Material. S119-326-000 20101000052 Cross recessed pan head screws S119-341-000 20113000055 C class flat washer Q235 S119-337-000 20101000202 Cross recessed pan head bolt suite Q235 S119-321-000 20101000006 Hexagon flat round head screw S119-436-000 21201017003 17" monitor...
  • Page 18 Seaway Submarine manual 7.5 Main Body Part 2...
  • Page 19 Seaway Submarine manual Part No. Code Name Material S119-709-000 20551302002 Front head vacuum form S119-456-000 23313000266 Headlight bushings S119-617-000 20651302022 Front head light mounted plate B S119-321-000 20101000006 Hexagon flat round head screw S119-710-000 20551302003 Headlight vacuum form cover S119-321-000 20101000006...
  • Page 20 Seaway Submarine manual 7.6 Control Panel Part...
  • Page 21 Seaway Submarine manual Part No. Code Name Material S119-402-000 22402000201 Catch fish button S119-128-000 20251302053 Locating shaft Q235 S119-327-000 20101000011 Hexagon flat round head screw S119-328-000 20113000056 C class flat washer Q235 S119-329-000 20113000002 Standard spring washer S119-330-000 20105010033 A type circlip for shaft...
  • Page 22 Seaway Submarine manual 7.7 Electrical box Part...
  • Page 23 Seaway Submarine manual Part No. Code Name Material S119-501-000 20351302003 Electrical box wooden plate Plywood S119-139-000 20251302074 Filter bracket Q235 S119-314-000 20101000024 Cross recessed pan head screws S119-450-000 23201000002 Filter S119-140-000 20251302075 Solid state relay bracket Q235 S119-430-000 22140000004 Solid state relay...
  • Page 24 Seaway Submarine manual 7.8 Electrical Part 1 Part No. Code Name Material S119-445-000 22204060002 Upper orange light cover with socket S119-439-000 22204030008 Side upper light cover Violet S119-413-000 29741003001 Spoiler light board S119-406-000 22002013003 White LED light belt S119-436-000 21201017003 17" monitor...
  • Page 25 Seaway Submarine manual 7.8 Electrical Part 1...
  • Page 26 Seaway Submarine manual Part No. Code Name SPEC. White LED light S119-406-000 22002013003 DC12V 3528LED 60pcs/m white belt S119-411-000 29710914004 Red LED board HHXYS-LED01.PCB(V1.0) red Periscope S119-408-000 29751302002 TJXS-PGLED.PCB/red light board Periscope chain S119-416-000 22002017008 LTB-L240cm-LBDC12V(blue)150mm light side light S119-418-000 29751302004 XYWCQ-LED01.PCB /blue...
  • Page 27 Seaway Submarine manual 7.9 Decal Part...
  • Page 28 Seaway Submarine manual Part No. Code Name SPEC. S119-701-000 20551302A001 Top light vacuum form 440X340X3 S119-715-000 20551302009 Front window decal S119-711-000 20551302005 Meter decal S119-703-000 20551302A003 Game play decal S119-712-000 20551302006 Left side decal S119-713-000 20551302007 Right side decal S119-716-000 20551302010...

  • Page 29: Wiring Diagram

    Seaway Submarine manual 8. WIRING DIAGRAM KLQT-PX-04 KLQT-PX-01 KLQT-PX-06 (cable) cable...
  • Page 30 Seaway Submarine manual Have Questions? Contact us! www.universal-space.com International Support Center USA Support Center Tel: +1-905-477-2823 Tel: 972-241-4263 Fax: +1-905-477-2660 Fax: 214-919-4918 Email: service@universal-space.com Email:tsnelling@unisusasupportcenter.com (Contact: Clement Yau) (Contact: Tim Snelling)
