- Page 1 guide...

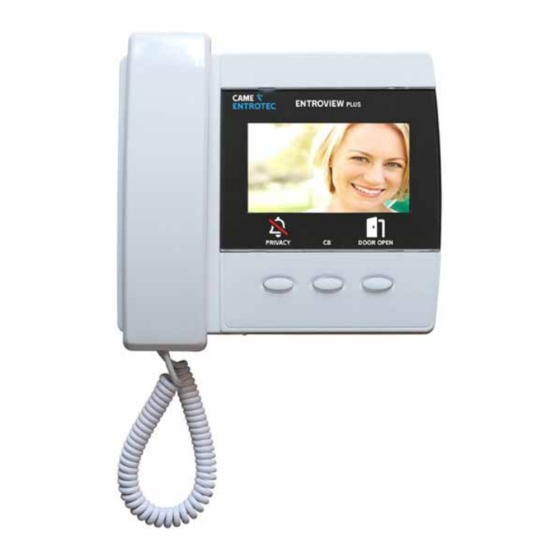

- Page 2 entroview+ user guide Unlock Privacy Adjust Low Med Hi When someone calls Lift the handset to answer an incoming call. The video monitor will display for the length of the call. While on a call To let the caller gain access, press Unlock. Replace the handset to complete the call.
- Page 3 entroview+ user guide wiring diagram PLUS Suggested Colour Code Suggested Colour Code Cat 5 / Cat 6 6 Pair CW1308 White/Blue DR - White/Blue+Blue/White Blue VT - White/Orange+Orange/White White/Orange 0V - White/Green+White/Brown *Orange BZ - White/Grey White/Green S2 - Green/White Green S1 - Brown/White DS - Grey/White...
- Page 4 YOU MAY NOT EVEN PARTIALLY REPRODUCE THIS DOCUMENT CAME RESERVES THE RIGHT TO MAKE ANY CHANGES TO THIS DOCUMENT AT ANY TIME THE DATA AND INFORMATION SHOWN IN THIS CATALOGUE ARE SUBJECT TO CHANGE WITHOUT OBLIGATION TO GIVE PRIOR NOTICE BY CAME S.P.A, E&OE CAME S.p.A.
