GENERAL PRECAUTIONS
Read the instructions carefully before beginning the installation and
carry out the procedures as specified by the manufacturer. • Installation,
programming, commissioning and maintenance must only be carried out by
qualified, expert technicians and in full compliance with the applicable law.
• Before carrying out any cleaning or maintenance, disconnect the device
from the power supply. • Only use this product for its intended purpose.
Any other use is hazardous. • Came S.p.A. is not liable for any damage
caused by improper, erroneous or unreasonable use. • Do not obstruct the
ventilation or heat dissipation vents or slots.
This product complies with the applicable standards in force at the time of
manufacturing.
DESCRIPTION

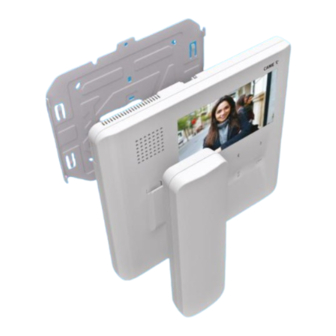

Video intercom with handset.
AGT V ENT BF contains an audio-frequency induction loop
B
compatible with T hearing aids.
Technical data
Type AGT V ENT EV5 - AGT V ENT EV5 BF
Volume 74dB SPL Max (at 0,5m)
IP protection rating
Operating temperature (°C)
Storage Temperature (°C)
Operating Voltage 12-15VDC (13.8V Nominal)
Power 0,15W Idle, 2,5W Active
Connections 12 Way Pluggable Screw Terminals
Dimensions (WxHxD) 204 x 190 x 44,5mm
Display 5" TFT LCD 480x272
Viewing Angle L-70°, R-70°, U-50°C, D-70°

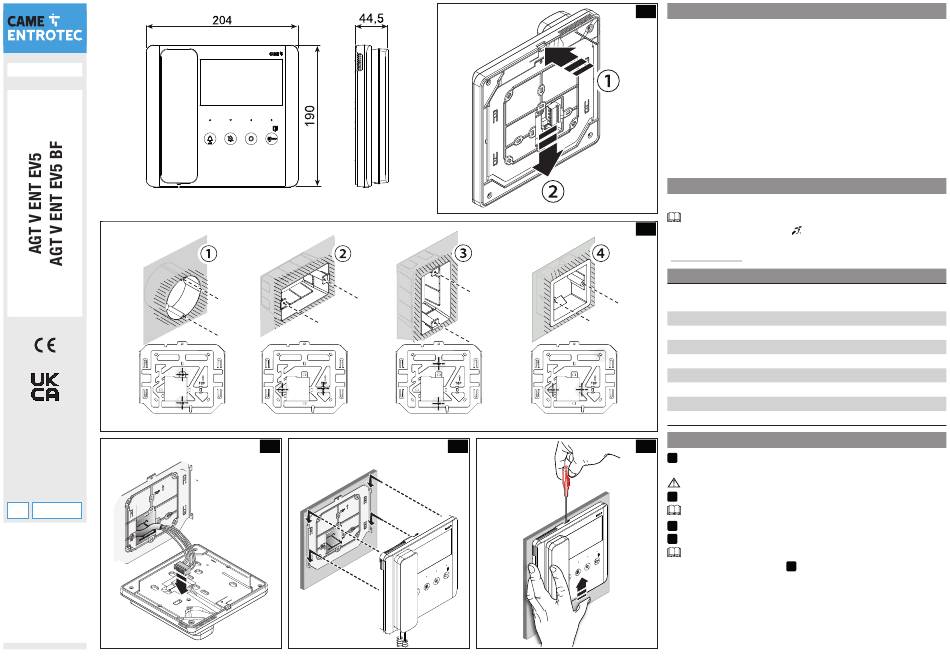

INSTALLATION
E
A Press the small plastic tab and slide the device off the wall-mounting
support to remove it.
Observe the TOP arrow.
B Fasten the wall-mounting support to the back box.
Avoid overtightening the screws.
C Make the connections.
D Refit the device to the wall-mounting support.
To unhook the device, use a screwdriver to press in the plastic tab
E
and slide the device upwards.
30
+5: +40
-25: +70
