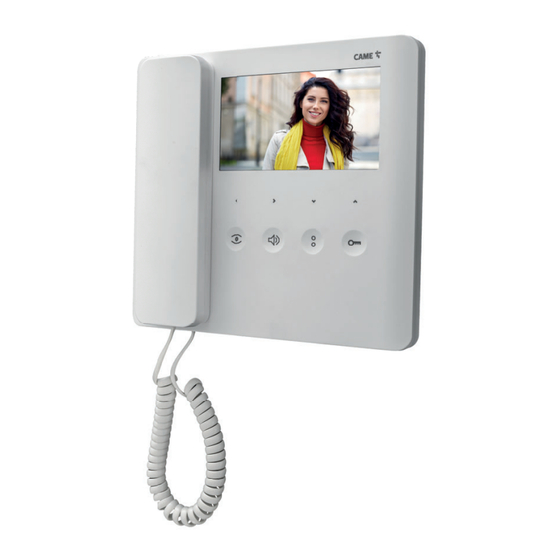

- Page 1 Video intercom with handset FA01620-EN AGT V AGT V BF OPERATING AND INSTALLATION MANUAL English...
-
Page 2: General Precautions
• Before carrying out any cleaning or maintenance, disconnect the device from the power supply. • Only use this product for its intended purpose. Any other use is hazardous. • Came S.p.A. -
Page 3: Description Of Parts
Buttons for adjusting the brightness, contrast and colour of the display. Audio settings button Page 3 - Manual FA01620-EN - 08/2022 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions... - Page 4 M/S jumper settings MASTER SLAVE XDV/304 CL.RES CL.RES CL.RES Page 4 - Manual FA01620-EN - 08/2022 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions...
- Page 5 Door or gate open Door or gate closed Page 5 - Manual FA01620-EN - 08/2022 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions...
-
Page 6: Technical Data
(**) The average product life is a purely indicative estimate. It applies to compliant usage, installation and maintenance conditions. It is also infl uenced by other factors, such as climatic and environmental conditions. Page 6 - Manual FA01620-EN - 08/2022 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions... -
Page 7: Installation
To unhook the device, use a screwdriver to press in the plastic tab and slide the device upwards. Page 7 - Manual FA01620-EN - 08/2022 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions... - Page 8 La + Lb + L1 + L2 + L3 Page 8 - Manual FA01620-EN - 08/2022 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions...
- Page 9 VCM/1D Master Slave UTP CAT5 Master Slave VAS/101 Page 9 - Manual FA01620-EN - 08/2022 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions...
-
Page 10: Standard Functions
If the line is busy, the video camera will not activate. If the line is busy, you will hear three consecutive beeps. Page 10 - Manual FA01620-EN - 08/2022 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions... - Page 11 Pick up the handset on the SLAVE video receiver to activate audio communication. SLAVE MASTER Page 11 - Manual FA01620-EN - 08/2022 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions...
-
Page 12: Advanced Functions
3 seconds to send an open or close gate command. > 3s Page 12 - Manual FA01620-EN - 08/2022 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions... - Page 13 The video receiver will beep intermittently to signal starts. activation. Page 13 - Manual FA01620-EN - 08/2022 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions...
- Page 14 Page 14 - Manual FA01620-EN - 08/2022 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions...
- Page 15 Page 15 - Manual FA01620-EN - 08/2022 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions...
-
Page 16: Adjusting Brightness, Contrast And Colour
Use the button to increase/decrease the value of the selected parameter. CAME S.p.A. Via Martiri della Libertà, 15 31030 Dosson di Casier Treviso – Italy Tel. (+39) 0422 4940 Fax (+39) 0422 4941 info@came.com - www.came.com...
