CAME PLX V ENT EV6 Quick Start Manual

FH02080-EN
EN English
CAME ENTROTEC
5 Ashwood Court,
Oakbank,
Livingston EH53 0TL -
United Kingdom
tel. (+44) 01506 886230
- support (+44) 01506
886235
www.came.com/entrotec
FH02080-EN - 05/2024
25
155
C
A
GENERAL PRECAUTIONS
Read the instructions carefully before beginning the installation
and carry out the procedures as specified by the manufacturer.
• Installation, programming, commissioning and maintenance
must only be carried out by qualified, expert technicians and in
full compliance with the applicable law. • Before carrying out
any cleaning or maintenance, disconnect the device from the
power supply. • Only use this product for its intended purpose.
Any other use is hazardous. • Came S.p.A. is not liable for any
damage caused by improper, erroneous or unreasonable use. •
Do not obstruct the ventilation or heat dissipation vents or slots.
This product complies with the applicable standards in force at
the time of manufacturing.
DESCRIPTION
Hands-free intercom video receiver.
PLX V ENT BF contains an audio-frequency induction loop
B
compatible with T hearing aids.
Technical data
Type
Volume
IP protection rating
Operating temperature
(°C)
Storage
(°C)
Operating Voltage
Power
Connections
Display
Viewing Angle
D E

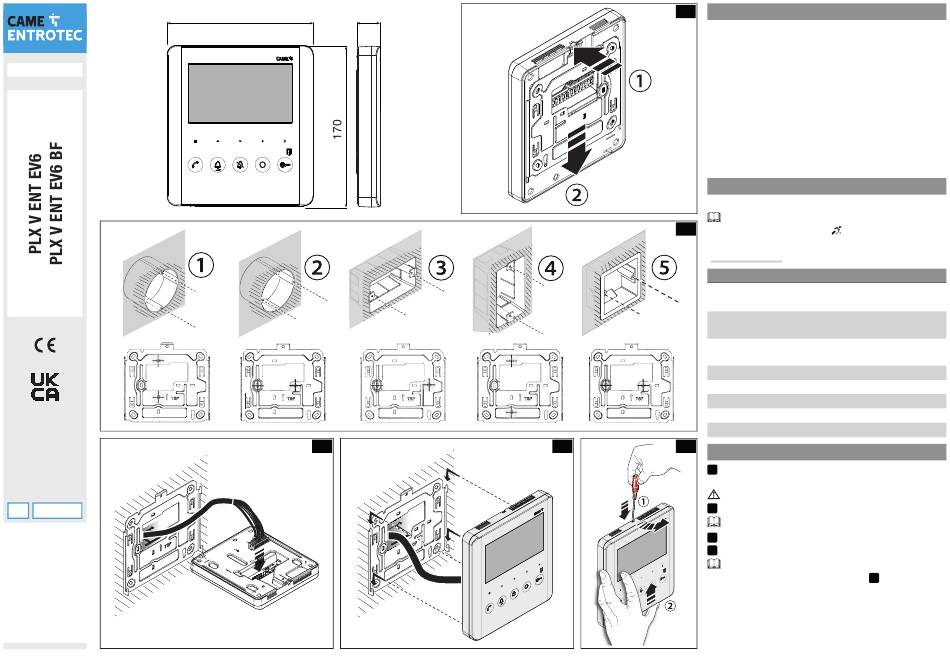

INSTALLATION
A
Press the small plastic tab and slide the device off the wall-
mounting support to remove it.
Observe the TOP arrow.
B
Fasten the wall-mounting support to the back box.
Avoid overtightening the screws.
C
Make the connections.
D
Refit the device to the wall-mounting support.
To unhook the device, use a screwdriver to press in the
plastic tab and slide the device upwards.
PLX V ENT EV6 - PLX V ENT EV6 BF
79dB SPL Max (at 0,5m)
30
+5: +40
Temperature -25: +70
12-15VDC (13.8V Nominal)
0,15W Idle, 2,5W Active
12 Way Pluggable Screw Terminals
5" TFT LCD 480x272
L-70°, R-70°, U-50°C, D-70°
E
