CAME ENTROTEC Entroview+ User Manual page 3

entroview+

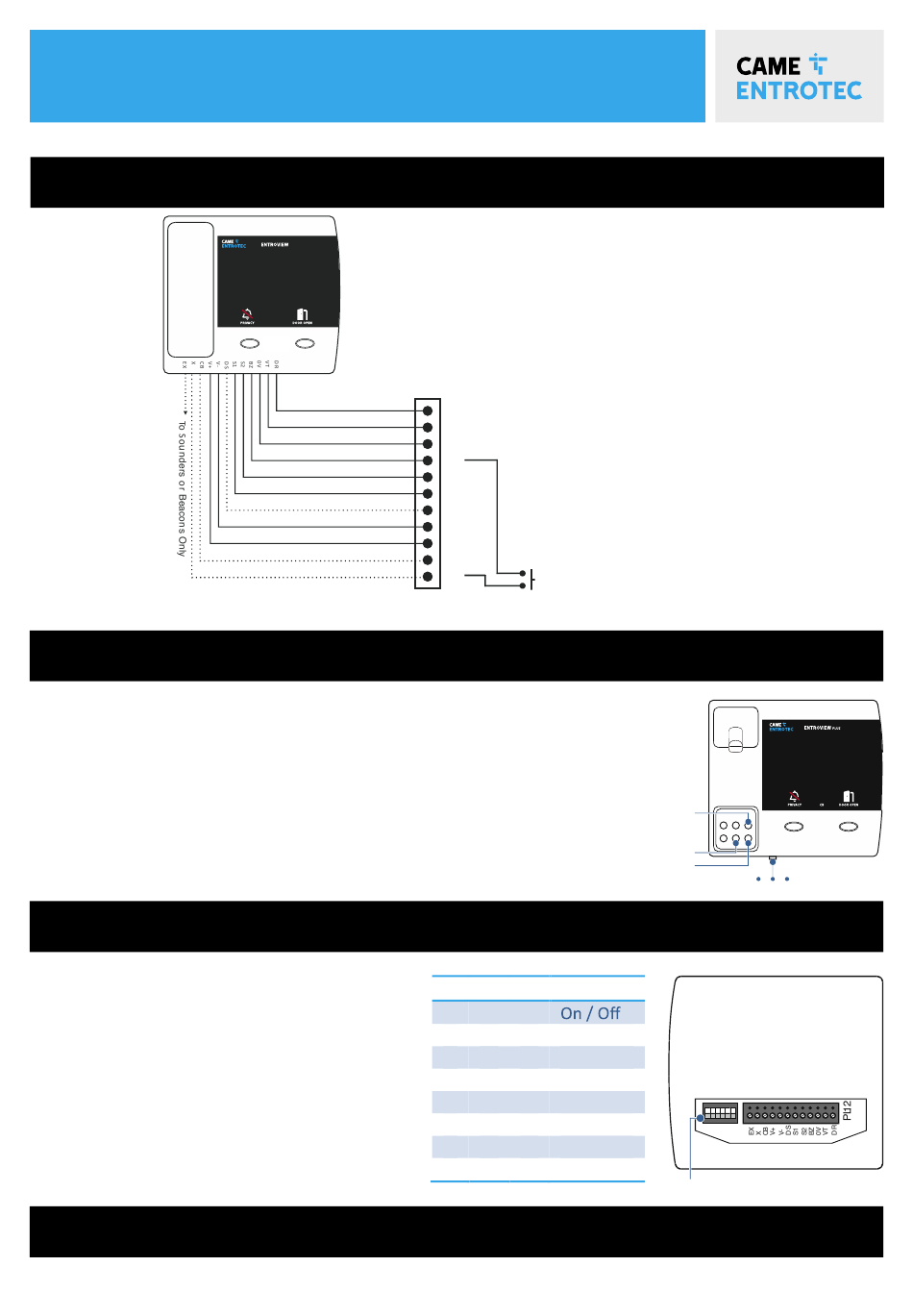

wiring diagram
* NOTE: If DS is required the internal ringer can be enabled and the BZ connection is not required, freeing up the Orange wire.
video setup
Press the Menu button to turn the screen on.
Press Menu to cycle through the on screen display options.
Press + or – to adjust the selected parameter. Once adjusted the settings will store
and the screen will turn off.
option switches
Switches 1, 2 & 3 select the privacy function
options. Privacy can be: disabled completely, set to
latch on/off or set to time out after a preset time (see
table: 0 = OFF 1 = ON).
Switch 4 is for 1 way systems and should be ON for
normal use.
Switch 5 is not used.
Switch 6 selects video termination and should be
ON for normal use.
ringtones
To adjust the ringtone press and hold Privacy to start the ringer. Press Privacy to select the ringtone options and
press Door Open to store.
user guide
PLUS
CB
Suggested Colour Code
Cat 5 / Cat 6
White/Blue
DR
Blue
VT
White/Orange
0V
*Orange
BZ*
White/Green
S2
Green
S1
DS
White/Brown
V-
Brown
V+
CB*
X*
1
0
0
0
0
1
1
1
1
Suggested Colour Code
6 Pair CW1308
DR - White/Blue+Blue/White
VT - White/Orange+Orange/White
0V - White/Green+White/Brown
BZ - White/Grey
S2 - Green/White
S1 - Brown/White
DS - Grey/White
V- - Red/Blue
Optional V+ - Blue/Red
Door Bell
2 3 Time
0 0
0 1 Disabled
1 0 5 mins
1 1 30 mins
0 0 1 hr
0 1 4 hrs
1 0 8 hrs
1 1 12 hrs
+
Menu
_
3 Posi t ion Call
Tone Volume
Low Med Hi
ON
12 34 56
Option Switches
