- Page 1 AGT A200K + TARGHA KIT FA01425-EN AGT A200K A/200N HPC/1 HA/200 INSTALLATION MANUAL AGTK200A03K EN English...
-
Page 2: General Precautions

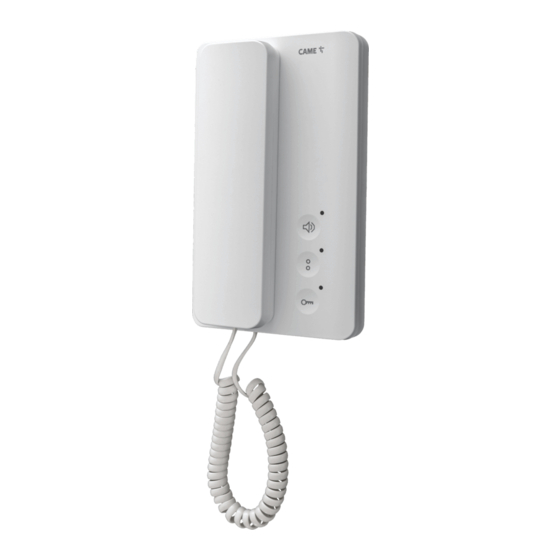

CONTENTS OF THE KIT AGT A200K HPC/1 HA/200 A/200N General precautions Read the instructions carefully before staring installation and perform all procedures as explained by the manufacturer. • The installation, programming, commissioning and maintenance of the product must only be carried out by technicians who are •... - Page 3 AGT A200K Description Intercom internal audio receiver. Function of terminals and jumpers Terminal board M1 Earth Call from entry panel input Audio FROM entry panel Audio TO entry panel AUX2: auxiliary services (24V 100 mA) +11 to 175 VDC LED power supply...
-
Page 4: Installation
Installation ☞ the box must be installed at an appropriate height for the user. Open the device by pressing on the tab at the bottom • Once all connections have been made, reattach the shell to Separate the shell from the bottom of the device. •... - Page 5 A/200N Description Function of terminals and jumpers A/200N guarantees the power supply to the HPC/1 entry panel Terminal board A and a maximum of 20 front plates with 6 buttons HPP/6. Network It is provided with the following functions: - 2 dual-tone call beeps for two entry panels (or for additional Terminal board B call, e.g.
- Page 6 Installation The device can be installed on DIN rails (EN 50022) on a • suitable switchboard, or on the wall using the terminal covers. To dismantle the device, proceed as shown in fi gure 2-3. • See fi gure 1 for dimensions. •...
- Page 7 TARGHA 200 Accessories Recess-mounting box Wall-mounted base Hole cover Frame Cable gland joint Joint Cable gland joints Screws and expansion plugs Front plate Spacer Screws Microcontacts with Button common call Microcontact Lighting assembly Button spring Buttons Cable holders Microcontacts Hole cover Button springs...
-
Page 8: Recessed Installation
Recessed installation The HTS recessed box must be walled in fl ush at a suitable height, using the spacer provided to prevent box deformation In systems where the Larsen eff ect might occur, the microphone can be mounted re- motely To remove the microphone from its hous- ing, pry it off from its base using a small screwdriver, taking care not to damage... -
Page 9: Wall-Mounted Installation
Wall-mounted installation Fix the two hole covers to the base Attach the recessed box (with 3 modules or round Ø 65 mm) fl ush with the wall and at a suitable height; fi x the base to the wall using the screws and expansion plugs provided In systems where the Larsen eff ect might occur, the microphone can be... - Page 10 Button assembly To write the desired information on the name card, take out the card holder and the card Personalised name cards up to a maximum of 2 mm thick can be used. Closing the front plate To fi t the front plate, fi rst insert the up- per part into the top and then, using a 2.5 hex key, tighten the locking screw ...
- Page 11 Recessing side by side To recess boxes side by side horizontally or vertically, remove the hole covers and insert the cable gland joints The recessed boxes must be walled in fl ush at a suitable height, using the spacers provided to prevent box deformation Wall mounting side by side To mount the entry panels side by side horizontally, insert two hole covers into the exposed sides, and inside, the cable gland joint at the bottom and the joint at the top...
- Page 12 CAME S.p.A. Via Martiri Della Libertà, 15 31030 Dosson di Casier - Treviso - Italy tel. (+39) 0422 4940 - fax. (+39) 0422 4941...
