Here below we describe the installation guide of the PLX V WIFI indoor receiver, starting
from the programming of the intercom call up to the configuration of the VideoEntry APPs
connected to the same.
1. X1 SYSTEM PROGRAMMING:
Proceed to the X1 system programming, accordingly to the type of system managed
(MTM-LHS with VAS/101, MTM-THANGRAM-LHS with VA/01).
There are two ways to program the system, plus one configuration solution via app:
▪ MANUAL PROGRAMMING:
-
proceed with the entry panel (one or more) configuration, accordingly to the
type of system managed
INTERCOM SYSTEM
PLX V WIFI installation guide
2023_01 December 2023

Advertisement

loading
Need help?

Need help?

Do you have a question about the PLX V WIFI and is the answer not in the manual?

Questions and answers

Summary of Contents for CAME PLX V WIFI

  • Page 1 INTERCOM SYSTEM PLX V WIFI installation guide Here below we describe the installation guide of the PLX V WIFI indoor receiver, starting from the programming of the intercom call up to the configuration of the VideoEntry APPs connected to the same.
  • Page 2 Unit and associating to it the serial number. The use of only 1 PLX V WIFI indoor receiver is permitted for each Unit (any other internal receivers may be PLX V, AGT V, PLX A, AGT A,…), that after the programming will permits the setup of the 4 available VideoEntry APPs.

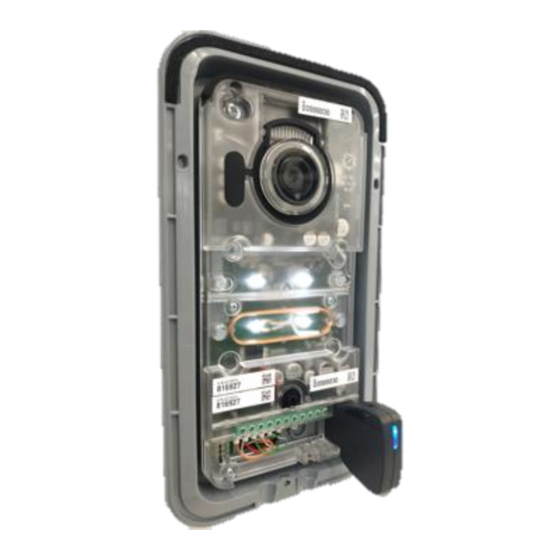

  • Page 3 ▪ CONFIGURATION VIA CONNECT SetUp APP (available only for the LHS single entry panel solution): use your CAME KEY by inserting it into the appropriate connector on the LHS entry panel and proceed with the system configuration. 2. ACTIVATION AND CONFIGURATION OF THE CONNECTION TO THE WIFI...
  • Page 4 accede with the button and press the button to reach the section related to the activation and configuration of the Wi-Fi network: accede with the button and verify that the Wi-Fi service is active (ON), or in case, enabling it: proceed with the “Configure via app”...
  • Page 5 launch the VideoEntry app in the mobile device, select the “Settings” menu in the home page and proceed with the “Receiver configuration” wizard: follow the guided procedure indicated on the various screens, pressing the "Continue" button until you reach the section related to the Wi-Fi settings:...
  • Page 6 PLXWIFI_SN_xxxxxxxx) and connect to it by indicating the 11223344 password. At this point, the PLX V WIFI will display a verification code to be dialed into the VideoEntry app for the correct association to the same: after pressing the "Continue"...
  • Page 7 SERVICE (AS AN ALTERNATIVE TO THE CONFIGURATION FROM THE APP): enable the “WPS (PBC mode)” connection procedure and, on the following screen of the PLX V WIFI indoor receiver, select the desired network: press the WPS button on your WiFi router and wait for a successful...
  • Page 8 “Account” section of the VideoEntry app, select “Account configuration wizard” and proceed with the “Automatic” mode: b) a list of PLX V WIFI devices is displayed, from which it must be selected the indoor receiver on which the Apps have to be associated:...
  • Page 9 “Continue” button, it is requested the system verification by displaying a numerical code on the PLX V WIFI display, to be typed into the VideoEntry app for the correct association to the same: d) at this point select one of the 4 available “App Mobile n” account to be paired with the mobile device;...
  • Page 10 XXXXXXXXXXXXXXXX Scan the QR Code for more information about the Wi-Fi configuration. We remain at your complete disposal if you require any further clarification. Kind regards, CAME Spa For more information, please contact: traininginternational@came.com For technical support, please contact: serviceinternational@came.com...
