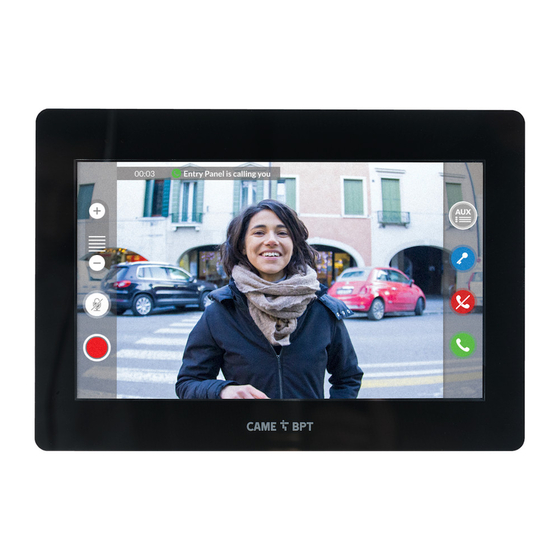

  • Page 1 Wifi touch-screen speaker video-intercom FB00982-EN XTS 7 WH WIFI XTS 7 BK WIFI XTS 7 WH WFBF USER MANUAL EN English...

  • Page 2: General Precautions

    GENERAL PRECAUTIONS Carefully read the instructions before using the device. • The installation, programming, commissioning and maintenance of the product must only be carried out by • qualified technicians, properly trained in compliance with the regulations in force, including health and safety measures and the disposal of packaging.
  • Page 3 Commands and notifications found on the home page The appearance of the homepage may vary according to the system configuration or the user interface. Favourites Entry panels Contacts Video Recording Aux List Call register 19:02 Thursday 01 Feb 2018 Info Back Home A Command to exclude call ringer;...

  • Page 4: How To Use The Device

    HOW TO USE THE DEVICE Answering a call Call from Entry Panel An image of the caller appears on the screen. The audio from and towards the caller is turned off. A Touch the button to answer the call and to turn on the audio communication. B Touch the button to refute the call and to return to the homepage.

  • Page 5: Making A Call

    Making a call This device lets you call other indoor receivers (intercommunication), any devices connected over the Wifi network or, any entry panels. Calling a contact on the favorites list A Touch the icon to access the list Favourites Entry panels Contacts of favorite contacts.
  • Page 6 Turn on communication to entry panel Favourites Entry panels Contacts B Touch the icon to access the list of entry panels. to fill the list of entry panels, see the "Contacts" chapter on page 7. Video Recording Aux List Call register 19:02 Thursday 01 Feb 2018...
  • Page 7 Contacts Touch the icon to access the con- tacts list. Favourites Entry panels Contacts Video Recording Aux List Call register 19:02 Thursday 01 Feb 2018 Info Back Home The list contains all the devices that can be contacted. Unit Entry panel Intercom 1 Intercom 2 Intercom 3...

  • Page 8: Entry Panel

    Unit A Household (includes the indoor Unit receiver and any associated apps). EXTENSIONS B the indoor receiver. XTS receiver C Possible users connected to the Mobile App 1 system via app, either locally or Mobile App 2 from a remote location. Touch one of the contacts to initiate Mobile App 3 a call.

  • Page 9: Video Recording

    Concierge G Concierge panel, if the system features this. Touch the contact to initiate the call. Touch the icon to edit the con- tact's name. Video Recording A Touch the icon the turn the an- swering service on or off. Favourites Entry panels Contacts...

  • Page 10: Call Register

    Aux List A Touch the icon to access the list of auxiliary contacts. Favourites Entry panels Contacts The auxiliary commands (AUX) let you activate suitably programmed contacts to carry out additional commands to the classic opening of the entry door. Video Recording Aux List Call register...

  • Page 11: Incoming Call

    Types of calls Incoming call. 29 Jan 2018 19:55 Entry panel Outgoing call. 28 Jan 2018 11:23 Entry panel Missed call. 07 Jan 2018 21:03 Entry panel Any missed calls are highlighted . 05 Jan 2018 14:21 Entry panel Touch the line you want to call your Delete all contact.

  • Page 12: General Settings

    GENERAL SETTINGS Touch the icon to return to the list of settings. CCTV Settings 19:02 Thursday 01 Feb 2018 Info Back Home System information This window gives technical infor- mation that is useful for identifying System information the device's characteristics and the hardware and software versions.
  • Page 13 Date/time This window is for setting the date and time on the indoor receiver. Mode Manual Auto A The date and time are manually NTP server set by the user. B The date and time are auto- Date/time 01 Feb 2018 19:02 matically synchronized by a cor- Continent responding internet service;...

  • Page 14: Quick Commands

    B Touch the area to assign a name to the AUX command that you are Description Gate opener going to add. Command Aux 3 C Choose the command to asso- ciate the AUX to, from the list. Destination Entry panel D Choose the destination of the AUX command from the list.
  • Page 15 Video Recording If the system has a video intercom entry panel installed, if the called user is not in, the device lets the caller record a video message. The caller may be notified of this by a courtesy message, for example, "The user is not available at the moment, please leave a message after the beep".
  • Page 16 B Touch the area to assign a name to the IP video camera that you are Description going to add. Real-time URI connection C Touch the area and type the URI string for connecting the video URI connection for the fixed image camera.
  • Page 17 Display A Adjusts the brightness of the screen during use. Brightness B Adjusts the brightness of the Brightness in stand-by screen in standby. C This makes the screen insensi- Clean screen tive to the touch for 20 seconds, to enable cleaning over it. Touch the Back button to return to the list of settable parameters.

  • Page 18: Advanced Settings

    01 Feb 2018 Info Back Home Accessing the list of advanced set- tings. Configuration X2 Select the first item on the list. Network CAME Connect Multimedia Credentials Automatic door opener Configuring the user interface 19:02 Thursday 01 Feb 2018 Info...
  • Page 19 Network C This button is for enabling WiFi communication. Type of connection WiFi This icon shows that the WiFi Enabled connection is active, enabling the Configure WiFi network-settings sections below. Mode DHCP Static IP address Netmask Gateway Address MAC Save 19:02 Thursday 01 Feb 2018...
  • Page 20 B For enabling or disabling the VoIP remote control of the video-in- Keycode tercom call. Enable connection The factory settings require that the connection to CAME Connect be Internet service provider enabled. State The CAME Connect con- nection must be active to receive calls over the App.

  • Page 21: Automatic Door Opener

    Multimedia This window lets you configure the maximum BITRATE that the device Audio codec can handle, while choosing among the available values. Video codec The greater the BITRATE va- Video App Bitrate (Kbps) lues, the better the video quality, but also the greater the data ban- dwidth occupied in UPLINK.
  • Page 22 C Touch the empty sections and in the pop-up window set the start Start time and finish time of the time-slot for activating the function. Start time Days of the week Save 19:02 Thursday 01 Feb 2018 Info Back Home D Touch the days of the week du- ring which the time-slot needs to Start time...

  • Page 23: Configuring The User Interface

    Configuring the user interface This section is for customizing the appearance of the homepage. Homepage active Preset Customized A Select the type of homepage that you wish to see. Customize Homepage functions B Touch the button to create a cu- stomized homepage.

  • Page 24: Maintenance

    ID marker. THE DATA PRESENTED IN THIS MANUAL MAY BE CHANGED, AT ANY TIME, AND WITHOUT NOTICE. MEASUREMEN- TS, UNLESS OTHERWISE STATED, ARE IN MILLIMETERS. CAME S.p.A. Via Martiri Della Libertà, 15 31030 Dosson di Casier - Treviso - Italy...
