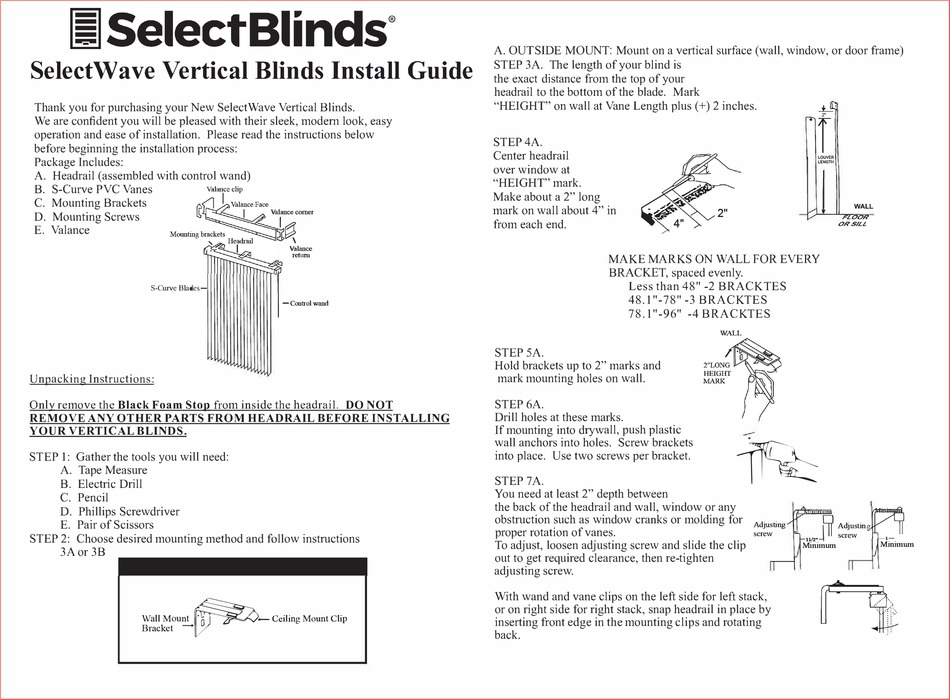

SelectBlinds SelectWave Install Manual

SelectWave Vertical Blinds Install Guide
Thank you for purchasing your New SelectWave Vertical Blinds.
We are confident you will be pleased with their sleek, modem look, easy
operation and ease of installation. Please read the instructions below
before beginning the installation process:
Package Includes:
A. Headrail (assembled with control wand)
B. S-Curve PVC Vanes
C. Mounting Brackets
D. Mounting Screws
E. Valance
S-Curve Blades-
Unpacking Instructions:
Only remove the Black Foam Stop from inside the headrail. DO NOT
REMOVE ANY OTHER PARTS FROM HEAD RAIL BEFORE INSTALLING
YOUR VERTICAL BLINDS.
STEP 1: Gather the tools you will need:
A. Tape Measure
B. Electric Drill
C. Pencil
D. Phillips Screwdriver
E. Pair of Scissors
STEP 2: Choose desired mounting method and follow instructions
3A or 3B
�
-l9}
Wall Mount
Bracket
Valance corner
Valance
return
- Control wand
i�
- Ceiling Mount Clip
ff="'V·
A. OUTSIDE MOUNT: Mount on a vertical surface (wall, window, or door frame)
STEP 3A. The length of your blind is
the exact distance from the top of your
headrail to the bottom of the blade. Mark
"HEIGHT" on wall at Vane Length plus(+) 2 inches.
STEP4A.
Center headrail
over window at
"HEIGHT" mark.
Make about a 2" long
mark on wall about 4" in
from each end.
MAKE MARKS ON WALL FOR EVERY
BRACKET, spaced evenly.
Less than 48" -2 BRACK TES
48.1 "-78" -3 BRACKTES
78.1 "-96" -4 BRACKTES
STEP 5A.
H old brackets up to 2" marks and
mark mounting holes on wall.
STEP 6A.
Drill holes at these marks.
If mounting into d all, push plastic
ryw
wall anchors into holes. Screw brackets
into place. Use two screws per bracket.
STEP 7A.
You need at least 2" depth between
the back of the headrail and wall, window or any
obstruction such as window cranks or molding for
proper rotation of vanes.
To adjust, loosen adjusting screw and slide the clip
out to get required clearance, then re-tighten
adjusting screw.
With wand and vane clips on the left side for left stack,
or on right side for right stack, snap headrail in place by
inserting front edge in the mounting clips and rotating
back.
LOUVER
LENGTH
WALL
FLOOR
ORS/LL
WALL
HEIGITT
MARK
�
Adjusting m Adjustin
J
screw
screw
1112.,
Minimum
Minimum
,­
