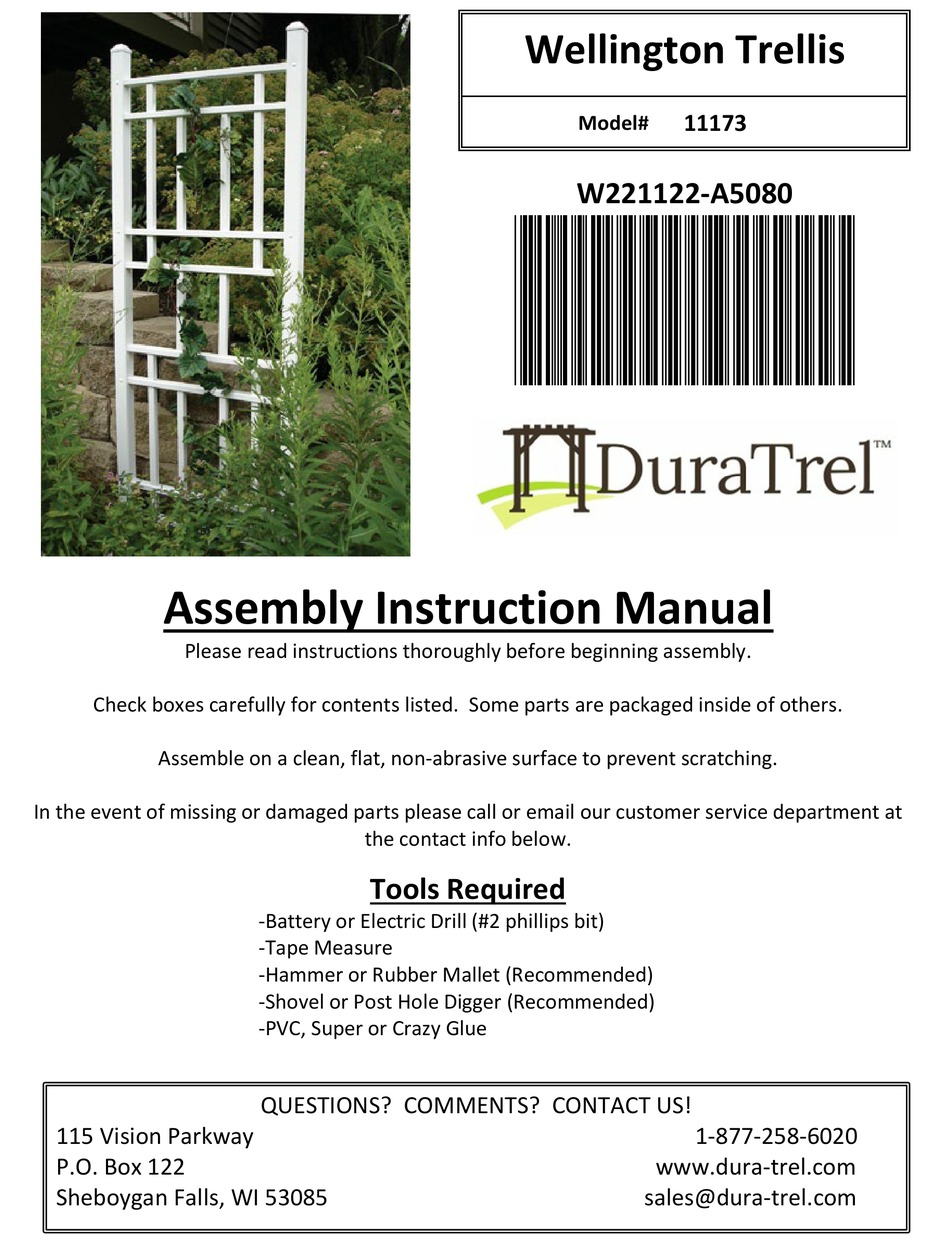

Assembly Instruction Manual
Please read instructions thoroughly before beginning assembly.
Check boxes carefully for contents listed. Some parts are packaged inside of others.
Assemble on a clean, flat, non-abrasive surface to prevent scratching.
In the event of missing or damaged parts please call or email our customer service department at
115 Vision Parkway
P.O. Box 122
Sheboygan Falls, WI 53085
the contact info below.
Tools Required
-Battery or Electric Drill (#2 phillips bit)
-Tape Measure
-Hammer or Rubber Mallet (Recommended)
-Shovel or Post Hole Digger (Recommended)
-PVC, Super or Crazy Glue
QUESTIONS? COMMENTS? CONTACT US!
Wellington Trellis
11173
Model#
W221122-A5080
*W201121-A2040*
*W201121-A2040*
*W201121-A2040*
*W201121-A2040*
*W201121-A2040*
*W201121-A2040*
www.dura-trel.com
sales@dura-trel.com
1-877-258-6020
Advertisement
Table of Contents
Related Manuals for Dura Trel Wellington 11173
Summary of Contents for Dura Trel Wellington 11173
- Page 1 Wellington Trellis 11173 Model# W221122-A5080 *W201121-A2040* *W201121-A2040* *W201121-A2040* *W201121-A2040* *W201121-A2040* *W201121-A2040* Assembly Instruction Manual Please read instructions thoroughly before beginning assembly. Check boxes carefully for contents listed. Some parts are packaged inside of others. Assemble on a clean, flat, non-abrasive surface to prevent scratching. In the event of missing or damaged parts please call or email our customer service department at the contact info below.
- Page 2 75" 28" Wellington Trellis - Page 2...
- Page 3 Starting at bottom of 74" left post (part 1), insert one 27½" outer cross rail (part 3) and two 27½" inner cross rails (part 4). When inserting two inner cross rails insert sides with four routed holes facing each other. Insert two 26½" vertical rails (part 6) through outer holes of inner cross rails and into outer holes of outer cross rail.
- Page 4 Ground Anchor Installation Option 1 (soft ground) Slide one ground anchor (part 12) into bottom of each post until it meets bottom cross rail. Using two 1” self- tapping screws per post, screw the post to ground anchor using the pilot holes for guides. Using ground anchor installation layout drawing, dig holes approximately 10”...
- Page 5 Warranty Statement 20 Year Guarantee Please call manufacturer direct with questions concerning missing or defective parts at Toll Free: 877-258-6020. Dura-trel, Inc. products are warranted to be free from manufacturing defects resulting in delaminating, peeling, flaking, corroding, cracking, crazing, or extreme amounts of fading or bleaching causing the PVC to change to its natural color for a period of 20 years from the date of purchase.
