General Information
PLEASE READ THROUGH BEFORE BEGINNING ASSEMBLY.
IMPORTANT: Check boxes for Contents Listed
Check inside of parts as some parts are packaged
inside of others
In the event of missing, damaged or defective parts
please call our customer service dept. at 1-877-258-6020
When assembling components, place on a clean, flat
non-abrasive surface to avoid scratches
Tools Required
... Battery or Electric Drill
... Tape Measure
... Hammer or Rubber Mallet
... Shovel or Post Hole Digger
with #2 phillips bit
(recommended)
(recommended)

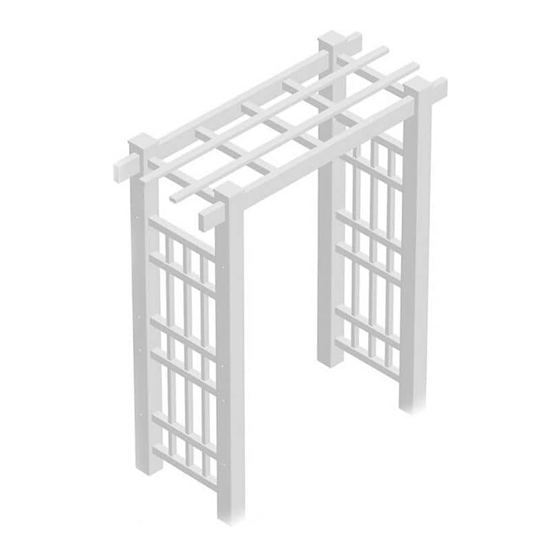

Windsor Arbor
11112
Model#
Part #
1
4" sq. x 84" Left Post
2
4" sq. x 84" Right Post
3
2" sq. x 29¾ Top/Bottom Cross Rail
4
2" sq. x 29¾ Center Cross Rail
5
⅞ x 1½ x 59½" Vertical Rail
6
1½ x 4 x 72" Arbor Top Rail
7
⅞ x 1½ x 72" Arbor Top Overhead Rail 1
8
2" sq. x 26¾" Arbor Top Cross Rail
9
4" sq. Flat Post Cap
10
24" Ground Anchor (U-shaped)
11
Hardware Bag
4" End Cap
⅞ x 1½" End Cap
1½" Painted Screw
#8 - 1" Painted Self Tapping
Super Glue Tube
115 Vision Parkway
P.O. Box 122
Sheboygan Falls, WI 53085
Assembly Instructions
Description
Box#
1
1
2
2
1
1
2
2
1
2
(includes:)
1-877-258-6020
www.dura-trel.com
sales@dura-trel.com
Qty
2
2
4
8
6
2
2
5
4
4
1
4
4
26
8
1
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dura Trel Windsor Arbor 11112
Summary of Contents for Dura Trel Windsor Arbor 11112
- Page 1 Windsor Arbor 11112 Model# Assembly Instructions Part # Description Box# 4" sq. x 84" Left Post 4" sq. x 84" Right Post 2" sq. x 29¾ Top/Bottom Cross Rail 2" sq. x 29¾ Center Cross Rail ⅞ x 1½ x 59½" Vertical Rail 1½...
- Page 2 Warranty Statement 20 Year Guarantee Please call manufacturer direct with questions concerning missing or defective parts at Toll Free: 877-258-6020. Dura-trel, Inc. products are warranted to be free from manufacturing defects resulting in delaminating, peeling, flaking, corroding, cracking, crazing, or extreme amounts of fading or bleaching causing the PVC to change to its natural color for a period of 20 years from the date of purchase.
- Page 3 Lay out one right post (part 2). Starting at bottom, insert one top/bottom rail (part 3) and four center rails (part 4). Slide three vertical rails (part 5) through center rails and into top/bottom rail. Insert one top/bottom rail (part 3) into right post, sliding three vertical rails into top/bottom rail.
- Page 4 With arbor panels lying down and screw pilot holes of each arbor panel facing out, slide two arbor top rails (part 6) all the way through both routed holes at the top of each arbor panel. Note: 2” sq. holes should line up with 2” sq. holes in the top of the arbor panels.
- Page 5 Using 1½” kappet screws, insert screws through holes of two overhead rails (part 7). Fasten screws to screw pilot holes of the five arbor top cross rails. Snap kappet screw caps over screw heads. Apply PVC glue to inner edges of the four flat post caps (part 9) and place on top of each post.
- Page 6 ARBOR INSTALLATION Option 1 Slide one 24” u-channel ground anchor (part 10) into bottom of each post. Slide ground anchor until it meets bottom cross rail. Using 1” self-tapping white-head screw fasten post to ground anchor. Using ground anchor installation layout drawing, dig holes approximately 16”...
