General Information
PLEASE READ THROUGH BEFORE BEGINNING ASSEMBLY.
IMPORTANT: Check boxes for Contents Listed
Check inside of parts as some parts are packaged
inside of others
In the event of missing, damaged or defective parts
please call our customer service dept. at 1-877-258-6020
When assembling components, place on a clean, flat
non-abrasive surface to avoid scratches
Tools Required
... Battery or Electric Drill
... Tape Measure
... Hammer or Rubber Mallet
with #2 phillips bit
(recommended)

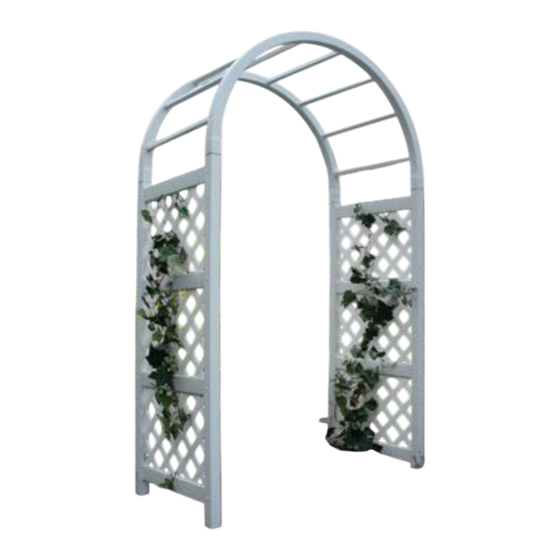

Somerset Arbor
11163
Model#
Part #
1
2 sq. x 65" Post
2
⅞ x 3 x 27½" Bottom Cross Rail
3
⅞ x 3 x 27½" Center Cross Rail
4
2 sq. x 50" Arbor Top
5
1 x 1 x 27½" Arbor Top Cross Rail
6
24 x 57" Lattice
7
Hardware Bag
1¼" Painted Screw
8
Arbor Ground Anchor Kit
16" Steel Ground Anchor (L-Shaped)
#8 - 1" Painted Self Tapping Screw
150 Birch Road
P.O. Box 122
Sheboygan Falls, WI 53085
Assembly Instructions
Description
Box#
1
2
2
2
1
2
2
(includes:)
(includes:)
1-877-258-6020
www.dura-trel.com
sales@dura-trel.com
Qty
4
4
4
2
8
2
1
24
1
4
8
1
