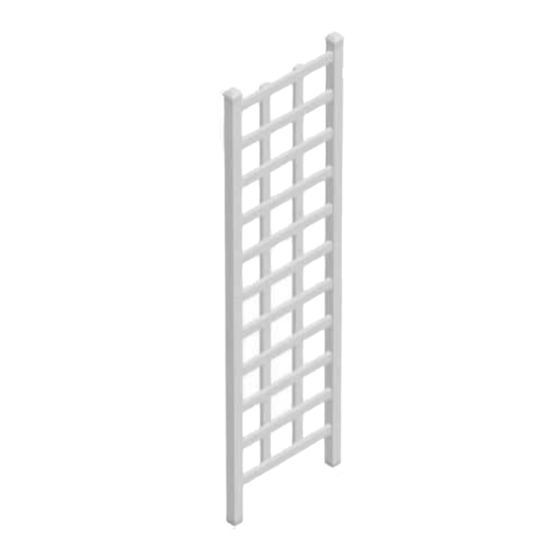

Dura Trel 11190 Elmwood Trellis Assembly Instructions

TOOLS NEEDED

Drill with #2 Phillips drill bit or
Phillips Screwdriver
Super or Crazy Glue
Hammer or Mallet

TRELLIS ASSEMBLY

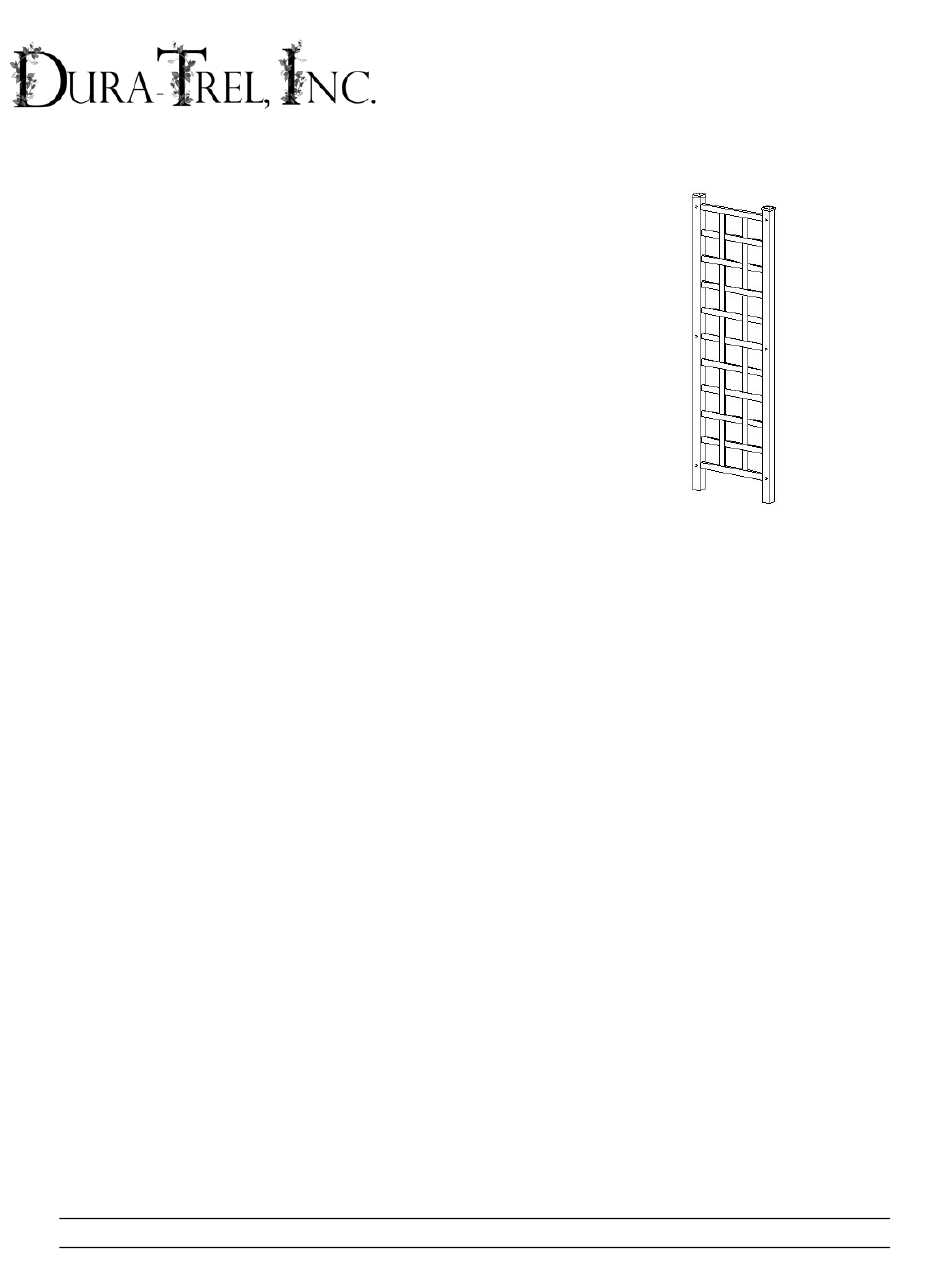

(Refer to Drawing 1)
On clean flat surface lay the 2 x 2 x 74" left post with the routed holes are facing up and the screw
pilot holes are facing you. Insert one of the ⅞ x 1½ x 22" top/bottom rails into the bottom routed
hole, then continue to insert nine ¼ x 1½ x 22" slats into the middle slots. Set the 2 x 2 x 74"
right post on top of the previous assembly and insert each rail into the routed holes. Lay trellis flat,
starting at the top right of the trellis, take one ¼ x 1½ x 66" slat and weave it above, then below
each of the ¼ x 1½ x 22" slats, insert into right slot of the bottom rail. Weave left
¼ x 1½ x 66" slat in the opposite direction of the right slat, and insert into the left slot in the
bottom rail. Spread the top of the panel just enough to insert the second ⅞ x 1½ x 22"
top/bottom rail, inserting the free end of the slats into the into the top/bottom rail. Make sure all
parts are inserted completely into both posts and fasten with screws. Snap screw caps over screw
heads. Finally, apply household glue to the corners of each
2 x 2" post cap and place on top of each post. Trellis is now ready for installation (See Ground
Anchor Hardware Bag).
If you encounter missing or defective parts, please contact manufacturer direct at
Dura-Trel, Inc. ~ PO Box 122, Sheboygan Falls, WI 53085 ~ Toll Free 877-258-6020
