General Information:
Read through carefully before beginning assembly.
»
When assembling components, place on a clean, flat,
»
non-abrasive surface to avoid scratches.
In the event of missing or defective parts, please call our
»
customer service department directly at 1-877-258-6020
Tools required:
Cordless Drill with #2 phillips bit
»
Tape Measure
»
Shovel
»
PVC or Super Glue
»

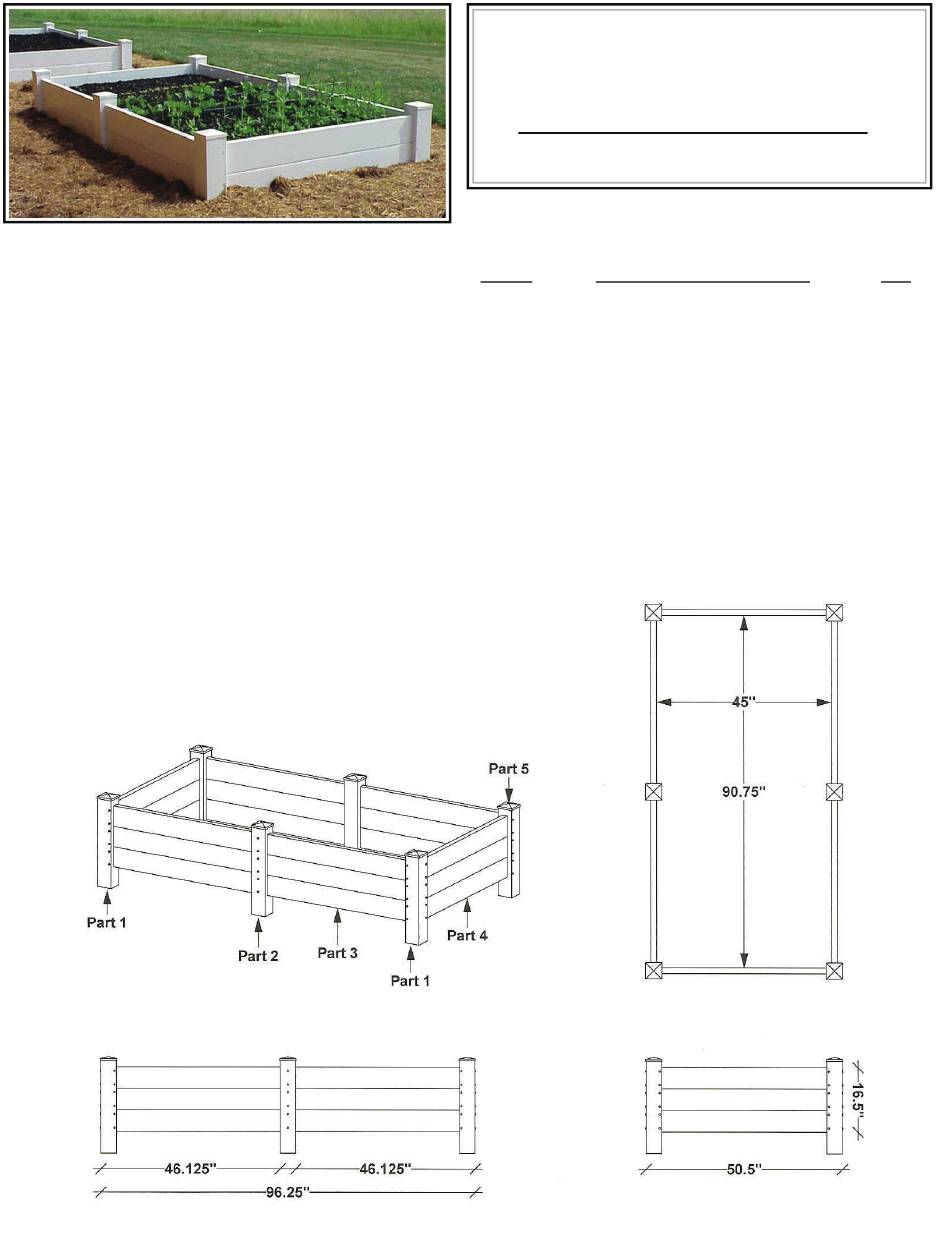

FIGURE 1
Part identification
4'
8' Three Board
x
planter BEd
Model# 11183
Parts List:
Part #
Description
1
4" sq. x 24" Corner Post
2
4" sq. x 24" Line Post
3
1½" x 5½" x 96" Rail
4
1½" x 5½" x 45" Rail
5
4" sq. Flat Post Cap
6
Hardware Kit (includes):
2" Kappet Screws
Kappet Screw Caps
FIGURE 3
Product Dimensions
Assembly Instructions
(Box Number)
(2)
(2)
(1)
(2)
(2)
(2)
FIGURE 2
Product Planting
Dimensions
Qty
4
2
6
6
6
60
60
Advertisement
Related Manuals for Dura Trel 11183
Summary of Contents for Dura Trel 11183
- Page 1 4’ 8’ Three Board planter BEd Model# 11183 Assembly Instructions Parts List: Part # Description (Box Number) General Information: 4” sq. x 24” Corner Post Read through carefully before beginning assembly. » 4” sq. x 24” Line Post When assembling components, place on a clean, flat, »...
- Page 2 Insert three 1½” x 5½” x 96” rails (part 3) through one 4” x 4” x 24” line post (part 2). Insert ends of 96” rails into two 4” x 4” x 24” corner posts (part 1). Slide line post to center of rail using dimensions shown in figure 2.
