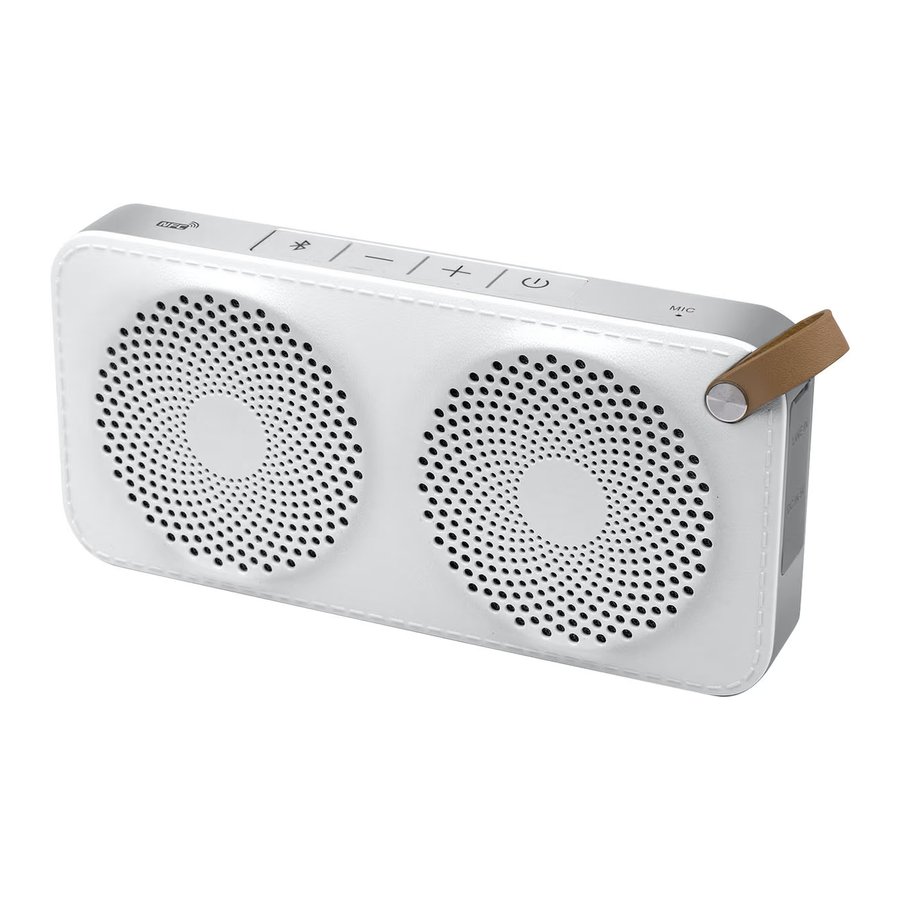

Muse M-750 BTW - Splash And Dust Proof Bluetooth Speaker Manual

• Bluetooth Speaker
• USB cable for battery charging
• Aux in cable

• The built-in battery in this device may present a risk of fire or chemical burn if mistreated. Do not disassemble, heat above 100°C (212°F), or incinerate.
• To get the longest service life of the built-in battery, charge at indoor-temperature.
• Attention should be drawn to the environmental aspects of battery disposal.
• Do not throw batteries in fire!
• Battery shall not be exposed to excessive heat such as sunshine, fire or the like.
• When the battery is low, the indicator will blink with a warning voice. The unit will switch to standby mode automatically when the battery is too low to work.

1. Press button to turn on the unit. The indicator lights up and indicator will start to blink. You will hear an indication voice indicating that the unit is in pairing mode.
2. Press and hold button on unit to turn off the unit. The indicator and turn off.

Note:

• Under charging, the indicator will keep blinking when you turn off the unit.
• Under charging, press and hold button to turn on the unit.

1. When the unit is ON, The Bluetooth indicator will start to blink rapidly. You will hear an indication voice indicating that the unit is in pairing mode.
2. On the Bluetooth device, enable Bluetooth and select "M-750BTW" from the Device List. (Refer to the user manual of the device to be connected for detailed operations.) If the Bluetooth device prompts for a passcode, use "0000". Some Bluetooth devices will ask you to accept the connection. You will hear an indication voice when pairing is successful.

• On some devices such as computers, once paired you must select the unit from the Bluetooth menu and choose "Use as Audio Device (stereo)" or similar.
• Pairing remains intact when the unit and/or your Bluetooth device is taken out of communication range. An active connection will be re-established when your Bluetooth device returns within range.
• When the unit is turned on again, it will automatically try to reconnect with the most recently paired Bluetooth device.

1. When the unit is ON, the Bluetooth indicator will start to blink rapidly. You will hear an indication voice indicating that the unit is in pairing mode.
2. Enable NFC and Bluetooth on your Bluetooth device (see the user manual of your device for details), tap the NFC device on the NFC tag on unit until you hear an indication voice. The NFC device is connected to this unit via Bluetooth.
3. Select and play audio files or music on your NFC device.
4. To break the connection, tap the NFC device with the NFC tag on this unit again.

1. With a unit paired (see previous section), operate your Bluetooth device and its sound will be heard through the M-750 BTW's speakers.
2. Press the button to pause playback. Press again to resume playback.
3. Adjust the volume using the / buttons. You can also adjust the volume on the device to which you are paired.
4. Press and buttons twice to select the desire track. You can also adjust the track on the device to which you are paired.

1. Press the button answer the incoming call.
2. Press the button again to end call.
3. Press the / button once to reject the incoming call.
4. To transfer the sound from the unit to the mobile phone, press and hold the button during a call. To transfer the sound from the mobile phone to the unit, shortly press the button twice during a call.
5. To redial the last number retained in the memory of the mobile phone, press the button twice.

• Re-dialing function is unavailable if there is no dial record feature in your mobile phone.
• This unit will not operate or may operate improperly with some Bluetooth mobile phones/audio players.
• If the conversation is not clear, try to move closer to the microphone.

1. Press button to turn on the unit.
2. Insert one end of Aux in cable (included) into the LINE OUT or Headphone jack on your external audio unit and the other end into the LINE IN jack inside the right side cover of the M-750 BTW; the unit will automatically switch to Aux in mode. You will hear an indication voice indicating that the unit is in Aux in mode. The Bluetooth indicator will turn off, indicator lights up.
3. Start playback of the external unit and the external audio unit's output sound will be heard through the M-750 BTW's speakers.
4. Adjust the volume to desired level.
5. To cut off the sound from the Bluetooth speaker temporarily, press button. Press button again to restore the sound from the speaker.
6. To stop playback, disconnect the Aux in cable from the LINE IN jack; the unit will switch to Bluetooth mode automatically. You will hear an indication voice indicating that the unit turns to pairing mode.

• Power is not on; press the button to turn the power on.
• Make sure the battery is recharged.

• External device's volume is set to minimum; raise volume.
• The M-750 BTW's volume is set to minimum; raise volume.
• The audio cable is plugged in. Unplug cable if not using Line In function.

• You have not activated the Bluetooth function of your device. Refer to the user manual of your device to activate Bluetooth function.
• The unit is not in pairing mode. Press and hold the button until the Bluetooth indicator blinks fast.
• The unit is already connected with another Bluetooth device; disconnect that device and then try again.

• The use of apparatus in moderate climates.
• The Marking plate is located at the bottom of the device.
• Make sure to have a minimum distance of 5 cm around the unit for sufficient ventilation.
• Ensure that the ventilation openings is not covered with items such as newspapers, tablecloths, curtains, etc.
• Do not place naked flame sources, such as lighted candles on the apparatus.
• Do not expose this appliance to dripping or splashing water.
• Do not place objects filled with liquids, such as glass, vase on the device.
• Do not throw batteries into fire! Respect the environment when disposing of used batteries.
• Batteries should not be exposed to excessive heat such as sunshine, fire or other similar heat source.
• The power plug is used as a disconnect device and must be easily accessible. To be completely disconnected from the power, the plug of the appliance should be disconnected completely. The socket must not be obstructed and should be easily accessible during intended use.
• Under the influence of fast transient and / or electrostatic electric phenomenon, the product may malfunction and the user must perform a power reset of the device.
