RadioLinx Industrial Hotspot Browser
User Manual

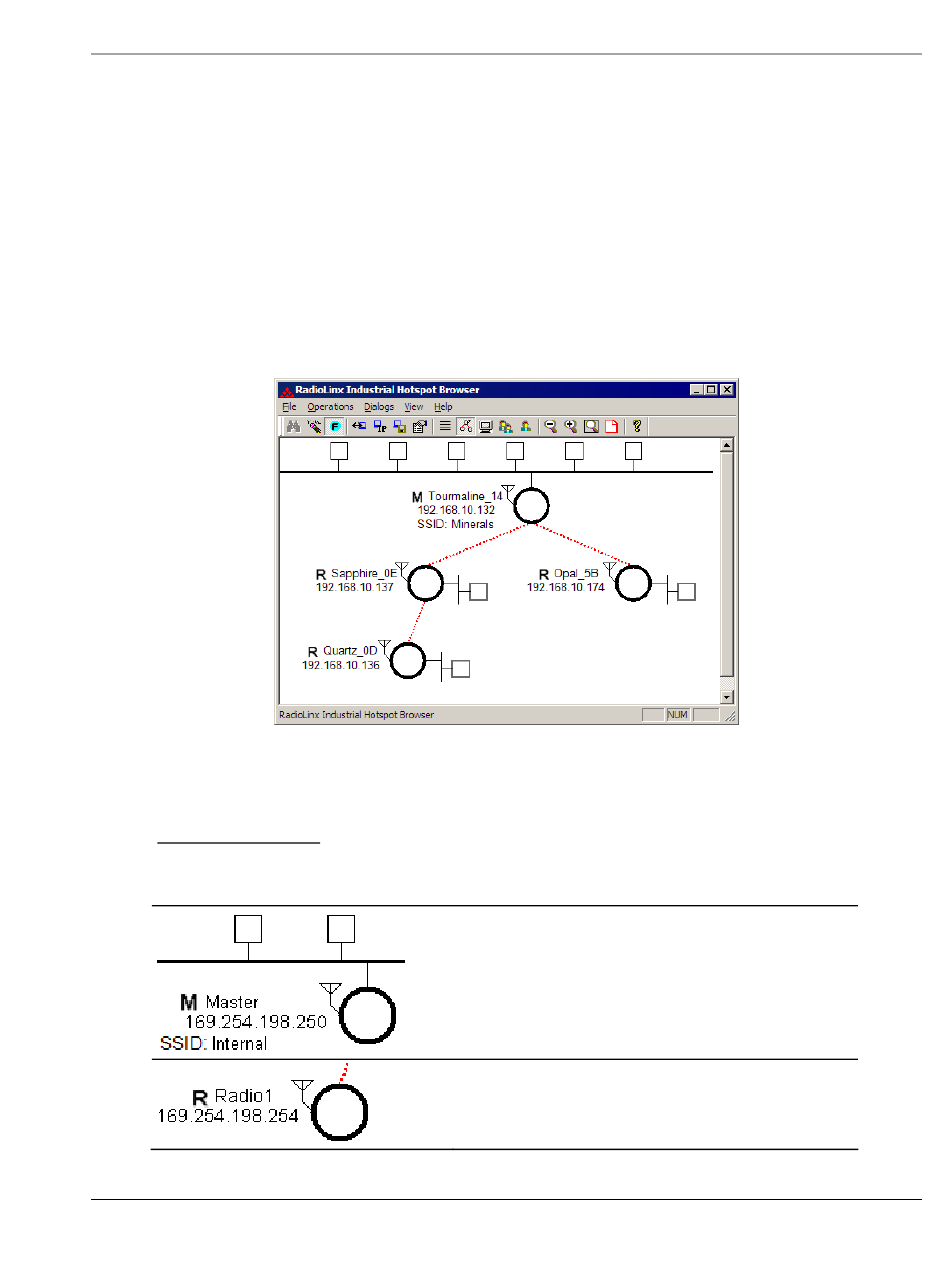

5.5.4 Topology View
To see how radios are connected together in the network, select Topology View
from the View menu. The Topology view shows a diagram of the network's
wireless connections. If a radio does not appear in the view, it is not connected to
the network. To change the way a radio is linked to the network, connect to it and
make changes through its Web page. For information on these settings, see
Parent Link settings (page 42).
In the topology view, you can double-click a radio to log in to the Radio
Configuration / Diagnostic Utility and change the radio's settings. To view a
radio's properties, right-click on a radio representation in the topology view and
then select Properties from the resulting menu.
Refer to Topology View key (page 75) for an explanation of the symbols that
appear in this view.
Topology View key
For information on other options that appear when you right-click a radio
representation, see RLX-IH Browser options (page 59).
ProSoft Technology, Inc.
May 18, 2009
Master; always shown at the top
Radio linked to the network
RLXIB-IHW-66 ♦ 802.11a, b, g
Industrial Hotspot
