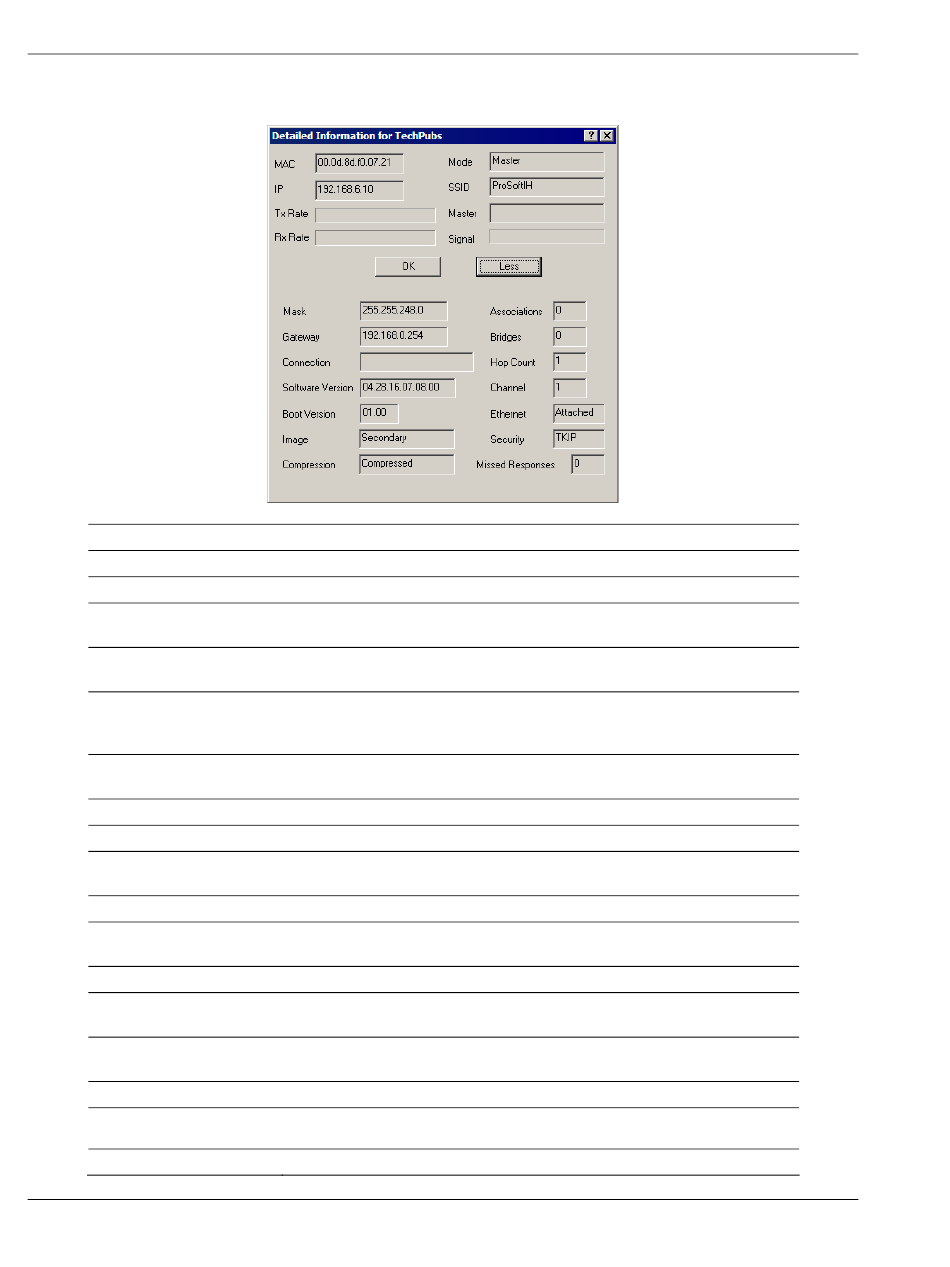

To see additional properties, click the More button.
Field
Radio Name
MAC
IP, Mask, and Gateway
IP State
SSID
Mode
Connection
Signal
Hops
Master
Associations
Bridges
Tx and Rx
Software Version and
Boot Version
Compression
Ethernet
Page 72 of 109
Description
The name of the selected radio.
The physical media access control address for the network interface.
The radio's IP address, subnet mask, and default gateway. For
information, see Radio Access settings (page 55).
Indicates whether a radio's IP address has been set—"Uninit(ialized)" or
"OK".
A name that identifies a wireless network. You assign this name when
you configure the radio. The SSID must be the same for all radios on
the same network.
Indicates whether you designated the radio as a master, repeater, or
client.
The status of the wireless connection.
The signal strength, which in this field is a number from 0 to 15.
The number of wireless connections a radio is from the closest master
radio.
The MAC address of the selected radio's master radio.
The number of network elements to which a radio has a wireless
connection.
The number of repeaters to which a radio has a wireless connection.
The transmission throughput rate and the received throughput rate.
Both rates are measured in kilobytes per second (KB/s).
The versions of the radio's firmware and its boot code.
The image type can be Primary or Secondary.
Indicates whether the radio's firmware images are compressed or not.
The Ethernet connection status, either Attached or Detached.
