ProSoft Technology RadioLinx RLXIB-IHW-66 User Manual page 17

Start Here
User Manual

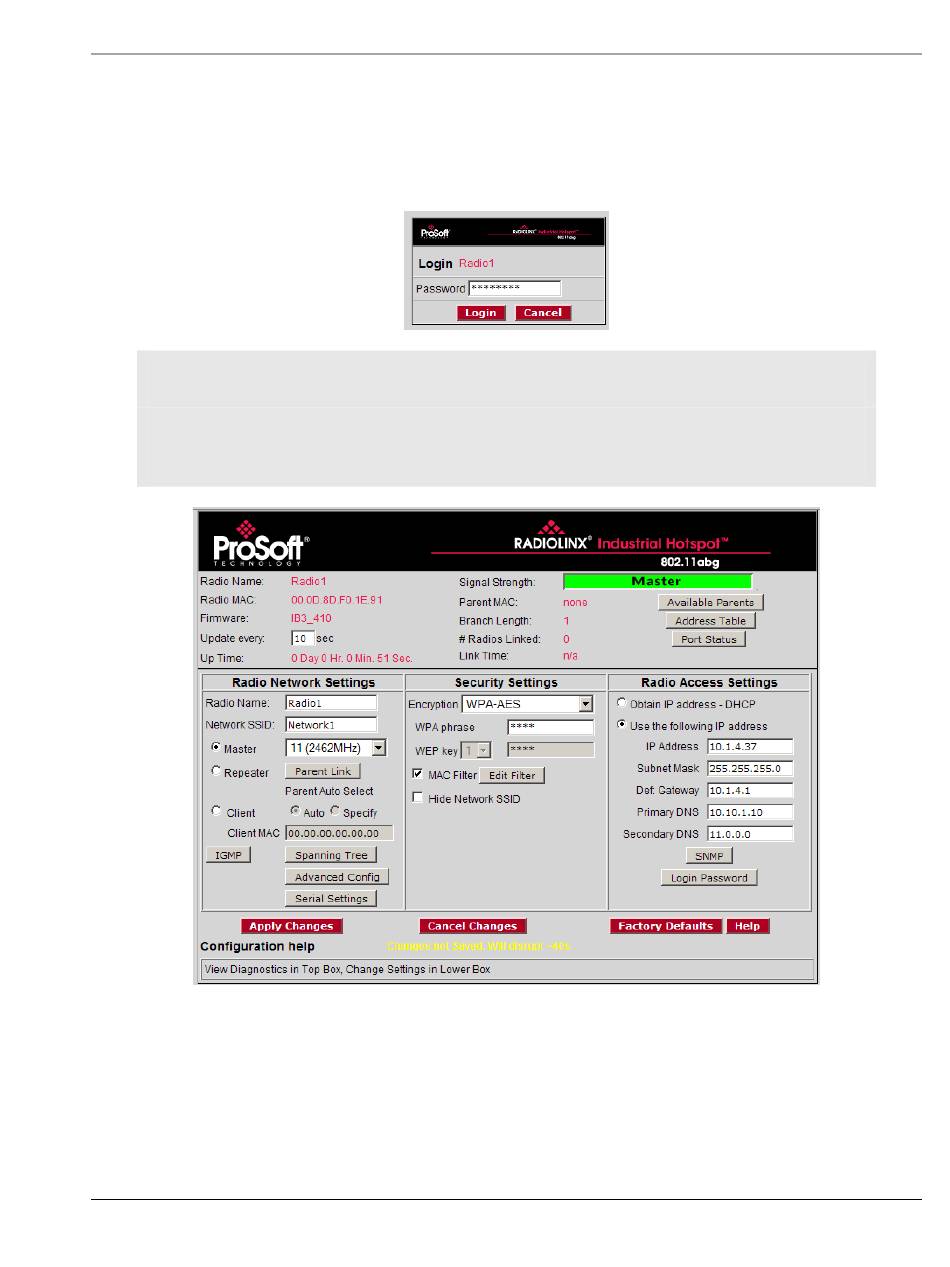

1.6.5 Set Up the Master Radio
To configure the radio, double click on the radio (Radio1) in the IH Browser
window. This action opens a web browser (for example Microsoft Internet
Explorer or Firefox) and loads the IH Radio's web configuration interface.
Important: The radio configuration is protected by a login password. The default password for the
radio is "password" (lower case, no quotes). To prevent unauthorized access to the radio
configuration, you should change the password when you have finished the initial configuration.
Note: The master is the "root" or top-level radio in a network. You must have at least one master
radio per network. For redundancy, you can assign more than one master to a network.
To configure a Master radio, make the following changes to the web
configuration form:
ProSoft Technology, Inc.
May 18, 2009
RLXIB-IHW-66 ♦ 802.11a, b, g
Industrial Hotspot
Page 17 of 109
