ProSoft Technology RadioLinx RLXIB-IHW-66 User Manual page 68

RLXIB-IHW-66 ♦ 802.11a, b, g
Industrial Hotspot
5.4.2 Ethernet Nodes
This dialog box opens when you open the AP Dialogs menu and choose Ethernet
Nodes.
Use this dialog box to see information about Ethernet devices attached to the

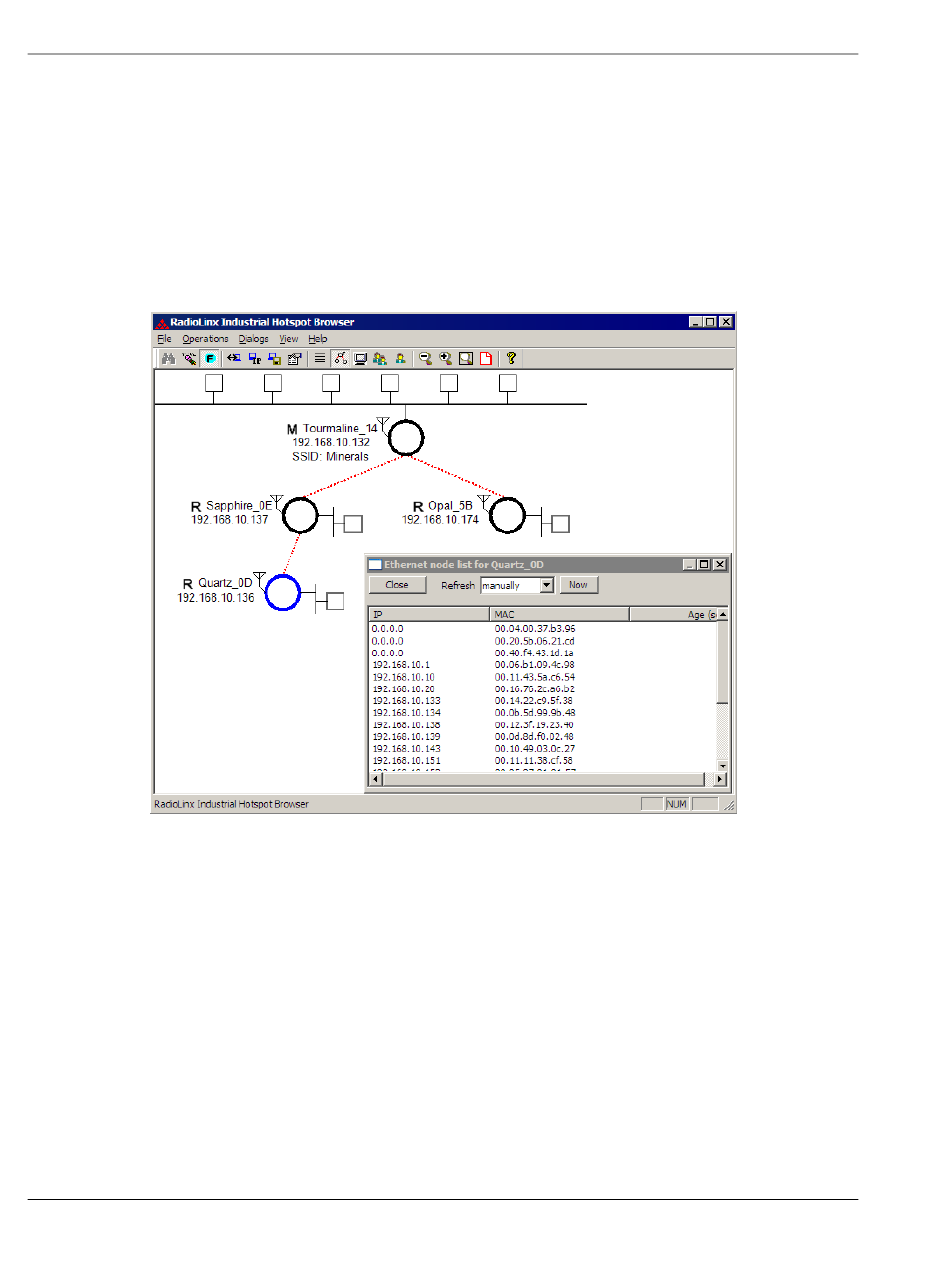

radios. The following illustration shows a list of Ethernet devices (by IP address
and MAC ID) attached to the Ethernet port of Tourmaline_14. In addition to the IP
and MAC ID it gives an age for each entry, which is the amount of time since a
packet has been heard from that device.
Page 68 of 109
RadioLinx Industrial Hotspot Browser
User Manual
ProSoft Technology, Inc.
May 18, 2009
