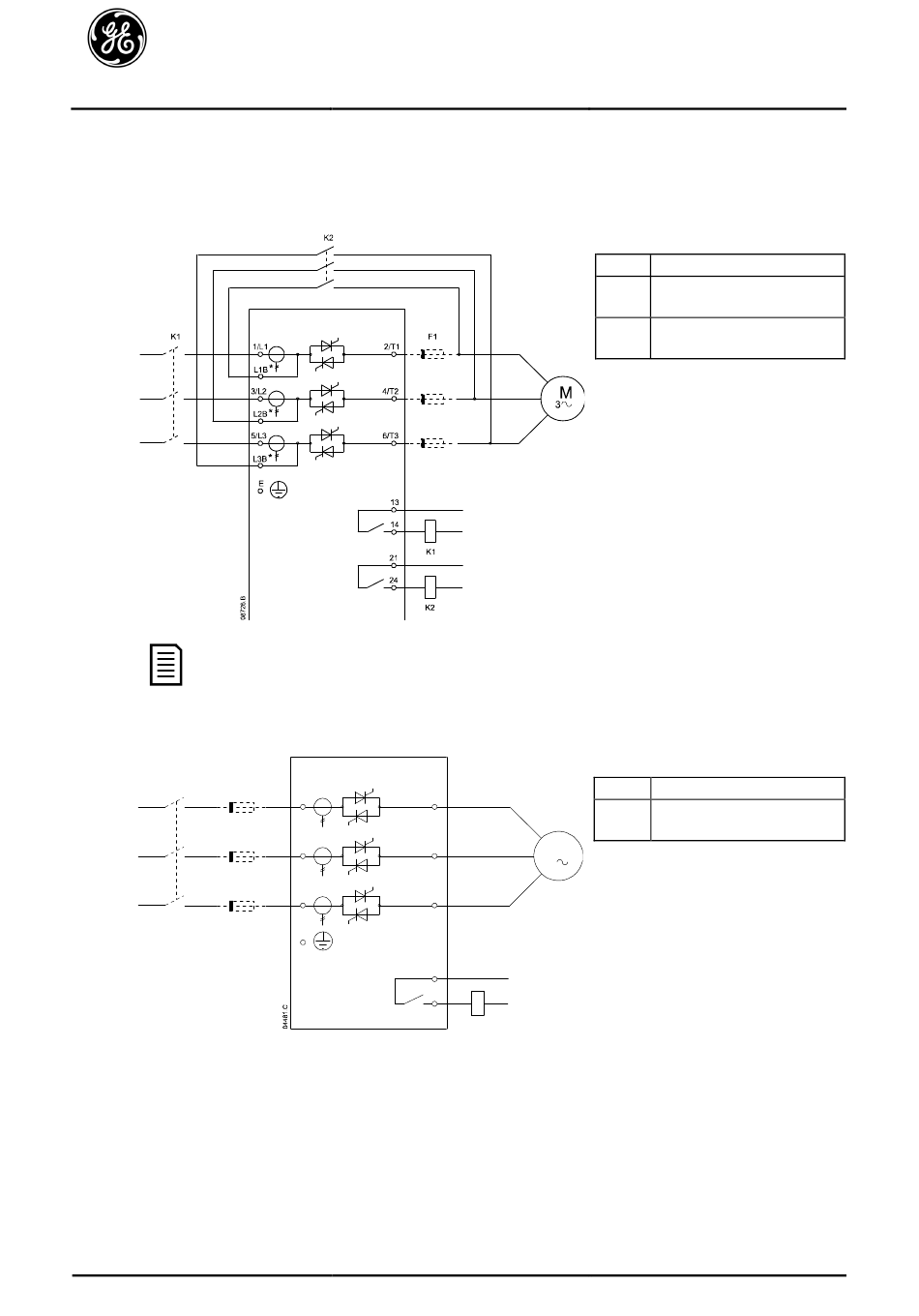

6.1.3 In-line installation, externally bypassed
Non-bypassed models have dedicated bypass terminals, which allow the ASTAT XL to continue
providing protection and monitoring functions even when bypassed via an external bypass contactor.
The bypass contactor must be connected to the bypass terminals and controlled by a programmable
output configured to Run (see parameters 7A~7I).
NOTE
The bypass terminals on QLxxX0255D are T1B, T2B, T3B. The bypass terminals on
QLxxX0360D ~ QLxxX1600D are L1B, L2B, L3B.
The fuses can be installed on the input side if required.
6.1.4 In-line installation, non-bypassed
K1 F1
ASTAT XL User Manual
1/L1 2/T1
3/L2 4/T2
5/L3 6/T3
E
13
14
DET-812
Fout! Stijl niet gedefinieerd.
K1
K2
F1
K1
F1
M
3
K1
Main contactor (optional)
Bypass contactor
(external)
Semiconductor fuses
(optional)
Main contactor (optional)
Semiconductor fuses
(optional)
