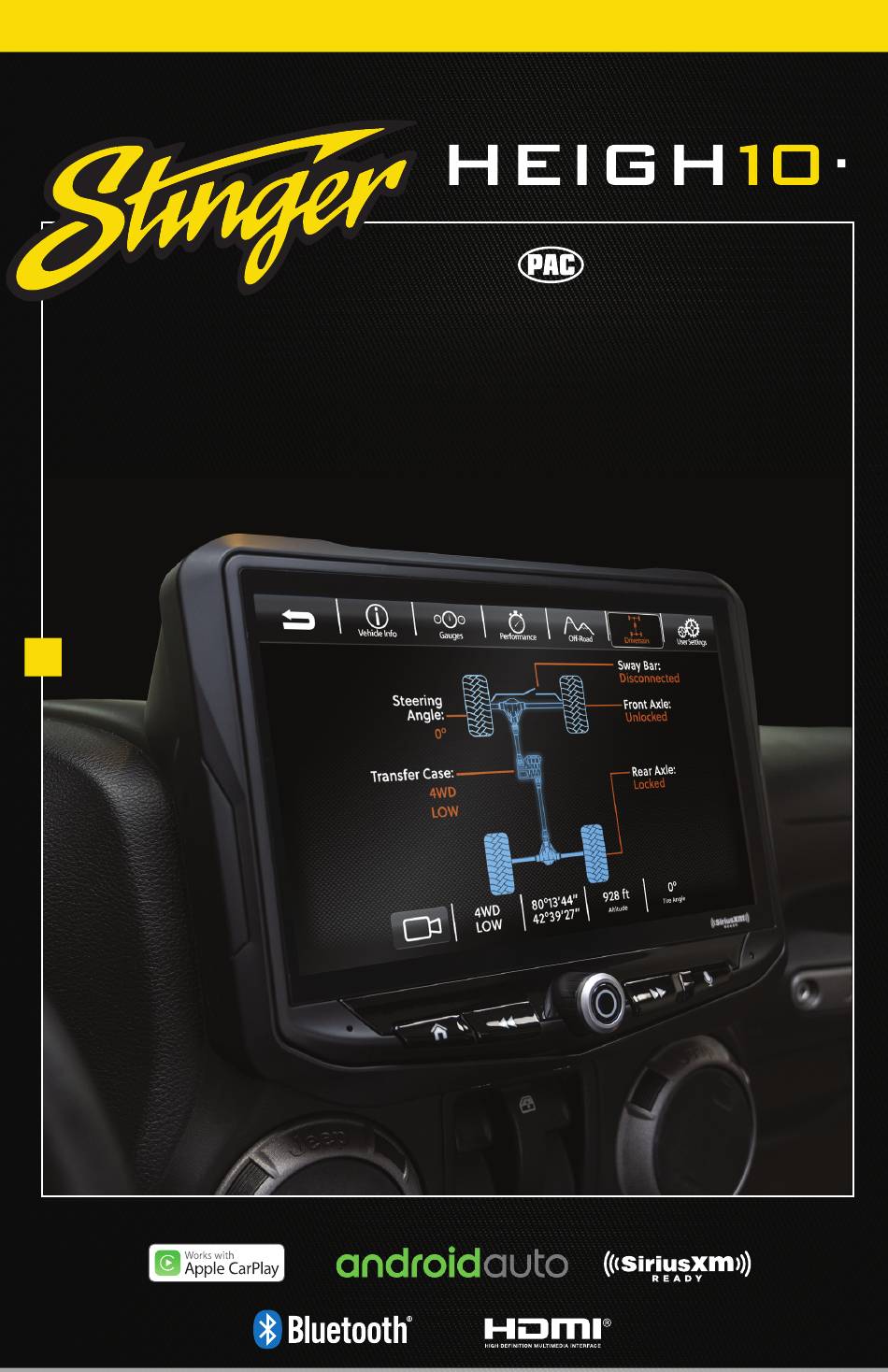

- Page 1 PN: UN1810 ® ® ® SRK-JK11H INTEGRATED MULTIMEDIA DISPLAY FOR JEEP WRANGLER JK/JKU ® USER GUIDE...
-
Page 2: Table Of Contents
® ® WELCOME TO YOUR NEW ® Enjoy the ride THE BASICS THE SOURCES GENERAL SETTINGS TECH SPECS The Controls........4 AM/FM Radio......18 Settings........36 Reset Button......45 Getting Started......6 Bluetooth Phone.......19 Clock........36 Troubleshooting......46 Selecting a Source.....7 Specifications......48 Pairing a Device....20 System Settings.......36 Setting the Clock......7 BT Device Settings....21 Illumination......37... -
Page 3: The Controls

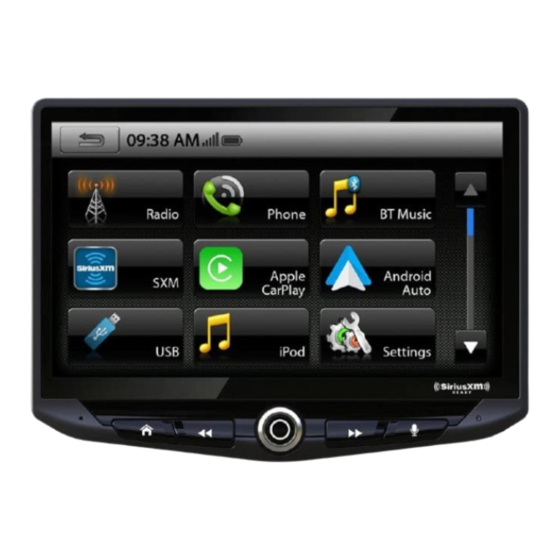

® ® THE CONTROLS Internal Reset Microphone Button Home Button Access the Home Menu Voice Button Press and Hold to launch Navigation. Launches voice control When iGo Navigation is present, it will have priority over phone based navigation. Tune/Track Down Button Tune/Track Up Button Media control Previous, Back, Seek Media control Next, Forward, Seek... -
Page 4: Getting Started
® ® GETTING STARTED SELECTING A SOURCE Temperature/ To select a source, press the HOME Time Information Bar Source/Info button. The HOME MENU displays all Sources, along with Settings, Audio, Camera and Vehicle options. SOURCES that are not currently available are dimmed out. QUICK TIP There are multiple ways to scroll... -
Page 5: Vehicle Info
® ® CUSTOMIZING THE TABS Vehicle Info HOME BUTTON > Vehicle Info HOME BUTTON > SETTINGS > TABS Selecting Vehicle Info from the HOME Menu or Tabs will display information The Tabs can be configured to provide quick access to your favorite sources and status for various vehicle systems. -
Page 6: Gauges
® ® Vehicle Info > Gauges Vehicle Info > Performance Selecting Performance from the Vehicle Info Menu will display a digital Selecting Gauges from the Vehicle Info Menu will display eight gauges that can be speedometer and tachomoter along with performance measurement options. user defined and saved. -
Page 7: Drivetrain
® ® Vehicle Info > Off-Road Vehicle Info > Drivetrain Selecting Off-Road from the Vehicle Info Menu will display digital pitch and roll Selecting Drivetrain from the Vehicle Info Menu will display a visual status gauges along with the vehicle's GPS position, altitude and compass heading. for the transfer case, axles, sway bar and tire angle. -
Page 8: Off-Road Camera
® ® Vehicle Info > User Settings Vehicle Info > Off-Road Camera Selecting the Camera Icon from any of the Vehicle Info screens will display the default Off-Road Camera selected in the User Settings if installed. Along with the camera image, an overlay showing pitch, roll, tire angle and other information will be displayed. -
Page 9: Vehicle Settings
® ® Vehicle Settings USB Ports HOME BUTTON > Settings > Vehicle Settings HOME BUTTON > USB Depending on the installation, there will be one or two USB ports. If there is Selecting Vehicle Settings allows only one USB port, it will support all USB functions. If there is a second USB changing the Units displayed in port, one will support all USB functions and the other will support media, the Vehicle Info screens to US or... -
Page 10: Am/Fm Radio
® ® AM/FM RADIO Bluetooth PHONE Press the HOME BUTTON > Radio to select the Radio Press the HOME BUTTON > Phone to select the Phone Station Presets - To assign a preset, go ST Indicator - Indicates when the Number Pad - Touch to launch Device Info - Displays the name of to the desired station, and press and... -
Page 11: Pairing A Device
® ® Bluetooth PHONE Bluetooth PHONE Pairing a Device Select Pair when prompted. Select Settings from the Phone main menu to go to BT Device Settings. Confirm the Key Code on device and select Pair on the device. Select Devices on the BT Device settings page. -
Page 12: Contacts/Call Log
® ® Bluetooth PHONE Bluetooth MUSIC Search Contacts Contacts While a device is paired, Contacts can be accessed by selecting Contacts from the Phone main menu. It may take several minutes to load all contacts. When a contact is selected from the list, all associated numbers (Home/Work/ Mobile) will be displayed on the left side of the screen. -
Page 13: Siriusxm
® ® SiriusXM Satelite Radio SiriusXM Satelite Radio ® (OPTIONAL) Only SiriusXM brings you more of what you love to listen to, all in one place. Get over 140 channels, including commercial-free music plus the best sports, news, talk, comedy and entertainment. Welcome to the world of satellite radio. A SiriusXM Vehicle Tuner and Subscription are required. -
Page 14: Siriusxm Replay
® ® SiriusXM Satelite Radio SiriusXM Satelite Radio Return to SiriusXM main screen SiriusXM Replay™ Channels [CH] Replay allows you to pause, rewind Displays a list of availble SiriusXM and replay up to 1 hour of live SiriusXM channels in numerical order. Swipe up/ Satellite Radio. -
Page 15: Usb Media
® ® SiriusXM Satelite Radio USB Media Parental Control Keyboard Icon The SiriusXM Parental Control feature allows you to prevent access to inappropriate mature content for a younger listener. When enabled, the Parental Control feature requires you to enter a passscode to access the channels that are rated as Mature Channels. -
Page 16: Apple Carplay
3. Select Customize. 4. Use the add or delete icons to add or remove apps. Tap and drag an app to change the icon order. To exit Apple CarPlay, press the Stinger Main Menu icon. For details about Apple CarPlay, visit https://support.apple.com/en-us/HT205634 StingerElectronics.com... -
Page 17: Ipod
® ® iPod HDMI INPUT ® Press the HOME BUTTON > HDMI to switch to the HDMI input. Track Detail View The HDMI input can be used for an external DVD player, streaming sticks, media players and smartphone mirroring. You can only view HDMI content with the vehicle in Park and the parking brake ON. -
Page 18: Cameras
HOME BUTTON > Cameras To add navigation, ask your dealer about When a camera is first activated, Stinger's pre-loaded iGO Navigation SD Card there will be menu bars at the top and (Part Number: SE-P14). bottom of the display. The top menu... -
Page 19: Settings
® ® SETTINGS SETTINGS EXIT current screen Press the HOME BUTTON > Settings Settings > System Settings > Apple CarPlay to access the Settings main menu. Device Mode [OFF-CarPlay-iPod] Determines how iPhone will be used when Clock plugged into USB port. OFF is charging only. System Settings Mic Gain [LOW-MED-HIGH] Illumination... - Page 20 ® ® SETTINGS SETTINGS Settings > Background Settings > Camera Settings Allows you to change the background The Camera Settings screen lists all image. Touch image thumbnail to installed cameras and allows the camera select. You can upload up to 3 of your triggers to be turned on and off.
-
Page 21: Equalizer
® ® SOUND SETTINGS SOUND SETTINGS Sound Settings > Equalizer Selecting Equalizer from the Audio Menu Bar will bring up the 15 band graphic equalizer and presets. Frequency adjustments can be made by touching and sliding the frequency sliders up/down. Once the desired sound is acheived, it can be saved as a Preset. -
Page 22: Crossover
® ® SOUND SETTINGS SOUND SETTINGS Sound Settings > Crossover Sound Settings > Time Correction Graphical representation of crossover Select milliseconds or inches Slope, Frequency and Level. Selecting Crossover from the Audio Selecting Time Correction from the Audio Menu Bar will access the internal Menu Bar will access the Time Correction electronic variable crossover. -
Page 23: Toslink
® ® SOUND SETTINGS Reset Button Settings > Sound Settings > Advanced Settings Selecting Advanced Settings from The Reset Button is located on the the Audio Settings screen will access lower right hand corner of the display. the following settings: To reset the unit, the power must be on, use a paper clip or similar to push the Defeat [ON-OFF]... -
Page 24: Troubleshooting
..downloaded and installed on your device. with the SiriusXM Connect Vehicle Tuner. The You may also see this message briefly when Delete any "Stinger" device. Restart/ - Make sure you are plugged into USB 2 in tuner may be disconnected or damaged. -
Page 25: Specifications
® ® SPECIFICATIONS SPECIFICATIONS AUDIO/VIDEO FORMATS GENERAL AUDIO (cont.) HDMI INPUT Operating Voltage: 9.0VDC to 18VDC Subwoofer Preout Supported HDMI Resolutions: AUDIO Grounding system: Negative Ground LPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250H 640*480p, 720*480p, 1280*720p, Max current consumption: 10A fused Slope: 6dB, 12dB, 18dB 1920*1080i, 1920*1080p MPEG-1 Audio Layer-3 (.mp3) Gain: -14dB to 7dB (1dB/step) -
Page 26: Technical Support
If you do not agree, please discontinue use and contact STINGER. This product is intended for off-road use and passenger use only. Stinger is a Power Brand of AAMP Global ©2022 AAMP Global 15500 Lightwave Drive, Suite 202 SRKJK11H-UG REV121122...
