UTEPO UTP3306TS-PSB User Manual

4-Port Gigabit PoE+ 1-Port Gigabit RJ45 1-Port Gigabit SFP unmanaged
Ethernet Switch
User Manual
Packing List
Please check the following items after unpacking, if any missing, please contact your local dealer.
Items Quantity
Switch 1 pc
Power Adaptor 1 pc
AC Power Cable 1 pc
Mounting Accessory 1 set
User Manual 1 pc
Product Overview
The product is 4-Port Gigabit PoE+ 1-Port Gigabit RJ45 1-Port
Gigabit SFP unmanaged Ethernet Switch.
The switch provides 4*10/100/1000Base-T PoE downlink
Ethernet RJ-45 ports, 1*10/100/1000Base-T uplink Ethernet RJ-
45 port and 1*1000Base-X uplink SFP port.
The switch supports one key smart CCTV mode. Under CCTV
mode, it supports PoE watchdog feature, which can detect and
restart the camera automatically if it's frozen. It can be widely
used in video security monitoring systems, network projects, etc

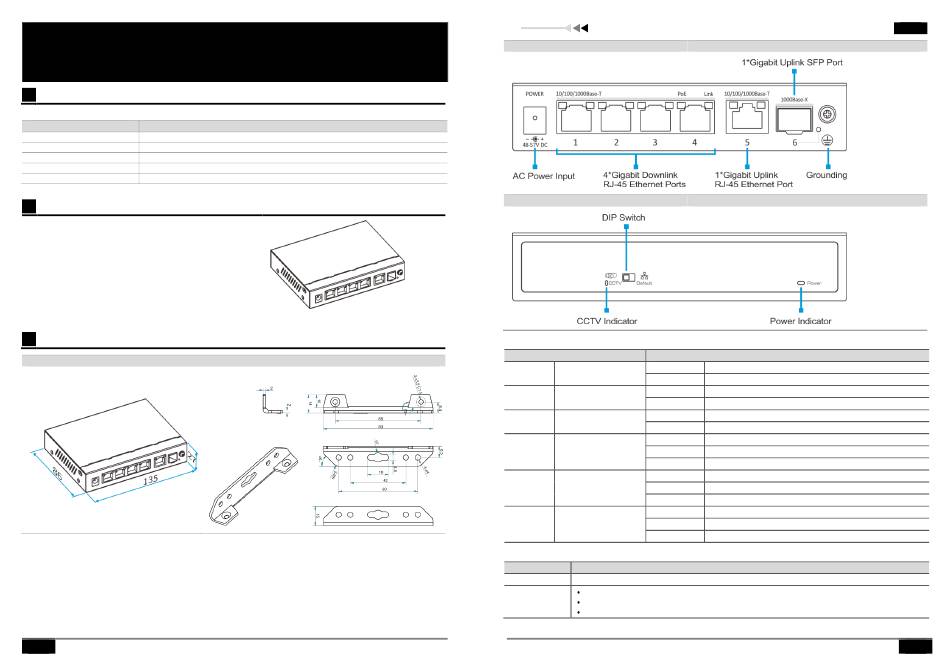

Appearances and Dimensions
Dimensions (mm)
1
4-Port Gigabit PoE+ 1-Port Gigabit RJ45 1-Port Gigabit SFP unmanaged Ethernet Switch

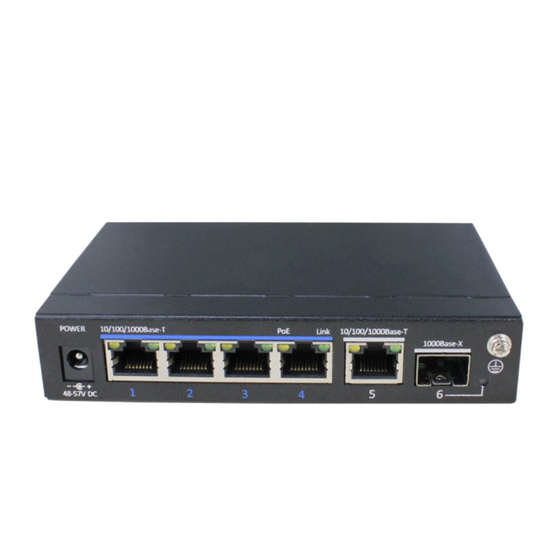

Front Panel
Rear Panel
Indicators
Indicators Descriptions
On
Power Power Indicator
Off
On
CCTV CCTV Indicator
Off
On(Orange)
PoE1~4 Port PoE Indicator
Off
On(Green)
Link1~4 Port Link Indicator Blink
Off
On
Port Link Indicator
5 Blink
(Right side only)
Off
On
6 Port Link Indicator Blink
Off
CCTV DIP Switch
Mode Descriptions
Default mode. CCTV mode is disabled.
Default
Support VLAN and restraining network storm.
All downlink ports are isolated from each other, but can communicate with uplink ports
CCTV
Support PoE Watchdog feature.
The power is on.
The power is off
CCTV mode is on.
CCTV mode is off.
The port is supplying PoE normally.
The port stops supplying PoE.
The port is linking normally.
The port is transmitting or receiving data.
The port links down.
The port is linking normally.
The port is transmitting or receiving data.
The port links down.
The port is linking normally.
The port is transmitting or receiving data.
The port links down.
