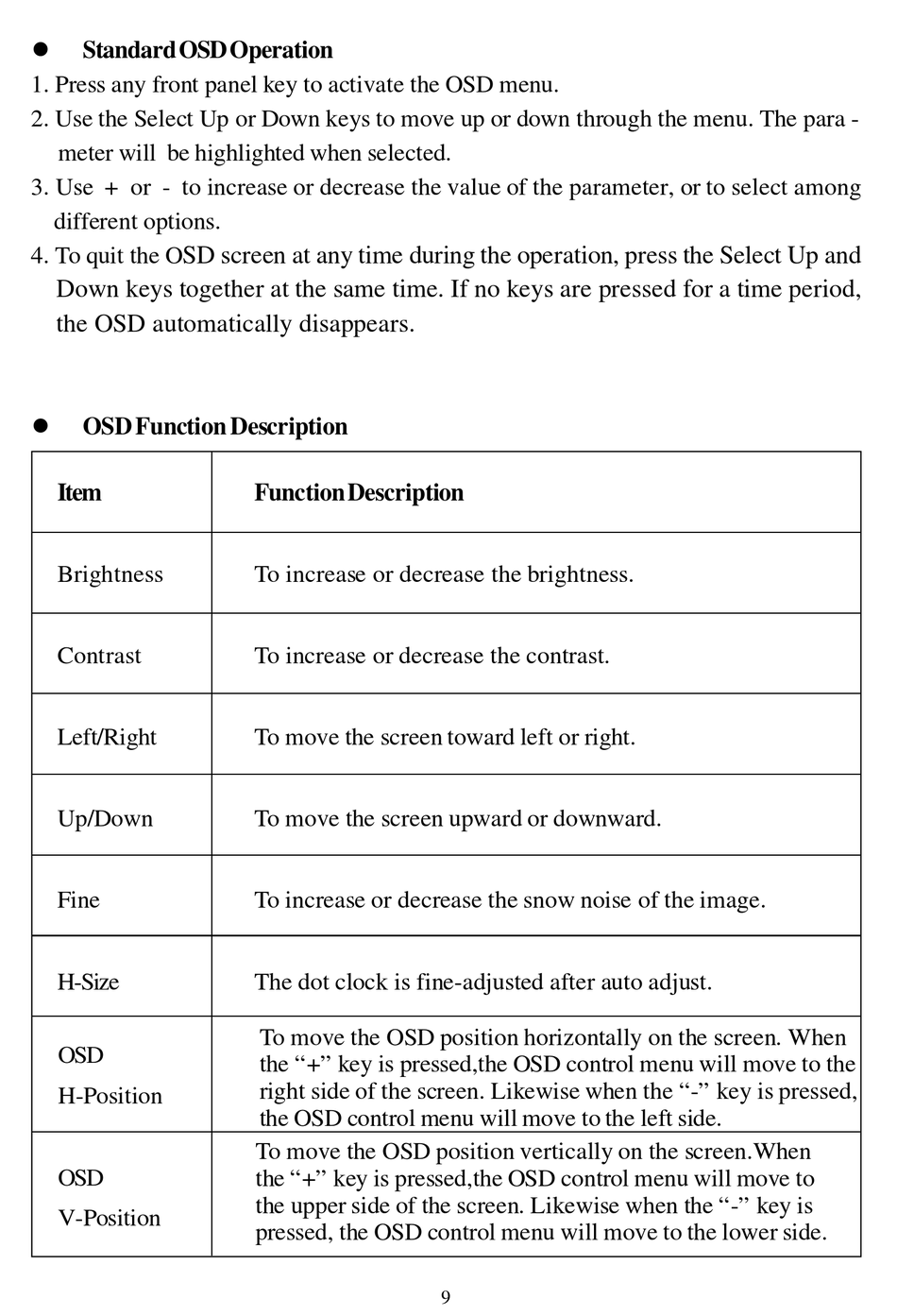

Standard OSD Operation
1. Press any front panel key to activate the OSD menu.
2. Use the Select Up or Down keys to move up or down through the menu. The para -
meter will be highlighted when selected.
3. Use + or - to increase or decrease the value of the parameter, or to select among
different options.
4. To quit the O SD screen at any time during the operation, press the Select Up and
Down keys together at the same time. If no keys are pressed for a time period,
the OSD automatically disappears.
l
OSD Function Description
Item
Brightness
Contrast
Left/Right
Up/Down
Fine
H-Size
OSD
H-Position
OSD
V-Position
Function Description
To increase or decrease the brightness.
To increase or decrease the contrast.
To move the screen toward left or right.
To move the screen upward or downward.
To increase or decrease the snow noise of the image.
The dot clock is fine-adjusted after auto adjust.
To move the OSD position horizontally on the screen. When
the "+" key is pressed,the OSD control menu will move to the
right side of the screen. Likewise when the "-" key is pressed,
the OSD control menu will move to the left side.
To move the OSD position vertically on the screen.When
the "+" key is pressed,the OSD control menu will move to
the upper side of the screen. Likewise when the "-" key is
pressed, the OSD control menu will move to the lower side.
9
