J/POE-CF-01
Installation -- continued
CAUTION: Associated Ethernet wiring shall be limited to inside the building.

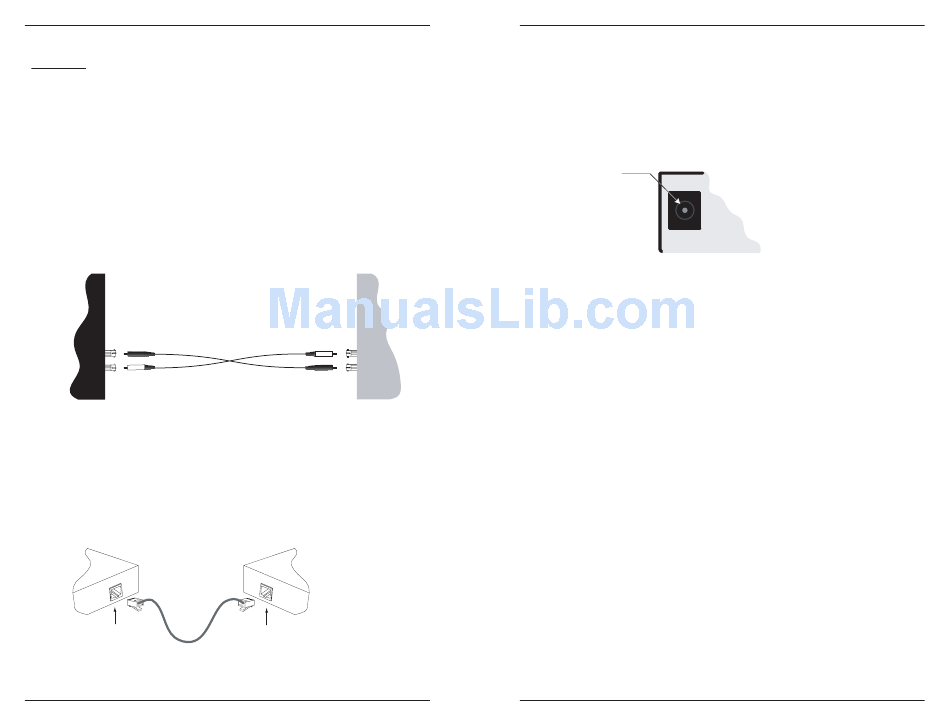

Install the fiber cable

1. Locate or build 100Base-FX fiber cable with male, two-stranded TX to RX
connectors installed at both ends. See Figure below.
2. Connect the fiber cables to the SFEPE10xx-1xx media converter as
described:
• Connect the male TX cable connector to the female TX port.
• Connect the male RX cable connector to the female RX port.
3. Connect the fiber cables to the other device (another media converter,
hub, etc.) as described:
• Connect the male TX cable connector to the female RX port.
• Connect the male RX cable connector to the female TX port.
Connect fiber cable
to media converter
as shown.
RX
TX

Install the copper cable

1. Locate or build 100Base-TX copper cables with male, RJ-45 connectors
installed at both ends. See Figure below.
2. Connect the RJ-45 connector at one end of the cable to the RJ-45 port on
the media converter.
3. Connect the RJ-45 connector at the other end of the cable to the RJ-45
port on the other device (wireless access point, VoIP phone, network
camera, etc.).
RJ-45 port
on the media
converter
4
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
Connect fiber cable
to other device
(media converter,
hub, etc.) as shown
RX
TX
RJ-45 port
on the other device
(switch, work station, etc.)
Installation -- continued

Connecting power

1. Connect the barrel connector, on the external power adapter, to the
power port on the converter (on the back of the converter).
2. Connect the power adapter plug to AC power .
3. Verify that the converter is powered by observing the illuminated LED
power indicator LED on the front panel
Barrel-Connector
Power Receptacle
Chassis Rear
