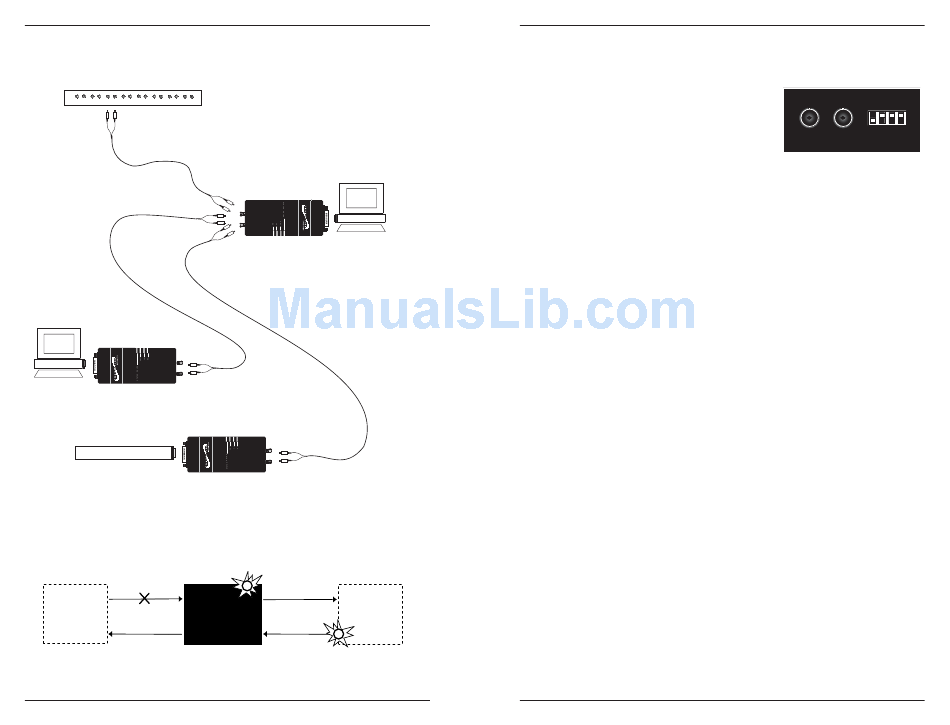

E-FRL-MC05 in the Network
NOTE: AUI drop cable also can be used to connect to the transceiver.
10BASE-FL Hub
OR
OR
SQE = ON
SQE = OFF
Hub with AUI connector
Using LinkAlert™
The LinkAlert™ feature allows the transceiver to pass 10BASE-FL-side link faults
to the AUI side and to pass AUI-side link faults to the 10BASE-FL side.
FAULT INDICATION*
10BASE-FL Transceiver
Device
2
SQE = ON
Network
AUI
Device
LINK FAULT INDICATION
E-FRL-MC05

Installation

Set Switches
NOTE: UP enables the indicated function on
the 4-position switch located to the right of the
10BASE-FL connector and DOWN disables the
indicated function.
1 SQE Test : (UP) Enable SQE test
function when connecting to other devices. (DOWN) Disable SQE
test function when connecting to IEEE 802.3 compliant repeaters.
Default is enabled (UP).
2 LinkAlert : (UP) Enable the LinkAlert
standard Link Integrity Test. Default is enabled (UP).
3 Half-Duplex/Full-Duplex Mode : (UP) Enable half-duplex mode
when connecting to half-duplex network devices. (DOWN) Enable
full-duplex mode when connecting to full-duplex network devices.
Default is enabled (UP) DO NOT USE FULL-DUPLEX WHEN
CONNECTING THE TRANSCEIVER TO A REPEATER. .
4 Not Used
Install Cable
NOTE: See page 6 for cable specifications and configurations.
FIBER
• Locate or build 10BASE-FL compliant fiber cable with male two-
stranded TX to RX connectors at both ends.
• Connect male TX and RX cable connectors at one end of cable to
TX and RX female connectors, respectively, on media converter.
• Connect female TX and RX cable connectors at other end of
cable to RX and TX connectors of 802.3 compliant fiber device.
AUI
DROP CABLE
• Connect AUI drop cable female connector to male AUI (DTE)
connector on E-FRL-MC05.
•. Connect other end of AUI drop cable to 10BASE-5 network.
NETWORK DEVICE
• Connect device female connector to male AUI (DTE) connector
on E-FRL-MC05.
Connect to Power
The E-FRL-MC05 is powered through the AUI connection.
1 2 3 4
function. (DOWN) Enable
™
