Transition Networks E-FX-MC01 User Manual

TRANSCEIVER TECHNICAL SPECIFICATIONS

Standards
IEEE 802.3
Case dimensions
2.8" x 1.75" x 0.75"
Maximum in series:
Two (2)
Environment
Temperature:
Humidity
Altitude
Warranty
Lifetime

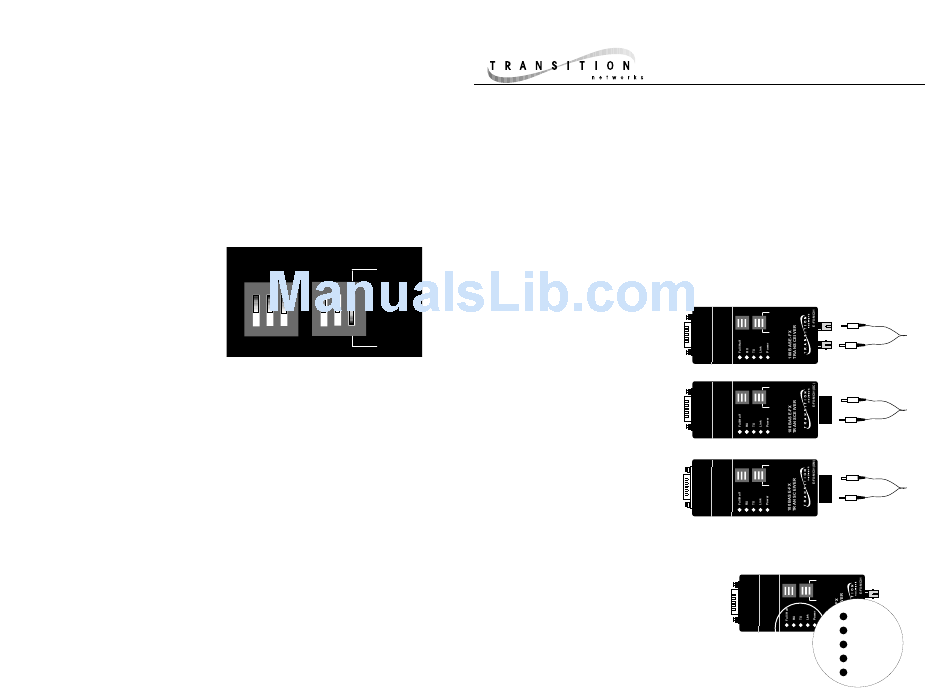

Setting the Transceiver Physical Address

Additive switch settings allow a physical address to be set by selecting (or not
selecting) among the following:
2 0
Switch 1 DOWN 1
2 1
Switch 2 DOWN 2
2 2
Switch 3 DOWN 4
2 3
Switch 4 DOWN 8
2 4
Switch 5 DOWN 16
In the switch setting shown above,
the transceiver physical address is set to 0 (0+0+0+0+0). The data transfer mode
is set to full-duplex.

Compliance Information

UL Listed
C-UL Listed (Canada)
CISPR/EN55022 Class A
FCC Regulations
This equipment has been tested and found to comply with the limits for a class A digital device, pursuant
to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the user will be
required to correct the interference at the user's own expense.
Canadian Regulations
This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out on
the radio interference regulations of the Canadian Department of Communications.
European Regulations
Warning
This is a Class A product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.
Copyright Restrictions
© 1998 TRANSITION Networks.
All rights reserved. No part of this work may be reproduced or used in any form or by any means –
graphic, electronic, or mechanical – without written permission from TRANSITION Networks.
Trademark Notice
All registered trademarks and trademarks are the property of their respective owners.
(71mm x 43mm x 18mm)
0-40°C (32° to 104° F )
10-90%, non condensing
0-10,000 feet
Ad d re s s (1 -5)
H D X
1 2 3 4 5
O F F O F F
F D X
33036.D
Fast Ethernet™ Fiber Transceiver
E-FX-MC01, E-FX-MC01(SM), E-FX-MC01(SC)
USER'S GUIDE
The TRANSITION Networks FX-MC01 transceivers connect Fast Ethernet™ hubs and
terminal devices, through a Media Independent Interface (MII) connector, to 1300mn
multimode fiber-optic cable (E-FX-MC01 and E-FX-MC01(SC)) OR to 1300mn singlemode
fiber-optic cable (E-FX-MC01(SM)).
All E-FX-MC01 transceivers can be configured, using a switch on the front of the
transceiver, to operate in full-duplex or in half-duplex mode. A set of switches also on the
front can be used to set a unique physical address for each transceiver.
E-FX-MC01
Provides an MII connector and a set of
RX (receive) and TX (transmit) ST
100BASE-FX connectors to 1300mn
multimode fiber cable.
E-FX-MC01(SC)
Provides an MII connector and an RX
(receive) and TX (transmit) SC 100BASE-
FX connector to 1300mn multimode fiber
cable.
E-FX-MC01(SM)
Provides an MII connector and an RX
(receive) and TX (transmit) SC 100BASE-
FX connector to 1300mn singlemode
fiber cable.
Status LEDs provide the following information:
Full/Half: Illuminated green LED indicates full-duplex operation.
RX Flashing or illuminated green LED
indicates packet(s) are being received.
TX Flashing or illuminated green LED
indicates packet(s) are being transmitted.
Link Illuminated green LED indicates the unit
is receiving link pulses from a compliant
device.
Power: Illuminated green LED indicates
Minneapolis, MN 55344 USA
A d d r e s s ( 1 - 5 )
H D X
1 2 3 4 5
F D X
Multimode Fiber
E-FX-MC01
A d d r e s s ( 1 - 5 )
H D X
1 2 3 4 5
F D X
Multimode Fiber
E-FX-MC01(SC)
A d d r e s s ( 1 - 5 )
H D X
1 2 3 4 5
F D X
Singlemode Fiber
E-FX-MC01(SM)
A d d r e s s ( 1 - 5 )
H D X
1 2 3 4 5
F D X
Full/Half
RX
TX
Link
Power
