AUI/10BASE-FL
Transceiver
E-FRL-MC05
User's Guide

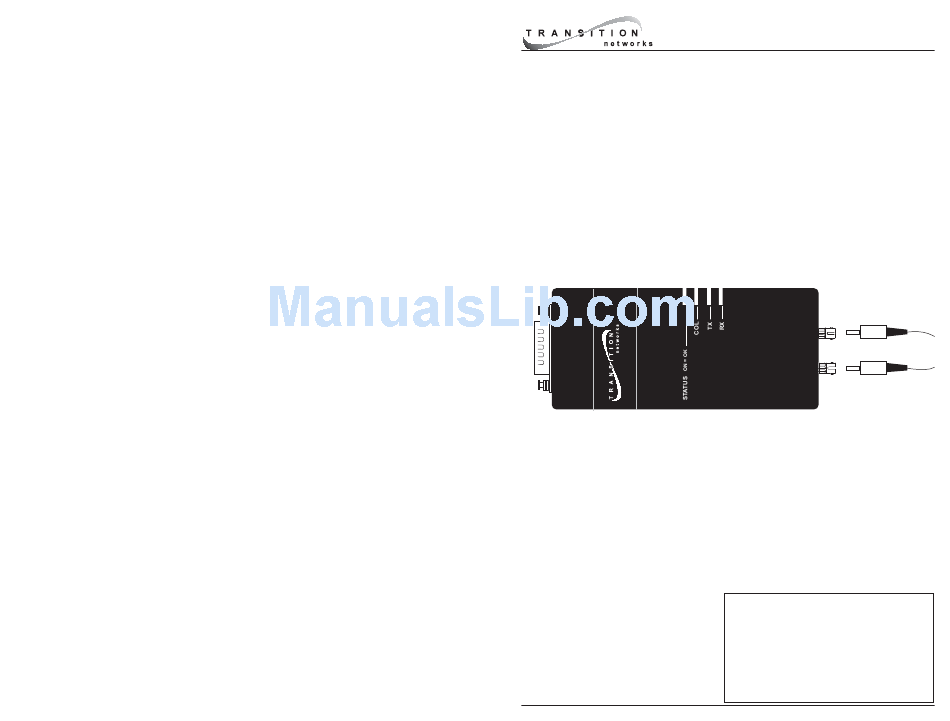

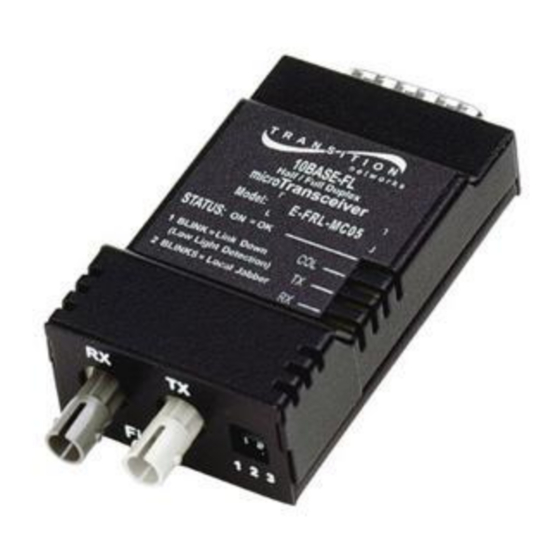

The Transition Networks E-FRL-MC05 series transceiver with LinkAlert
a media access unit (MAU) that connects the AUI port of any DTE,
repeater, or other network device, either directly or through an AUI cable,
to an Ethernet
™
10BASE-FL device. The 10BASE-FL device is connected to
the E-FRL-MC05 media converter through multimode fiber OR
singlemode fiber, selected by E-FRL-MC05 model number.
E-FRL-MC05
Provides an AUI connector and a set of
RX (receive) and TX (transmit) ST
connectors to 10BASE-FL 850nm
multimode fiber.
E-FRL-MC05(SC)
Provides an AUI connector and an RX
(receive) /TX (transmit) SC connector to
10BASE-FL 850nm multimode fiber.
The E-FRL-MC05 functions either in
half-duplex mode or in full-duplex
mode, depending upon the network
devices to which the media converter is
attached.
E-FRL-MC05(SM)
Provides an AUI connector and a set of
RX (receive) and TX (transmit) ST
connectors to 10BASE-FL 1300nm
singlemode fiber.
E-FRL-MC05(L)
Provides an AUI connector and a set of
RX (receive) and TX (transmit) ST
10BASE-FL connectors to 1300mn
multimode fiber cable.
E-FRL-MC05 in the Network . . . . . . .2
Installation . . . . . . . . . . . . . . . . . . . .3
Operation . . . . . . . . . . . . . . . . . . . . .4
Troubleshooting . . . . . . . . . . . . . . . .5
Cable Specifications . . . . . . . . . . . . .6
Technical Specifications . . . . . . . . . .7
Compliance Information . . . . . . . . . .8
™
