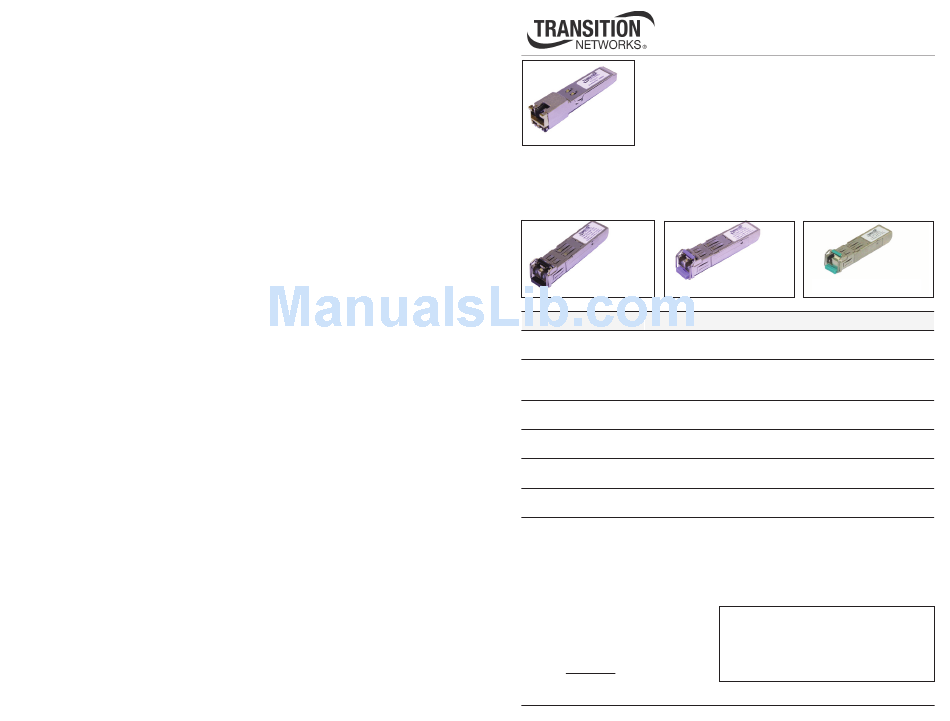

User's Guide
TN-GLC-xx-xx and TN-CWDM-SFP-1xx0 Cisco
CompatibleSmall Form Factor Pluggable (SFP)
Transceiver Modules**
TN-GLC-T
The Transition Networks TN-GLC-xx-xx and TN-CWDM-
SFP-1xx0 series small form factor pluggable (SFP) transceiver
modules are designed to install in any SFP port, allowing for1000Base-T, 1000Base-SX
or 1000Base-LX interfaces to the network through the SFP connector. The TN-GLC-xxx
and TN-CWDM-SFP-1xx0 transceivers are designed for bi-directional serial-optical data
communications such as Gigabit Ethernet or fiber channel at speeds up to 2.125 Gbps.

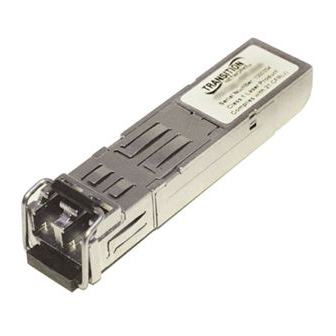

TN-GLC-SX-MM
TN-CWDM-SFP-1xx0
Part Number
Port Description
TN-GLC-T
1000Base-T , RJ-45
100m (328 ft)*
TN-GLC-SX-MM
1000Base-SX, duplex LC, 850 nm,
220 m (722 ft)* on 62.5/125 µm fiber
550 m (1840 ft)* on 50/125 µm fiber
TN-GLC-SX-MM-2K
1000Base-SX, duplex LC 1300 nm, extended multimode
up to 2 km (1.2 miles)*
TN-GLC-LH-SM
1000Base-LX, 1310 nm, single mode
10 km (6.2 miles)*
TN-GLC-BX-U
1000Base-BX, Simplex LC 1310 nm Tx/1490 nm Rx nm,
single mode, single fiber 10 km (6.2 miles)*
TN-GLC-BX-D
1000Base-BX, Simplex LC 1490 nm Tx/1310 nm Rx nm,
single mode, single fiber 10 km (6.2 miles)*
*Unless otherwise indicated, the distances listed are the typical maximum cable
distance. The actual maximum cable distances are dependent upon the physical
characteristics of the network installation.
**Transition Networks' SFP modules fully comply with the Multi-Sourcing Agreement
(MSA). This compliance allows our SFP modules to be used in other MSA compliant
SFP platforms without problems. In
addition, TN SFP modules specified in
this manual are also compatible with all
Cisco SFP-based routers and switches, as
well as its IOS software. TN SFP
modules ARE NOT Cisco OEM brand
modules.
TN-GLC-BX-0
Installation . . . . . . . . . . . . . . . . . . . . . . . . .3
Cable Specifications . . . . . . . . . . . . . . . . .5
Technical Specifications . . . . . . . . . . . . . .8
Contact Us . . . . . . . . . . . . . . . . . . . . . . . . .9
Compliance Information . . . . . . . . . . . . .11
