User Guide
TN-SFP-10G-xx and TN-CWDM-10G-xxx
Series Cisco Compatible 10G Small Form
Factor Pluggable (SFP+)
Transceiver Modules

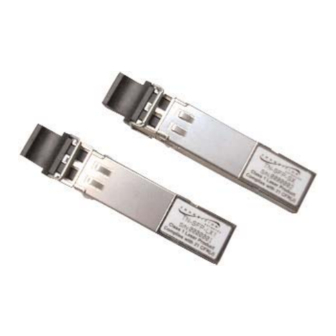

SFP+ Optical Transceiver with LC connector
10G small Form-Factor Pluggable (SFP+) MSA compatible
Compliant with IEEE 802.3ae 10GBASE-SR/LR/LW
SFF-8472 Digital Diagnostic Function (DMI)
Maximum Link Length of 80KM
Single +3.3 V Power Supply
RoHS Compliant (all models)
Class 1 Laser International Safety Standard IEC 60825 Compliant
Contents
Introduction . .............................................................................................................................................................. 1
Description ................................................................................................................................................................ 2
Specifications and Standards . .................................................................................................................................... 2
Optical Specifications ................................................................................................................................................ 2
TN-SFP-10G-x-xx Series . ............................................................................................................................................. 3
TN-CWDM-10G-1xx0-40 Series ................................................................................................................................. 5
TN-CWDM-10G-1xx0-80 Series ................................................................................................................................. 6
Application: Fiber Connections with SFPs ................................................................................................................. 7
SFP Unpacking ........................................................................................................................................................... 7
SFP Installation .......................................................................................................................................................... 8
Cautions ................................................................................................................................................................ 8
Installing an SFP Module ....................................................................................................................................... 8
Fiber Cable Physical Characteristics . ..................................................................................................................... 9
Connecting Fiber Cables . ....................................................................................................................................... 9
Removing an SFP Module ..................................................................................................................................... 9
Diagnostic Monitoring Interface (DMI) ................................................................................................................... 10
DDMI (Digital Diagnostics Monitoring Interface) .................................................................................................... 11
Contact Us ............................................................................................................................................................... 12
For More Information . ............................................................................................................................................. 12
Compliance Information . ......................................................................................................................................... 12
Record of Revisions ................................................................................................................................................. 14
Introduction
Transition Networks' TN-SFP-10G-xx and TN-CWDM-10G-xxx TN-SFP-10G-xx and TNCWDM-10G-xxx series Cisco
Compatible 10G Small Form Factor Pluggable (SFP+) transceiver modules are designed to install in any SFP+ port.
These TNSFP+ modules allow an interface to the network through the SFP+ connector. TN-SFP-10G-xxx and TN-
CWDM-10G-xxx transceivers are designed for bi-directional, serial-optical data communications, at speeds up to
10.5 Gbps.
33499 Rev. C
https://www.transition.com
Page 1 of 14
Advertisement
Table of Contents
Related Manuals for Transition Networks TN-SFP-10G Series
Summary of Contents for Transition Networks TN-SFP-10G Series
-
Page 1: Table Of Contents

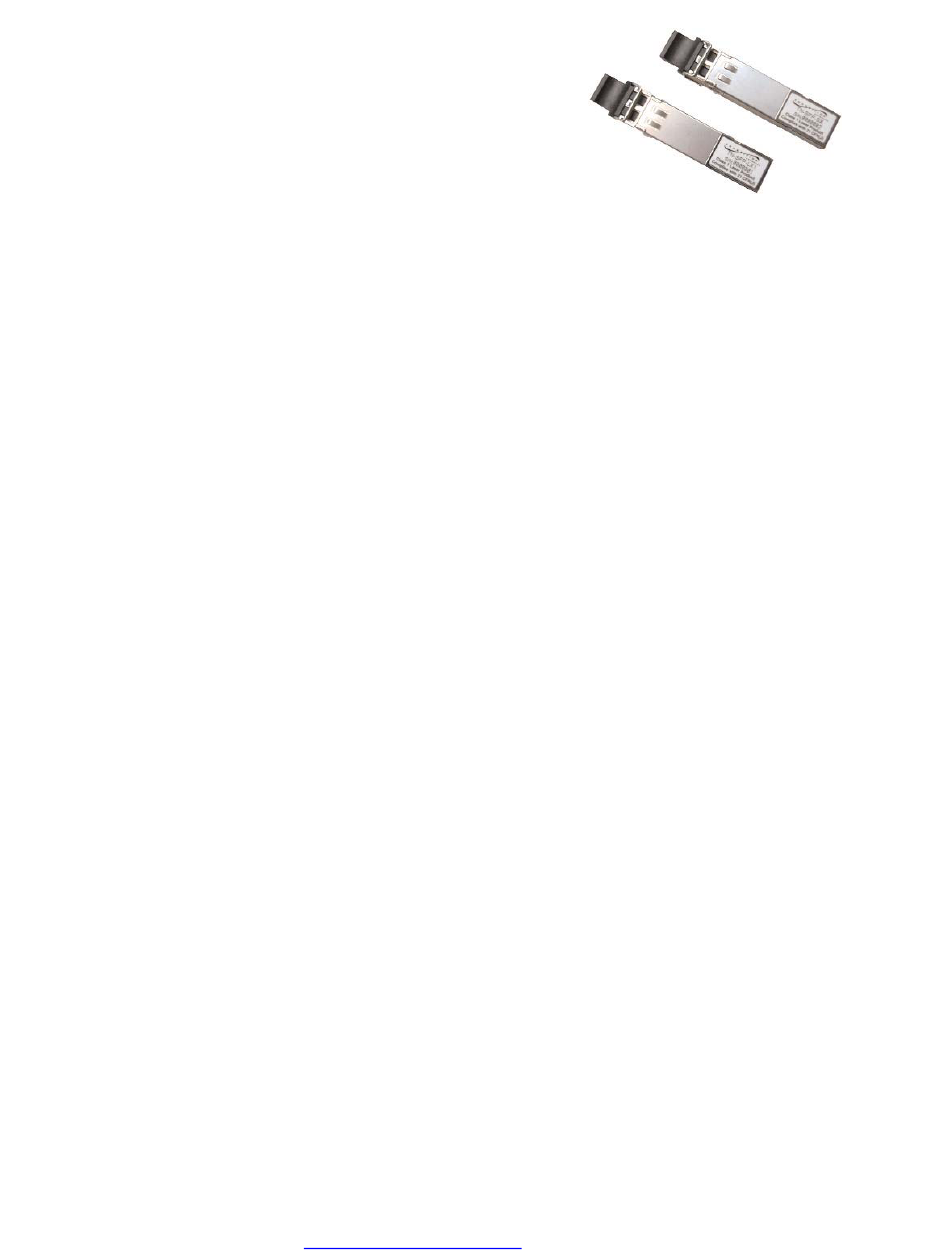

User Guide TN‐SFP‐10G‐xx and TN‐CWDM‐10G‐xxx Series Cisco Compatible 10G Small Form Factor Pluggable (SFP+) Transceiver Modules SFP+ Optical Transceiver with LC connector 10G small Form‐Factor Pluggable (SFP+) MSA compatible Compliant with IEEE 802.3ae 10GBASE‐SR/LR/LW SFF‐8472 Digital Diagnostic Function (DMI) Maximum Link Length of 80KM Single +3.3 V Power Supply RoHS Compliant (all models) Class 1 Laser International Safety Standard IEC 60825 Compliant Contents Introduction ................................ 1 Description ................................ 2 Specifications and Standards ............................. 2 Optical Specifications .............................. 2 TN‐SFP‐10G‐x‐xx Series .............................. 3 TN‐CWDM‐10G‐1xx0‐40 Series .......................... 5 TN‐CWDM‐10G‐1xx0‐80 Series .......................... 6 Application: Fiber Connections with SFPs ......................... 7 SFP Unpacking ................................ 7 SFP Installation ................................ 8 Cautions ................................ 8 Installing an SFP Module ............................ 8 Fiber Cable Physical Characteristics ... -
Page 2: Description
Transition Networks TN‐SFP‐10G‐xx and TN‐CWDM‐10G‐xxx User Guide Description The Transition Networks TN‐SFP‐10G‐xx series 10G SFP+ transceiver modules are designed to install in any SFP+ port allowing for 10GBase‐X interfaces to the network through the SFP+ connector. The TN‐SFP‐10Gxx transceivers are Cisco compatible and are designed for bi‐directional serial‐optical data communication such as 10G Ethernet at speeds up to 10.3 Gbps. Transition Networks’ SFP and SFP+ modules fully comply with the Multi‐Sourcing Agreement (MSA). This compliance allows our SFP+ modules to be used in all other MSA compliant SFP+ platforms. In addition, Transition Networks SFP modules are also compatible with all Cisco SFP+ based routers and switches, as well as Cisco’s IOS software. Transition Networks SFP and SFP+ modules ARE NOT Cisco OEM brand modules. TN‐CWDM‐10G‐1xx0‐40 Series: The Transition Networks TN‐CWDM‐40G‐1xx0‐40 10G modules are Cisco Compliant* and are designed for bi‐directional serial‐optical data communications such as 10G Ethernet. Each X2/XFP/SFP+ operates at a nominal CWDM wavelength. There are 8 wavelengths available in 20nm steps from 1470nm to 1610nm. TN‐SFP‐10G‐xR Series: The Transition Networks TN‐SFP‐10G‐xR series 10G SFP+ transceiver modules are designed to install in any SFP+ port allowing for 10GBase‐X interfaces to the network through the SFP+ connector. The TN‐SFP‐10G‐xR transceivers are Cisco Compliant* and are designed for bi‐directional serial optical data communication such as 10G Ethernet at speeds up to 10.3 Gbps. Specifications and Standards The TN‐SFP‐10G‐xxx and TN‐CWDM‐10G‐xxx are designed to meet these standards and specifications: IEEE 802.3z, IEEE 802.3ae, 10GBASE‐SR/LR/LW, 10GBase‐ER/EW, SFF‐8472 Standards Digital Diagnostic Function (DMI). IEEE 802.3az (TN‐SFP‐10G‐T and TN‐SFP‐10G‐T‐MG RoHS Compliant (all models) Compliance Class 1 Laser International Safety Standard IEC 60825 Compliant FDA 21; CFR 1040.10 and 1040.11 Dimensions Width: 0.52” [13 mm] x Depth: 2.18” [55 mm] x Height: 0.33” [8 mm] Power Input 3.3V Output Wavelength ‐5.5nm < λc < +7.5nm Shipping Weight 1 lb (16 oz) approximately Voltage ... -
Page 3: Tn-Sfp-10G-X-Xx Series
Transition Networks TN‐SFP‐10G‐xx and TN‐CWDM‐10G‐xxx User Guide TN‐SFP‐10G‐x‐xx Series Cisco Compatible 10GBase SFP+ Modules; 10GBase‐X, SFP+ With DMI (LC). # SKU Description 10GBase‐BX, SFP+ w/ DMI 1330 TX/1270 RXnm (LC) [10 km/6.2 mi.] 1 TN‐SFP‐10G‐D‐10 Link Budget: 5.9 dB 10GBase‐BX, SFP+ w/ DMI 1330 TX/1270 RXnm (LC) [20 km/12.4 mi.] 2 TN‐SFP‐10G‐D‐20 Link Budget: 12.1 dB 10GBase‐BX, SFP+ w/ DMI 1330 TX/1270 RXnm (LC) [40 km/24.9 mi.] 3 TN‐SFP‐10G‐D‐40 Link Budget: 16.0 dB 4 TN‐SFP‐10G‐D‐60 10GBase‐BX, SFP+ w/ DMI 1330 TX/1270 RXnm (LC) [60 km/27.3 mi.] 10GBase‐BX, SFP+ with DMI 1550nm TX/1490nm RX single mode (LC) 5 TN‐SFP‐10G‐D‐80 [80 km/49.7 mi.] Link Budget: 22.0 dB 10GBase‐ER, SFP+ w/ DMI 1550nm (LC) [40 km/24.9 mi.] 6 TN‐SFP‐10G‐ER Link Budget: 15.8 dB 7 TN‐SFP‐10G‐LR 10GBase‐LR, SFP+ w/ DMI 1310nm (LC) [10 km/6.2 mi.] Link Budget: 9.0 dB 8 TN‐SFP‐10G‐LRM 10GBase‐LRM, SFP+ w/ DMI 1310nm (LC) [220m; 722 ft.] Link Budget: 1.5 dB 10GBase‐SR, SFP+ w/ DMI 850nm (LC) [300/82/33 m; 985/269/108 ft.] ... - Page 4 Transition Networks TN‐SFP‐10G‐xx and TN‐CWDM‐10G‐xxx User Guide # SKU Description Copper SFP+; Supports 100M/1G/10G. 100m reach with 3.5W. Requires minimum 3W to operate. Cisco compatible; 0 – 70 C temperature range. Complaint with SFF‐8431 and SFF‐8432 MSA. Low power consumption (2.5W max @30m). Auto‐ 17 TN‐SFP‐10G‐T negotiates with other 10G‐Base‐T Phys. Auto‐sense MDI/MDIX. High performance / high speed copper transceiver modules for connection over Cat 6a/Cat 7 cable with a link of 100 meters. Designed specifically for 10 Gigabit Ethernet bidirectional communications. Copper SFP+; Supports 10M/100M/1G/2.5G/5G/10G. 30m reach with 2.5W. Cisco compatible; 0 – 70 C temperature range. Complaint with SFF‐8431 and SFF‐8432 MSA. 18 TN‐SFP‐10G‐T‐MG High performance / high speed copper transceiver modules for connection over Cat 6a/Cat 7 cable with a link of 30 meters. Designed specifically for 10 Gigabit Ethernet bidirectional communications. 33499 Rev. C https://www.transition.com Page 4 of 14 ...
-
Page 5: Tn-Cwdm-10G-1Xx0-40 Series
Transition Networks TN‐SFP‐10G‐xx and TN‐CWDM‐10G‐xxx User Guide TN‐CWDM‐10G‐1xx0‐40 Series Cisco Compatible CWDM SFP+ Modules; 10GBase‐LR/LW/10G Fiber Channel, SFP+ with DMI Single Mode (LC). See the series online datasheet. # SKU Description 10GBase‐LR/LW/10G Fiber Channel, SFP+ with DMI single mode (LC) 1 TN‐CWDM‐10G‐1270‐40 1270nm [40 km/24.9 mi.] Link Budget: 14.1 dB 10GBase‐LR/LW/10G Fiber Channel, SFP+ with DMI single mode (LC) 2 TN‐CWDM‐10G‐1290‐40 1290nm [40 km/24.9 mi.] Link Budget: 14.1 dB 10GBase‐LR/LW/10G Fiber Channel, SFP+ with DMI single mode (LC) 3 TN‐CWDM‐10G‐1310‐40 1310nm [40 km/24.9 mi.] Link Budget: 14.1 dB 10GBase‐LR/LW/10G Fiber Channel, SFP+ with DMI single mode (LC) 4 TN‐CWDM‐10G‐1330‐40 1330nm [40 km/24.9 mi.] Link Budget: 14.1 dB 10GBase‐LR/LW/10G Fiber Channel, SFP+ with DMI single mode (LC) 5 TN‐CWDM‐10G‐1350‐40 1350nm [40 km/24.9 mi.] Link Budget: 14.1 dB 10GBase‐LR/LW/10G Fiber Channel, SFP+ with DMI single mode (LC) 6 TN‐CWDM‐10G‐1370‐40 1370nm [40 km/24.9 mi.] Link Budget: 14.1 dB 10GBase‐LR/LW/10G Fiber Channel, SFP+ with DMI single mode (LC) 7 TN‐CWDM‐10G‐1470‐40 1470nm [40 km/24.9 mi.] Link Budget: 14.1 dB 10GBase‐LR/LW/10G Fiber Channel, SFP+ with DMI single mode (LC) ... -
Page 6: Tn-Cwdm-10G-1Xx0-80 Series
Transition Networks TN‐SFP‐10G‐xx and TN‐CWDM‐10G‐xxx User Guide TN‐CWDM‐10G‐1xx0‐80 Series Cisco Compatible CWDM SFP+ Modules; 10GBase‐LR/LW/10G Fiber Channel, SFP+ with DMI Single Mode (LC). See the series online datasheet. # SKU Description 10GBase‐LR/LW/10G Fiber Channel, SFP+ with DMI single mode (LC) 1 TN‐CWDM‐10G‐1470‐80 1470nm [80 km/49.8 mi.] Link Budget: 24.0 dB 10GBase‐LR/LW/10G Fiber Channel, SFP+ with DMI single mode (LC) 2 TN‐CWDM‐10G‐1490‐80 1490nm [80 km/49.8 mi.] Link Budget: 24.0 dB 10GBase‐LR/LW/10G Fiber Channel, SFP+ with DMI single mode (LC) 3 TN‐CWDM‐10G‐1510‐80 1510nm [80 km/49.8 mi.] Link Budget: 24.0 dB 10GBase‐LR/LW/10G Fiber Channel, SFP+ with DMI single mode (LC) 4 TN‐CWDM‐10G‐1530‐80 1530nm [80 km/49.8 mi.] Link Budget: 24.0 dB 10GBase‐LR/LW/10G Fiber Channel, SFP+ with DMI single mode (LC) 5 TN‐CWDM‐10G‐1550‐80 1550nm [80 km/49.8 mi.] Link Budget: 24.0 dB 10GBase‐LR/LW/10G Fiber Channel, SFP+ with DMI single mode (LC) 6 TN‐CWDM‐10G‐1570‐80 1570nm [80 km/49.8 mi.] Link Budget: 24.0 dB 10GBase‐LR/LW/10G Fiber Channel, SFP+ with DMI single mode (LC) 7 TN‐CWDM‐10G‐1590‐80 1590nm [80 km/49.8 mi.] Link Budget: 24.0 dB 10GBase‐LR/LW/10G Fiber Channel, SFP+ with DMI single mode (LC) ... -
Page 7: Application: Fiber Connections With Sfps
Transition Networks TN‐SFP‐10G‐xx and TN‐CWDM‐10G‐xxx User Guide Application: Fiber Connections with SFPs SFPs are used with 10G Ethernet Switches and Routers, Metro Edge Switching, etc. SFP Unpacking Before you start installing the TN‐SFP‐xxx, verify that the package contains the following items: o One TN‐SFP‐xxx device o One Documentation Postcard Please notify your sales representative immediately if any of the above items is missing or damaged. Save the packaging for possible future use. 33499 Rev. C https://www.transition.com/ Page 7 of 14 ... -
Page 8: Sfp Installation
Transition Networks TN‐SFP‐10G‐xx and TN‐CWDM‐10G‐xxx User Guide SFP Installation Cautions The SFP module is keyed to only be installed one way. If forced the wrong way, damage may occur. Avoid getting dust or other contaminants into the fiber bore of the SFP transceiver module, as this will cause the optics to not operate properly. Clean the optic surfaces of the optical fiber before you plug them back in to the optical bores of another SFP module. See Fiber Optic Association Cleaning Fiber Optic Connections page. Each port must match the wavelength specifications on the other end of the cable, and the cable must not exceed the specified cable length for reliable communications. Installing an SFP Module 1. Attach an ESD‐preventive wrist strap to your wrist and to the ESD ground connector or a bare metal surface on your chassis. 2. Remove the SFP transceiver module from its protective packaging. Note: Do not remove the optical bore dust plugs until directed to do so in a later procedure. 3. Check the slot orientation. Note that for some devices (e.g., S4224) some slots are “upside down” compared to other slots. 4. Position the SFP device at the desired installation slot, with the label facing correctly. 5. Carefully slide the SFP device into the slot, aligning it with the internal installation guides. 6. Ensure that the SFP device is firmly seated against the internal mating connector. To verify that the SFP is seated and latched properly. a) Grasp the SFP by the sides and try to remove it without releasing the latch. ... -
Page 9: Fiber Cable Physical Characteristics
Transition Networks TN‐SFP‐10G‐xx and TN‐CWDM‐10G‐xxx User Guide Fiber Cable Physical Characteristics The fiber cable physical characteristics must meet or exceed IEEE 802.3ae specifications: Single mode fiber (recommended): 9 μm Multimode fiber (recommended): 62.5/125 μm Multimode fiber (optional): 100/140, 85/140, 50/125 μm Warning: Visible and invisible laser radiation when open. DO NOT stare into laser beam or view directly with optical instruments. Failure to observe this warning could result in damage to your eyes or blindness. Connecting Fiber Cables To install the fiber cable, do the following: 1. Locate the appropriate fiber cable. 2. Install the cable as shown below. Removing an SFP Module Caution: Be careful when removing the SFP or SFP+ from a device. Some SFP transceiver module temperatures may exceed 160°F (70°C) and be too hot to touch with bare hands. Note: Do not remove and replace the SFP modules more often than necessary; excessive SFP removing and replacing can shorten the SFPs useful life. 1. Attach an ESD‐preventive wrist strap to your wrist and to the ESD ground connector or a bare metal surface on your chassis. 2. For future reattachment of fiber‐optic cables, note which connector plug is send (TX) and which is receive (RX). 3. -
Page 10: Diagnostic Monitoring Interface (Dmi)
Transition Networks TN‐SFP‐10G‐xx and TN‐CWDM‐10G‐xxx User Guide Diagnostic Monitoring Interface (DMI) The following DMI port screen and explanation table contains brief definitions of the DMI support offered on some (SFP Transceiver Modules. For further information, see the help option on Transition Networks Focal Point ION System, and other GUIs. Note: This feature is not available on all devices and may vary between products. See the related manual for more information. DMI Parameter Description DMI Rx Power Measured receive optical power in microwatts and in decibels relative to 1mW. DMI Rx Power Alarm Alarm status of measured receive optical power. DMI Temp Internally measured temperature of transceiver in degrees Celsius and Fahrenheit. DMI Temp Alarm Alarm status for internally measured temperature of the transceiver. DMI Bias Current Measured transmit bias current in microamperes. DMI Bias Alarm Alarm status for measured transmit bias current for the interface. DMI Tx Power Measured transmit power in microwatts and in decibels relative to 1mW. DMI Tx Power Alarm Alarm status of measured transmit power. Tells the converter to stop passing traffic when the receive power drops below the new Rx Power Intrusion threshold. This feature is sometimes referred to as 'Intrusion Detection’, since tapping Threshold into a fiber to intercept traffic leads to a reduction in receive power. This value can be entered in microwatts or in decibels relative to 1mW. TN‐SFP distances, TX power, RX power, and link budgets can be found on Transition Networks website. The fiber optic transmitters on this device meet Class I Laser safety requirements per IEC‐825/CDRH standards and comply with 21 CFR1040.10 and 21CFR1040.11. WARNING: Visible and invisible laser radiation when open. Do not stare into the beam or view the beam directly with optical instruments. Failure to observe this warning could result in an eye injury or blindness. IMPORTANT: Copper based media ports such as Twisted Pair (TP) Ethernet, USB, RS232, RS422, RS485, DS1, DS3, Video Coax, etc., are intended to be connected to intra‐building (inside plant) ... -
Page 11: Ddmi (Digital Diagnostics Monitoring Interface)
Transition Networks TN‐SFP‐10G‐xx and TN‐CWDM‐10G‐xxx User Guide DDMI (Digital Diagnostics Monitoring Interface) DDMI (Digital Diagnostics Monitoring Interface) provides enhanced digital DMI for optical transceivers which allows real time access to device operating parameters. The following DMI port screen and explanation table contains brief definitions of the DDMI support offered on some Small Form Factor Pluggable (SFP) Transceiver Modules. For further information, see the help option or User Guide for the relate product4. Note: This feature is not available on all devices and may vary between products. See the related manual for more information. The Transceiver Information and DDMI Information sections are described below. DDMI Parameter Description Rx Power (uW) Intrusion Threshold; a level for Rx Power on the Fiber port. If the DMI DMI read value falls below the preset value, an intrusion is detected, and a trap is generated. The default is 0 uW. The range is 0 ‐ 65,535 uW. Port The device’s port number. Vendor The SFP vendor’s name (e.g., Transition). Part Number The SFP vendor Part number provided by the SFP vendor (TN‐10GSFP‐SR). Serial Number The SFP Vendor Serial number provided by the SFP vendor (e.g., 8672105). Revision The SFP vendor Revision level for part number provided by the SFP vendor. Date Code The vendor's manufacturing date code (e.g., 2011‐08‐09). Transeiver The Transceiver compatibility (e.g., 1000BASE_SX or 10G). Current The current value of temperature, voltage, TX bias, TX power, and RX power. High Alarm Threshold The high alarm threshold value ‐ temperature, voltage, TX bias, TX power, ‐ RX power. High Warn Threshold The high warn threshold value of temperature, voltage, TX bias, TX power, RX power. Low Warn Threshold ... -
Page 12: Contact Us
Transition Networks TN‐SFP‐10G‐xx and TN‐CWDM‐10G‐xxx User Guide Contact Us Technical Support: Technical support is available 24‐hours a day: US and Canada: 1‐800‐260‐1312; International: 00‐1‐952‐941‐7600 Main Office tel: +1.952.941.7600 | toll free: 1.800.526.9267 | fax: 952.941.2322 sales@transition.com | techsupport@transition.com | customerservice@transition.com Address Transition Networks 10900 Red Circle Drive Minnetonka, MN 55343, U.S.A. Web: https://www.transition.com For More Information Technical information in this document is subject to change without notice. For more information see our online Optical Devices Product Catalog or our SFP Specifications page. Compliance Information Class I Laser Compliance This product has been tested and found to comply with the limits for FDA Class I laser for IEC60825, EN60825, and 21CFR1040 specifications. Translated Safety Warnings Warning Class I laser product. Advarsel Laserprodukt av klasse I. Waarschuwing Klasse‐I laser produkt. Aviso Produto laser de classe I. Varoitus Luokan I lasertuote. ¡Advertencia! Producto láser Clase I. Attention Produit laser de classe I Varning! Laserprodukt av klass I. Warnung Laserprodukt der Klasse I. Aviso Produto a laser de classe I. Avvertenza Prodotto laser di Classe I. Advarsel Klasse I laserprodukt. ... - Page 13 Transition Networks TN‐SFP‐10G‐xx and TN‐CWDM‐10G‐xxx User Guide Canadian Regulations This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out on the radio interference regulations of the Canadian Department of Communications. Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la Class A prescrites dans le Règlement sur le brouillage radioélectrique édicté par le ministère des Communications du Canada. European Regulations This is a Class A product. In a domestic environment this product may cause radio interference in Warning : which case the user may be required to take adequate measures. Achtung ! : Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen können bei Betrieb dieses Gerätes Rundfunkstörungen auftreten. In diesem Fäll is der Benutzer für Gegenmaßnahmen verantwortlich. Attention ! : Ceci est un produit de Classe A. Dans un environment domestique, ce produit risque de créer des interférences radioélectriques, il appartiendra alors à l'utilsateur de prende les measures spécifiques appropriées. In accordance with European Union Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003, Transition Networks will accept post usage returns of this product for proper disposal. The contact information for this activity can be found in the 'Contact Us' portion of this document. Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EGMitgliedstaaten verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der Richtlinie 91/263/EWG zur Angleichung der Rechtsvorschriften der Mitgliedstaaten über Telekommunikationsendeinrichtungen einschliesslich der gegenseitigen Anerkennung ihrer Konformität. CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in damage to the public telephone network. Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EGMitgliedstaaten verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der Richtlinie 91/263/EWG zur Angleichung der Rechtsvorschriften der Mitgliedstaaten über Telekommunikationsendeinrichtungen einschliesslich der gegenseitigen Anerkennung ihrer Konformität. UL Recognized TN‐SFP‐10G‐SR ...
-
Page 14: Record Of Revisions
Trademarks: All trademarks and registered trademarks are the property of their respective owners. Copyright restrictions: © 2003-2019 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means - graphic, electronic or mechanical - without written permission from Transition Networks. 33499 Rev. C ...
