Transition Networks E-TBT-MC04 User Manual

10base-t transceiver
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

Enlarged version
devices either directly or through an AUI cable to an Ethernet 10BASE-T device. The
Ethernet device is connected to the transceiver through an unshielded or shielded
twisted-pair copper cable with RJ-45 connector ends.

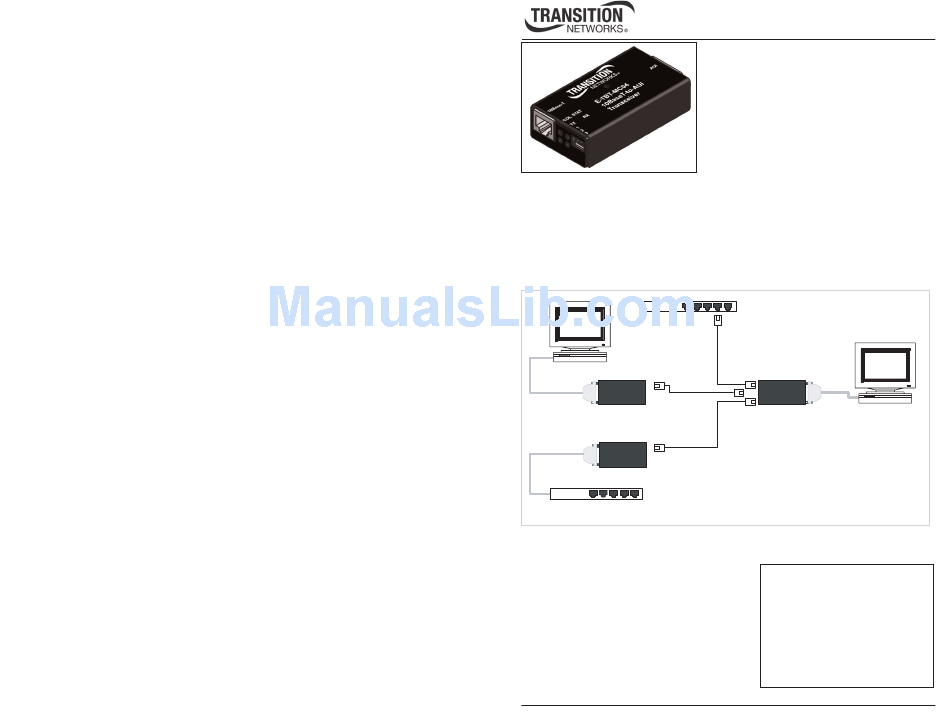

Various Transceiver System Configurations
Figure 1 shows various examples of transceiver system configurations.
10-Base-T Hub
Workstation
Or
E-TBT-MCO4
Or
E-TBT-MCO4
HUB with AUI Port
Figure 1: Transceiver System Configurations
E-TBT -MC04 10Base-T
Transceiver
•
Stand-Alone model
• Attached Unit Interface (AUI) to
Ethernet RJ-45 connectors
• No external power requirement
The E-TBT-MC04 transceiver is a media access
unit (MAU) that connects the AUI port of data
terminal equipment, repeaters, or other network
E-TBT-MCO4
Workstation
General Description . . . . . . . . .2
Connectors & Cables . . . . . . . .3
Installation . . . . . . . . . . . . . . . . .6
Operations . . . . . . . . . . . . . . . .8
Technical Specifications . . . . . . .9
Cable Specifications . . . . . . . . .10
Troubleshooting . . . . . . . . . . .10
Contact Us . . . . . . . . . . . . . . .11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-TBT-MC04 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Transition Networks E-TBT-MC04

Summary of Contents for Transition Networks E-TBT-MC04

  • Page 1 • Attached Unit Interface (AUI) to Ethernet RJ-45 connectors • No external power requirement The E-TBT-MC04 transceiver is a media access unit (MAU) that connects the AUI port of data terminal equipment, repeaters, or other network devices either directly or through an AUI cable to an Ethernet 10BASE-T device. The Ethernet device is connected to the transceiver through an unshielded or shielded twisted-pair copper cable with RJ-45 connector ends.

  • Page 2: General Description

    CSMA/CD protocol to provide a connection interface to 10Base-T Ethernet unshielded twisted-pair (UTP) cables. The transceiver connects to the AUI connector of an Ethernet device via standard AUI cable. Figure 2 shows the front and rear panels of the E-TBT-MC04 transceiver. Rear Front...
  • Page 3 E-TBT-MC04 Connectors & Cables -- Continued AUI connector -- continued Table 1: AUI Male Connector Pinouts Pin Name Pairs DO + Transmit Data Out + 10 DO - Pair Data Out - 11 DO S Data Out Shield DI +...

  • Page 4: Installation

    Installation -- Continued Connecting to a Device AUI port The E-TBT-MC04 can connect to any Ethernet device with an AUI port. To connect to a device with an AUI port, an AUI cable or direct connection is required. See Figure 7.

  • Page 5: Technical Specifications

    Figure 9 shows the E-TBT-MC04 LEDs: Status Receive Collision Transmit Figure 9: E-TBT-MC04 LEDs The E-TBT-MC04 LEDs display the operational status of the transceiver. The following table explains LED indications. Description Collision Blinks when detects a collision Status ON Solid:...

  • Page 6: Cable Specifications

    E-TBT-MC04 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the E-TBT-MC04 Transceiver to which this declaration refers is in conformity with the following standards. EN55022:1998 + A1:2000 + A1:2003 EN 55024:1998 + A1:2000 + A2:2003 I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).

  • Page 7: Compliance Information

    E-TBT-MC04 Compliance Information CE Mark FCC regulations This equipment has been tested and found to comply with the limits for a Class A&B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
