10base-t transceiver
Hide thumbs Also See for E-TBT-MC05:

Advertisement

Quick Links

devices either directly or through an AUI cable to an Ethernet 10BASE-T device. The
Ethernet device is connected to the transceiver through an unshielded or shielded
twisted-pair copper cable with RJ-45 connector ends.
Various Transceiver System Configurations
Figure 1 shows various examples of transceiver system configurations.
10-Base-T Hub
Workstation
Or
E-TBT-MC05
Or
E-TBT-MC05
HUB with AUI Port
Figure 1: Transceiver System Configurations

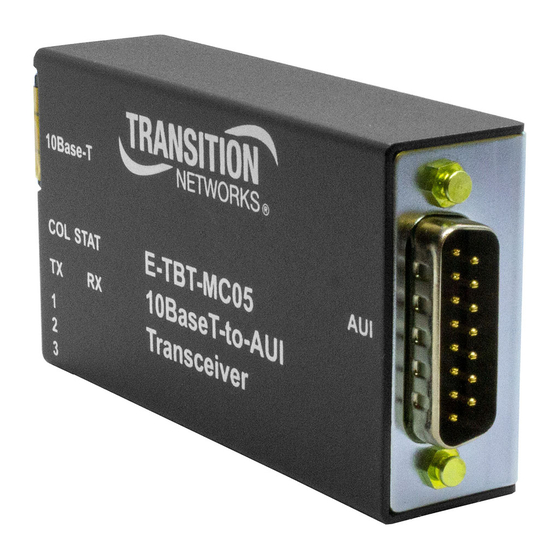

E-TBT -MC05 10Base-T
Transceiver
Stand-Alone model
• Attached Unit Interface (AUI) to
Ethernet RJ-45 connectors
• No external power requirement
The E-TBT-MC05 transceiver is a media access
unit (MAU) that connects the AUI port of data
terminal equipment, repeaters, or other network
E-TBT-MC05
Workstation
General Description . . . . . . . . .2
Connectors & Cables . . . . . . . .3
Installation . . . . . . . . . . . . . . . . .6
Operations . . . . . . . . . . . . . . . .8
Technical Specifications . . . . . . .9
Cable Specifications . . . . . . . . .10
Troubleshooting . . . . . . . . . . .10
Contact Us . . . . . . . . . . . . . . .11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-TBT-MC05 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Transition Networks E-TBT-MC05

  • Page 1 • Attached Unit Interface (AUI) to Ethernet RJ-45 connectors • No external power requirement The E-TBT-MC05 transceiver is a media access unit (MAU) that connects the AUI port of data terminal equipment, repeaters, or other network devices either directly or through an AUI cable to an Ethernet 10BASE-T device. The Ethernet device is connected to the transceiver through an unshielded or shielded twisted-pair copper cable with RJ-45 connector ends.
  • Page 2: General Description

    • Supports Carrier Sense Multiple Access/Collision Detection (CSMA/CD) Ethernet device via standard AUI cable. contention protocol. Figure 2 shows the front and rear panels of the E-TBT-MC05 transceiver. • Drives UTP cable segments up to 100 meters (328ft). • Supports selectable link and SQE test functions.
  • Page 3 E-TBT-MC05 E-TBT-MC05 Connectors & Cables -- Continued Connectors & Cables -- continued AUI connector -- continued UTP cable (RJ-45 connector) -- continued Table 1: AUI Male Connector Pinouts Table 2: RJ-45 Pin Assignments Pin Name Pairs Out Jack Assignments DO +...
  • Page 4 Connecting to a Device AUI port Switches The E-TBT-MC05 can connect to any Ethernet device with an AUI port. To connect to The E-TBT-MC05 has a 3-position DIP switch. See Figure 6. Two of the switches a device with an AUI port, an AUI cable or direct connection is required. See Figure 7.
  • Page 5: Technical Specifications

    125,126 Bellcore hours. Calculated at 40C with a 10C temperature rise. Warranty Lifetime The E-TBT-MC05 LEDs display the operational status of the transceiver. The following table explains LED indications. Note: The information in this user’s guide is subject to change. For the most up-to- Description date information on the E-TBT-MC05 Transceiver, view the user’s guide on-...
  • Page 6: Troubleshooting

    EMC Directive 89/336/EEC • Verify that the AUI device is turned ON. Purpose: To declare that the E-TBT-MC05 Transceiver to which this declaration refers is in conformity with the following standards. • Verify that the AUI cable from the transceiver to the AUI device port is EN55022:1998 + A1:2000 + A1:2003 EN 55024:1998 + A1:2000 + A2:2003 installed properly.
  • Page 7 In accordance with European Union Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003, Transition Networks will accept post usage returns of this product for proper disposal. The contact information for this activity can be found in the 'Contact Us' portion of this document.
