Using the Fiber Optic Micro-Receiver

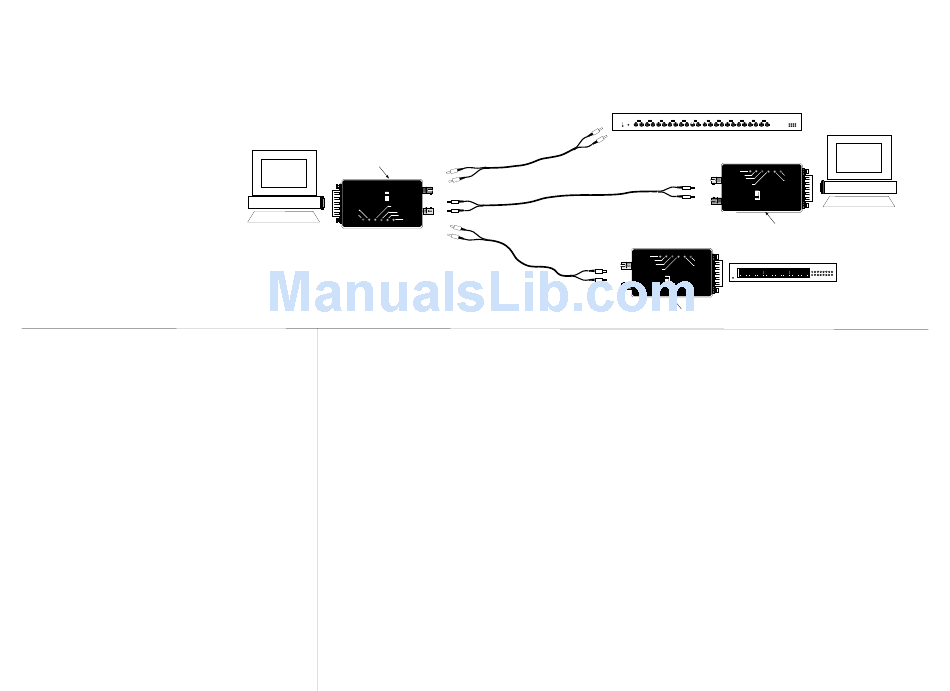

The fiber Micro-ceiver can be attached directly to
a fiber hub or, through another fiber Micro-ceiver,
to a terminal device or 10BaseT hub.
SQE Enable / Disable: The SQE
(Signal Quality Error) switch,
located and marked at the Micro-
ceiver front, is set to ON to enable
the SQE or set to OFF to disable
the SQE. (A small screwdriver is
ideal for setting the SQE switch.)
SQE ON: Set the SQE switch to
enabled (ON) when the Micro-
ceiver is connected to a terminal
device.
SQE OFF: Set the SQE switch to
disabled (OFF) when the Micro-
ceiver is connected to a hub.

Installation Notes

• Verify that both the fiber products to be
connected are 10BaseFL or FOIRL compliant.
(The fiber port on the TRANSITION Networks
E-FRL-MC01 conforms to 10BaseFL or FOIRL
but NOT to 10BaseFB or FDDI.)
• 62.5/125 micron duplex fiber cable is
recommended.
• The maximum dBm loss for the fiber cable
should not exceed 13 dBm.
• Ensure that cable installed at transmit (TX)
connector of E-FRL-MC01 is installed at receive
(RX) connector of E-FRL-MC01 or hub at other
end of fiber cable; ensure that cable installed at
receive (RX) connector of E-FRL-MC01 is
installed at transmit (TX) connector of E-FRL-
MC01 or hub at other end of fiber cable.
• Optional AUI cable assembly cannot exceed
50 meters (165 feet)..
• Connecting more than two media converters in
series is not recommended.
SQE "ON"
Ethernet™ E--FRL-MC01
10Base FL Transceiver
RX
On
SQE
Off
Transmit
Collision
TX
Receive
Jabber
Link
Power
Troubleshooting the Media Converter
If the E-FRL-MC01 fails, determine the answers to the following questions:
1. Is the power LED on the E-FRL-MC01 illuminated?
NO
• Contact Technical Support at (800) 260-1312 or at (800) LAN-WANS.
YES
• Proceed to step 2.
2. Is the Link LED illuminated?
NO
• Check fiber cables for proper connection.
• Verify that TX and RX cables on media converter are connected to RX and TX ports,
respectively, on the other 10BaseFL device.
• Contact Technical Support at (800) 260-1312 or at (800) LAN-WANS.
YES
• Contact Technical Support at (800) 260-1312 or at (800) LAN-WANS.
12-Port 10BaseFL Fiber Hub
RX TX RX TX RX TX RX TX RX TX RX TX RX TX RX TX RX TX RX TX RX TX RX
OR
Power
Link
Receive
TX
Transmit
Off
SQE
On
RX
E--FRL-MC01
OR
8-Port 10BaseT Hub
Power
Link
Jabber
Receive
TX
Collision
Transmit
Off
SQE
On
RX
Transceiver FL 10Base
E--FRL-MC01 Ethernet™
SQE "OFF"
TX
Jabber
Collision
Transceiver FL 10Base
Ethernet™
SQE "ON"
