network through the SFP connector. The TN-SFP-xxx transceivers are designed for bi-
directional serial-optical data communications such as Gigabit Ethernet or fiber channel
at speeds up to 1.25 Gbps.
Part Number
Duplex Fiber-Optic Port
TN-SFP-SX
LC, 1000Base-SX, 850 nm multimode,
220 m (722 ft)* on 62.5/125 µm fiber,
550 m (1840 ft)* on 50/125 µm fiber
TN-SFP-SXD
LC, 1000Base-SX, 850 nm multimode with DMI management,
220 m (722 ft)* on 62.5/125 µm fiber
550 m (1840 ft)* on 50/125 µm fiber
TN-SFP-ESX5
LC, 1000Base-SX, 1310 nm multimode extended with DMI
management, 2 km (1.2 miles)* 50/125µm fiber
TN-SFP-ESX6
LC, 1000Base-SX, 1310 nm multimode extended with DMI
management, 2 km (1.2 miles)* 62.5/125µm fiber
TN-SFP-ELX1
LC, 1000Base-LX, 1310 nm single mode
10 km (6.2 miles)*
TN-SFP-LX1
LC, 1000Base-LX, 1310 nm single mode with DMI management,
10 km (6.2 miles)*
TN-SFP-LX3
LC, 1000Base-LX, 1310 nm single mode with DMI management,
30 km (18.8 miles)*
TN-SFP-LX5
LC, 1000Base-LX, 1550 nm single mode with DMI management,
50 km (31.2 miles)*
TN-SFP-LX8
LC, 1000Base-LX, 1550 nm single mode with DMI management,
80 km (50.0 miles)*
*Unless otherwise indicated, the distances listed
are the typical maximum cable distance. The
actual maximum cable distances are dependent
upon the physical characteristics of the network
installation.

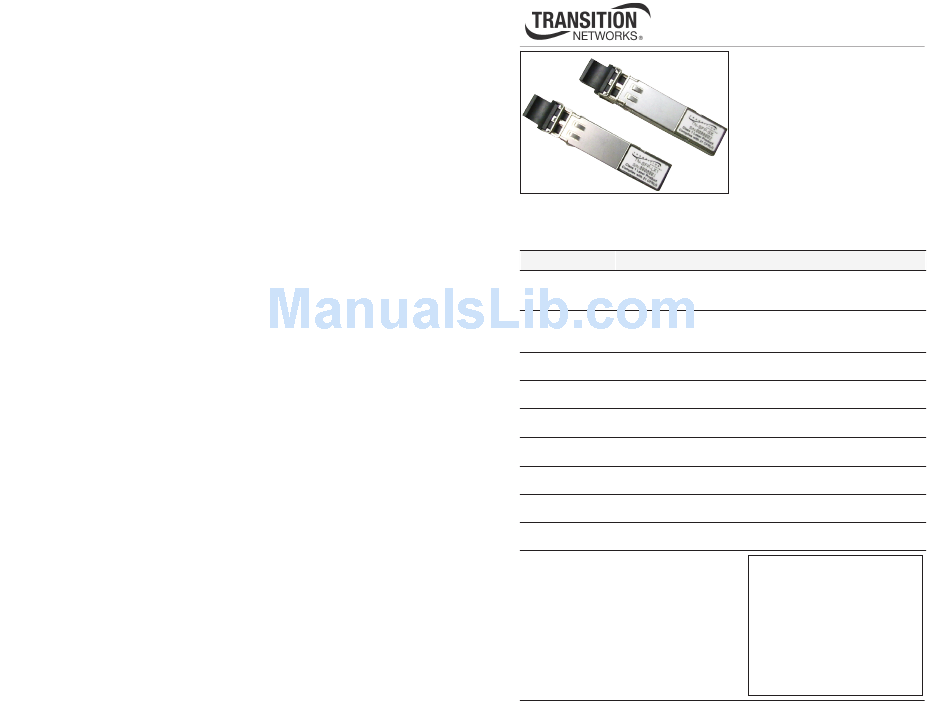

User's Guide
TN-SFP-xxx
Small Form Factor Pluggable
(SFP)
Transceiver Modules

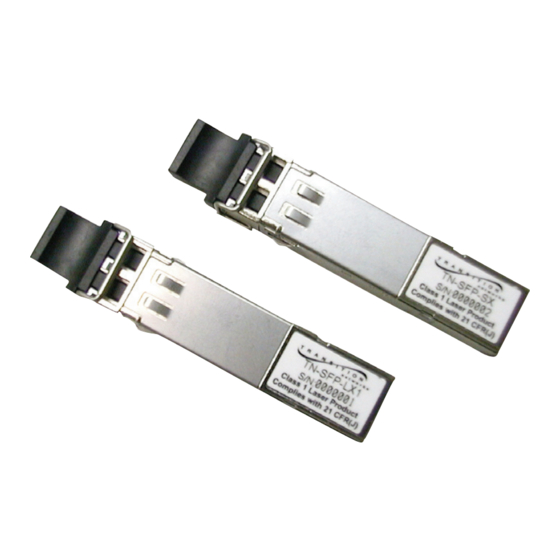

The Transition Networks TN-SFP-xxx
series small form factor pluggable (SFP)
transceiver modules are designed to
install in any SFP port, connect
multimode 1000Base-SX or single mode
1000Base-LX fiber-optic cable to the
Installation . . . . . . . . . . . . . . . . . . .3
Operation . . . . . . . . . . . . . . . . . . .8
Diagnostic Monitoring Interface
(DMI) . . . . . . . . . . . . . . . . . . . . . . .4
Cable Specifications . . . . . . . . . . . .5
Technical Specifications . . . . . . . . .8
Contact Us . . . . . . . . . . . . . . . . . .9
Declaration of Conformity . . . . .10
Compliance Information . . . . . . .11
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Transition Networks TN-SFP-ELX1
Summary of Contents for Transition Networks TN-SFP-ELX1
- Page 1 SFP port, connect multimode 1000Base-SX or single mode 1000Base-LX fiber-optic cable to the network through the SFP connector. The TN-SFP-xxx transceivers are designed for bi- directional serial-optical data communications such as Gigabit Ethernet or fiber channel at speeds up to 1.25 Gbps.
-
Page 2: Installation
TN-SFP-xxx Part Number Duplex Fiber-Optic Port TN-SFP-LX12 LC, 1000Base-LX, 1550 nm single mode with DMI management, 120 km (74.6 miles)* TN-SFP-LXl6 LC, 1000Base-LX, 1550 nm single mode with DMI management, 160km (99.4 miles)* TN-SFP-OC3M LC, 100Base-FX/OC-3 1300 nm multimode 2km (1.2 miles)* TN-SFP-OC3S LC, 100Base-FX/OC-3 1310 nm single mode 20km (12.4 miles)*... - Page 3 -10.0 dBm Fiber Optic Receiver Sensitivity: min: -18.0 dBm Link Budget: 8.0 dB TN-SFP-LX1 1310 nm single mode TN-SFP-ELX1 1310 nm single mode Fiber Optic Transmitter Power: min: -9.5 dBm Fiber Optic Receiver Sensitivity: min: -21.0 dBm Link Budget: 11.5 dB...
- Page 4 TN-SFP-xxx Fiber Cable Specification -- Continued TN-SFP-LX16 1550 nm single mode Fiber Optic Transmitter Power: min: 1.0 dBm Fiber Optic Receiver Sensitivity: min: -36.0 dBm Link Budget: 37.0 dB TN-SFP-OC3M 1300 nm multimode Fiber Optic Transmitter Power: min: -19 dBm Fiber Optic Receiver Sensitivity: min: -30.0 dBm Link Budget:...
-
Page 5: Technical Specification
TN-SFP-xxx Technical Specification For use with Transition Networks Model TN-SFP-xxx or equivalent. Standard: IEEE 802.3 2003; ANSI X3.297-1997 TN-SFP-SX or -LXx SFP or TN-SFP-BXx modules: Compliant with IEEE 802.3z Gigabit Ethernet; FC-1X SM-LC-L FC-PI. TN-SFP-OC3x SFP modules: Compliant with 100BASE-FX; SONET OC-3 /SDH STM-1 (S-1.1) TN-SFP-OC12x SFP modules: Compliant with SONET OC-12 /SDH STM-4 (S-4.1) -
Page 6: Declaration Of Conformity
Transition Networks 10900 Red Circle Drive, Minnetonka MN 55343 U.S.A. Model: TN-SFP-xxx Series Transceiver Modules Part Number(s): TN-SFP-SX, TN-SFP-SXD, TN-SFP-ESX5, TN-SFP-ESX6, TN-SFP-LX1, TN-SFP-ELX1 TN-SFP-LX3, TN-SFP-LX5, TN-SFP-LX8, TN-SFP-LX12,TN-SFP-LX16,TN-SFP-OC3M, TN-SFP-OC3S, TN-SFP-OC3S3, TN-SFP-OC3S8, TN-SFP-OC12M, TN-SFP-OC12S, N-SFP-FC2XM, TN-SFP-FC2XS2,TN-SFP-FC2XS15, TN-SFP-FC2XS40, TN-SFP-BXU, TN-SFP-BXD, TN-SFP-BXU2, TN-SFP-BXD2, TN-SFP-LXB11, TN-SFP-LXB12, TN-SFP-LXB21,... - Page 7 TN-SFP-xxx Trademark notice All trademarks and registered trademarks are the property of their respective owners. Copyright restrictions © 2004 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or means (graphic, electronic, mechanical) without written permission from Transition Networks.
