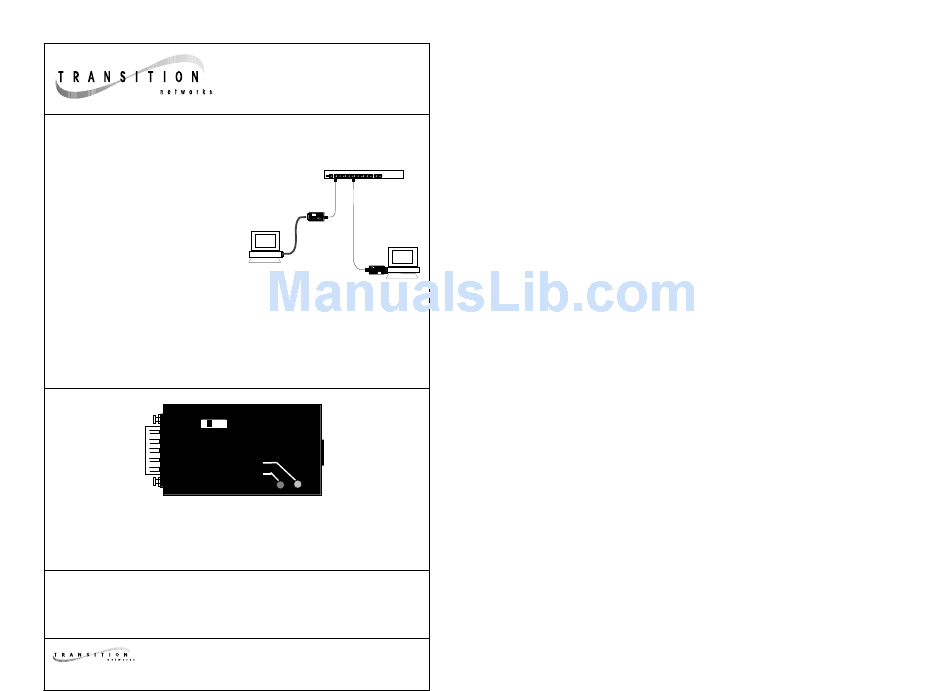

Transition Networks ETHERNET E-TBT-MC01(LC) User Manual

10BaseT Transceiver
The Ethernet10BaseT Transceiver (E-TBT-MCO1(LC)) connects an AUI cable and connector to a
10BaseT twisted pair cable and RJ-45 connector.

INSTALLATION INSTRUCTIONS

Connecting the 10BaseT Transceiver:

1. Connect the AUI connector of the
10BaseT Transceiver to the AUI port on
the PC, either directly or through an AUI
cable (maximum AUI cable distance 50
meters (165 feet)).
2. Connect the RJ-45 of the10BaseT
Transceiver to a STRAIGHT THROUGH
male/male 10BaseT cable.
3. Connect 10BaseT cable to hub.
RJ-45 Male . . . . . . . . . . . . . . . . . .RJ-45 Male
SQE
On Off
Ethernet™
AUI (DB-15)
10BaseT
Transceiver

SQE Heartbeat:

Enable - The SQE switch should be enabled (ON) when the 10BaseT
Transceiver is connected to a DTE or workstation.
Disable - The SQE switch should be disabled (OFF) when the 10BaseT
Transceiver is connected to the AUI port of an Ethernet repeater such as
the model 1003 10BaseT hub.
