Transition Networks Micro-ceiver E-FRL-MC01C User Manual

Specifications:
Case size dimensions:
Fiber Connection:
Fiber Optic Cable Maximum Distance: 2,000 meters (6,600 feet)
Fiber Optic Cable Recommended:
Optional:
Fiber Optic Transmitter Power:
Fiber Optic Receiver Power:
AUI Port:
AUI Maximum Distance:
Mean Time Between Failure:
Environment:
Warranty:
FCC Regulations:
Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the interference at his own cost.
NOTE: This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out
on the radio interference regulations of the Canadian Department of Communications.
NOTE: This equipment has been tested and found to comply with VDE Class B requirements.
For selling in the Federal Republic of Germany:
Hiermit wird bescheinigt, das der E-FRL-MC01 oder E-FRL-MC01(SMA) in Ubereinstimmung mit den
Bestimmungen der Vfg. 243/1991 funk-entstoert ist. Der Deutschen Bundespost wurde das
Inverkehgringen dieses Geraetes angezeigt und die Berechtigung zur Ueberpruefung der Serie auf
Einhaltung der Bestimmungen eingeraumt. TRANSITION Networks, Inc.
Canadian Regulations:
Note: This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out on the
radio interference regulations of the Canadian Department of Communications.
Copyright Restrictions
© 1995 Transition Networks, Inc.
All rights reserved. No part of this work may be reproduced or used in any form or by any means - graphic,
electronic, or mechanical - without written permission from Transition Networks, Inc.
Trademarks:
Ethernet is a registered trademark of the Xerox Corporation, Inc.
ST is a trademark of AT&T.
3.5" x 1.75" x 0.8"
(89 mm x 44 mm x 20 mm)
ST type connectors (SMA type available upon
request)
62.5 / 125 µm multimode fiber
100 / 140 µm multimode fiber
85 / 125 µm multimode fiber
50 / 125 µm multimode fiber
Average power: -15.0 dBm
Peak power: -12.0 dBm ±1dBm
Average power: -32 dBm
10 -
10
Bit error rate:
DB-15 with locking posts.
50 meters (165 feet)
264,410 hours
0–50 degrees C,
10–90% humidity, non-condensing,
0–10,000 foot altitude
Five years
Fiber Optic 10BaseFL Ethernet
Micro-ceiver™ (Transceiver)
E-FRL-MC01(C)
USER'S GUIDE
The TRANSITION Networks Fiber Optic Micro-ceiver (E-FRL-MC01(C)) is a compact
unit used in an Ethernet IEEE 802.3 type of network. It can be connected directly to any
Ethernet workstation, hub or AUI (Attachment Unit Interface) attachment cable.
Ethernet™
10Base FL Transceiver
Collision
Jabber

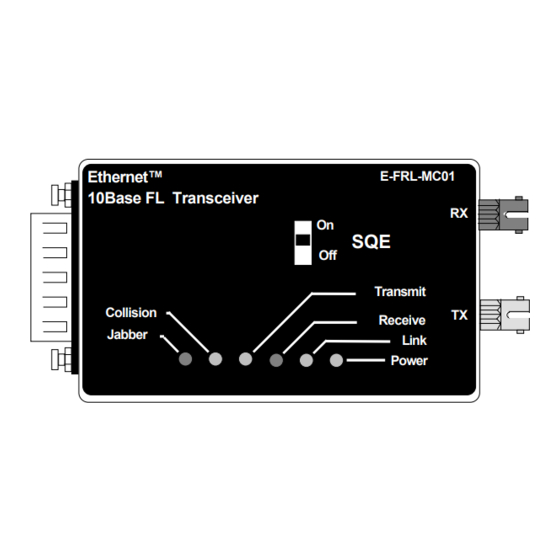

The Micro-ceiver has an AUI (DB-15) port interface on one end and two ST type fiber
connections on the other. NOTE: An SMA type fiber connection is also available on
the Micro-ceiver E-FRL-MC01C(SMA).
Status LEDs provide the following information:
Transmit: Flashing or illuminated green LED indicates packet(s) are being transmitted.
Receive: Flashing or illuminated green LED indicates packet(s) are being received.
Link: Illuminated green LED indicates the unit is receiving link pulses from a
compliant device.
Power: Illuminated green LED indicates power to the E-FRL-MC01(C).
Collision: Flashing or illuminated red LED indicates collisions are occurring.
Jabber: Illuminated red LED indicates Jabber on the line.
Minneapolis, MN 55344 USA
E-FRL-MC01
RX
On
SQE
Off
Transmit
TX
Receive
Link
Power
