Transition Networks

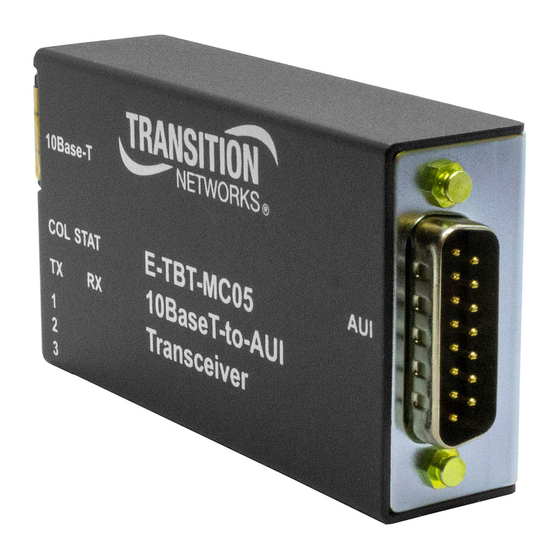

E-TBT-MC05
10Base-T Transceiver
User Guide
•
Stand-Alone model
•
Attached Unit Interface (AUI) to Ethernet RJ-45 connectors
•
No external power requirement
Contents
General Description ....................................................................................................................................... 2
Various System Configurations...................................................................................................................... 2
Front and Back Panels ................................................................................................................................... 2
Dimensions .................................................................................................................................................... 3
Features ......................................................................................................................................................... 3
Connectors and Cables .................................................................................................................................. 4
AUI Male Connector .................................................................................................................................. 4
UTP Cable (RJ-45 Connector) ..................................................................................................................... 5
Wiring schemes for UTP cable and devices ............................................................................................... 6
Installation ..................................................................................................................................................... 7
Switches ..................................................................................................................................................... 7
SQE Test ..................................................................................................................................................... 7
Link Test ..................................................................................................................................................... 7
Connecting to a Device AUI Port ............................................................................................................... 8
Connecting to an RJ-45 Device Jack........................................................................................................... 8
Operation ...................................................................................................................................................... 9
LEDs ........................................................................................................................................................... 9
Technical Specifications ............................................................................................................................... 10
Cable Specifications ..................................................................................................................................... 10
Copper Cables .......................................................................................................................................... 10
Troubleshooting .......................................................................................................................................... 11
Contact Us ................................................................................................................................................... 12
Technical Support .................................................................................................................................... 12
Declaration of Conformity ........................................................................................................................... 12
Compliance Information .............................................................................................................................. 13
Record of Revisions ..................................................................................................................................... 14
33406 Rev. C
https://www.transition.com
E-TBT-MC05 10Base-T Transceiver User Guide
Page 1 of 14
Advertisement
Table of Contents
Related Manuals for Transition Networks E-TBT-MC05
Summary of Contents for Transition Networks E-TBT-MC05
-
Page 1: Table Of Contents

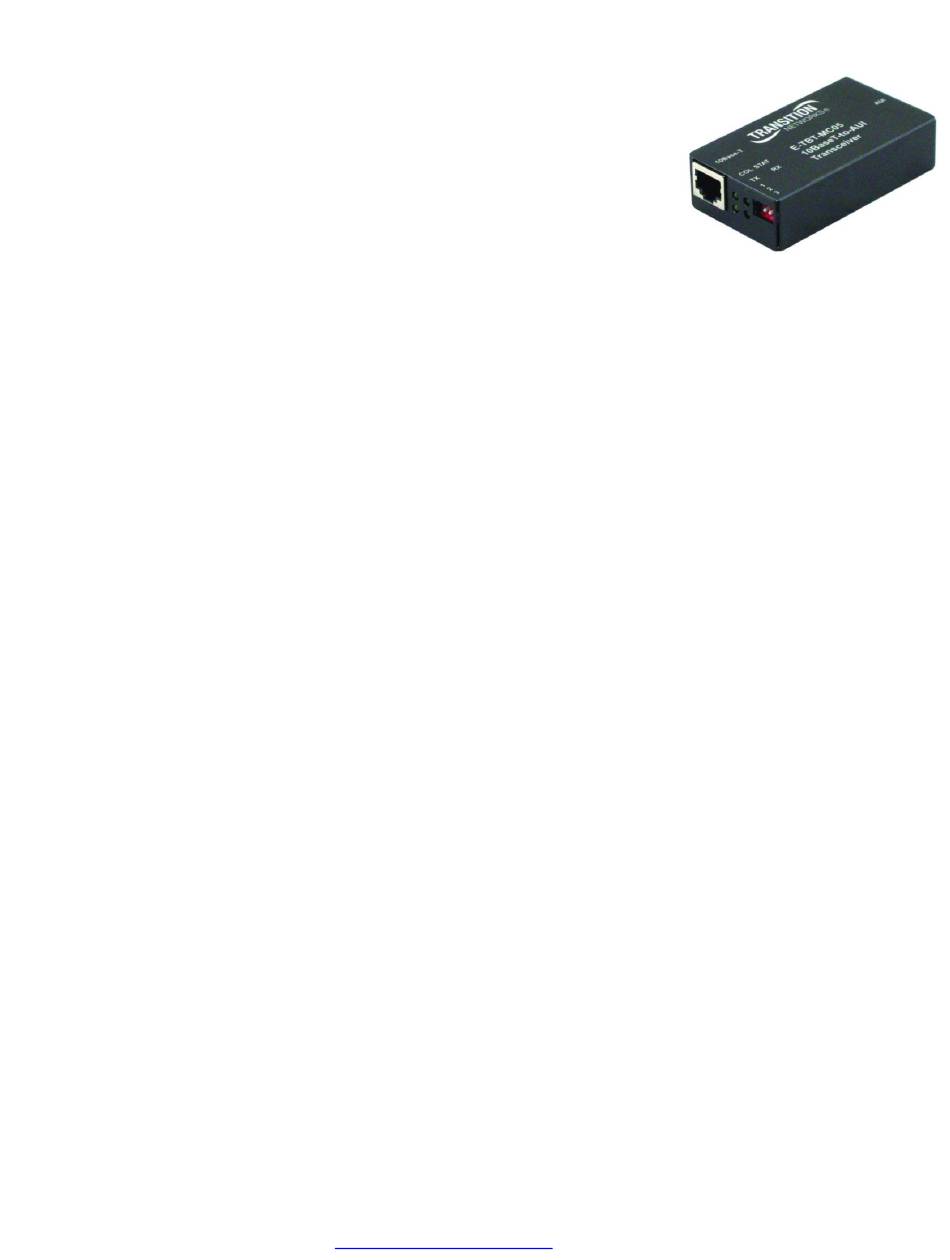

Transition Networks E-TBT-MC05 10Base-T Transceiver User Guide E-TBT-MC05 10Base-T Transceiver User Guide • Stand-Alone model • Attached Unit Interface (AUI) to Ethernet RJ-45 connectors • No external power requirement Contents General Description ............................2 Various System Configurations........................2 Front and Back Panels ........................... 2 Dimensions .............................. -
Page 2: General Description
AUI connector of an Ethernet device via standard AUI cable. The E-TBT-MC05 transceiver is a media access unit (MAU) that connects the AUI port of data terminal equipment, repeaters, or other network devices either directly or through an AUI cable to an Ethernet 10BASE-T device. -
Page 3: Dimensions
Transition Networks E-TBT-MC05 10Base-T Transceiver User Guide Dimensions Figure 3 shows the E-TBT-MC05 dimensions. Figure 3: E-TBT-MC05 Dimensions Features • Provides a complete interface of the AUI to Ethernet UTP cable. • Supports 10Mbps data transfer rates. • Supports Carrier Sense Multiple Access/Collision Detection (CSMA/CD) contention protocol. -
Page 4: Connectors And Cables
AUI drop cable. The AUI connector is shown in Figure 4. The AUI male connector pin assignments are show in Table 1. Figure 4: E-TBT-MC05 AUI Male Connector Pin Assignments Table 1: AUI Male Connector Pinouts... -
Page 5: Utp Cable (Rj-45 Connector)
Transition Networks E-TBT-MC05 10Base-T Transceiver User Guide UTP Cable (RJ-45 Connector) The 10Base-T, RJ-45 out jack is used to connect a 10Base-T Ethernet device via a 2-pair UTP cable. (Use category 3, 4, or 5 UTP cable.) The length of the UTP cable can be up to 100m (328ft). -
Page 6: Wiring Schemes For Utp Cable And Devices
Transition Networks E-TBT-MC05 10Base-T Transceiver User Guide Wiring schemes for UTP cable and devices How to install the UTP cable is determined by the characteristics of the 10Base-T UTP port of the other device. The following shows some pinning examples: Note: The device 10Base-T output jack is normally used to connect to another 10Base-T device. -
Page 7: Installation
Installation Switches The E-TBT-MC05 has a 3-position DIP switch. See Figure 6. Two of the switches provide options for enabling and disabling the SQE test and LINK test functions. Both test functions are Ethernet and 10Base-T standards. Figure 6: E-TBT-MC05 Three-Position DIP Switch... -
Page 8: Connecting To A Device Aui Port
E-TBT-MC05 10Base-T Transceiver User Guide Connecting to a Device AUI Port The E-TBT-MC05 can connect to any Ethernet device with an AUI port. To connect to a device with an AUI port, an AUI cable or direct connection is required. See Figure 7. -
Page 9: Operation
E-TBT-MC05 10Base-T Transceiver User Guide Operation LEDs Figure 9 shows the E-TBT-MC05 LEDs: Figure 9: E-TBT-MC05 LEDs The E-TBT-MC05 LEDs display the operational status of the transceiver. The following table explains LED indications. Description Collision Blinks when detects a collision... -
Page 10: Technical Specifications
Warranty Lifetime Note: The information in this user guide is subject to change. For current information on the E-TBT-MC05 Transceiver, view the online user guide at: https://www.transition.com/. IMPORTANT Copper based media ports: e.g., Twisted Pair (TP) Ethernet, USB, RS232, RS422, RS485, DS1, DS3, Video Coax, etc. -
Page 11: Troubleshooting
Transition Networks E-TBT-MC05 10Base-T Transceiver User Guide • Use only dedicated wire pairs for the active pins: (e.g., blue/white & white/blue, orange/white & white/orange, etc.) • Do not use flat or silver satin wire. Troubleshooting If the transceiver fails, determine the answer to the following questions: 1. -
Page 12: Contact Us
Transition Networks E-TBT-MC05 10Base-T Transceiver User Guide Contact Us Technical Support Technical support is available 24-hours a day US and Canada: 1-800-260-1312 International: 00-1-952-941-7600 Main Office tel: +1.952.941.7600 | toll free: 1.800.526.9267 | fax: 952.941.2322 sales@transition.com techsupport@transition.com customerservice@transition.com Address Transition Networks 10900 Red Circle Drive Minnetonka, MN 55343, U.S.A. -
Page 13: Compliance Information
In accordance with European Union Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003, Transition Networks will accept post usage returns of this product for proper disposal. The contact information for this activity can be found in the 'Contact Us' portion of this document. -
Page 14: Record Of Revisions
Trademark notice: All trademarks and registered trademarks are the property of their respective owners. Copyright restrictions: © 2000-2020 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means— graphic, electronic, or mechanical—without written permission from Transition Networks.
