Assembly - ChocoVision REVOLATION DELTA Owner's Manual

Before using your machine, wash all components that may come into contact with chocolate
using a soft sponge or cloth and mild soap.

Lower the bowl into your machine and
rotate it until it fits in (Fig. 1).

Place the scraper into corresponding slot
on the baffle (Fig. 2). Scraper will not
stay in place until entire baffle is
screwed down into position. When
properly installed, the scraper should
curve towards the front of the machine.

Fit the baffle into the bowl, making
certain that the contact 'strips' on the
baffle and the machine's baffle mounts
are aligned. Thread the baffle knobs
onto both baffle mounts (Fig.3). If the
baffle is not installed correctly an error
message (EEE) will appear in the display
window, and the machine will not start
Dust cover, Lid and Hopper assembly

Slide the hopper assembly into the dust
cover opening and load with up to 4.5kg
of chocolate. Solid block chocolate is
recommended for ease of use.

All lid and hopper components can be
disassembled for easy cleaning.
*hopper assembly is not included with
purchase

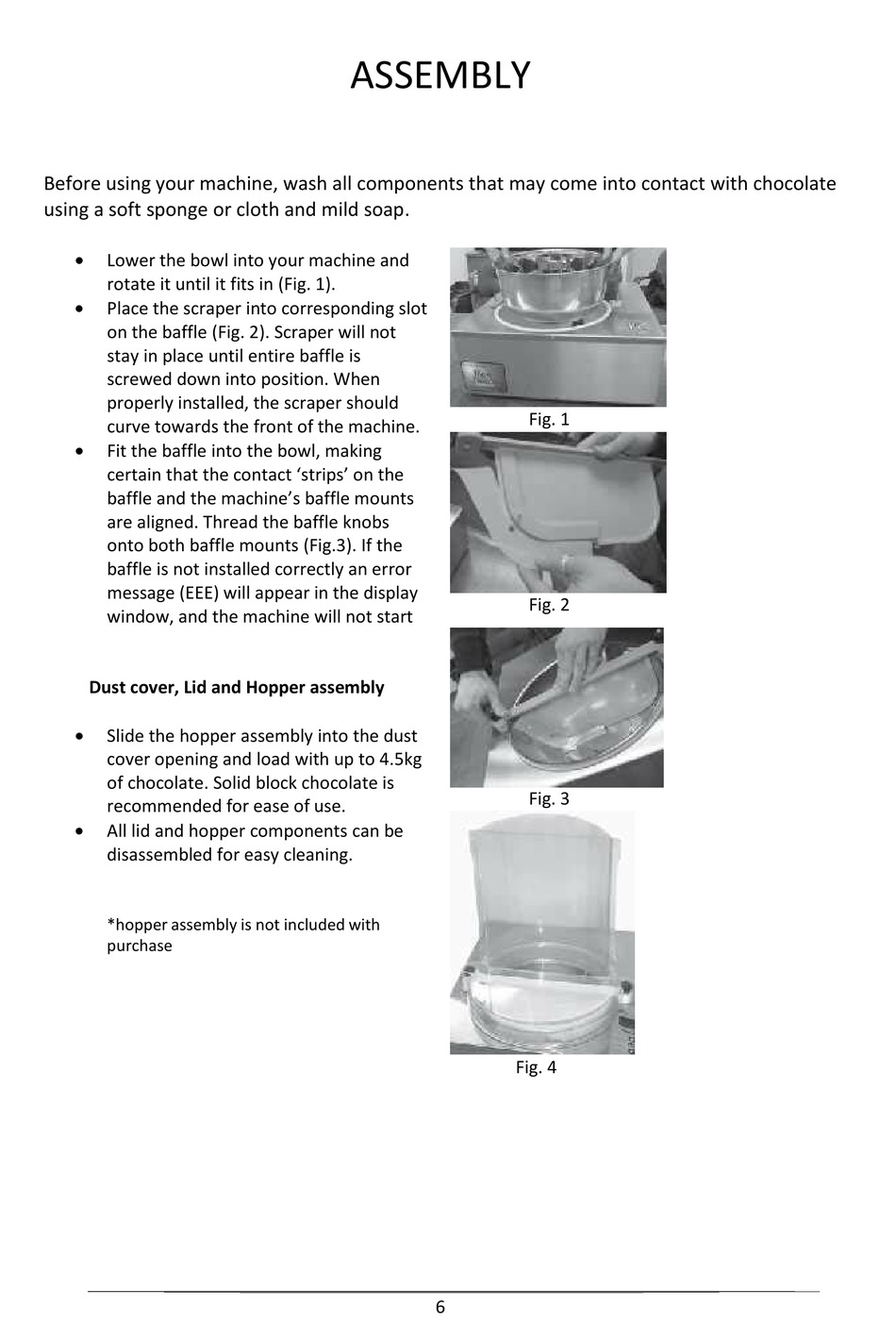

ASSEMBLY
