G Action to be Taken When the Fuse Has Been Blown
Replace the fuse according to the following procedures.
CAUTIONS
• Be sure to replace a fuse only with another fuse of the same type and rating (A). Also,
confirm the fuse rating (A) that is silk-screened on the PC board.
• When replacing a fuse, use tweezers and exercise care not to damage the fuse holder claw.
(1) Remove the SNS08C board.
"I Removal procedure"
(2) Pull the fuse out and then replace it with a new one.

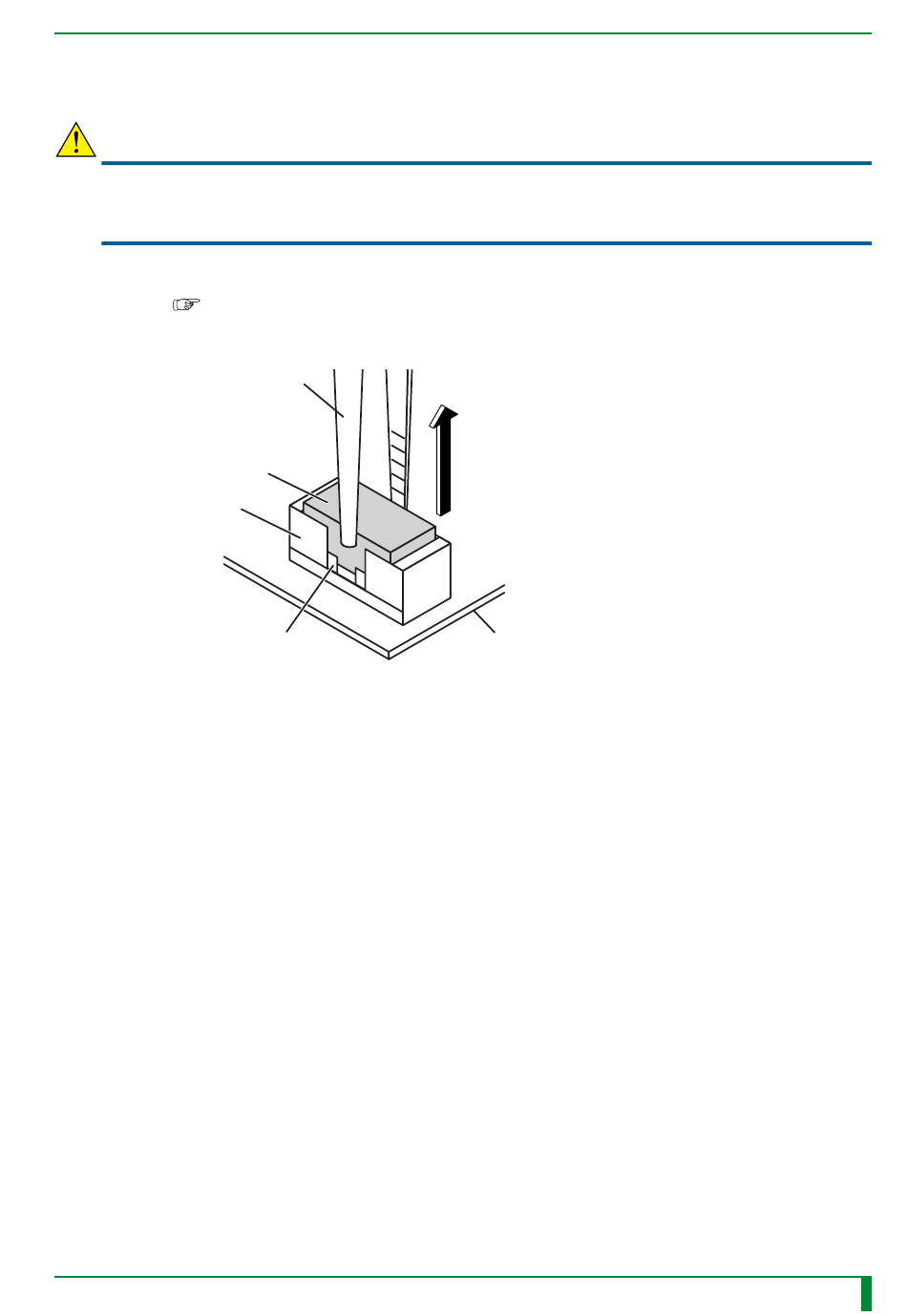

[Extract] Fuse
Fuse box
Fuse holder claw
009-058-03
08.30.2002 FM3476
Tweezers
CR-IR347 Service Manual
PC board
FR7H3825.EPS
MC - 425
MC - 425
