Summary of Contents for Aimco AcraDyne AcraDrive 2000 Series

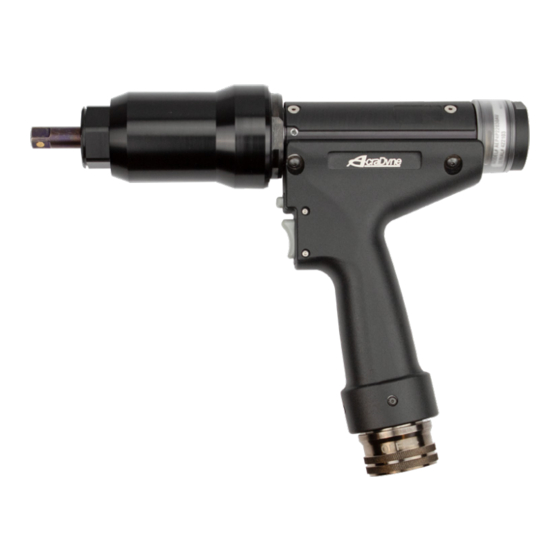

- Page 1 AcraDrive Gen IV 2000 Series DC Pulse Nutrunners Operations Manual 10000 SE Pine St., Portland OR 97216 • 800-852-1368 • Fax 800-582-9015 www.aimco-global.com...
- Page 2 INTRODUCTION Thank you for purchasing this AcraDyne DC electric assembly tool, one of the lightest and fastest DC electric assembly tools on the market. When used with the AcraDyne iEC tool controller, this tool will provide excellent productivity, ergonomics, reliability and quality on a wide range of industrial assembly applications. Safety Information SAVE THESE INSTRUCTIONS 3) PERSONAL SAFETY...
- Page 3 OPERATIONS Status Lights Square/Hex Drive Multi Function Button Start Lever Cable Connection 1. Connect tool cable to the iEC controller and the tool: yellow and red LED lights. Pressing the MFB again will The tool cable has curved alignment tabs and slots built into switch the tool back FWD mode and will indicate this with no the connectors at each end to ensure proper alignment and LED lights turned on.
- Page 4 AEP4P22030AV, AEP4P22050AV DC PULSE PISTOL TOOL EXPLODED VIEW APPLY LOCTITE 222 (PURPLE) TIGHTEN TO 1.0Nm (9 IN-LBS.) SEE NOTE #3 APPLY LOCTITE 222 (PURPLE) TIGHTEN TO .6Nm (5 IN-LBS.) SHIM AS REQUIRED, ITEM ADAPTER WIREWAY TO ALIGN WITH MOTOR, ITEM AS SHOWN.
- Page 5 SPECIFICATIONS Environmental • Operating Temperature: 0°C to 32°C • Storage Temperature: 0°C to 65°C • Humidity: — 5% to 90% RH, Non-Condensing, for temperatures 0°C to 40°C — 5% to 60% RH, Non-Condensing, for temperatures 0°C to 65°C • Maximum Altitude of Operation: 3000m •...
- Page 6 NOTES...
- Page 8 AIMCO CORPORATE HEADQUARTERS AIMCO CORPORATION DE MEXICO SA DE CV 10000 SE PINE STREET AVE. CRISTOBAL COLON 14529 PORTLAND, OREGON 97216 CHIHUAHUA, CHIHUAHUA. 31125 PHONE: (503) 254–6600 MEXICO TOLL FREE: 1-800-852-1368 PHONE: (01-614) 380-1010 FAX: (01-614) 380-1019 LIT-MAN378 REV. 11/2021...
