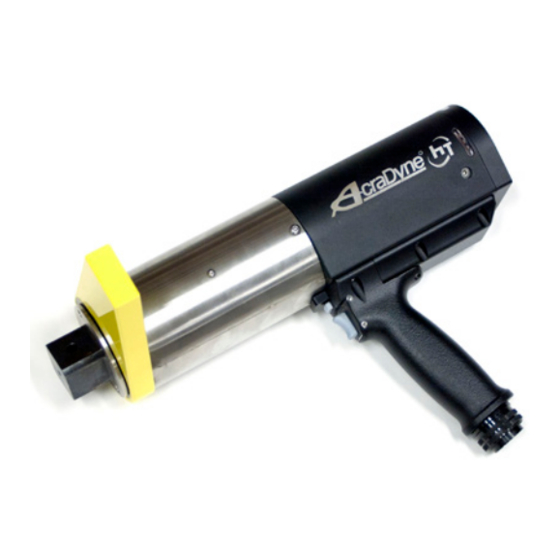

- Page 1 AcraDyne High-Torque DC Nutrunner Operations Manual 10000 SE Pine St., Portland, OR 97216 • 800-852-1368 • Fax 800-582-9015 www.aimco-global.com...
-
Page 2: Table Of Contents
AIMCO Limited Warranty ........ -
Page 3: Safety Information
- 5% to 60% RH, Non-Condensing, for temperatures • Motor Speed Setting Guidelines – All settings of 0°C to 65°C AcraDyne HT Series Nutrunners should be made only by • Maximum Altitude of Operation: 3000m experienced, well-trained technicians. Tools with maximum •... -
Page 4: Tool Specifications
17,000 12,500 29.5 * 8,100 Nm – 17,000 Nm models are not supported by the Gen III controller platform. The Gen IV controller platform is required. **Tools with “W” in the model number are offered through AIMCO’s Energy Services Group. - Page 5 For Straight Type tools Choose the position of the handle by adding (L) for left side and (R) for right side * 8,100 Nm – 17,000 Nm models are not supported by the Gen III controller platform. The Gen IV controller platform is required. **Tools with “W” in the model number are offered through AIMCO’s Energy Services Group.
-
Page 6: Operation
Operation CAUTION IS REQUIRED. FAILURE TO EXERCISE CAUTION AND CORRECT OPERATING TECHNIQUE CAN RESULT IN SERIOUS PERSONAL INJURY, LOSS OF LIMB OR DEATH. AcraDyne HT Series Nutrunners are a part of a complete system including Controller, Tool Cable and Tool. ®... - Page 7 Operation Slip Ring Models 6000 & 7000 Series Tools An optional feature (AEx4Bxxxxxxx models) on AcraDyne HT Series Nutrunners is a Slip Ring that allows the Gearbox to rotate 360 degrees in either direction related to Reaction Bar the motor/handle assembly. This feature is useful in enabling the operator to position the reaction bar against a reactive point of sufficient structure prior to commencing tightening of the bolt.
-
Page 8: Reaction Bar Safety
Reaction Bar Safety AcraDyne HT Nutrunning Systems deliver high amounts of torque to an application in a continuous drive manner. As ® is the nature with all tool systems that function in this manner, high amounts of torque reaction will occur. AcraDyne ®... -
Page 9: Accessories
Case with molded foam insert MODEL DESCRIPTION CC-8000-FIP 8000 series Case with foam in place BJ10078 Protective Cover, 6000 Series BJ10077 Protective Cover, 7000 Series Please contact an AIMCO Customer Service Associate for details, 1-503-254-6600, or toll free 1-800-852-1368. BJ10076 Protective Cover, 8000 Series... -
Page 10: Recommended Maintenance
Accessories CABLE ASSEMBLIES LENGTH 24330 Standard Tool Cable MODEL DESCRIPTION The AcraDyne DC electric nutrunner TOOL CABLES tool system uses a single cable to 24330 Cable G3 Tool Cable 3M carry all necessary conductors for 25350 Cable G3 Tool Cable 5M 16.4 superior ergonomics and durability. -
Page 11: Aimco Limited Warranty
Warranty. The warranty provision with respect to each such product may be amended by AIMCO from time to time in its sole discretion. The liability of AIMCO hereunder shall be limited to replacing or repairing, at its option, any products which are returned freight prepaid to AIMCO and which AIMCO determines to be defective as described above or, at AIMCO’s option, refunding the purchase price of such products. - Page 12 AIMCO CORPORATE HEADQUARTERS AIMCO CORPORATION DE MEXICO SA DE CV 10000 SE Pine Street Ave. Cristobal Colon 14529 Portland, Oregon 97216 Chihuahua, Chihuahua. 31125 Phone: (503) 254–6600 Mexico Toll Free: 1-800-852-1368 Phone: (01-614) 380-1010 Fax: (01-614) 380-1019 LIT-MAN169 Rev. 01/17/20...
