- Page 1 AcraDyne Gen IV 2000 Series Nutrunners Operations Manual 10000 SE Pine St., Portland, OR 97216 • 800-852-1368 • Fax 800-582-9015 www.aimco-global.com...
- Page 2 INTRODUCTION Thank you for purchasing this AcraDyne DC electric assembly tool, one of the lightest and fastest DC electric assembly tools on the market. When used with the AcraDyne iEC tool controller, this tool will provide excellent productivity, ergonomics, reliability and quality on a wide range of industrial assembly applications. Safety Information SAVE THESE INSTRUCTIONS Use safety equipment.

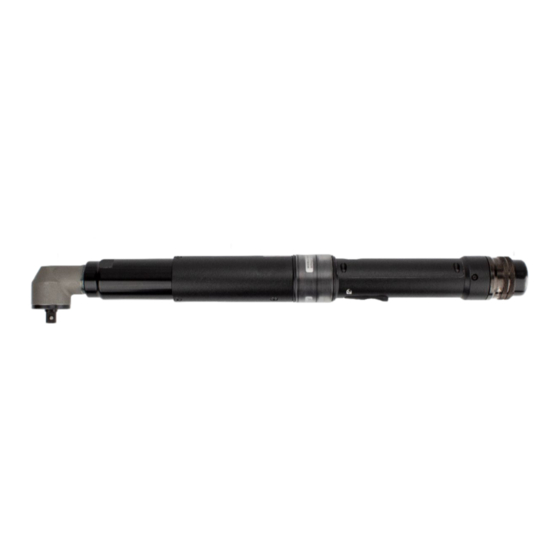

- Page 3 OPERATION Multi-function Button Cable Connection Tool Body Angle Head Square Drive Start Lever Make sure that power is not turned on at the controller before making any connections to tool. 1. Connect tool cable to the iEC controller and the tool: MFB will cause all tool LED lights to flash.
- Page 4 GEN 4 2000 SERIES ANGLE NUTRUNNERS Assembly for: AEN4C22014B, AEN4C22024B, AEN4F22029B, AEN4F22036B, AEN4F22043B, AEN4F22055B Item # Part # Description Item # Part # Description 31056 Motor Asm. 2000 B Series 31051 Dowel Pin, .094 x .75, Grooved, Steel, Zinc Plated 24860 Gear Case Sub Asm.
- Page 5 GEN 4 2000 SERIES INLINE NUTRUNNERS Assembly for: AES4A22020B, AES4A22025B, AES4A22030B, AES4A22035B, AES4A22040B Item # Part # Description Item # Part # Description 31056 Motor Asm., 2000 B Series 25557 Rev Button Sub-Assembly 24901 Gear Case Sub-Asm. for AES4A22020B 24683 Spring, Rev Button 24894 Gear Case Sub-Asm.
- Page 6 SPECIFICATIONS Environmental • Operating Temperature: 0°C to 32°C • Storage Temperature: 0°C to 65°C • Humidity: 5% to 90% RH, Non-Condensing, for temperatures 0°C to 40°C 5% to 60% RH, Non-Condensing, for temperatures 0°C to 65°C • Maximum Altitude of Operation: 3000m •...
- Page 7 NOTES ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________...
- Page 8 CORPORATE HEADQUARTERS AIMCO CORPORATION DE MEXICO SA DE CV 10000 SE Pine Street Ave. Cristobal Colon 14529 Portland, Oregon 97216 Chihuahua, Chihuahua. 31125 Phone: (503) 254-6600 Mexico Toll Free: 1-800-852-1368 Phone: (01-614) 380-1010 Fax: (01-614) 380-1019 WWW.AIMCO-GLOBAL.COM LIT-MAN272 Rev. 11/2019...
